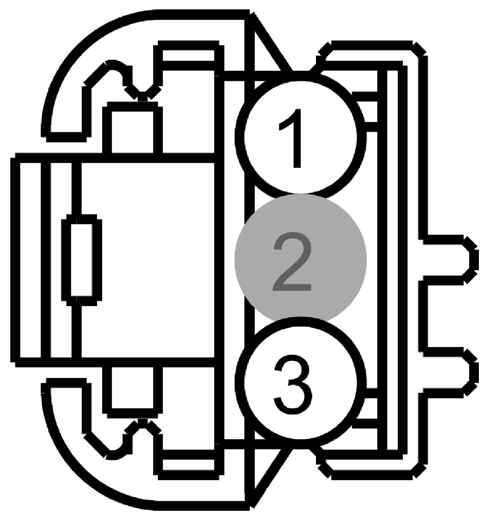

Passenger Side Center Register Air Discharge Temperature Sensor Connector End View (C2439)

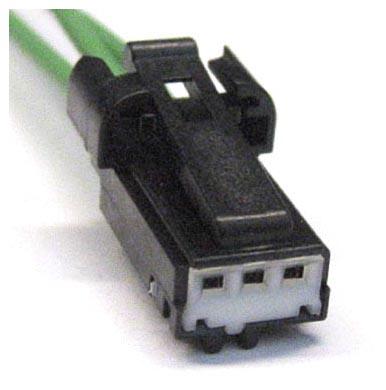

Fig 1: Identifying Passenger Side Center Register Air Discharge Temperature Sensor Connector (C2439)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH412 (YE)	26	SENSOR - DISCHARGE TEMP. # RIGHT 2ND (RIGHT FRONT FLOOR)
2	*	*	Not Used
3	RH111 (GY)	26	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
