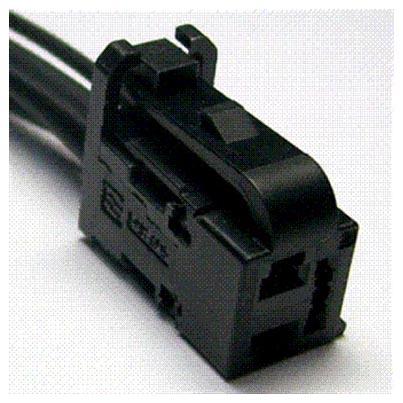

Passenger Seat Recliner Motor Connector End View (C3189)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS07 (GY-BN) | 14 | CTRL MOD. - DRIVER SEAT RECLINE INCLINE | Fusion |
| 1 | CPS29 (WH-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD | MKZ |
| 2 | VPS12 (VT-OG) | 20 | SENSOR - DRIVER SEAT RECLINE | MKZ |
| 3 | CPS08 (VT-OG) | 14 | CTRL MOD. - DRIVER SEAT RECLINE RECLINE | Fusion |
| 3 | CPS30 (VT-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD | MKZ |
| 4 | RPS12 (GN-OG) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | MKZ |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1311 | Service Part Number: CU2Z-14S411-BAA Gauge: 20 Pin material: Tin Cavities: 4 Vehicle Uses
|
