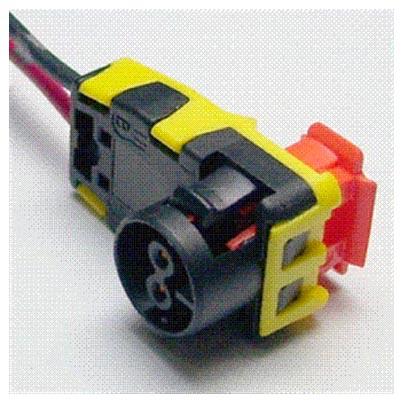

Passenger Lower Airbag Connector End View (C2607)

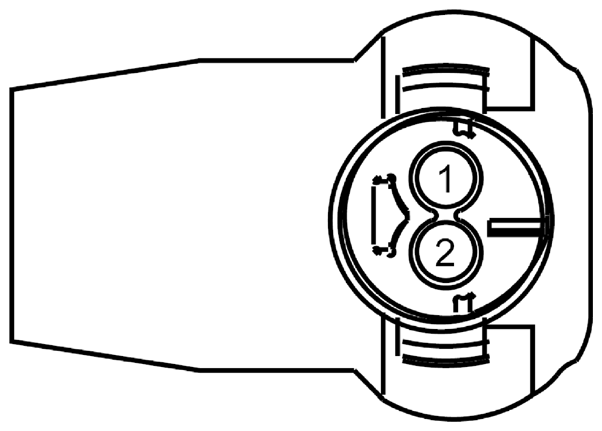

Fig 1: Identifying Passenger Lower Airbag Connector (C2607)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR169 (VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE +
2	RR169 (GY-VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1225	Service Part Number: BU2Z-14S411-BHA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
