Parking Brake Actuator Motor Connector End View (C3529)

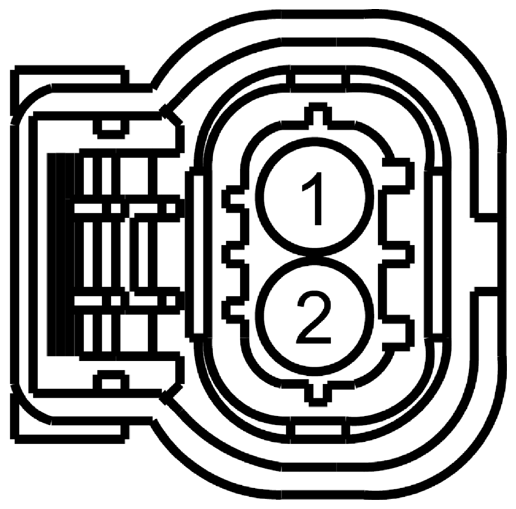

Fig 1: Identifying Parking Brake Actuator Motor Connector (C3529)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCB17 (BU-GN)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)
2	CCB16 (WH-VT)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+)

Available Pigtail Kits

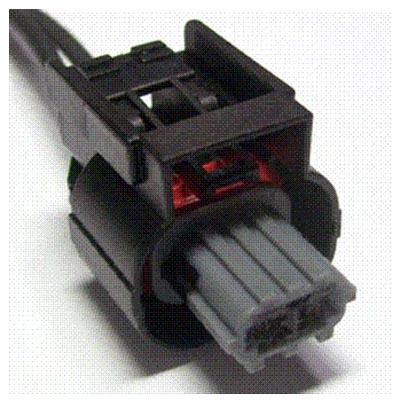

Pigtail Kit Part Number WPT-1065	Service Part Number: AU2Z-14S411-DA  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Injector - UREA Sensor - Fuel Rail Pressure Valve - Fuel Metering
