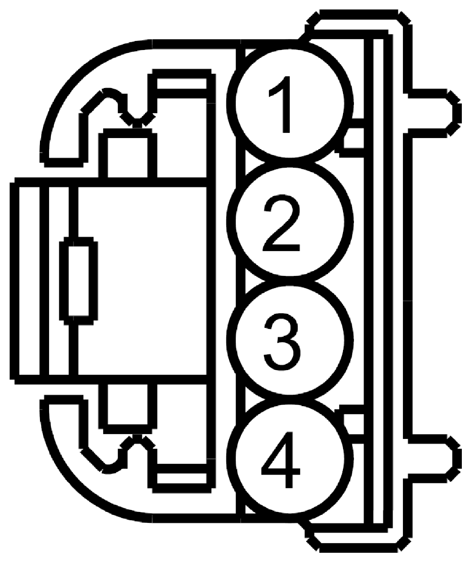

Paddle Shifter, Right Connector End View (C2428)

Fig 1: Identifying Paddle Shifter - Right Connector (C2428)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CET43 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)
2	RE407 (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)
3	RRH02 (*)	*	GROUND - CROSS CAR BEAM # 2ND POINT
4	VLN04 (*)	*	CTRL MOD. - IP/SWITCH ILLUMINATION

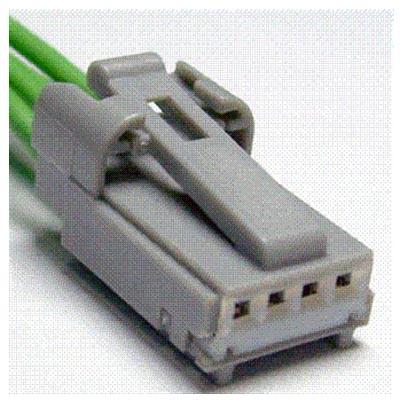

Available Pigtail Kits
Pigtail Kit Part Number WPT-1013	Service Part Number: 9U2Z-14S411-TA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Sensor - Sunload
