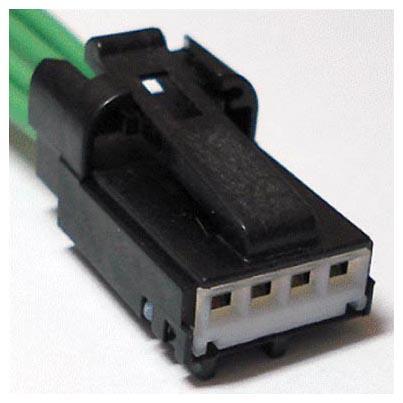

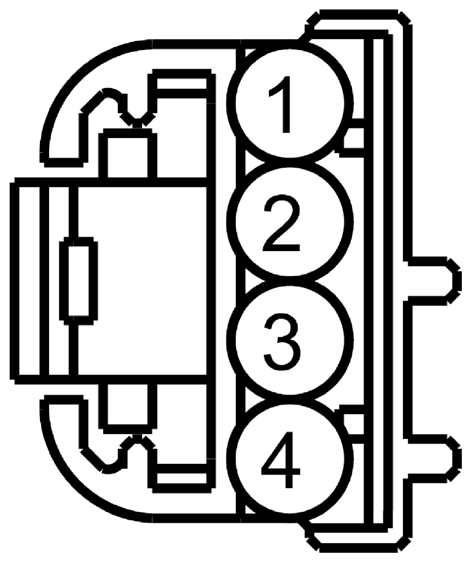

Paddle Shifter, Left Connector End View (C2429)

Fig 1: Identifying Paddle Shifter - Left Connector (C2429)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN04 (*)	*	CTRL MOD. - IP/SWITCH ILLUMINATION
2	RRH02 (*)	*	GROUND - CROSS CAR BEAM # 2ND POINT
3	RE407 (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)
4	CET42 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)

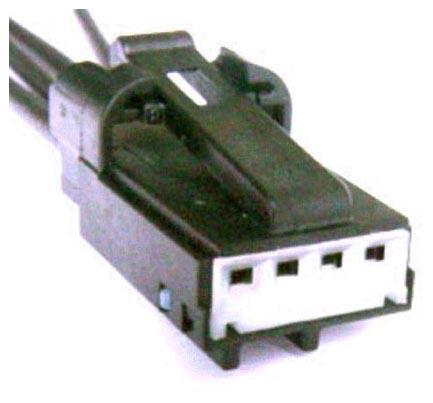

Available Pigtail Kits
Pigtail Kit Part Number WPT-874	Service Part Number: 6U2Z-14S411-JA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Relay - Oil Level Sensor - Compass Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature
Pigtail Kit Part Number WPT-982	Service Part Number: 6U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH)
