Instrument Panel Speaker, Center Connector End View (C2468)

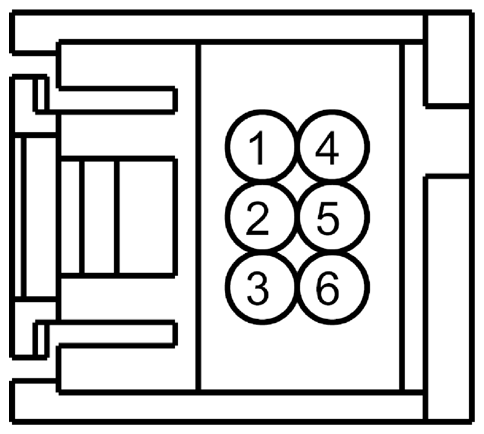

Fig 1: Identifying Instrument Panel Speaker - Center Connector (C2468)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	RME28 (BN-GN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP -
2	RME06 (GY-YE)	18	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP -
3	RME29 (BU-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP -
4	VME28 (BN-VT)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT IP +
5	VME06 (GN)	18	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP +
6	VME29 (GN-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP +

Available Pigtail Kits
Pigtail Kit Part Number WPT-923	Service Part Number: 8U2Z-14S411-XA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Module - Adjustable Pedal Memory Module - Driver Door Radio Switch - Traction Control
