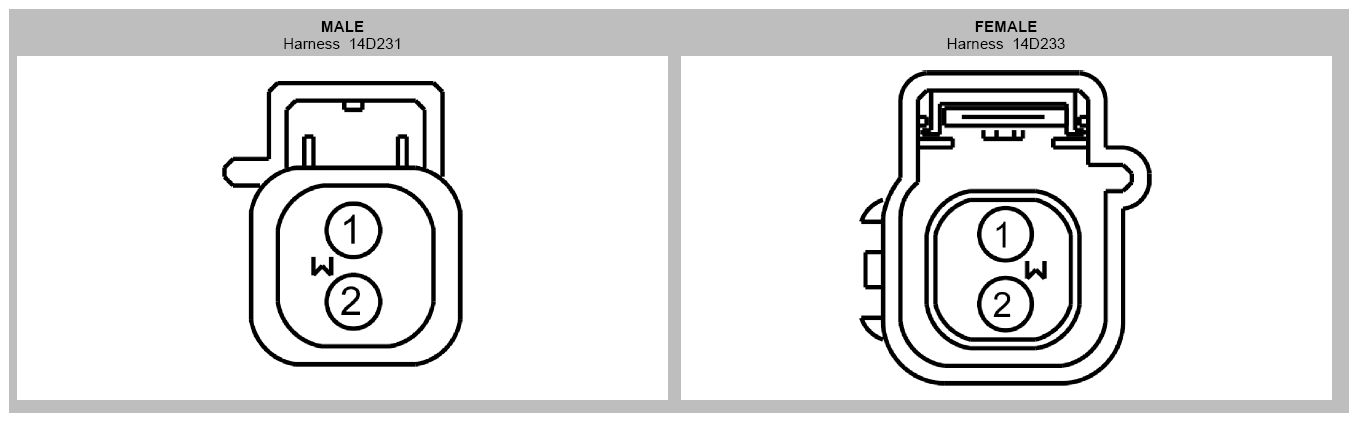

Inline Connector End View (C3368)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CR106 (VT-GY) | 20 | 14D231 |
| 1 | CR106 (YE-OG) | 20 | 14D233 |
| 2 | RR106 (VT-GY) | 20 | 14D233 |
| 2 | RR106 (YE-OG) | 20 | 14D231 |

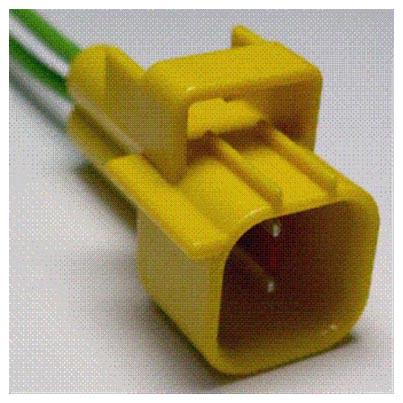

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1244 | Service Part Number: AU2Z-14S411-BMA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses:
|
