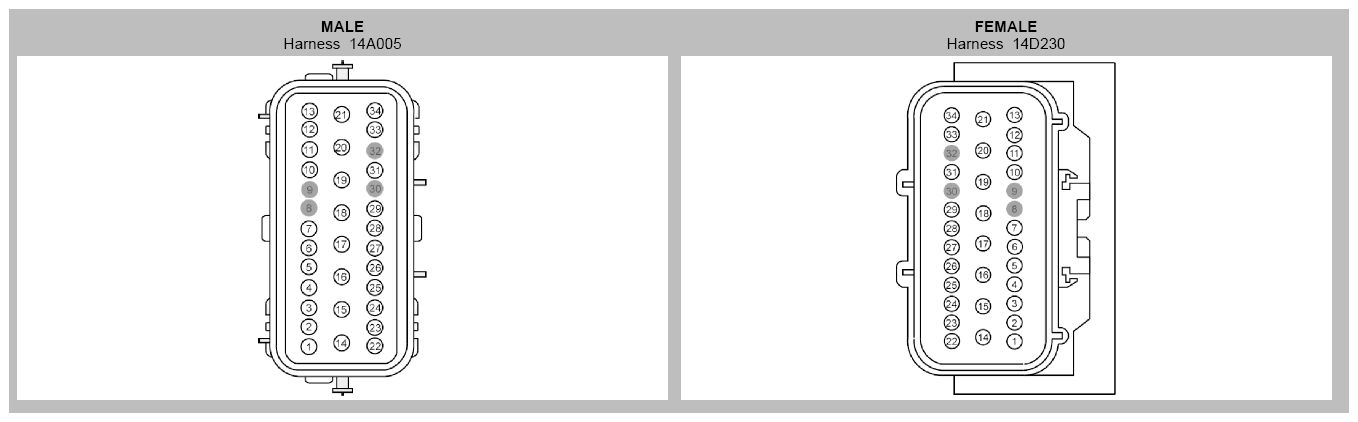

Inline Connector End View (C3133)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CR106 (VT-GY) |
20 |
|
| 2 |
RR106 (YE-OG) |
20 |
|
| 3 |
VR215 (YE-VT) |
20 |
14D230 |
| 3 |
VR216 (GN-OG) |
20 |
14A005 |
| 4 |
VDB06 (GY-OG) |
20 |
MKZ |
| 5 |
VDB07 (VT-OG) |
20 |
MKZ |
| 6 |
VDB06 (GY-OG) |
20 |
MKZ |
| 7 |
VDB07 (VT-OG) |
20 |
MKZ |
| 8 |
* |
* |
14A005 |
| 8 |
VR210 (BU-BN) |
20 |
14D230 |
| 9 |
* |
* |
14A005 |
| 9 |
LR142 (YE-BU) |
20 |
14D230 |
| 10 |
CR201 (GN-BU) |
20 |
14D230 |
| 10 |
CR203 (GY-VT) |
20 |
14A005 |
| 11 |
VDB04 (WH-BU) |
20 |
14D230 |
| 11 |
VDB25 (GN-OG) |
20 |
14A005 |
| 12 |
VDB05 (WH) |
20 |
14D230 |
| 12 |
VDB26 (GY-BU) |
20 |
14A005 |
| 13 |
SBB53 (GY-RD) |
20 |
14A005 - MKZ |
| 13 |
SBX06 (GY-RD) |
18 |
14D230 - MKZ |
| 14 |
CHS02 (YE-BU) |
14 |
MKZ |
| 15 |
GD383 (BK-WH) |
16 |
Fusion |
| 15 |
RHS02 (BU-OG) |
14 |
MKZ |
| 16 |
GD383 (BK-WH) |
12 |
14A005 |
| 16 |
GD904 (BK-BU) |
14 |
14D230 |
| 17 |
GD901 (BK) |
16 |
14D230 |
| 17 |
RR137 (BU-GY) |
20 |
14A005 |
| 18 |
CHS01 (GY-VT) |
14 |
14A005 - MKZ |
| 18 |
RHS01 (WH-VT) |
14 |
14D230 - MKZ |
| 19 |
CHS01 (GY-VT) |
14 |
14D230 - MKZ |
| 19 |
RHS01 (WH-VT) |
14 |
14A005 - MKZ |
| 20 |
CBX01 (GN-RD) |
14 |
14D230 - MKZ |
| 20 |
SBB77 (GY-RD) |
12 |
14A005 - MKZ |
| 21 |
CBX05 (VT-RD) |
14 |
14D230 |
| 21 |
SBB70 (BN-RD) |
10 |
14A005 - MKZ |
| 21 |
SBB70 (BN-RD) |
12 |
14A005 - Fusion |
| 22 |
VHS26 (VT) |
20 |
MKZ |
| 23 |
RHS05 (YE-VT) |
20 |
MKZ |
| 24 |
CHS14 (GN) |
20 |
14D230 - MKZ |
| 24 |
VHS35 (VT-OG) |
20 |
14A005 - MKZ |
| 25 |
CHS29 (WH-BU) |
20 |
14D230 - MKZ |
| 25 |
RHS15 (GY-BN) |
20 |
14A005 - MKZ |
| 26 |
VHS18 (BN-GN) |
20 |
MKZ |
| 27 |
CHS09 (WH-BU) |
20 |
14D230 - MKZ |
| 27 |
VHS16 (BU-GN) |
14 |
14A005 - MKZ |
| 28 |
CHS03 (GN-BN) |
20 |
MKZ |
| 29 |
RHS03 (GY-OG) |
20 |
MKZ |
| 30 |
* |
* |
14A005 |
| 30 |
RHS05 (YE-VT) |
20 |
14D230 |
| 31 |
VHS27 (BU-OG) |
20 |
14A005 - Fusion |
| 31 |
VHS27 (BU-OG) |
20 |
14D230 |
| 31 |
VHS27 (VT) |
20 |
14A005 - MKZ |
| 31 |
VHS27 (VT) |
20 |
14D230 |
| 32 |
* |
* |
|
| 33 |
CHS02 (YE-BU) |
16 |
14D230 |
| 33 |
CHS07 (GY-BU) |
18 |
14A005 |
| 34 |
CBP22 (GN-OG) |
20 |
14A005 |
| 34 |
CBX02 (BN-RD) |
20 |
14D230 |
