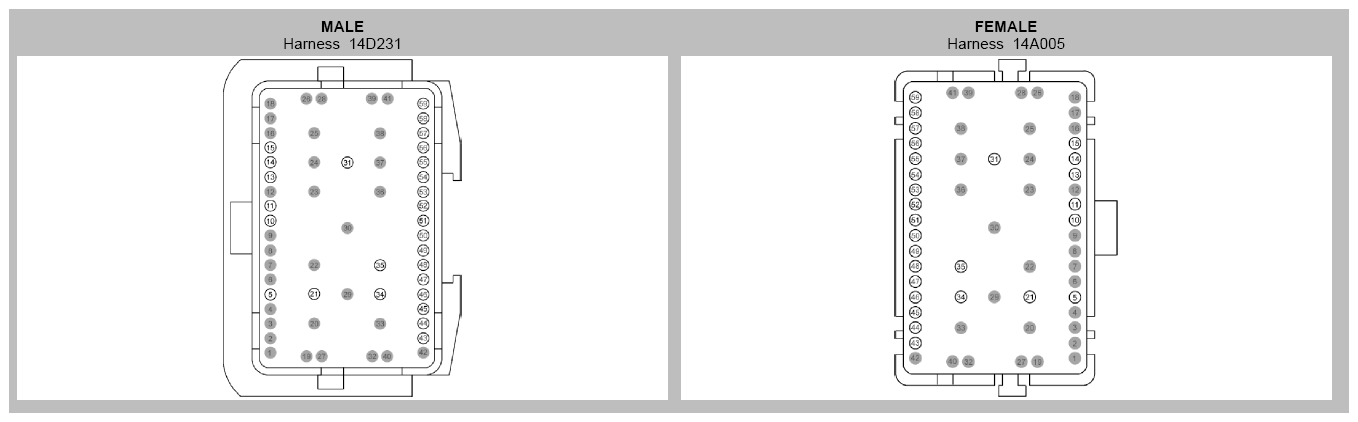

Inline Connector End View (C3052)

Fig 1: Identifying Inline Connector (C3052)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	CBX03 (BU-RD)	20	14D231
5	SBP02 (YE-RD)	20	14A005
6	*	*
7	*	*
8	*	*
9	*	*
10	VDB06 (GY-OG)	20
11	VDB07 (VT-OG)	20
12	*	*
13	CPP22 (GY-BN)	18	14D231
13	CPP22 (GY-BN)	20	14A005
14	CPP04 (GY)	20	14A005
14	CPP04 (GY-OG)	18	14D231
15	CPP18 (BN-VT)	20	14D231
15	VPP08 (WH)	20	14A005
16	*	*
17	*	*
18	*	*
19	*	*
20	*	*
21	CBX04 (WH-RD)	16	14D231
21	SBP02 (YE-RD)	20	14A005
22	*	*
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	*	*
29	*	*
30	*	*
31	GD382 (BK-GY)	12	14A005
31	GD906 (BK-GY)	14	14D231
32	*	*
33	*	*
34	CPP23 (VT-GN)	18	14D231
34	CPP23 (VT-GY)	20	14A005
35	CPP03 (GN-VT)	18	14D231
35	CPP03 (GN-VT)	20	14A005
36	*	*
37	*	*
38	*	*
39	*	*
40	*	*
41	*	*
42	*	*
43	*	*
44	*	*
45	RPP07 (YE-GN)	20	14D231
45	VPP17 (VT-BN)	20	14A005
46	*	*
47	*	*
48	*	*
49	*	*
50	*	*
51	CPP05 (WH-VT)	20	14A005
51	RPP06 (GN)	20	14D231
52	GD382 (BK-GY)	20	14A005
52	GD905 (BK-GN)	20	14D231
53	*	*
54	*	*
55	*	*
56	*	*
57	*	*
58	*	*
59	*	*
