Driver Seat Recliner Motor Connector End View (C3187)

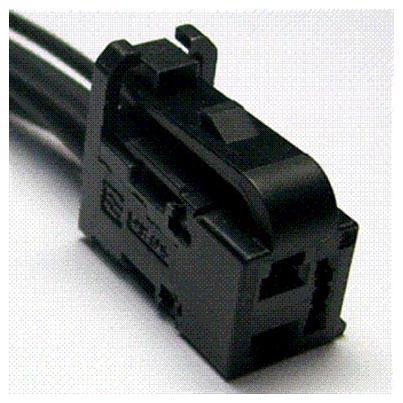

Fig 1: Identifying Driver Seat Recliner Motor Connector (C3187)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS07 (GY-BN)	14	CTRL MOD. - DRIVER SEAT RECLINE INCLINE
2	VPS12 (VT-OG)	20	SENSOR - DRIVER SEAT RECLINE
3	CPS08 (VT-OG)	14	CTRL MOD. - DRIVER SEAT RECLINE RECLINE
4	RPS12 (GN-OG)	20	CTRL MOD. - DRIVER SEAT SENSORS RECLINE -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1311	Service Part Number: CU2Z-14S411-BAA  Gauge: 20  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Seat Height (Front) Motor - Seat Recline
