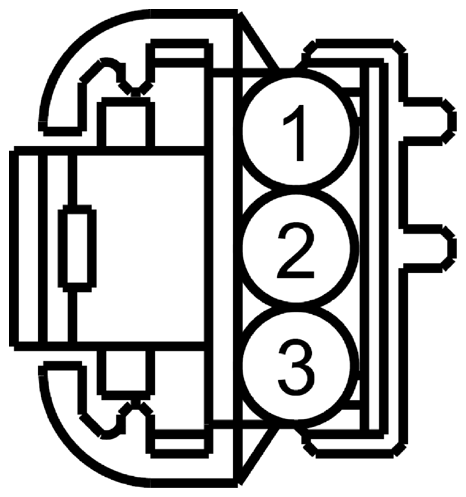

Driver Outer I/P Lamp Connector End View (C2483)

Fig 1: Identifying Driver Outer I/P Lamp Connector (C2483)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX07 (GN)	26	POWER - CTRL MOD. AMBIENT LIGHTING
2	VDN07 (WH)	26	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
3	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE

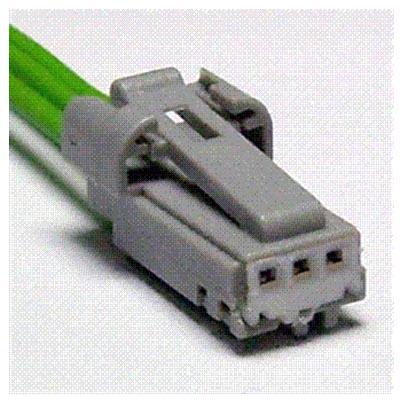

Available Pigtail Kits
Pigtail Kit Part Number WPT-1182	Service Part Number: BU2Z-14S411-AFA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Microphone
