Driver Lower Airbag Connector End View (C2432)

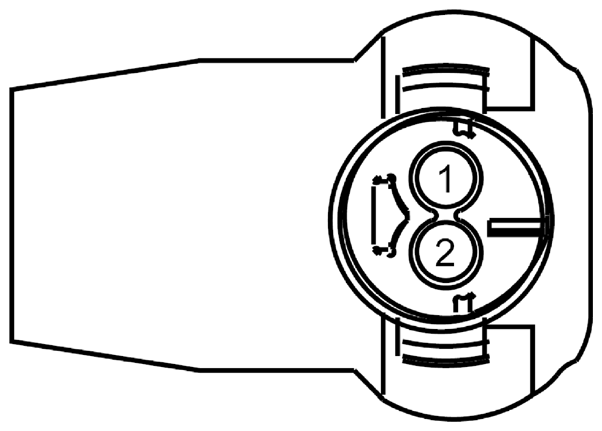

Fig 1: Identifying Driver Lower Airbag Connector (C2432)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +
2	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -

Available Pigtail Kits

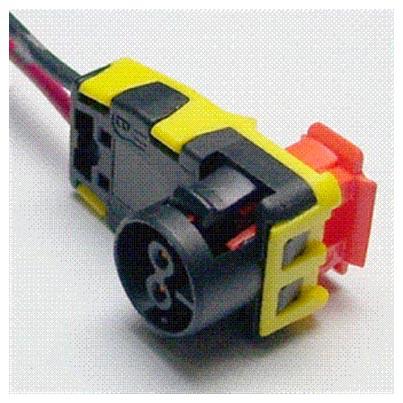

Pigtail Kit Part Number WPT-1225	Service Part Number: BU2Z-14S411-BHA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
