Ac Outlet Connector End View (C3429)

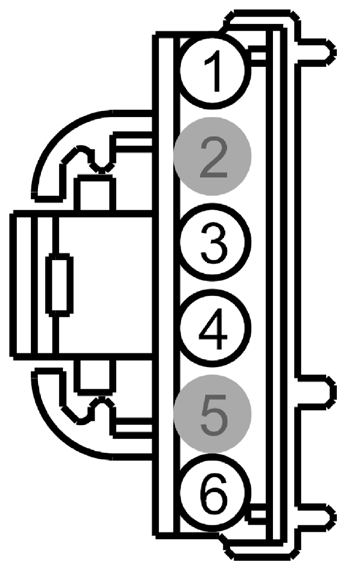

Fig 1: Identifying AC Outlet Connector (C3429)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)
2	*	*	Not Used
3	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -
4	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +
5	*	*	Not Used
6	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (ACB)

Available Pigtail Kits

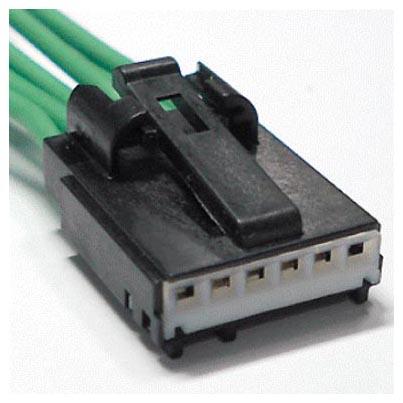

Pigtail Kit Part Number WPT-1006	Service Part Number: 7U2Z-14S411-NB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front)

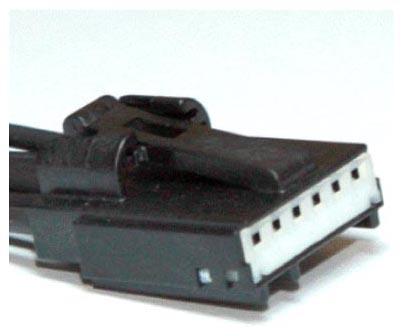

Pigtail Kit Part Number WPT-895	Service Part Number: 7U2Z-14S411-NA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Junction Box - Relay Sensor - Throttle Position Sensor - Transmission Oil Temperature Speaker - Tweeter - RH - Rear Switch - Convertable Top
