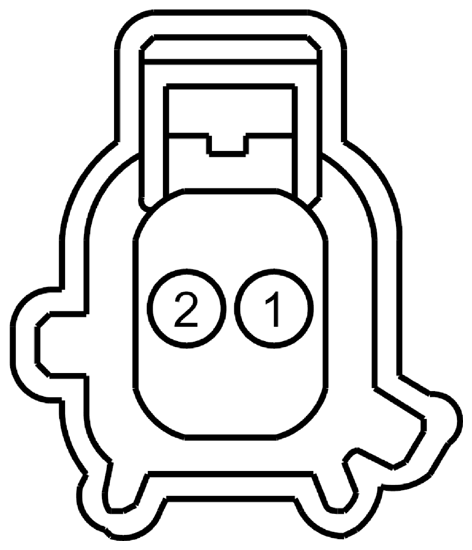

Windshield Washer Pump Connector End View (C137)

Fig 1: Identifying Windshield Washer Pump Connector (C137)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT
2	CRW14 (BU-WH)	20	CTRL MOD. - FRONT WASHER

Available Pigtail Kits

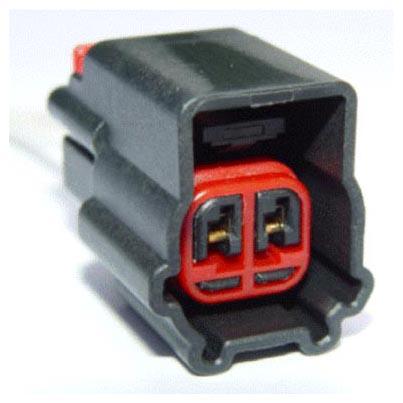

Pigtail Kit Part Number WPT-837	Service Part Number: 4U2Z-14S411-RA  Gauge: 16  Pin material: Gold  Cavities: 2  Vehicle Uses Fuel Pump/Sending Unit

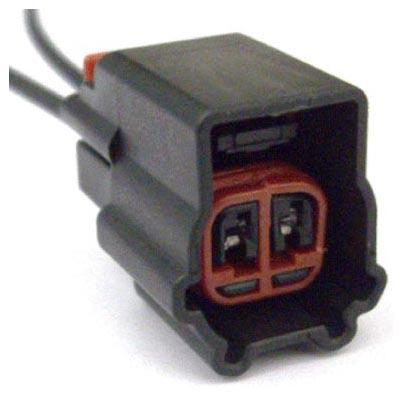

Pigtail Kit Part Number WPT-948	Service Part Number: 3U2Z-14S411-EKB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact
