Passive Anti-Theft Transceiver Connector End View (C252)

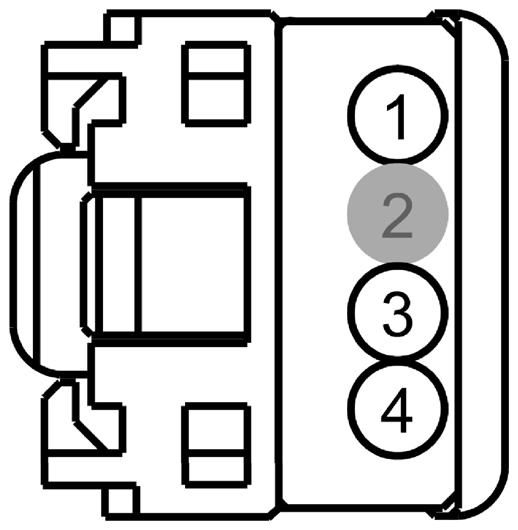

Fig 1: Identifying Passive Anti-Theft Transceiver Connector (C252)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE436 (VT)	26	CTRL MOD. -WAKE UP PCM
2	*	*	Not Used
3	VDN01 (BU-WH)	26	CTRL MOD. - LIN BUS # SPDJB 1
4	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139
