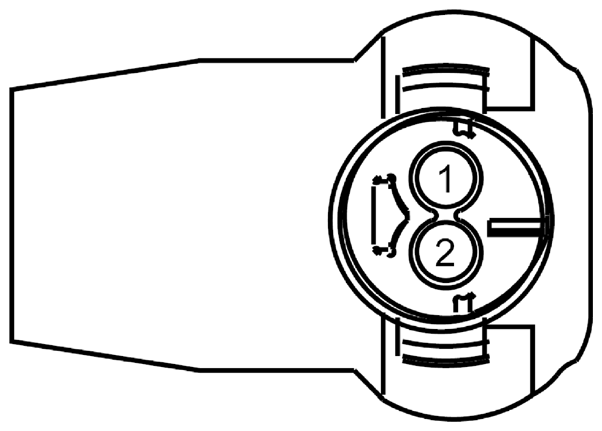

Passenger Airbag Connector End View (C256B)

Fig 1: Identifying Passenger Airbag Connector (C256B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +
2	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -

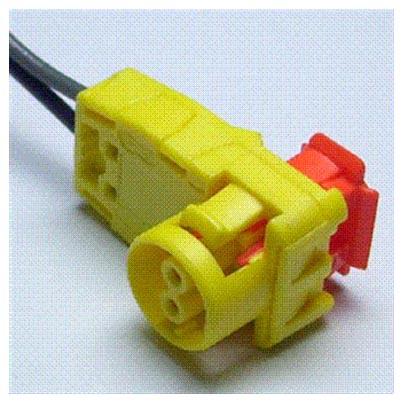

Available Pigtail Kits
Pigtail Kit Part Number WPT-1227	Service Part Number: BU2Z-14S411-BKA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
