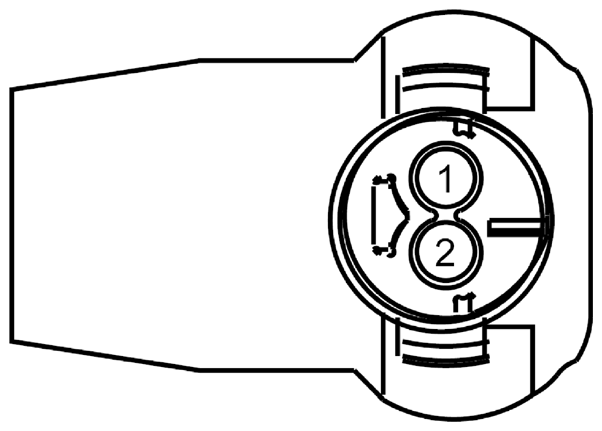

Passenger Airbag Connector End View (C256A)

Fig 1: Identifying Passenger Airbag Connector (C256A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +
2	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -

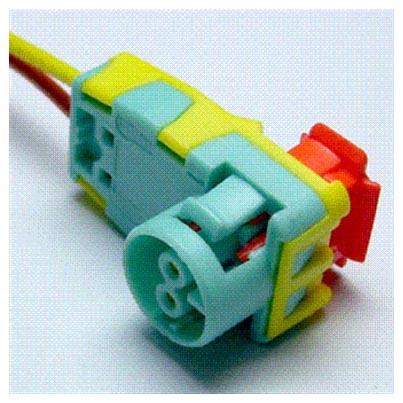

Available Pigtail Kits
Pigtail Kit Part Number WPT-1226	Service Part Number: BU2Z-14S411-BJA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Squib - Airbag (Passenger)
