Low Washer Fluid Warning Indicator Switch Connector End View (C138)

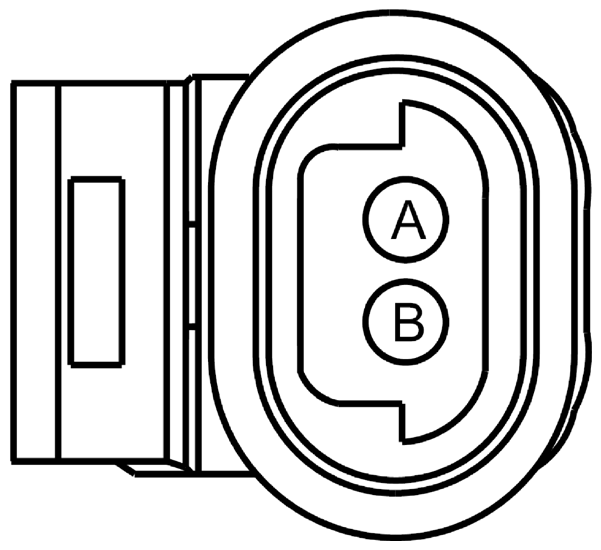

Fig 1: Identifying Low Washer Fluid Warning Indicator Switch Connector (C138)
G09266034Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
A CMC20 (VT) 20 SWITCH - LOW LEVEL WASHER FLUID
B GD123 (BK-GY) 20 GROUND - FENDER FRONT RIGHT
