Inline Connector End View (C291)

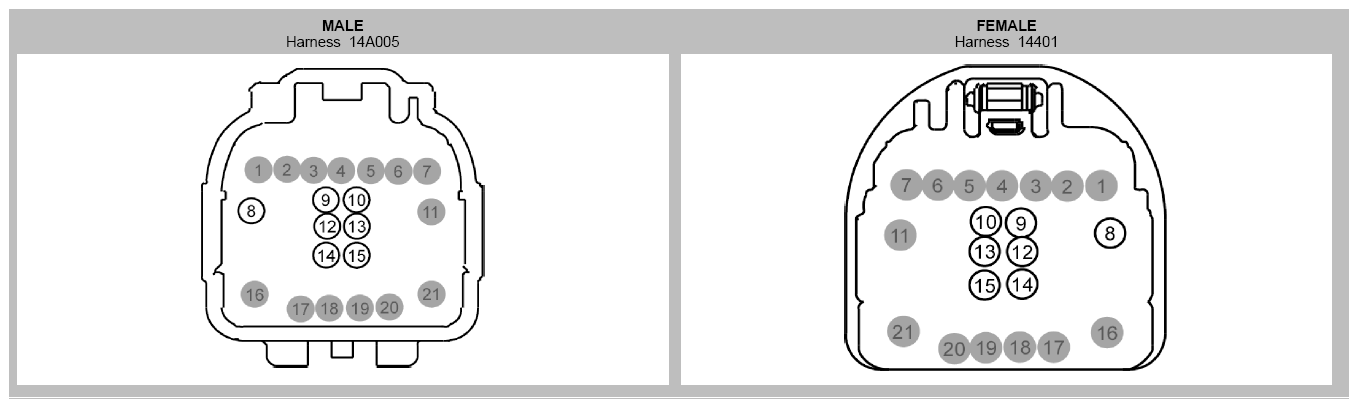

Fig 1: Identifying Inline Connector (C291)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	*	*
6	*	*
7	*	*
8	DME52 (*)	20
9	VDB04 (BU)	22	14401
9	VDB04 (WH-BU)	22	14A005
10	VDB05 (WH)	22
11	*	*
12	VME53 (VT-GN)	20	14A005
12	VME53 (VT-GN)	22	14401
13	RME53 (BN-WH)	20	14A005
13	RME53 (BN-WH)	22	14401
14	VME52 (BU)	20	14A005
14	VME52 (BU)	22	14401
15	RME52 (GY-OG)	20	14A005
15	RME52 (GY-OG)	22	14401
16	*	*
17	*	*
18	*	*
19	*	*
20	*	*
21	*	*
