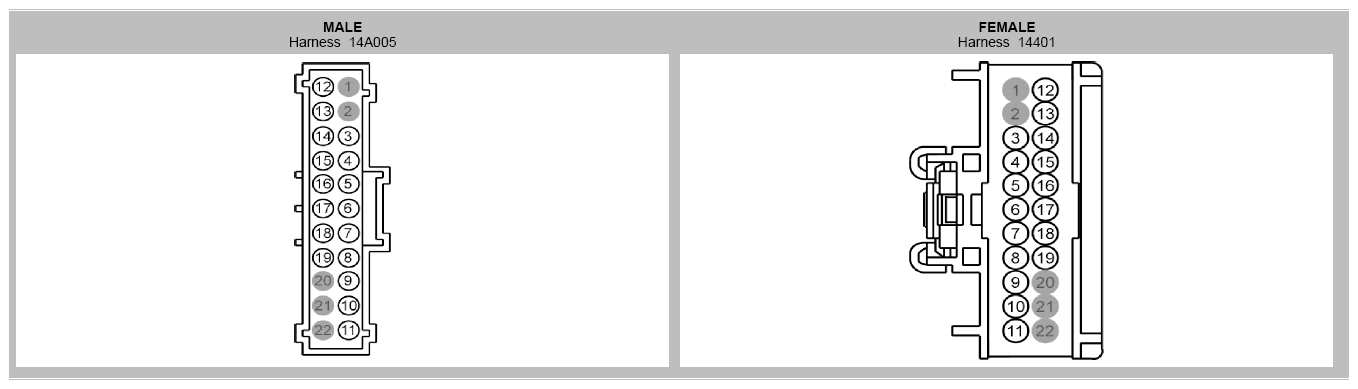

Inline Connector End View (C275)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* |
* |
14A005 |
| 1 |
* |
* |
14401 |
| 2 |
* |
* |
|
| 3 |
CPP03 (GN-VT) |
20 |
|
| 4 |
CPP04 (GY) |
20 |
|
| 5 |
CPP05 (WH-VT) |
20 |
|
| 6 |
CPP23 (VT-GY) |
20 |
|
| 7 |
CPP22 (GY-BN) |
20 |
|
| 8 |
VPP08 (WH) |
20 |
|
| 9 |
VPP17 (VT-BN) |
20 |
|
| 10 |
CPL45 (BN) |
22 |
|
| 11 |
CPR63 (GY-YE) |
22 |
|
| 12 |
VMEA9 (BU) |
26 |
14401 |
| 12 |
VMEA9 (BU-GY) |
22 |
14A005 |
| 13 |
RMEA9 (VT) |
26 |
14401 |
| 13 |
RMEA9 (VT-BN) |
22 |
14A005 |
| 14 |
VMEB0 (GN) |
26 |
14401 |
| 14 |
VMEB0 (GN-WH) |
22 |
14A005 |
| 15 |
RMEB0 (BN) |
26 |
14401 |
| 15 |
RMEB0 (WH-BN) |
22 |
14A005 |
| 16 |
VDB29 (GN) |
22 |
14401 |
| 16 |
VDB29 (GN) |
26 |
14A005 |
| 17 |
VDB30 (WH) |
22 |
14401 |
| 17 |
VDB30 (WH) |
26 |
14A005 |
| 18 |
VDB25 (GN) |
26 |
|
| 19 |
VDB26 (GY) |
26 |
|
| 20 |
* |
* |
|
| 21 |
* |
* |
|
| 22 |
* |
* |
|
