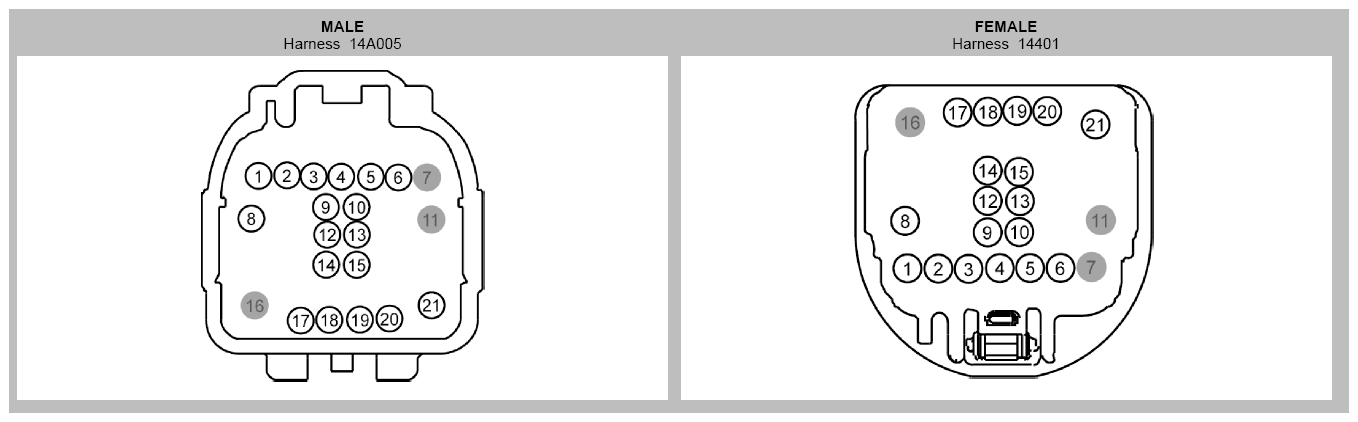

Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VDB06 (GY) |
26 |
14401 - MKZ |
| 1 |
VDB06 (GY) |
26 |
14A005 |
| 1 |
VDB06 (GY-OG) |
22 |
Fusion |
| 2 |
VDB07 (VT) |
22 |
14401 - MKZ |
| 2 |
VDB07 (VT) |
26 |
14A005 |
| 2 |
VDB07 (VT-OG) |
22 |
Fusion |
| 3 |
VDB29 (GN) |
22 |
14401 - MKZ |
| 3 |
VDB29 (GN) |
26 |
14A005 |
| 3 |
VDB29 (GN-BU) |
22 |
Fusion |
| 4 |
VDB30 (WH) |
22 |
14401 - MKZ |
| 4 |
VDB30 (WH) |
26 |
14A005 |
| 4 |
VDB30 (WH-GN) |
22 |
Fusion |
| 5 |
VME06 (GN) |
18 |
|
| 5 |
VME06 (GN) |
20 |
14A005 |
| 6 |
RME06 (GY-YE) |
18 |
|
| 6 |
RME06 (GY-YE) |
20 |
14A005 |
| 7 |
* |
* |
|
| 8 |
VDN05 (YE) |
22 |
14401 - MKZ |
| 8 |
VDN05 (YE-GY) |
22 |
14401 - Fusion |
| 8 |
VDN05 (YE-GY) |
22 |
14A005 |
| 9 |
VME90 (GY-BU) |
20 |
14A005 |
| 9 |
VME90 (GY-BU) |
22 |
14401 |
| 10 |
VME91 (WH-BN) |
20 |
14A005 |
| 10 |
VME91 (WH-BN) |
22 |
14401 |
| 11 |
* |
* |
|
| 12 |
VME29 (GN-WH) |
18 |
14401 |
| 12 |
VME29 (GN-WH) |
20 |
14A005 |
| 13 |
RME29 (BU-WH) |
18 |
14401 |
| 13 |
RME29 (BU-WH) |
20 |
14A005 |
| 14 |
VME28 (BN-VT) |
18 |
14401 |
| 14 |
VME28 (BN-VT) |
20 |
14A005 |
| 15 |
RME28 (BN-GN) |
18 |
14401 |
| 15 |
RME28 (BN-GN) |
20 |
14A005 |
| 16 |
* |
* |
|
| 17 |
VMM23 (BN) |
26 |
14401 - MKZ |
| 17 |
VMM23 (BN) |
26 |
14A005 |
| 17 |
VMM23 (BN-VT) |
22 |
14401 - Fusion |
| 18 |
RMM23 (GN) |
26 |
14A005 |
| 18 |
RMM23 (WH) |
26 |
14401 - MKZ |
| 18 |
RMM23 (WH) |
26 |
14A005 |
| 18 |
RMM23 (WH-GN) |
22 |
14401 - Fusion |
| 19 |
VME80 (VT-GN) |
20 |
14A005 |
| 19 |
VME80 (VT-GN) |
22 |
14401 |
| 20 |
RME80 (BU-GY) |
20 |
14A005 |
| 20 |
RME80 (BU-GY) |
22 |
14401 |
| 21 |
DME80 (*) |
20 |
|
