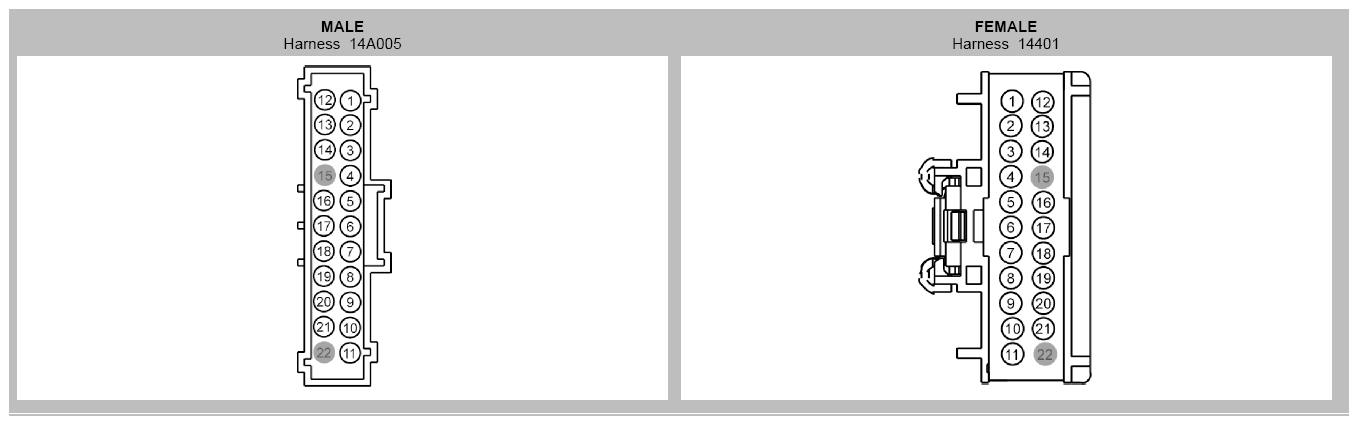

Inline Connector End View (C248)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
DMP19 (*) |
20 |
|
| 2 |
VMP19 (WH-GN) |
22 |
|
| 3 |
RMP19 (BN-VT) |
22 |
|
| 4 |
VDB06 (GY) |
22 |
14401 - MKZ |
| 4 |
VDB06 (GY) |
26 |
14A005 |
| 4 |
VDB06 (GY-OG) |
22 |
14401 - Fusion |
| 5 |
VDB07 (VT) |
22 |
14401 - MKZ |
| 5 |
VDB07 (VT) |
26 |
14A005 |
| 5 |
VDB07 (VT-OG) |
22 |
14401 - Fusion |
| 6 |
RMC32 (GN-BU) |
22 |
14A005 |
| 6 |
RMC32 (GN-WH) |
26 |
14401 |
| 7 |
VMC11 (YE) |
26 |
14401 |
| 7 |
VMC11 (YE-VT) |
22 |
14A005 |
| 8 |
VMC23 (GN) |
26 |
14401 |
| 8 |
VMC23 (GN-OG) |
22 |
14A005 |
| 9 |
RMC33 (WH) |
26 |
14401 |
| 9 |
RMC33 (WH-VT) |
22 |
14A005 |
| 10 |
CBX07 (GN) |
26 |
14401 |
| 10 |
CBX07 (GN-RD) |
22 |
14A005 |
| 11 |
VLN04 (BU-WH) |
22 |
14401 |
| 11 |
VLN04 (VT-GY) |
22 |
14A005 |
| 12 |
VDN04 (VT-WH) |
22 |
|
| 13 |
RHS05 (YE-VT) |
22 |
14401 |
| 13 |
VHS26 (VT) |
20 |
14A005 |
| 14 |
CHS02 (YE-BU) |
18 |
|
| 15 |
* |
* |
|
| 16 |
CPL26 (GN-VT) |
22 |
|
| 17 |
RH111 (GY) |
26 |
|
| 18 |
VPL56 (BU-GY) |
22 |
14A005 |
| 18 |
VPL56 (BU-WH) |
26 |
14401 |
| 19 |
CPL30 (BU-BN) |
20 |
14A005 |
| 19 |
CPL30 (BU-BN) |
22 |
14401 |
| 20 |
CBP21 (BU-GY) |
22 |
|
| 21 |
GD215 (BK-GY) |
18 |
14401 - Fusion |
| 21 |
GD215 (BK-GY) |
18 |
14A005 |
| 21 |
GD215 (BK-GY) |
20 |
14401 - MKZ |
| 22 |
* |
* |
|
