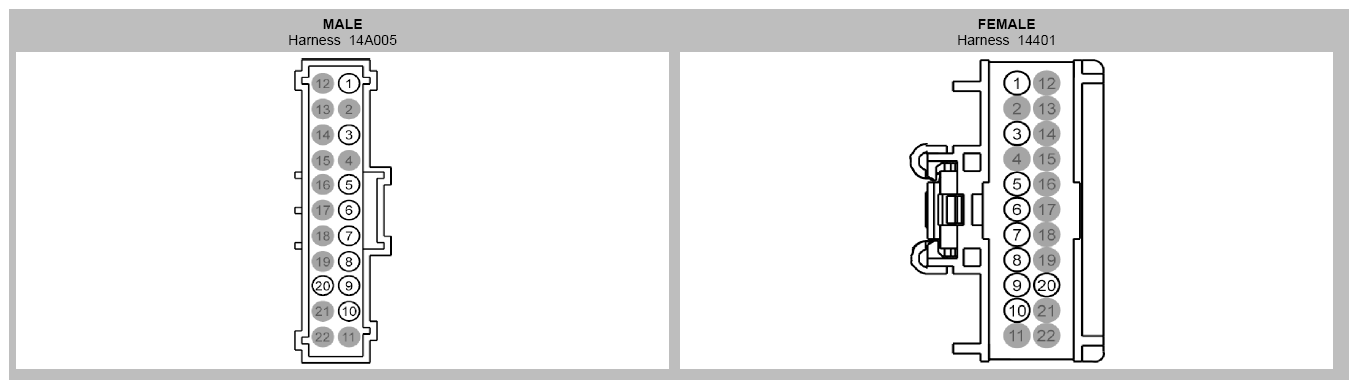

Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CBX07 (GN-RD) |
22 |
|
| 2 |
* |
* |
|
| 3 |
VLN04 (VT) |
26 |
14401 |
| 3 |
VLN04 (VT-GY) |
22 |
14A005 |
| 4 |
* |
* |
|
| 5 |
VDB29 (GN) |
26 |
|
| 5 |
VDB29 (GN-BU) |
22 |
14401 |
| 6 |
VDB30 (WH) |
26 |
|
| 6 |
VDB30 (WH-GN) |
22 |
14401 |
| 7 |
VDB25 (GN) |
26 |
14401 |
| 7 |
VDB25 (GN-WH) |
26 |
14A005 |
| 8 |
VDB26 (GY) |
26 |
|
| 9 |
VDB04 (BU) |
26 |
14401 |
| 9 |
VDB04 (WH) |
22 |
14A005 |
| 10 |
VDB05 (BU) |
22 |
14A005 |
| 10 |
VDB05 (WH) |
26 |
14401 |
| 11 |
* |
* |
|
| 12 |
* |
* |
|
| 13 |
* |
* |
|
| 14 |
* |
* |
|
| 15 |
* |
* |
|
| 16 |
* |
* |
|
| 17 |
* |
* |
|
| 18 |
* |
* |
|
| 19 |
* |
* |
|
| 20 |
CME36 (GN-VT) |
18 |
Fusion |
| 21 |
* |
* |
|
| 22 |
* |
* |
|
