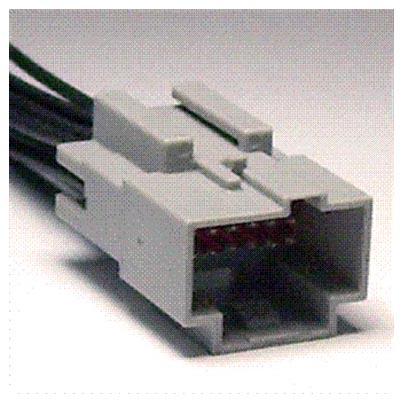

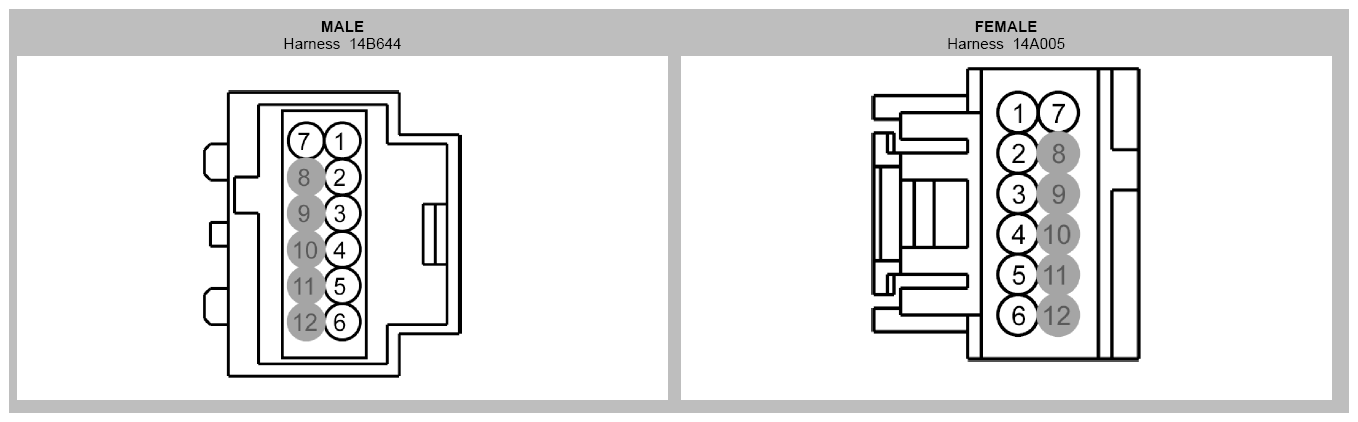

Inline Connector End View (C212)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | VME17 (GN) | 20 | 14A005 |
| 1 | VME17 (GN) | 22 | 14B644 |
| 2 | RME17 (GY) | 20 | 14A005 |
| 2 | RME17 (GY) | 22 | 14B644 |
| 3 | VME18 (VT) | 20 | 14A005 |
| 3 | VME18 (VT) | 22 | 14B644 |
| 4 | RME18 (YE) | 20 | 14A005 |
| 4 | RME18 (YE) | 22 | 14B644 |
| 5 | VME92 (WH-GN) | 20 | 14A005 |
| 5 | VME92 (WH-GN) | 22 | 14B644 |
| 6 | RME92 (WH-OG) | 22 | 14B644 |
| 6 | VME93 (GN-BN) | 20 | 14A005 |
| 7 | DME17 (*) | 20 | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | * | * |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1185 | Service Part Number: BU2Z-14S411-AJA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses:
|
