Inline Connector End View (C192)

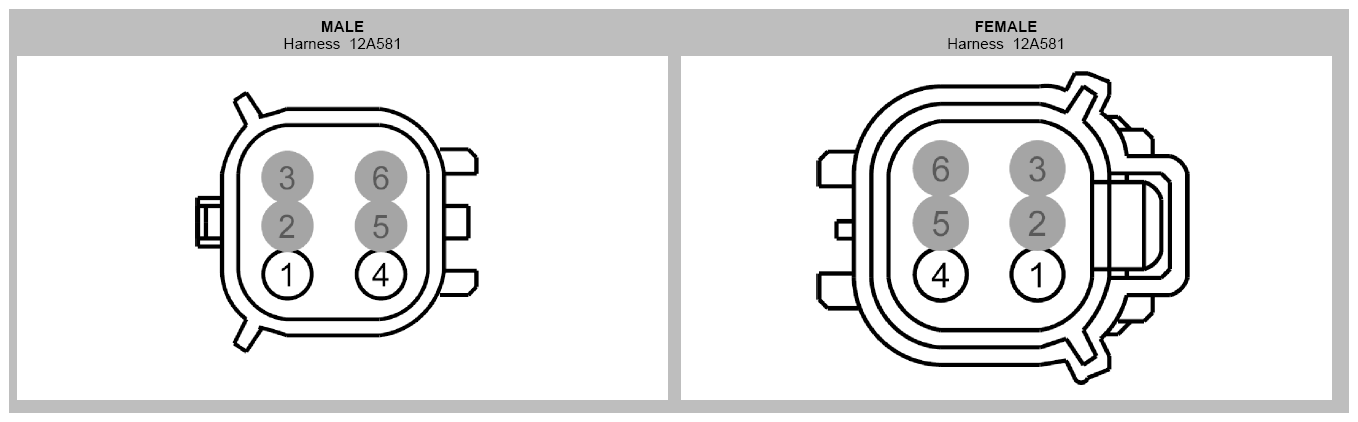

Fig 1: Identifying Inline Connector (C192)
G09266080Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CBB25 (WH-OG) 18
2 * * 12A581
2 VDB25 (GN-OG) 18 12A581
3 * *
4 CBB25 (WH-OG) 18
5 * * 12A581
5 VDB26 (GY-BU) 18 12A581
6 * *
