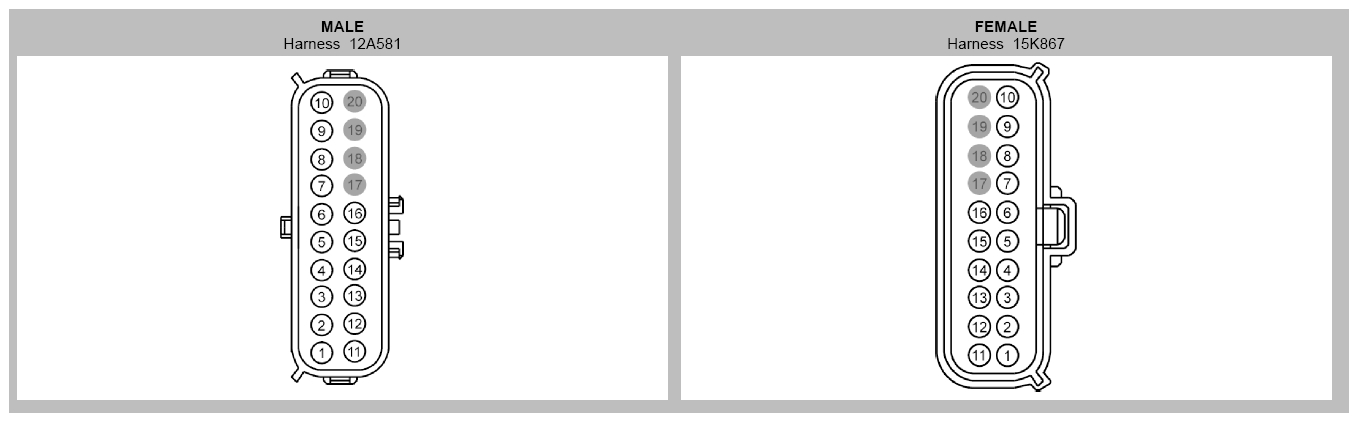

Inline Connector End View (C134)

Fig 1: Identifying Inline Connector (C134)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	RMP06 (YE-OG)	20	12A581
1	RMP06 (YE-OG)	22	15K867
2	VMP21 (WH-BN)	18	15K867 - Fusion
2	VMP21 (WH-BN)	20	12A581
2	VMP21 (WH-BN)	22	15K867 - MKZ
3	VMP10 (WH-BU)	18	15K867 - Fusion
3	VMP10 (WH-BU)	20	12A581
3	VMP10 (WH-BU)	22	15K867 - MKZ
4	VMP11 (BU-GN)	18	15K867 - Fusion
4	VMP11 (BU-GN)	20	12A581
4	VMP11 (BU-GN)	22	15K867 - MKZ
5	VMP12 (BU-GY)	18	15K867 - Fusion
5	VMP12 (BU-GY)	20	12A581
5	VMP12 (BU-GY)	22	15K867 - MKZ
6	VMP13 (BU-OG)	18	15K867 - Fusion
6	VMP13 (BU-OG)	20	12A581
6	VMP13 (BU-OG)	22	15K867 - MKZ
7	CLF29 (BN)	20	12A581
7	CLF29 (BN)	22	15K867
8	VMP20 (GY-OG)	18	15K867 - Fusion
8	VMP20 (GY-OG)	20	12A581
8	VMP20 (GY-OG)	22	15K867 - MKZ
9	CLF34 (YE-OG)	20	12A581
9	CLF34 (YE-OG)	22	15K867
10	LMP06 (VT-GY)	20	12A581
10	LMP06 (VT-GY)	22	15K867
11	GD120 (BK-GN)	14	12A581
11	GD120 (BK-GN)	14	15K867 - Fusion
11	GD120 (BK-GN)	20	15K867 - MKZ
12	CLS25 (YE-VT)	22	15K867 - MKZ
12	RE335 (BN-VT)	20	12A581
12	RE407 (YE-VT)	18	15K867 - Fusion
12	RE407 (YE-VT)	20	12A581
13	CLS21 (BU-GN)	22	15K867 - MKZ
13	VE750 (GN-BU)	18	15K867 - Fusion
13	VE750 (GN-BU)	20	12A581
14	CLS06 (GN-OG)	22	15K867 - MKZ
14	VDN06 (WH-GN)	20	12A581
14	VDN06 (WH-GN)	20	15K867 - Fusion
15	CBK03 (GY)	18	12A581
15	CBK03 (GY)	18	15K867 - Fusion
15	CLS07 (BN-YE)	22	15K867 - MKZ
16	CPL25 (BU-OG)	20	12A581
16	CPL25 (BU-OG)	22	15K867
17	*	*
18	*	*
19	*	*
20	*	*

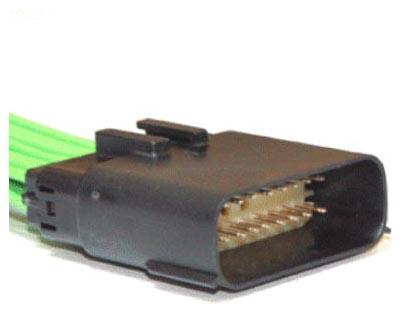

Available Pigtail Kits
Pigtail Kit Part Number WPT-890	Service Part Number: 7U2Z-14S411-HA Gauge: 16 Pin material: Silver Cavities: 20 Vehicle Uses: Connector - Inline For Mating Connector Refer To WPT-889
