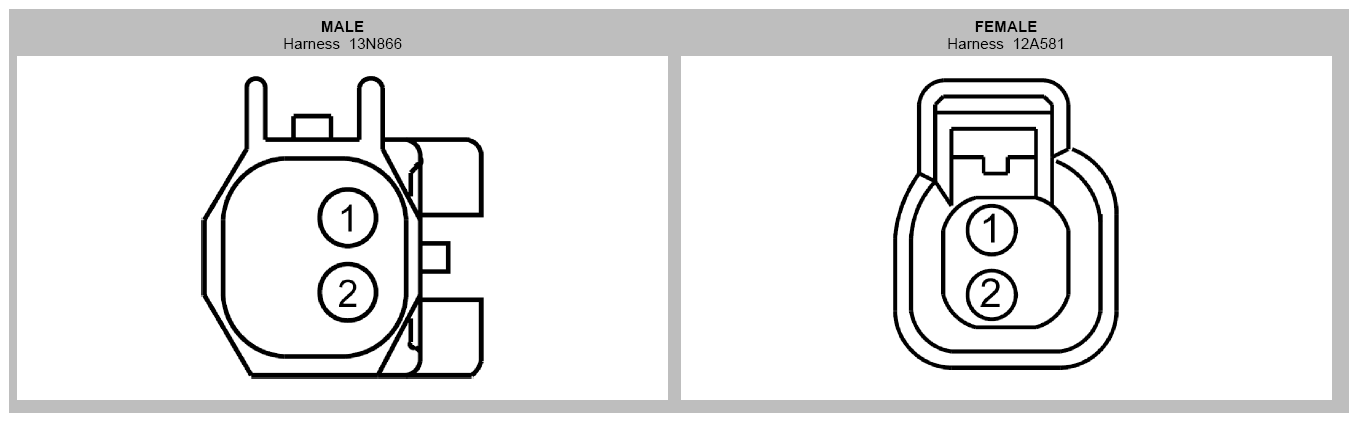

Inline Connector End View (C110)

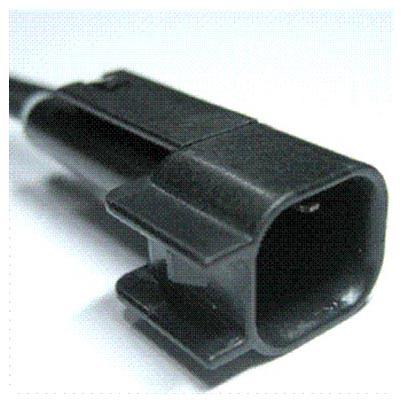

Fig 1: Identifying Inline Connector (C110)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	GD120 (BK-GN)	18
2	CRH04 (VT-GN)	18

Available Pigtail Kits
Pigtail Kit Part Number WPT-1193	Service Part Number: 3U2Z-14S411-DCAB Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Fog/Driving Lamp - Side Marker (Rear Fender) Mirror - Sideview Sensor - Crash (Engine Compartment) Speaker - Tweeter - LH - Front Speaker - Tweeter - RH - Front
