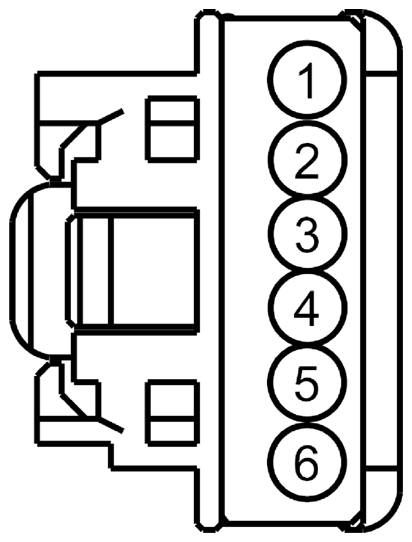

In-Vehicle Temperature And Humidity Sensor Connector End View (C233)

Fig 1: Identifying In-Vehicle Temperature And Humidity Sensor Connector (C233)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VHA31 (GN-BN)	22	SENSOR - REAR TEMP
2	VH414 (GN)	26	SENSOR - INCAR TEMP.
3	LH111 (BN-WH)	26	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS	MKZ
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS	Fusion
4	VH413 (WH)	26	SENSOR - HUMIDITY
5	RH111 (GY)	26	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS
6	CBP21 (BU-GY)	22	FUSE - 21 OR CIRCUIT BREAKER

Available Pigtail Kits
Pigtail Kit Part Number WPT-1242	Service Part Number: 3U2Z-14S411-MJB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Indicator - Passenger Airbag Deactivation (PADI) Sensor - EATC In Car Temperature Switch - Multifunction
Pigtail Kit Part Number WPT-440	Service Part Number: 3U2Z-14S411-MJA  Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Switch - Multifunction (Turn)
