Horn Switch Connector End View (C217)

Fig 1: Identifying Horn Switch Connector (C217)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRH02 (*)	20	SWITCH - HORN
2	RRH02 (*)	20	GROUND - INSTRUMENT PANEL STRUCTURE

Available Pigtail Kits

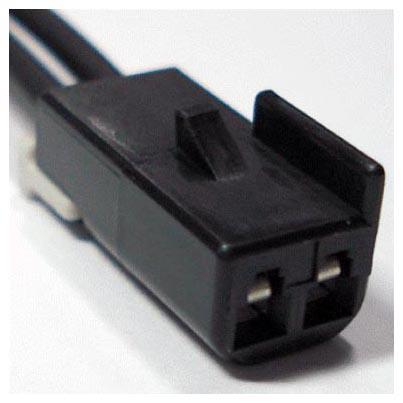

Pigtail Kit Part Number WPT-233	Service Part Number: 3U2Z-14S411-CZA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Module - Auto Lamps Sensor - EATC In Car Temperature Sensor - Sunload Switch - Overdrive Cancel

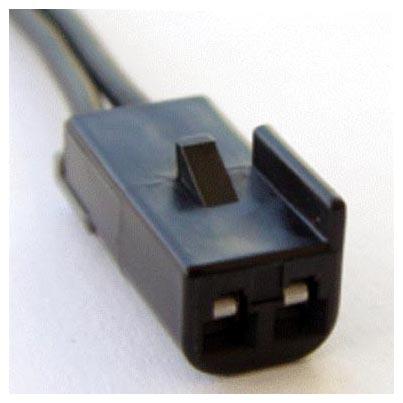

Pigtail Kit Part Number WPT-967	Service Part Number: 3U2Z-14S411-CZB  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Module - Auto Lamps Sensor - EATC In Car Temperature Sensor - Sunload Switch - Overdrive Cancel
