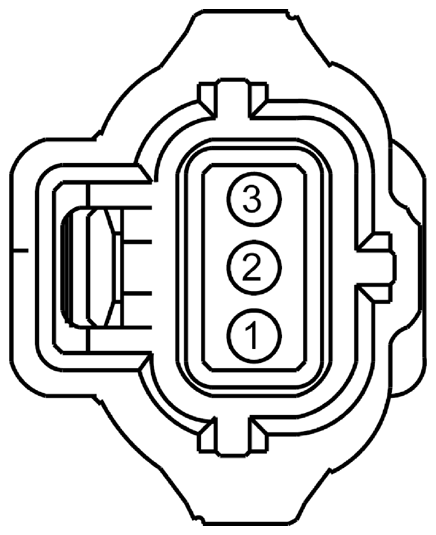

Generator Connector End View (C102A)

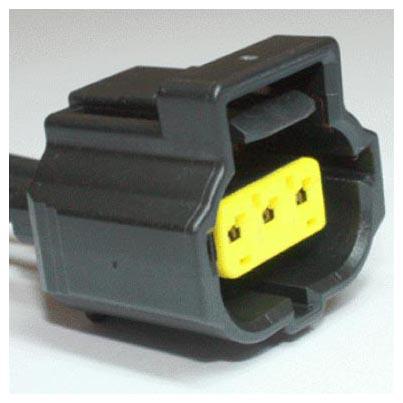

Fig 1: Identifying Generator Connector (C102A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC15 (VT)	20	GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)	1.5L/1.6L/2.5L
2	CDC10 (BU-OG)	20	CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC)	1.5L/1.6L/2.5L
3	SBB46 (BN-RD)	16	FUSE - 46 OR CIRCUIT BREAKER	1.5L/1.6L/2.5L

Available Pigtail Kits
Pigtail Kit Part Number WPT-118	Service Part Number: 1U2Z-14S411-TA  Gauge: 14  Pin material: Tin  Cavities: 3  Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position
Pigtail Kit Part Number WPT-777	Service Part Number: 3U2Z-14S411-ESAA  Gauge: 18  Pin material: Gold  Cavities: 3  Vehicle Uses Pretensioner - Seat Belt (Passenger)
