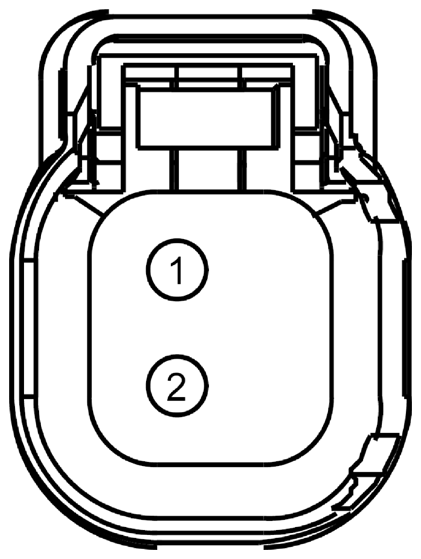

Fuel Injector 2 Connector End View (C182)

Fig 1: Identifying Fuel Injector 2 Connector (C182)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE206 (GY-YE)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +
2	CBK01 (BU)	20	FUSE - 1 OR CIRCUIT BREAKER (VPWR F)

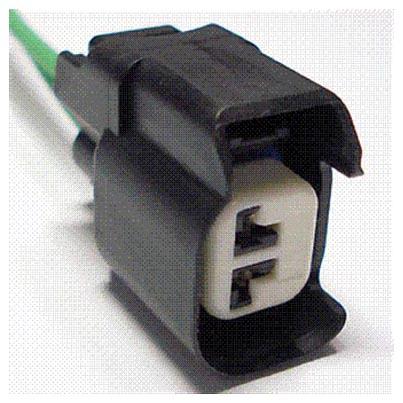

Available Pigtail Kits
Pigtail Kit Part Number WPT-1051	Service Part Number: 5U2Z-14S411-ZB  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector Horn Switch - Backup Lamp Switch - Hood Ajar
