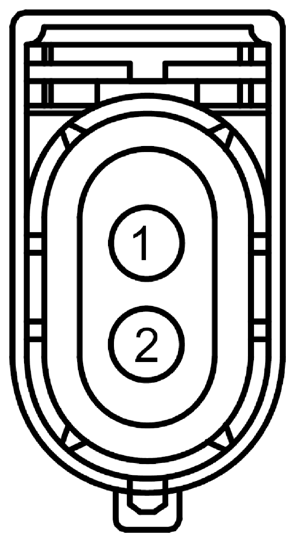

Fog Lamp, Right Front Connector End View (C162)

Fig 1: Identifying Fog Lamp - Right Front Connector (C162)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF34 (YE-OG)	20	RELAY - FOG LAMPS FRONT
2	GD120 (BK-GN)	20	GROUND - FENDER FRONT RIGHT

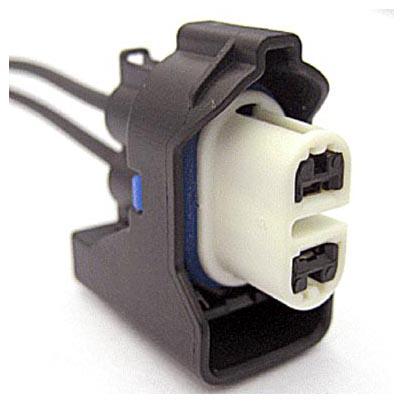

Available Pigtail Kits
Pigtail Kit Part Number WPT-904	Service Part Number: 8U2Z-14S411-GA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - Ash Tray
