Evaporative Emission (EVAP) Purge Valve Connector End View (C123)

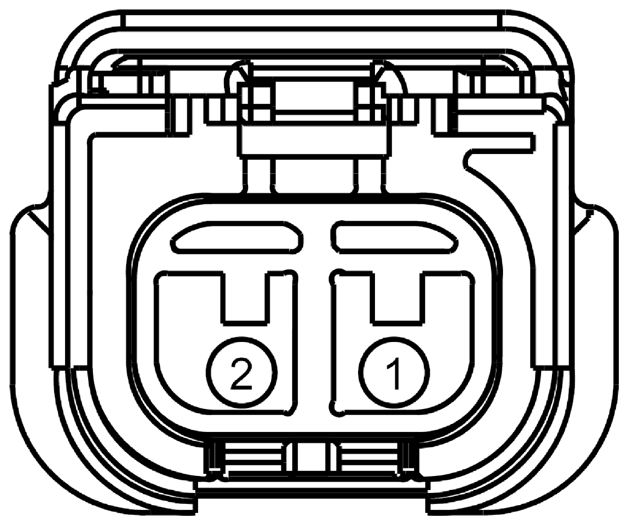

Fig 1: Identifying Evaporative Emission Purge Valve Connector (C123)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # EVAP PURGE VALVE (EVAPCP)
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)

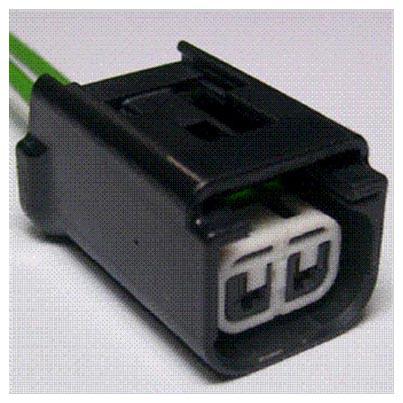

Available Pigtail Kits
Pigtail Kit Part Number WPT-1133	Service Part Number: BU2Z-14S411-FA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Coil - Ignition
