Crankshaft Position (CKP) Sensor Connector End View (C101)

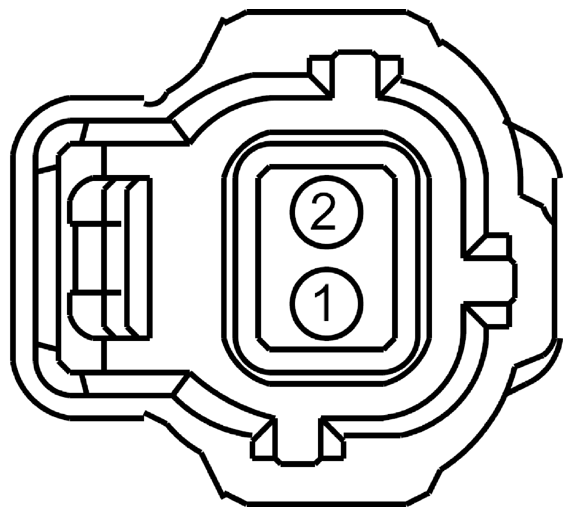

Fig 1: Identifying Crankshaft Position Sensor Connector (C101)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKP+)
2	RE135 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-)

Available Pigtail Kits

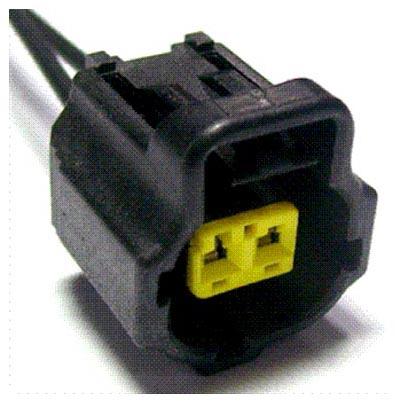

Pigtail Kit Part Number WPT-1053	Service Part Number: 3U2Z-14S411-CGB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position

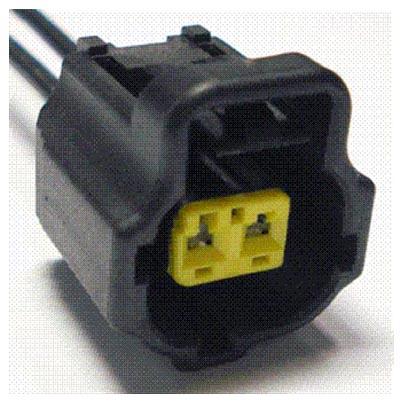

Pigtail Kit Part Number WPT-231	Service Part Number: 3U2Z-14S411-CGA  Gauge: 18  Pin material: Gold  Cavities: 2  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position

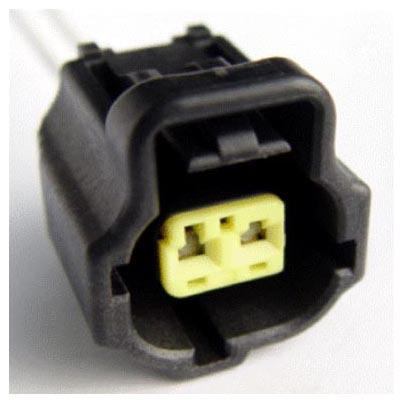

Pigtail Kit Part Number WPT-1271	Service Part Number: 3U2Z-14S411-CGC  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position
