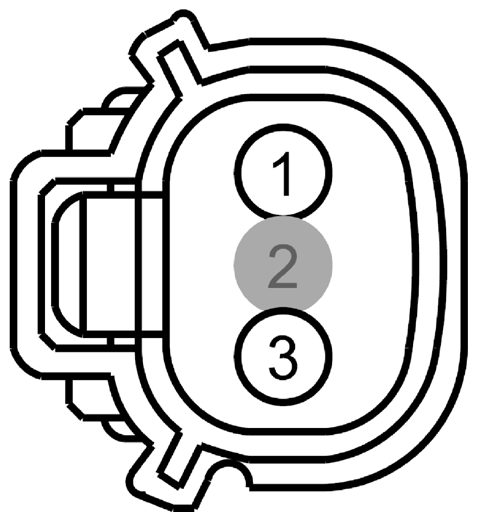

Coil On Plug (Cop) 1 Connector End View (C111)

Fig 1: Identifying Coil On Plug 1 Connector (C111)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY (COP1A)
2	*	*	Not Used
3	CBK04 (VT)	16	FUSE - 4 OR CIRCUIT BREAKER (VPWR)

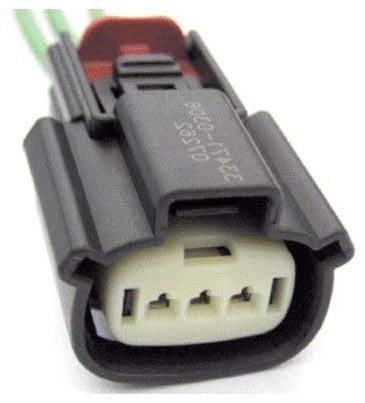

Available Pigtail Kits
Pigtail Kit Part Number WPT-931	Service Part Number: 9U2Z-14S411-EA  Gauge: 14  Pin material: Silver  Cavities: 3  Vehicle Uses Coil - Ignition
