CLOCKSPRING Connector End View (C218B)

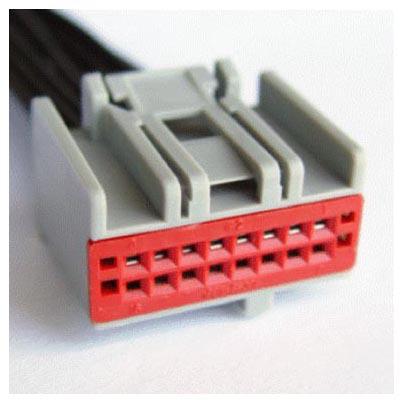

Fig 1: Identifying Clockspring Connector (C218B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	RRH02 (*)	*	ILLUMINATION GROUND
2	*	*	Not Used
3	*	*	Not Used
4	CRH02 (*)	*	SWITCH - HORN
5	CET42 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)
6	LX103 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3
7	LX104 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4
8	RX101 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)
9	*	*	Not Used
10	*	*	Not Used
11	VLN04 (*)	*	ILLUMINATION FEED
12	CET43 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)
13	RE407 (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)
14	LX105 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1
15	LX106 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2
16	RX102 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)

Available Pigtail Kits
Pigtail Kit Part Number WPT-221	Service Part Number: 3U2Z-14S411-DPA Gauge: 18 Pin material: Tin Cavities: 16 Vehicle Uses Module - Reverse Park Aid (RPA) Radio Switch - Power Window - Driver Switch - Reverse Park Aid
Pigtail Kit Part Number WPT-968	Service Part Number: 3U2Z-14S411-DPB Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Module - Reverse Park Aid (RPA) Radio Switch - Power Window - Driver Switch - Reverse Park Aid
