Component Location Charts

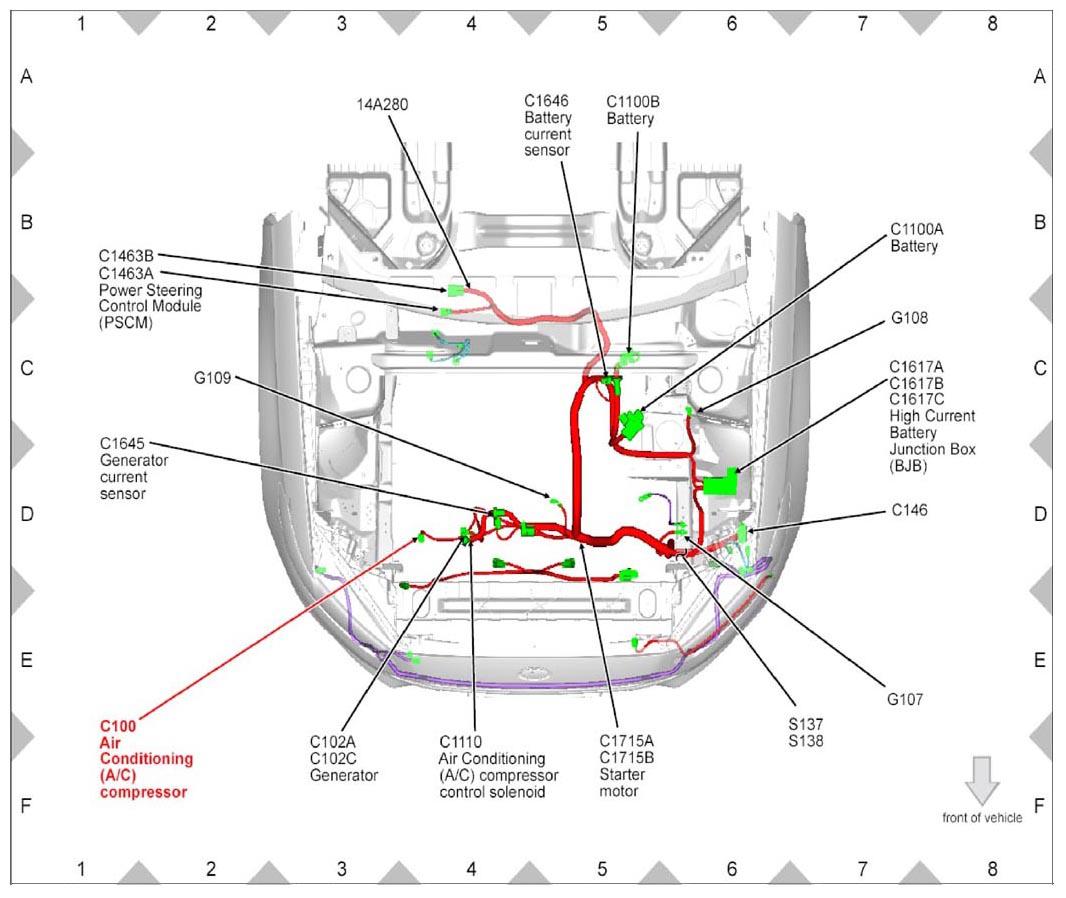

Fig 1: Identifying Air Conditioning Compressor Connector (C100) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Air Conditioning Compressor Connector (C100) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Air Conditioning Compressor Connector (C100) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Crankshaft Position Sensor Connector (C101)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Air Conditioning Compressor Connector (C100) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Air Conditioning Compressor Connector (C100) (3.7L)

Courtesy of FORD MOTOR CO.

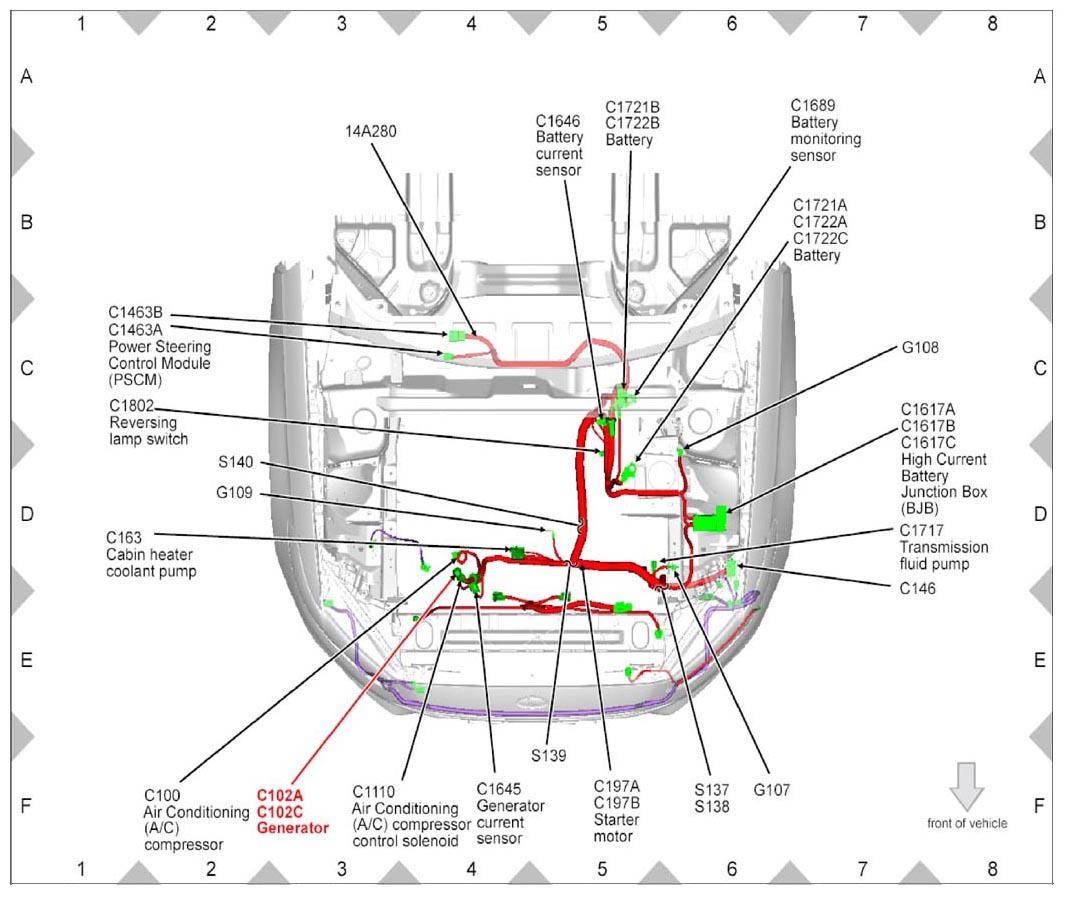

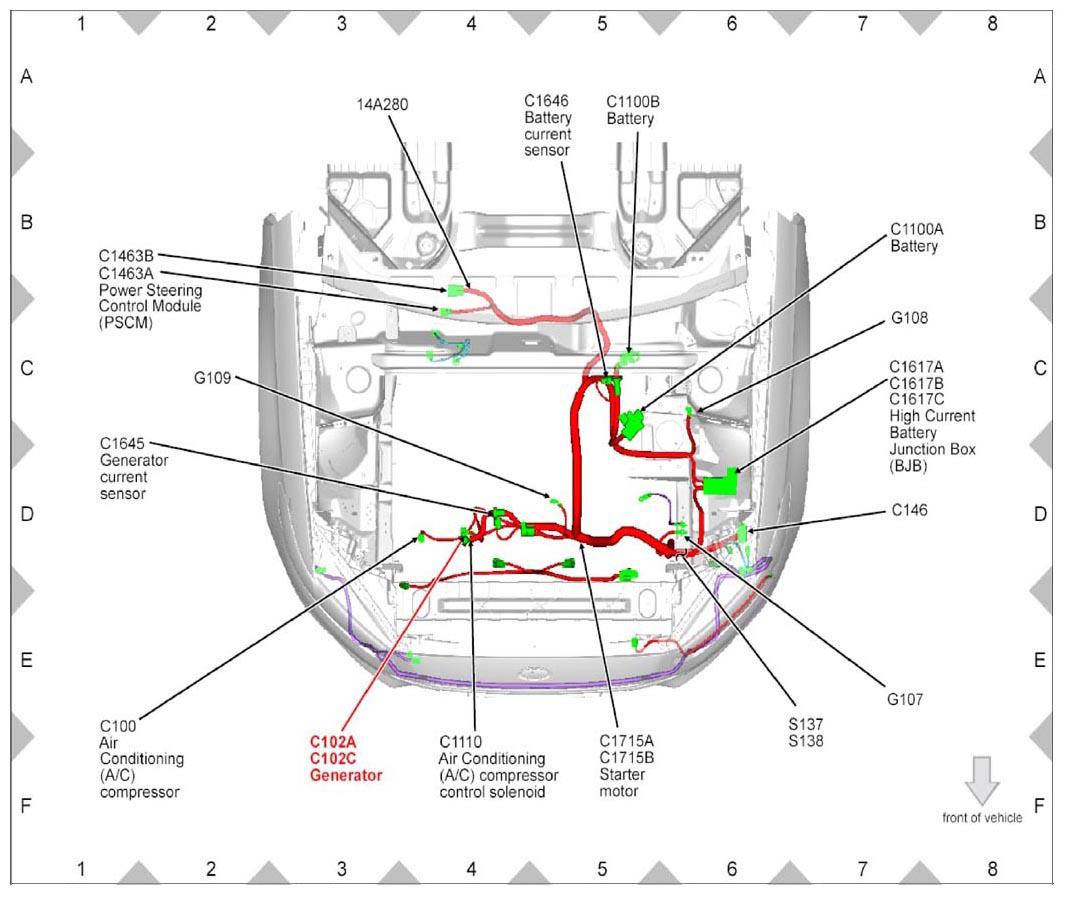

Fig 7: Identifying Generator Connector (C102A And C102C) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Generator Connector (C102A And C102C) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Generator Connector (C102A And C102C) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 10: Identifying Generator Connector (C102A And C102C) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Generator Connector (C102A And C102C) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 12: Identifying Generator Connector (C102A And C102C) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 13: Identifying Oil Pressure Switch Connector (C103) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 14: Identifying Oil Pressure Switch Connector (C103) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Oil Pressure Switch Connector (C103) (3.5L)

Courtesy of FORD MOTOR CO.

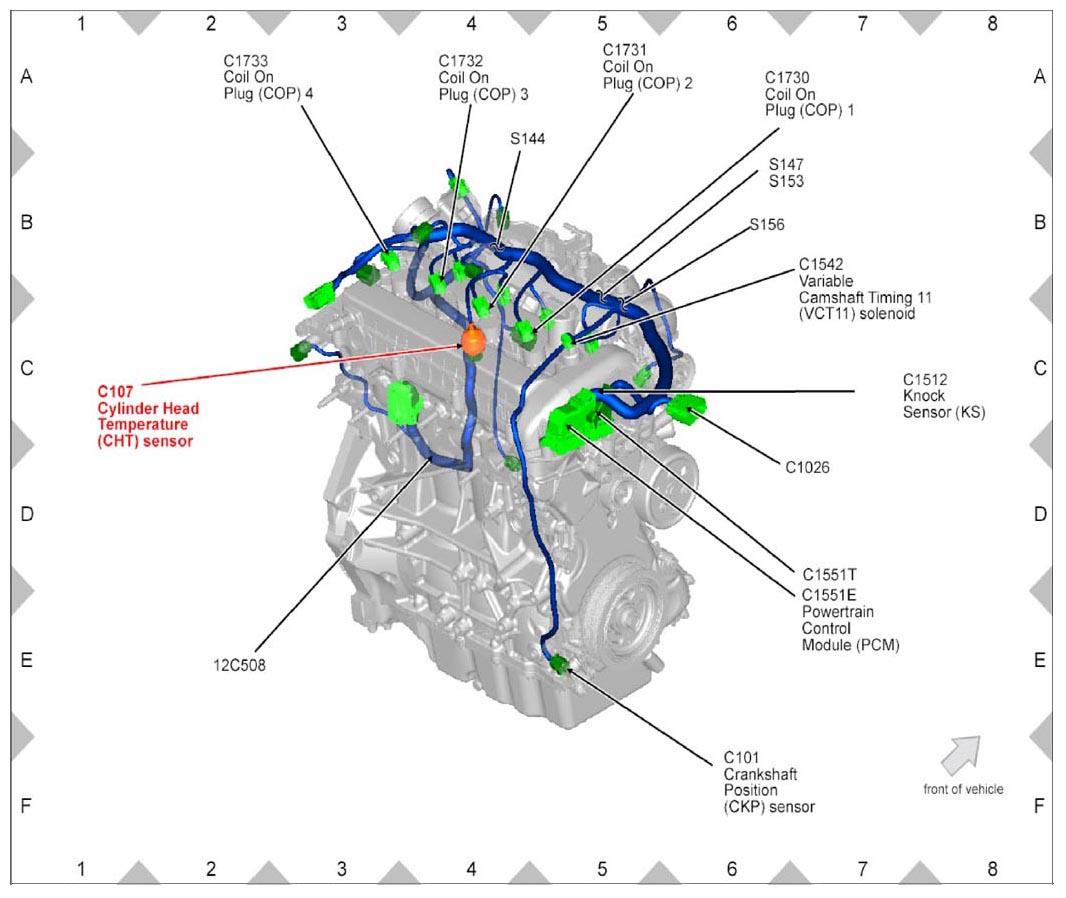

Fig 16: Identifying Cylinder Head Temperature Sensor Connector (C107)

Courtesy of FORD MOTOR CO.

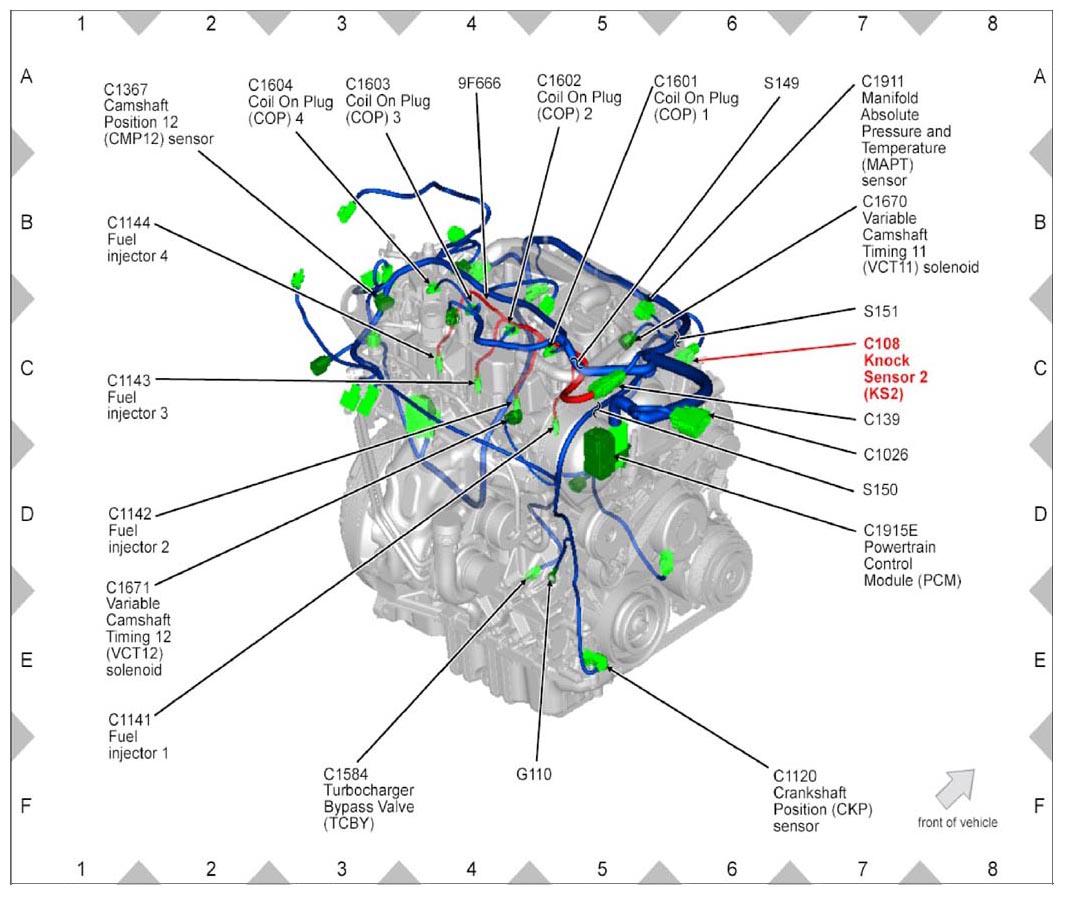

Fig 17: Identifying Knock Sensor 2 Connector (C108) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Knock Sensor 2 Connector (C108) (1.6L)

Courtesy of FORD MOTOR CO.

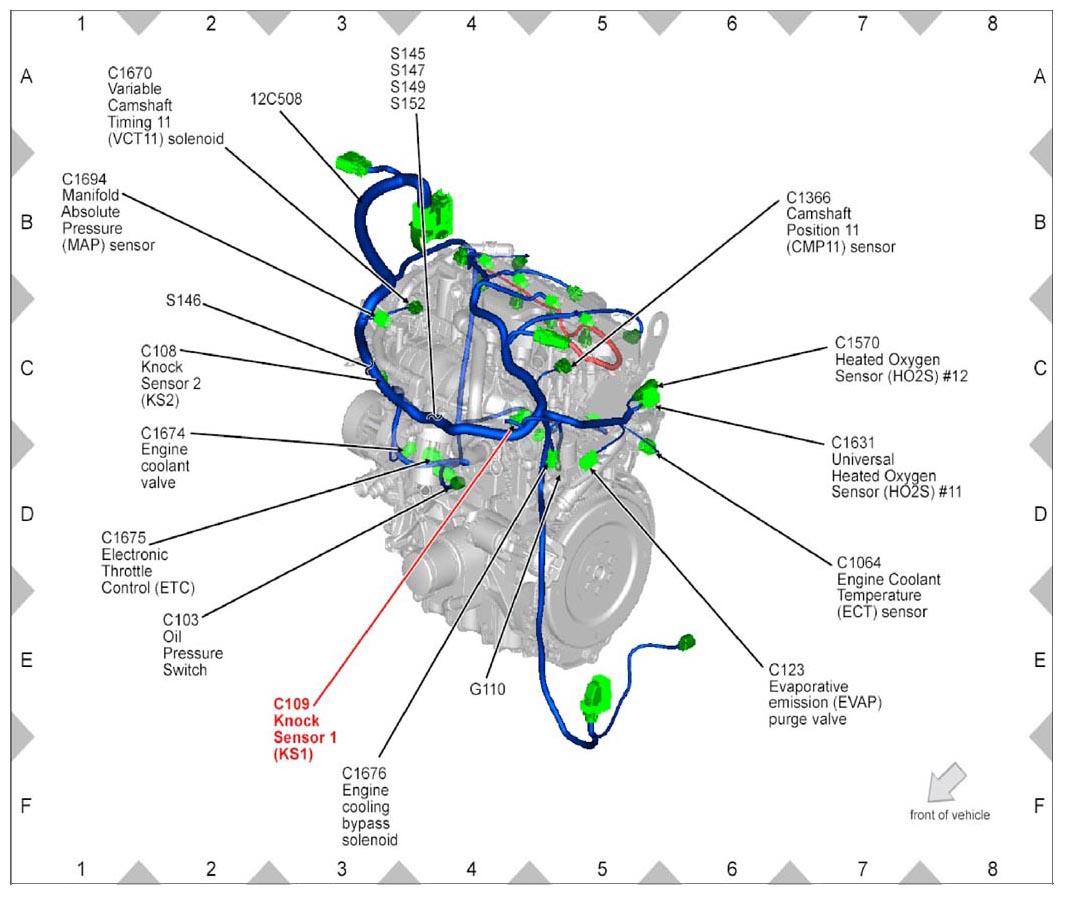

Fig 19: Identifying Knock Sensor 1 Connector (C109) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 20: Identifying Knock Sensor 1 Connector (C109) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 21: Identifying Coil On Plug 1 Connector (C111)

Courtesy of FORD MOTOR CO.

Fig 22: Identifying Coil On Plug 2 Connector (C112)

Courtesy of FORD MOTOR CO.

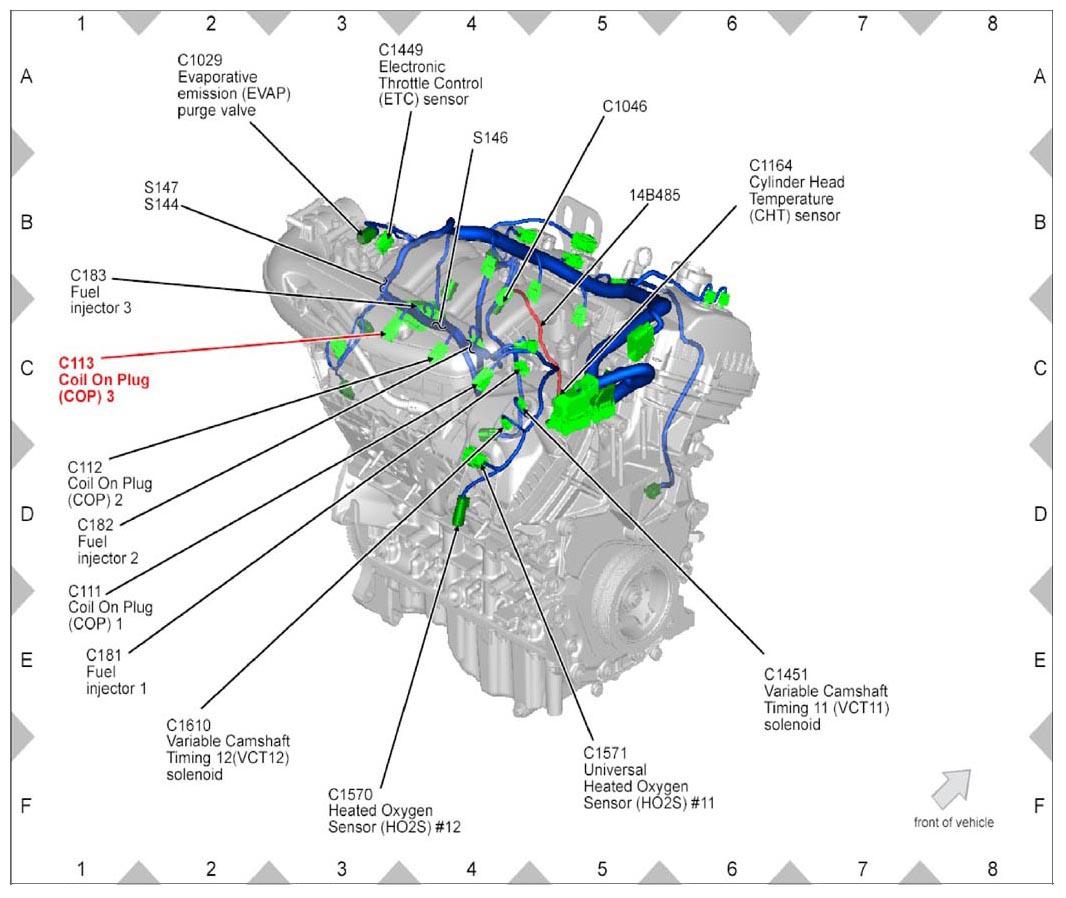

Fig 23: Identifying Coil On Plug 3 Connector (C113)

Courtesy of FORD MOTOR CO.

Fig 24: Identifying Coil On Plug 4 Connector (C114)

Courtesy of FORD MOTOR CO.

Fig 25: Identifying Coil On Plug 5 Connector (C115)

Courtesy of FORD MOTOR CO.

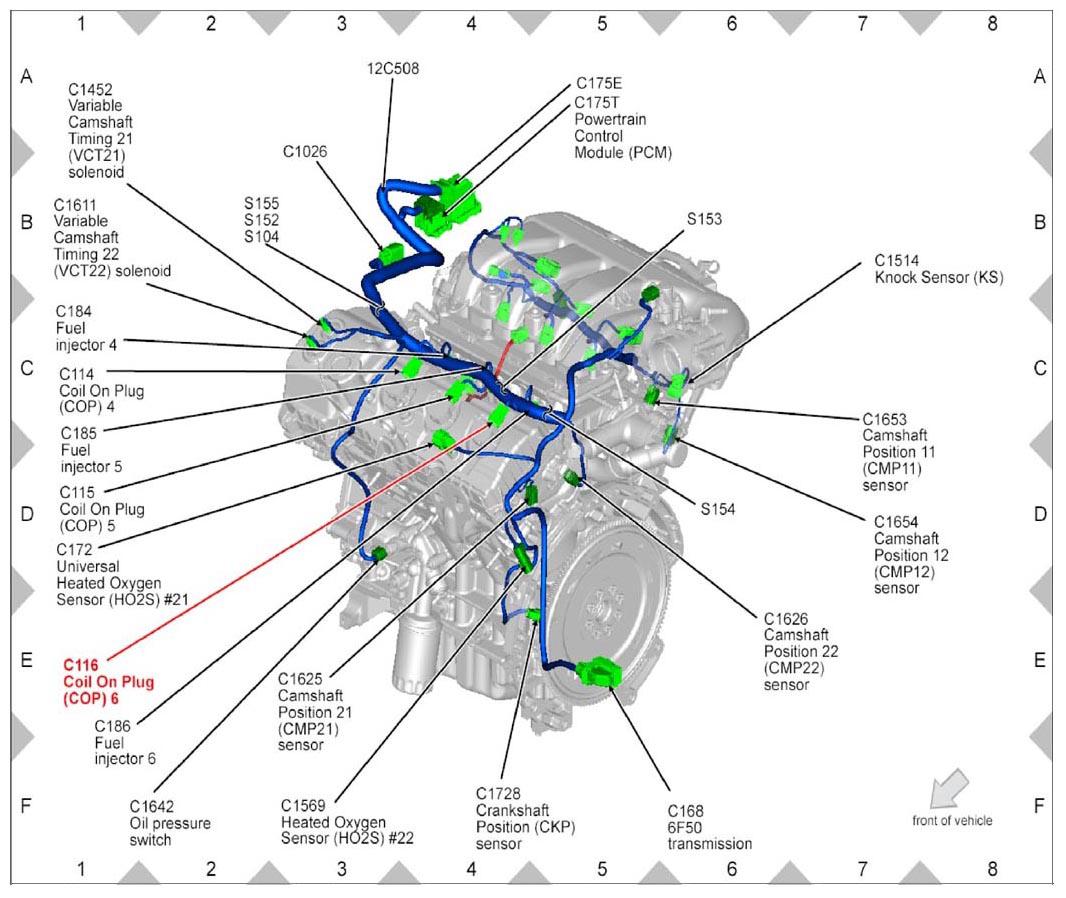

Fig 26: Identifying Coil On Plug 6 Connector (C116)

Courtesy of FORD MOTOR CO.

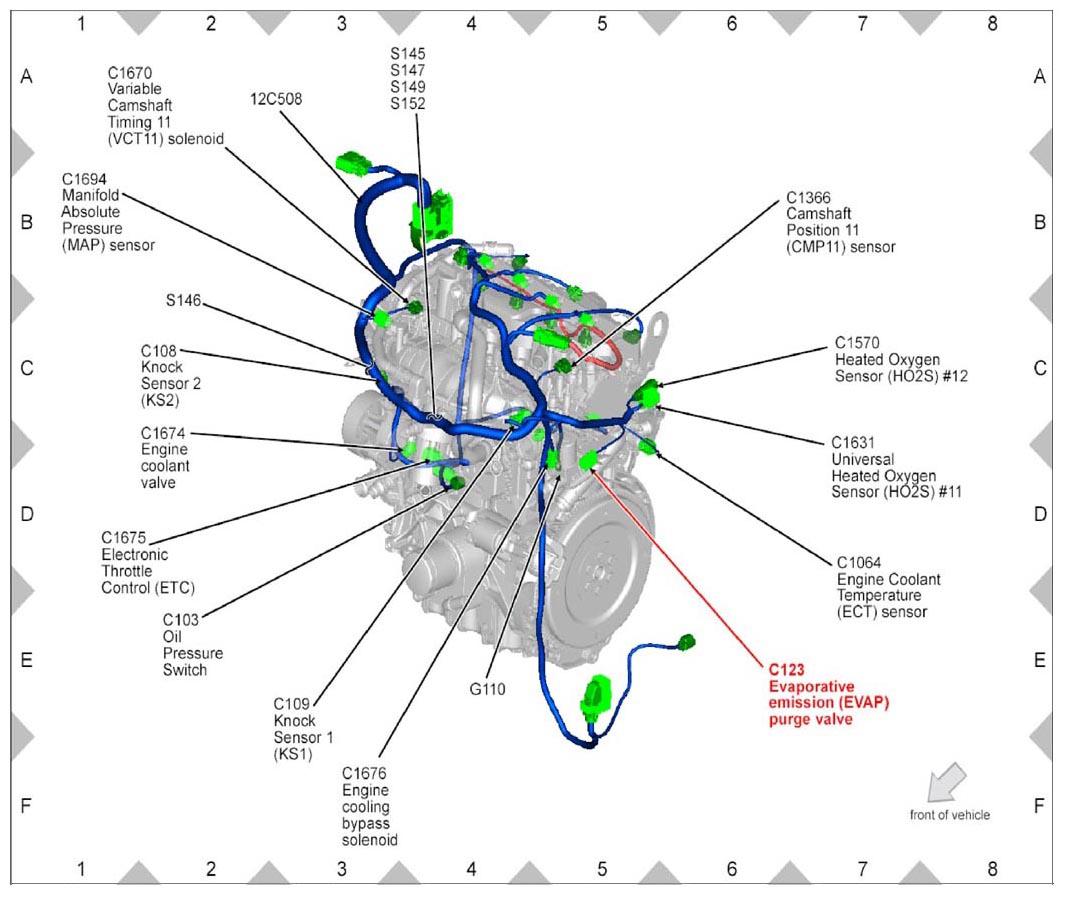

Fig 27: Identifying Evaporative Emission Purge Valve Connector (C123) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 28: Identifying Evaporative Emission Purge Valve Connector (C123) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 29: Identifying Evaporative Emission Purge Valve Connector (C123) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Low Brake Fluid Warning Indicator Switch Connector (C124)

Courtesy of FORD MOTOR CO.

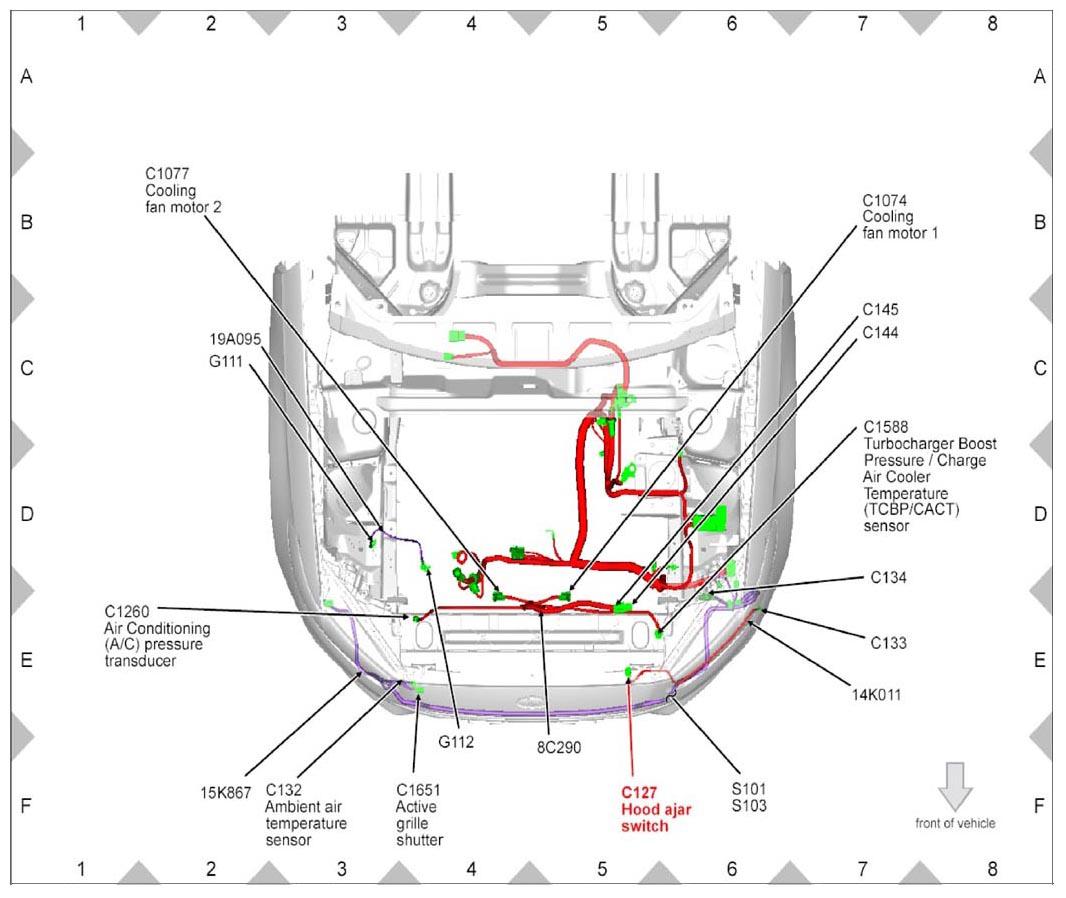

Fig 31: Identifying Hood Ajar Switch Connector (C127) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 32: Identifying Hood Ajar Switch Connector (C127) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 33: Identifying Hood Ajar Switch Connector (C127) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 34: Identifying Hood Ajar Switch Connector (C127) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Hood Ajar Switch Connector (C127) (3.7L)

Courtesy of FORD MOTOR CO.

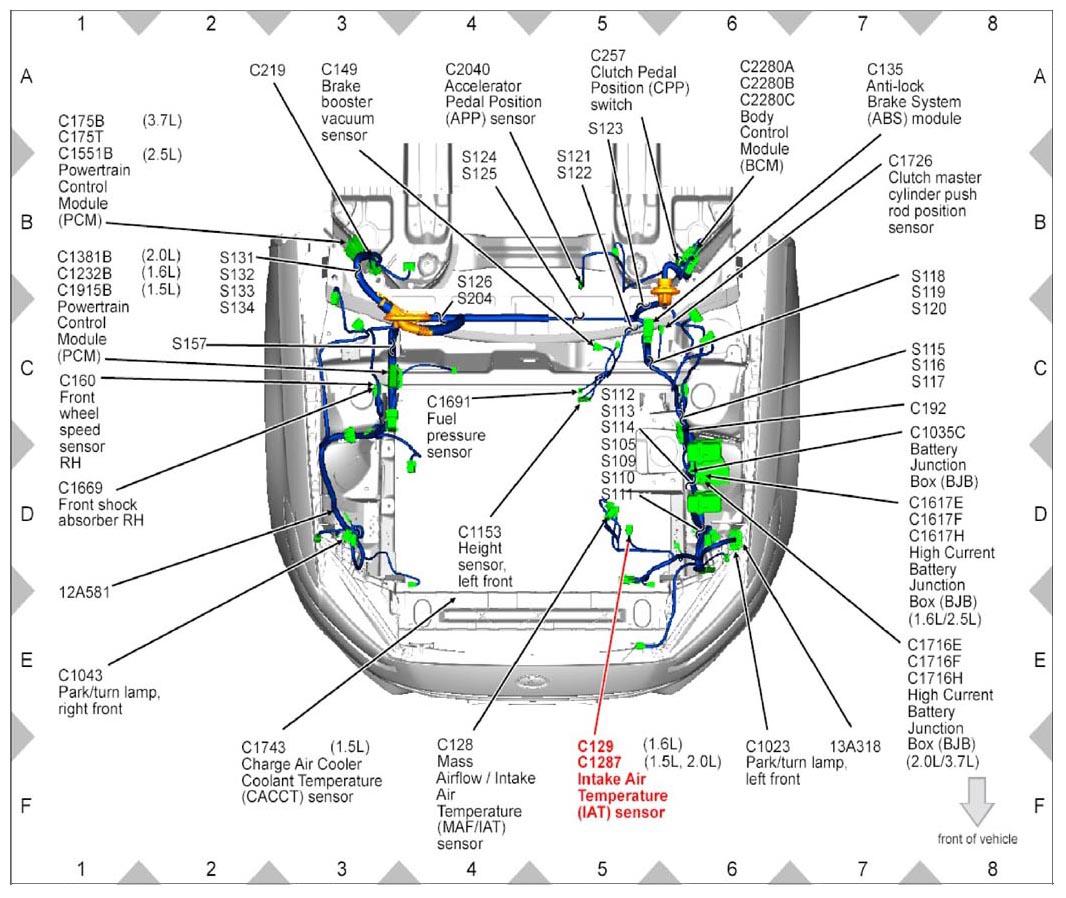

Fig 36: Identifying Mass Airflow/Intake Air Temperature Sensor Connector (C128)

Courtesy of FORD MOTOR CO.

Fig 37: Identifying Intake Air Temperature Sensor Connector (C129 And C1287)

Courtesy of FORD MOTOR CO.

Fig 38: Identifying Horn Connector (C131)

Courtesy of FORD MOTOR CO.

Fig 39: Identifying Ambient Air Temperature Sensor Connector (C132) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 40: Identifying Ambient Air Temperature Sensor Connector (C132) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 41: Identifying Ambient Air Temperature Sensor Connector (C132) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 42: Identifying Ambient Air Temperature Sensor Connector (C132) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 43: Identifying Ambient Air Temperature Sensor Connector (C132) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 44: Identifying Connector (C133) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 45: Identifying Connector (C133) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 46: Identifying Connector (C133) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 47: Identifying Connector (C133) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 48: Identifying Connector (C133) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 49: Identifying Connector (C134)

Courtesy of FORD MOTOR CO.

Fig 50: Identifying Connector (C134) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 51: Identifying Connector (C134) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 52: Identifying Connector (C134) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 53: Identifying Connector (C134) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 54: Identifying Connector (C134) (3.7L)

Courtesy of FORD MOTOR CO.

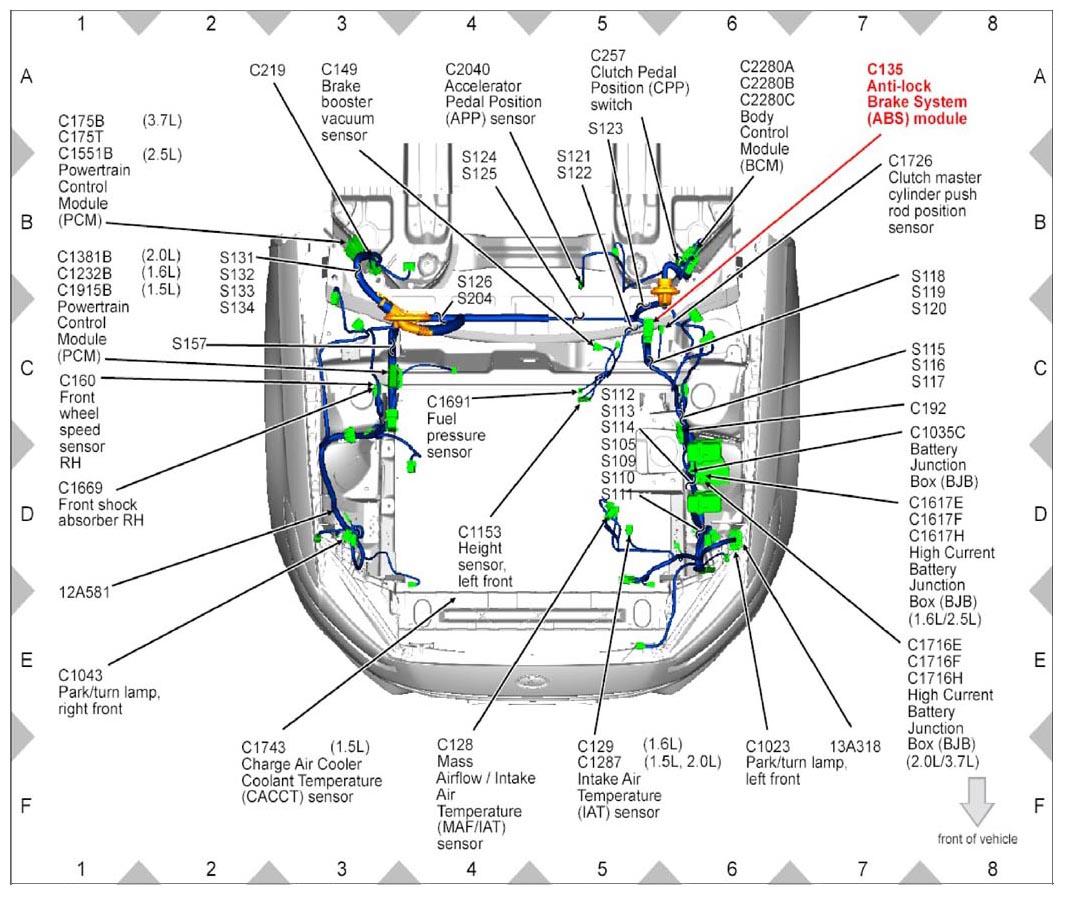

Fig 55: Identifying Anti-Lock Brake System Module Connector (C135)

Courtesy of FORD MOTOR CO.

Fig 56: Identifying Windshield Washer Pump Connector (C137)

Courtesy of FORD MOTOR CO.

Fig 57: Identifying Low Washer Fluid Warning Indicator Switch Connector (C138)

Courtesy of FORD MOTOR CO.

Fig 58: Identifying Connector (C139)

Courtesy of FORD MOTOR CO.

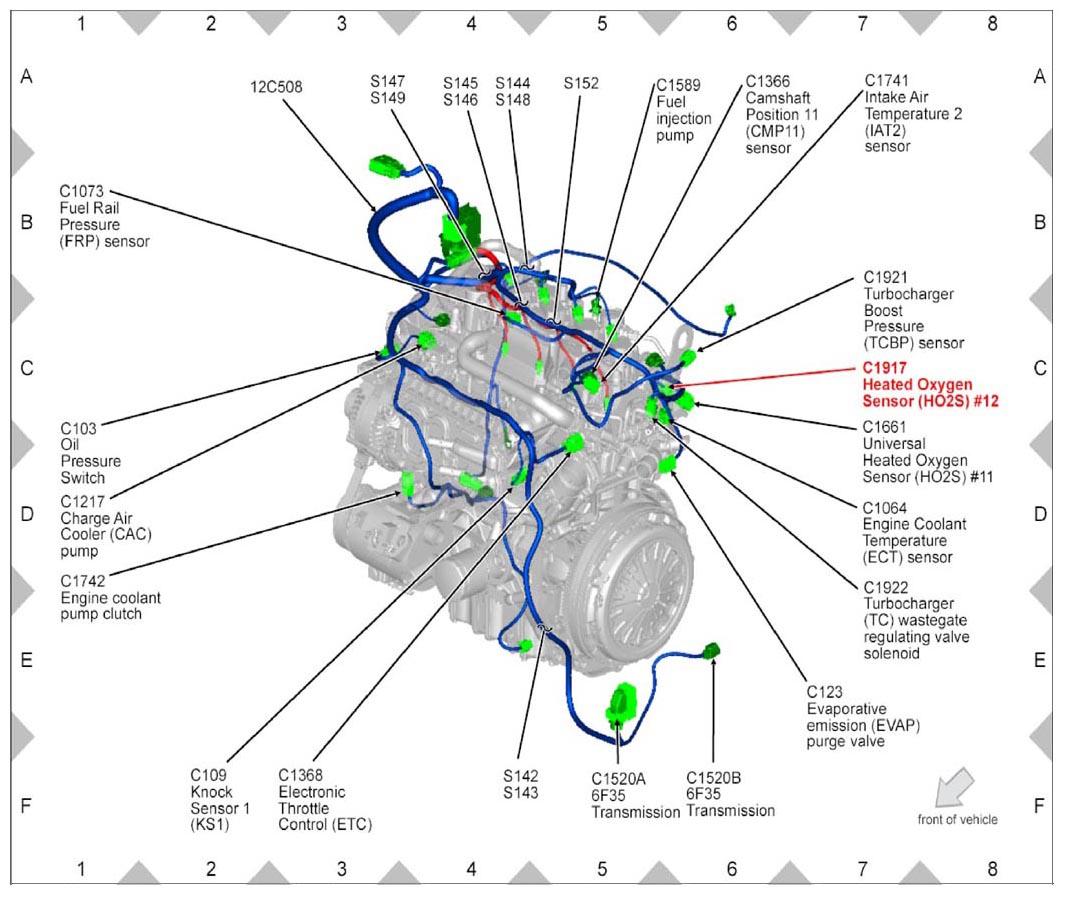

Fig 59: Identifying Heated Oxygen Sensor No. 12 Connector (C142)

Courtesy of FORD MOTOR CO.

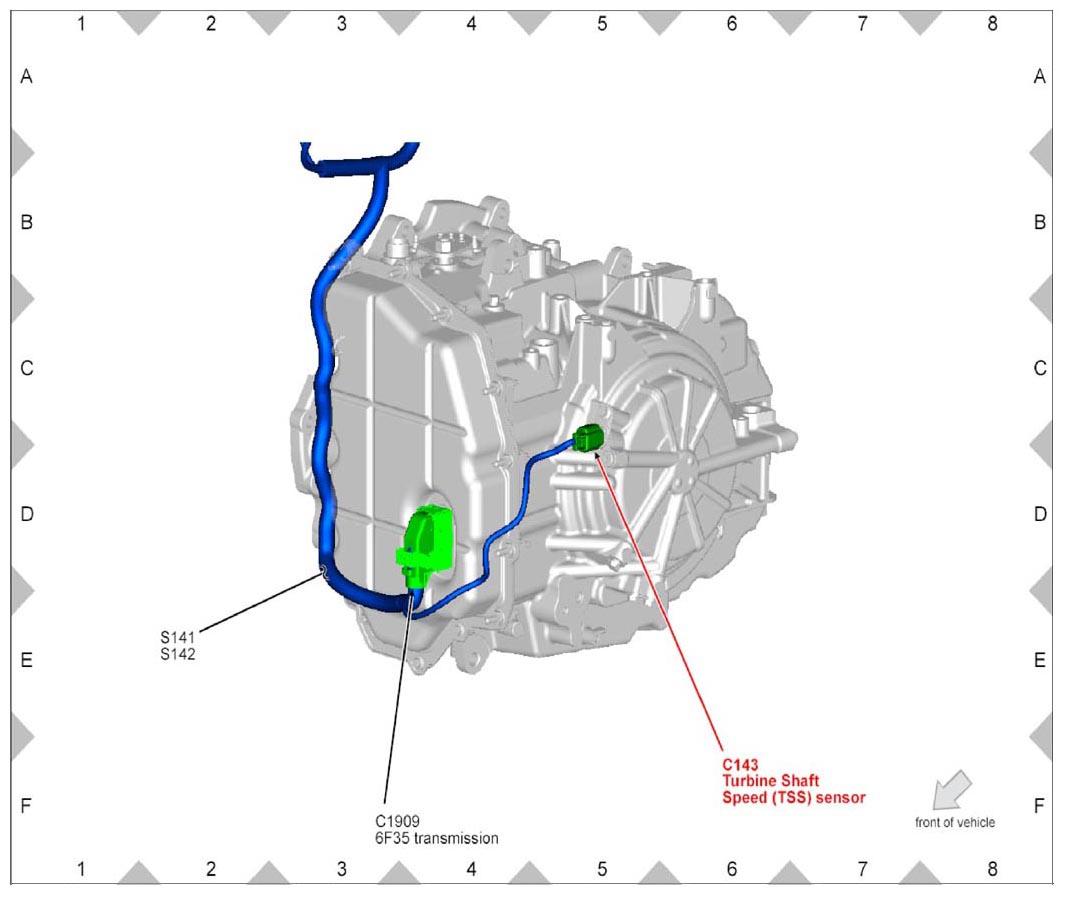

Fig 60: Identifying Turbine Shaft Speed Sensor Connector (C143) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 61: Identifying Turbine Shaft Speed Sensor Connector (C143) (2.5L - Automatic Transmission)

Courtesy of FORD MOTOR CO.

Fig 62: Identifying Connector (C144)

Courtesy of FORD MOTOR CO.

Fig 63: Identifying Connector (C144) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 64: Identifying Connector (C144) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 65: Identifying Connector (C144) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 66: Identifying Connector (C144) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 67: Identifying Connector (C144) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 68: Identifying Connector (C145)

Courtesy of FORD MOTOR CO.

Fig 69: Identifying Connector (C145) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 70: Identifying Connector (C145) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 71: Identifying Connector (C145) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 72: Identifying Connector (C145) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 73: Identifying Connector (C145) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 74: Identifying Connector (C146)

Courtesy of FORD MOTOR CO.

Fig 75: Identifying Connector (C146) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 76: Identifying Connector (C146) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 77: Identifying Connector (C146) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 78: Identifying Connector (C146) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 79: Identifying Connector (C146) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 80: Identifying Brake Booster Vacuum Sensor Connector (C149)

Courtesy of FORD MOTOR CO.

Fig 81: Identifying Front Wheel Speed Sensor LH Connector (C150)

Courtesy of FORD MOTOR CO.

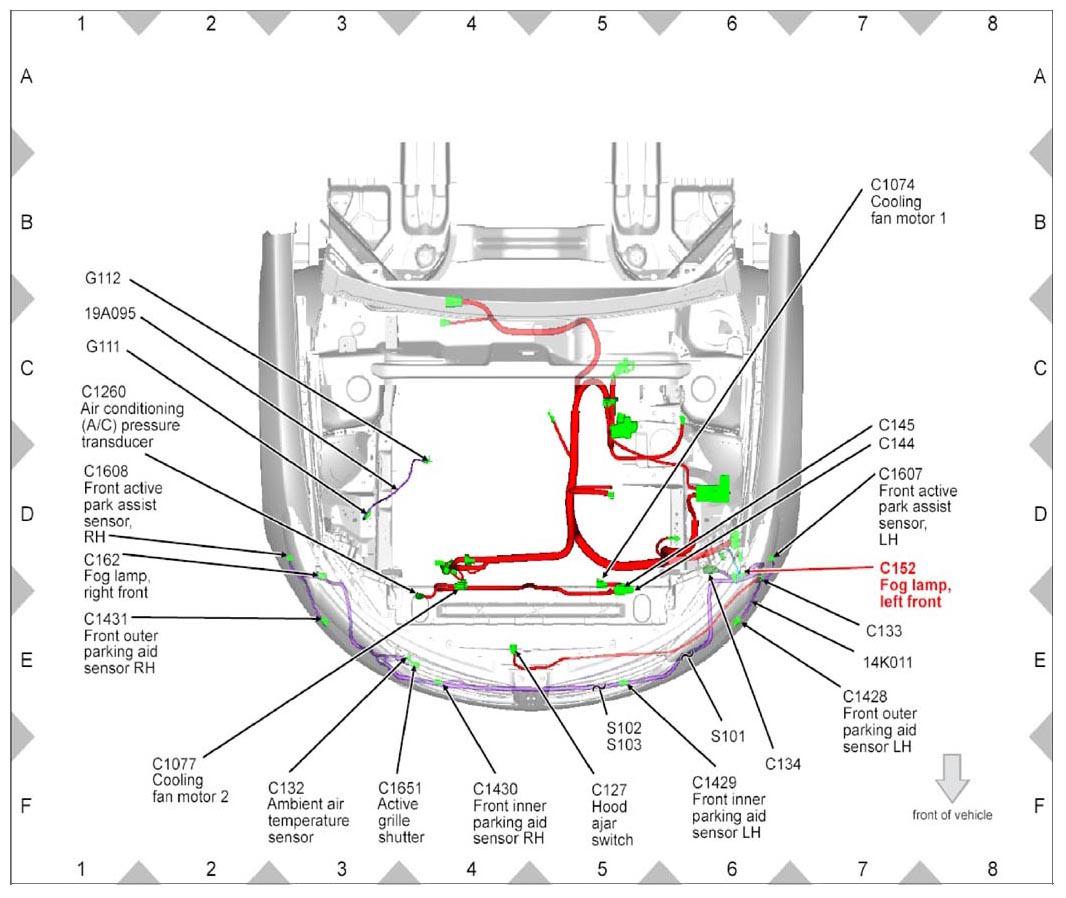

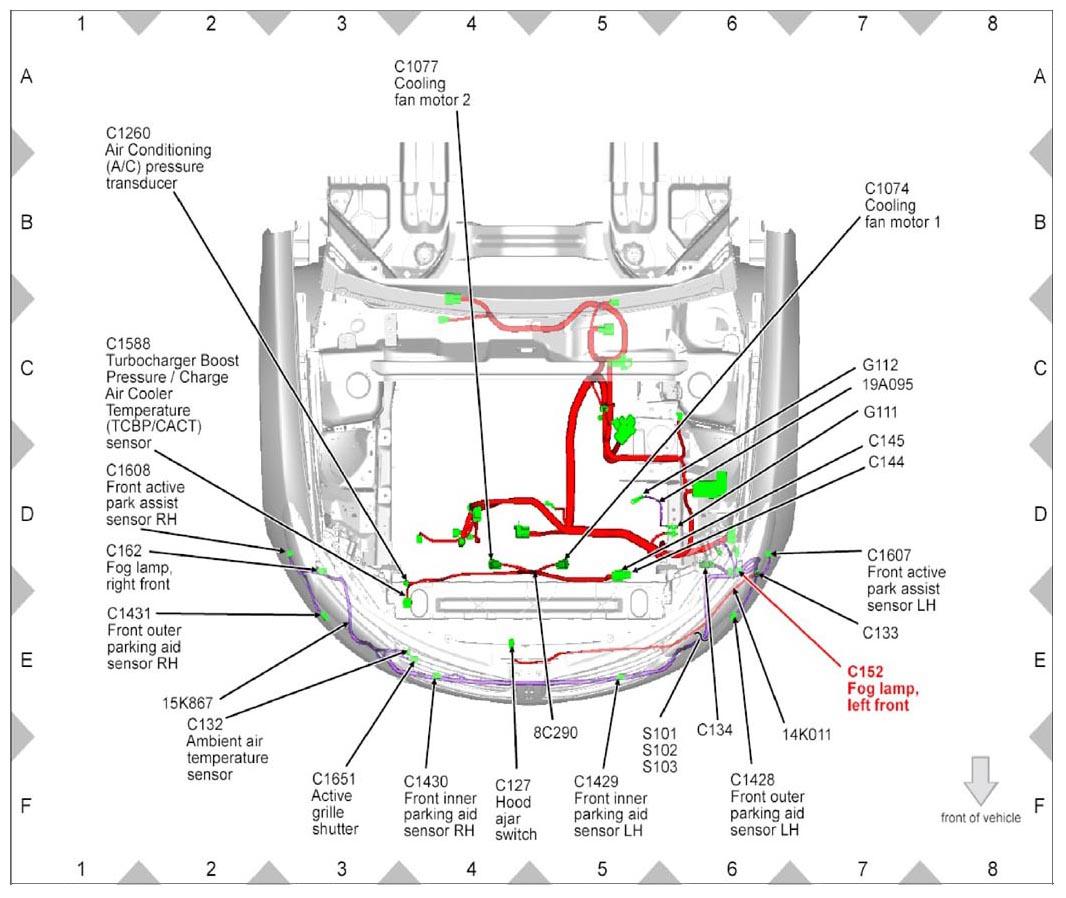

Fig 82: Identifying Fog Lamp, Left Front Connector (C152) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 83: Identifying Fog Lamp, Left Front Connector (C152) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 84: Identifying Front Wheel Speed Sensor RH Connector (C160)

Courtesy of FORD MOTOR CO.

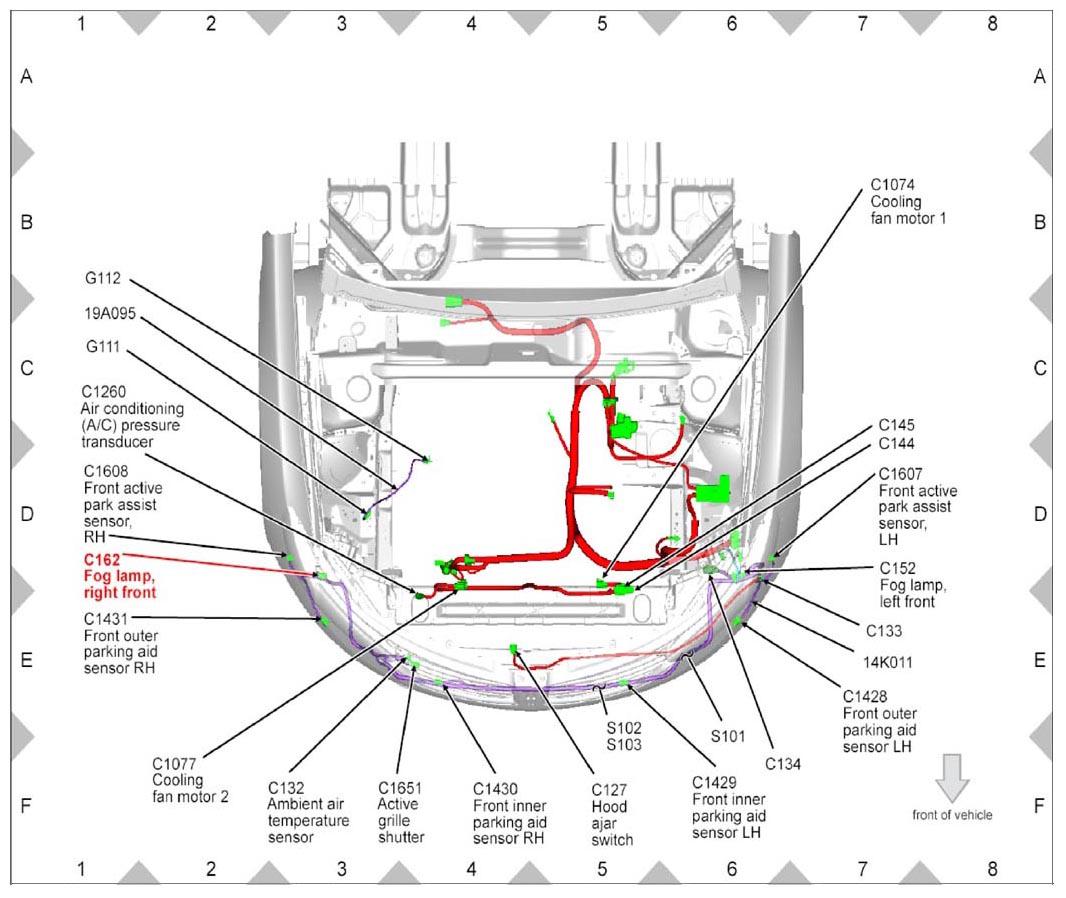

Fig 85: Identifying Fog Lamp, Right Front Connector (C162) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 86: Identifying Fog Lamp, Right Front Connector (C162) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 87: Identifying Cabin Heater Coolant Pump Connector (C163) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 88: Identifying Cabin Heater Coolant Pump Connector (C163) (1.6L)

Courtesy of FORD MOTOR CO.

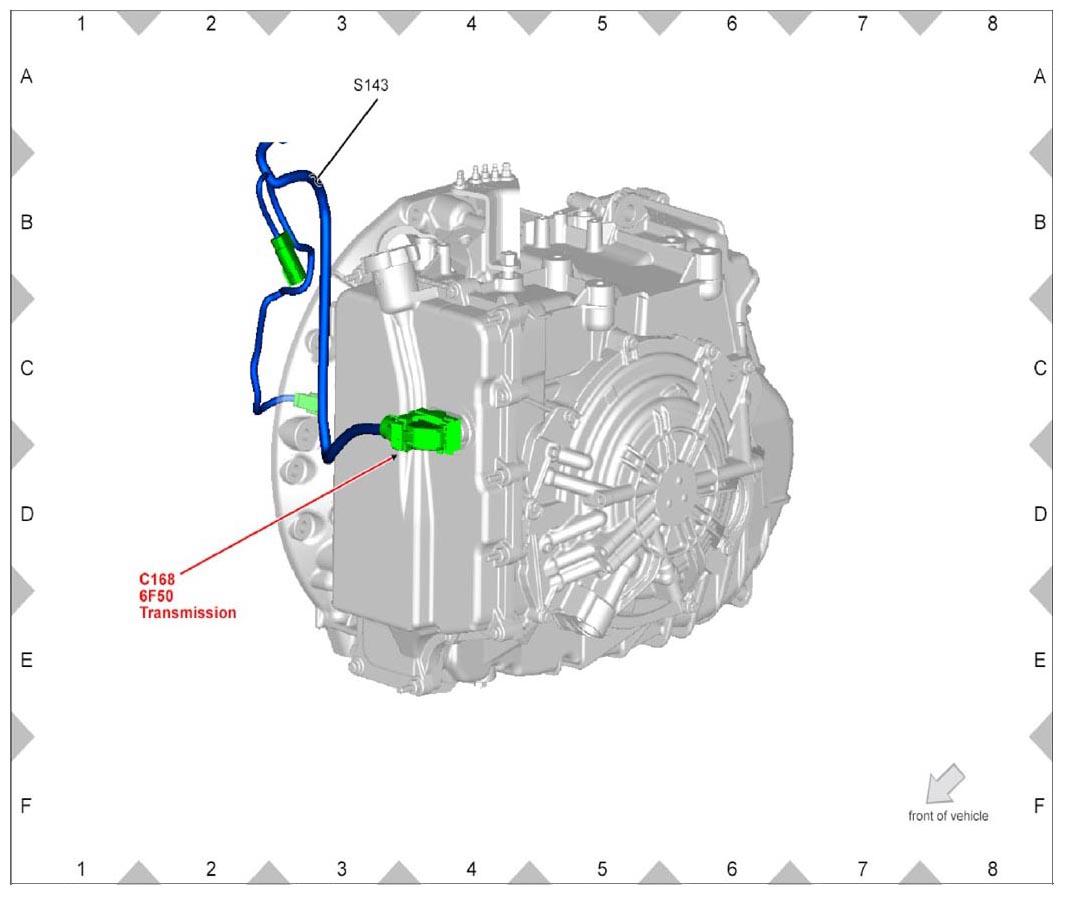

Fig 89: Identifying 6F50 Transmission Connector (C168) (3.5L)

Courtesy of FORD MOTOR CO.

Fig 90: Identifying 6F50 Transmission Connector (C168) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 91: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C171) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 92: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C171) (Automatic transmission)

Courtesy of FORD MOTOR CO.

Fig 93: Identifying Universal Heated Oxygen Sensor No. 21 Connector (C172)

Courtesy of FORD MOTOR CO.

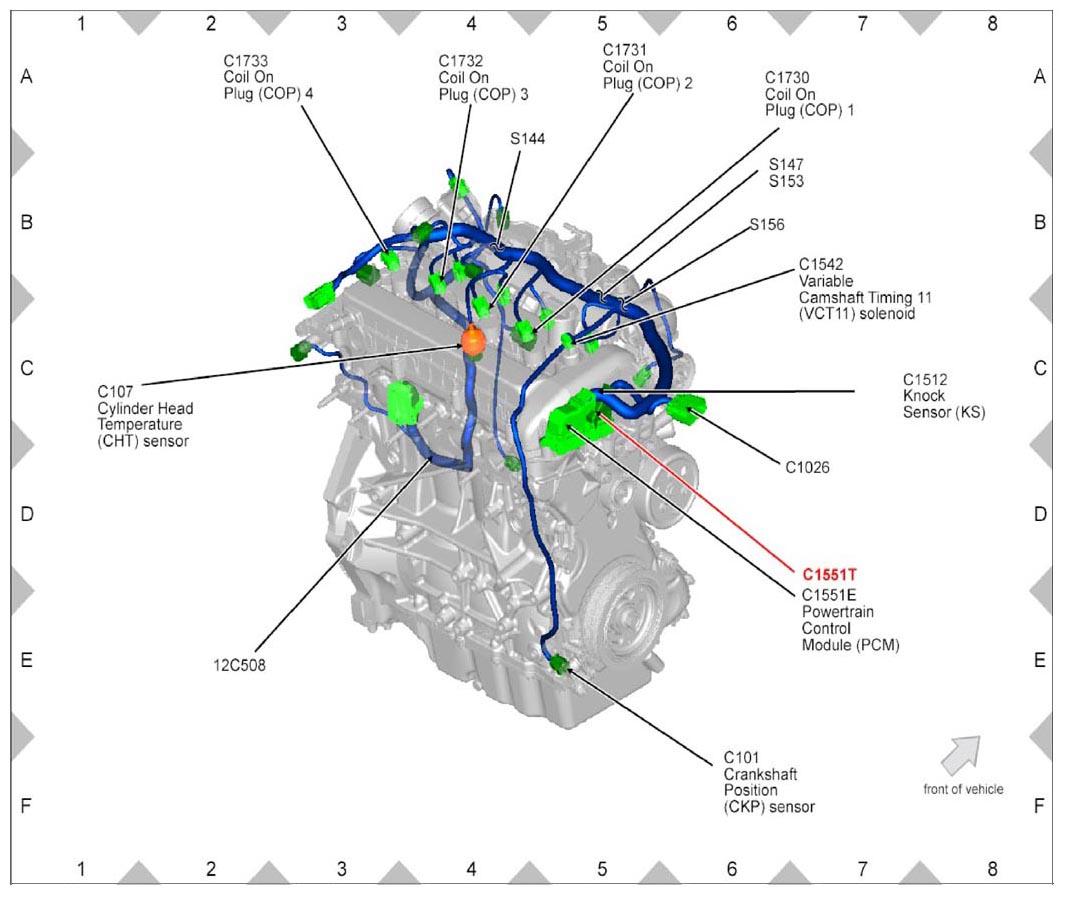

Fig 94: Identifying Powertrain Control Module Connector (C175B, C175T And C1551B)

Courtesy of FORD MOTOR CO.

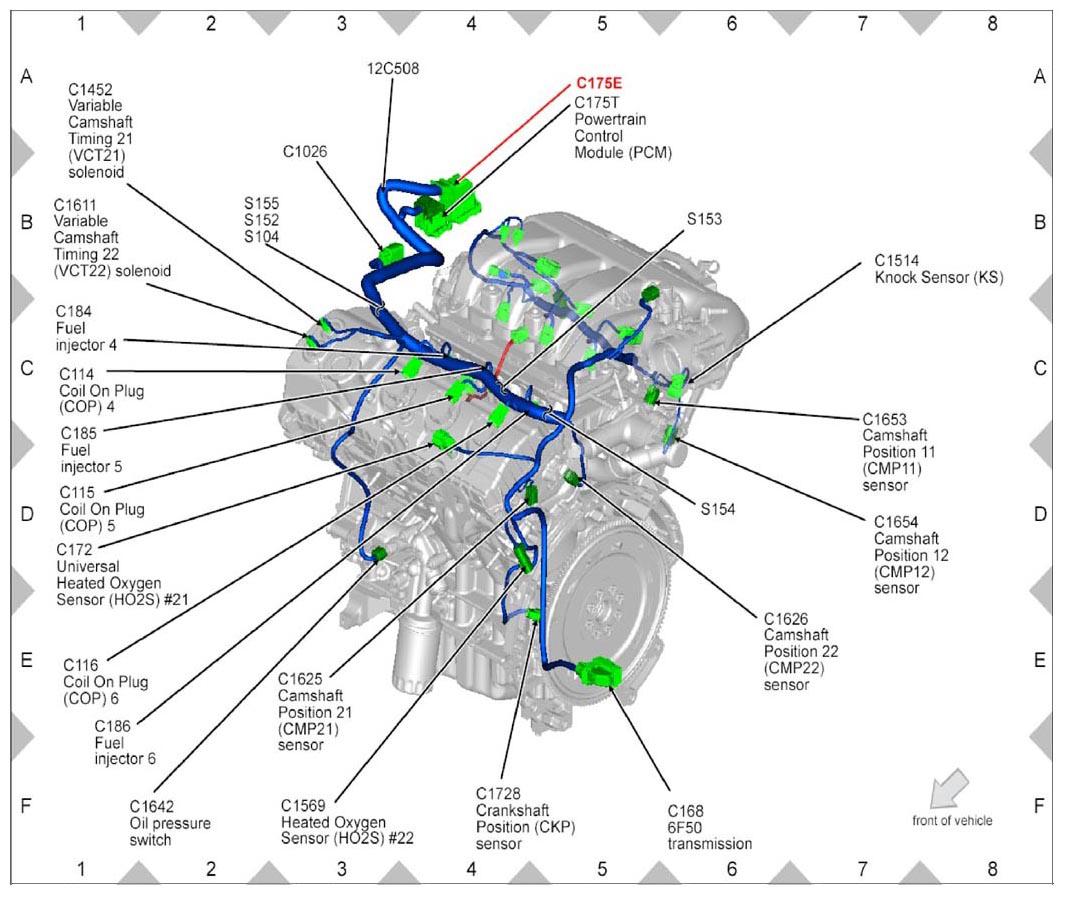

Fig 95: Identifying Connector (C175E)

Courtesy of FORD MOTOR CO.

Fig 96: Identifying Powertrain Control Module Connector (C175B, C175T And C1551B)

Courtesy of FORD MOTOR CO.

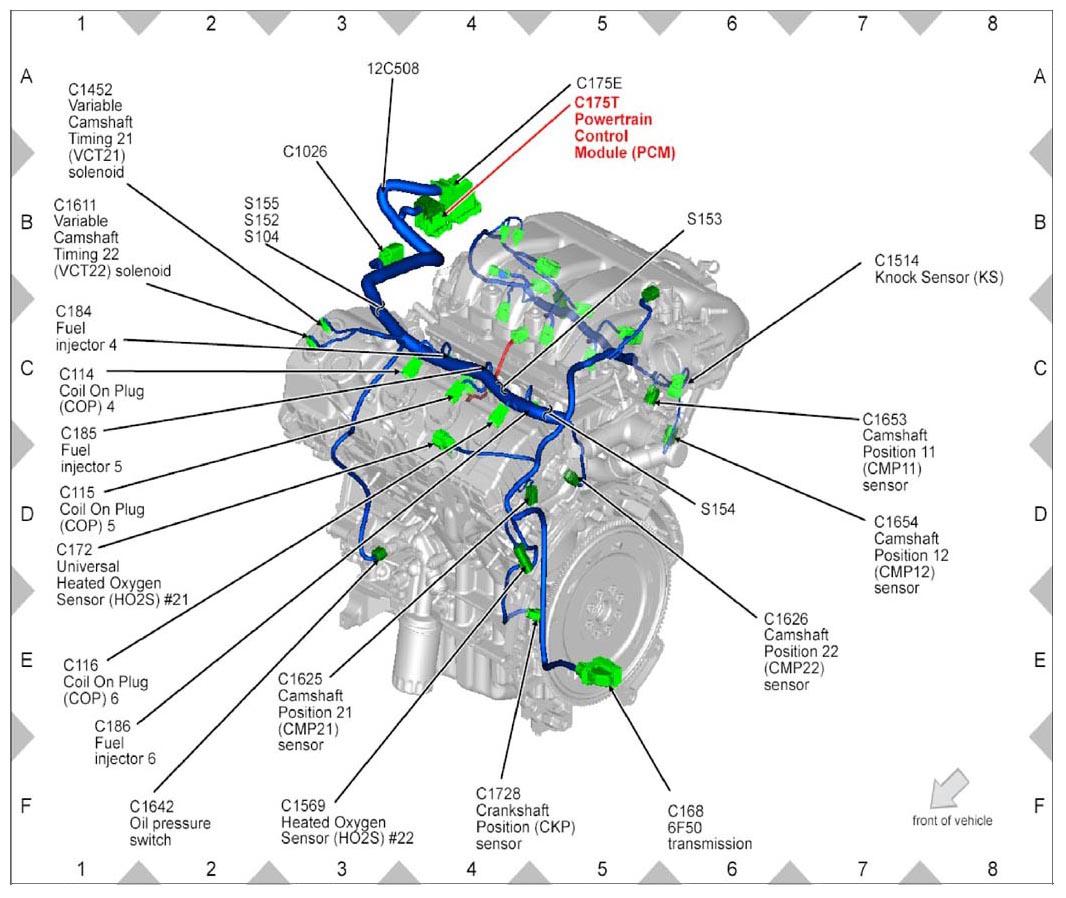

Fig 97: Identifying Powertrain Control Module Connector (C175T)

Courtesy of FORD MOTOR CO.

Fig 98: Identifying Camshaft Position 11 Sensor Connector (C180)

Courtesy of FORD MOTOR CO.

Fig 99: Identifying Fuel Injector 1 Connector (C181) (2.5L)

Courtesy of FORD MOTOR CO.

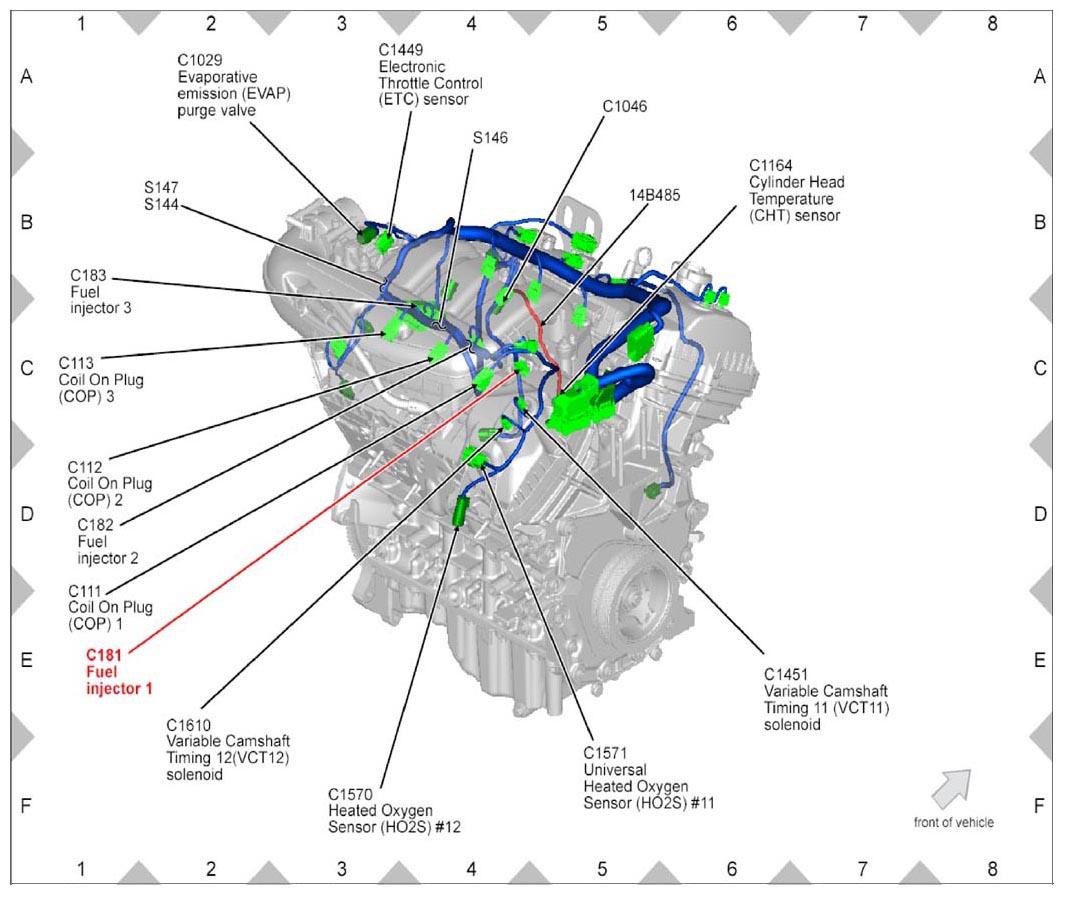

Fig 100: Identifying Fuel Injector 1 Connector (C181) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 101: Identifying Fuel Injector 2 Connector (C182) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 102: Identifying Fuel Injector 2 Connector (C182) (3.7L)

Courtesy of FORD MOTOR CO.

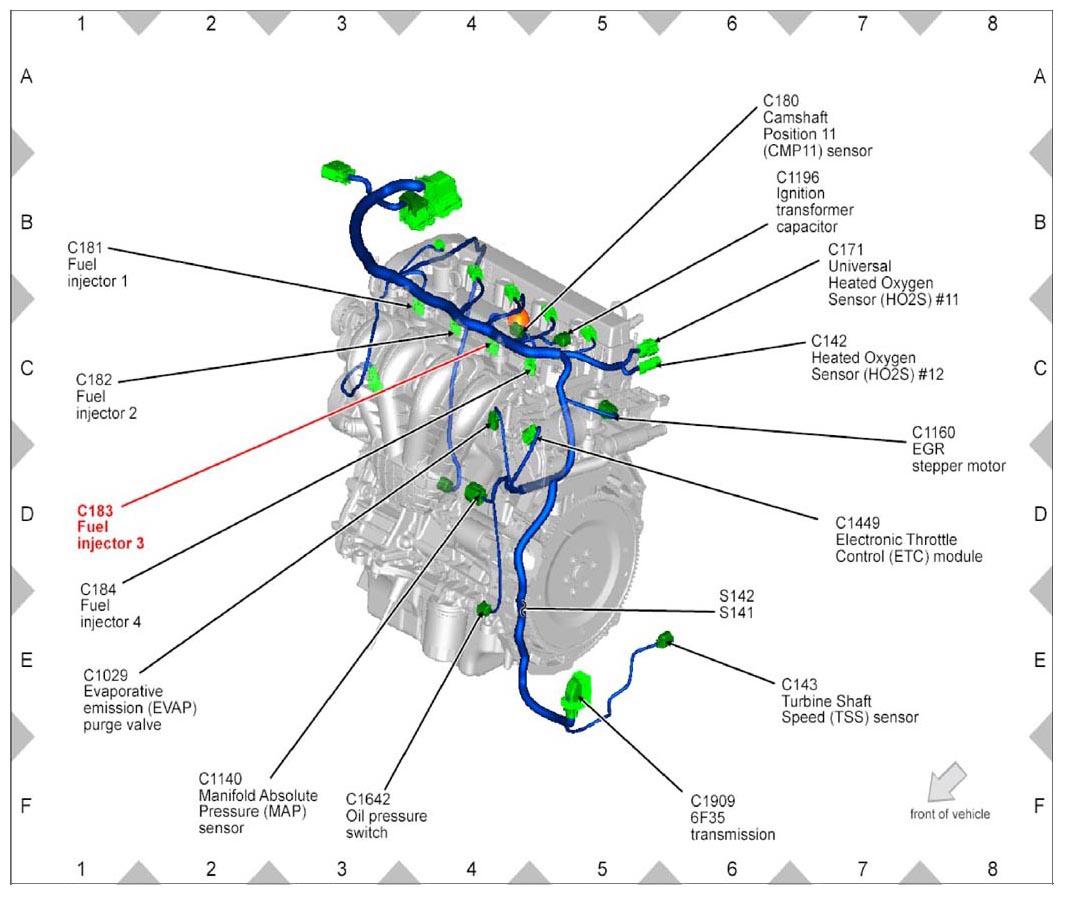

Fig 103: Identifying Fuel Injector 3 Connector (C183) (2.5L)

Courtesy of FORD MOTOR CO.

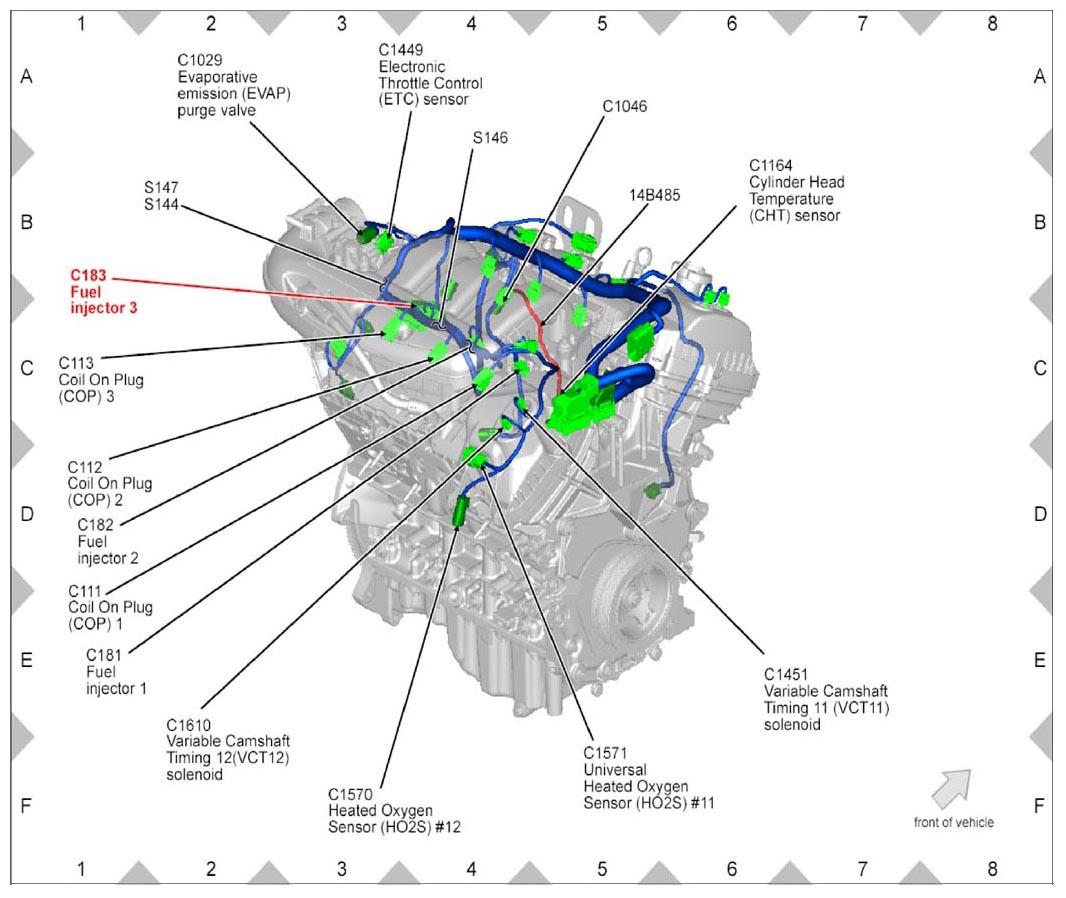

Fig 104: Identifying Fuel Injector 3 Connector (C183) (3.7L)

Courtesy of FORD MOTOR CO.

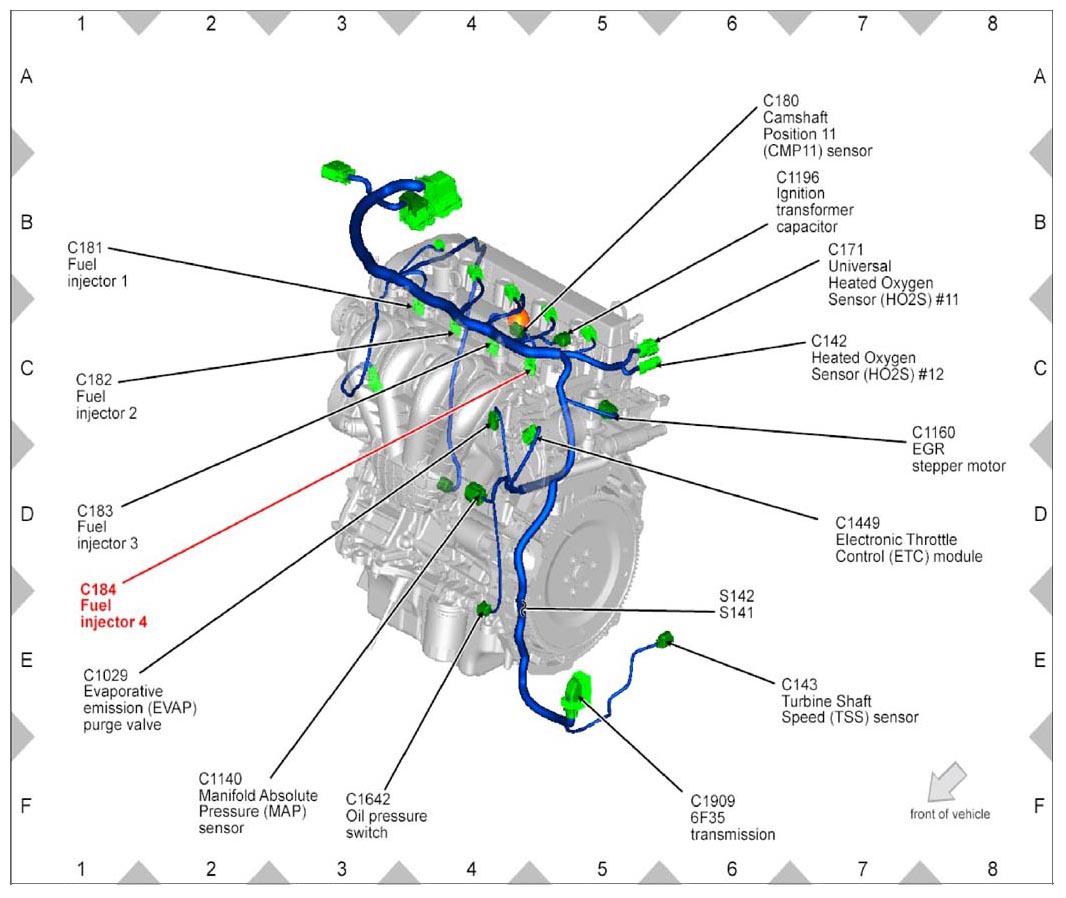

Fig 105: Identifying Fuel Injector 4 Connector (C184) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 106: Identifying Fuel Injector 4 Connector (C184) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 107: Identifying Fuel Injector 5 Connector (C185)

Courtesy of FORD MOTOR CO.

Fig 108: Identifying Fuel Injector 6 Connector (C186)

Courtesy of FORD MOTOR CO.

Fig 109: Identifying Connector (C192)

Courtesy of FORD MOTOR CO.

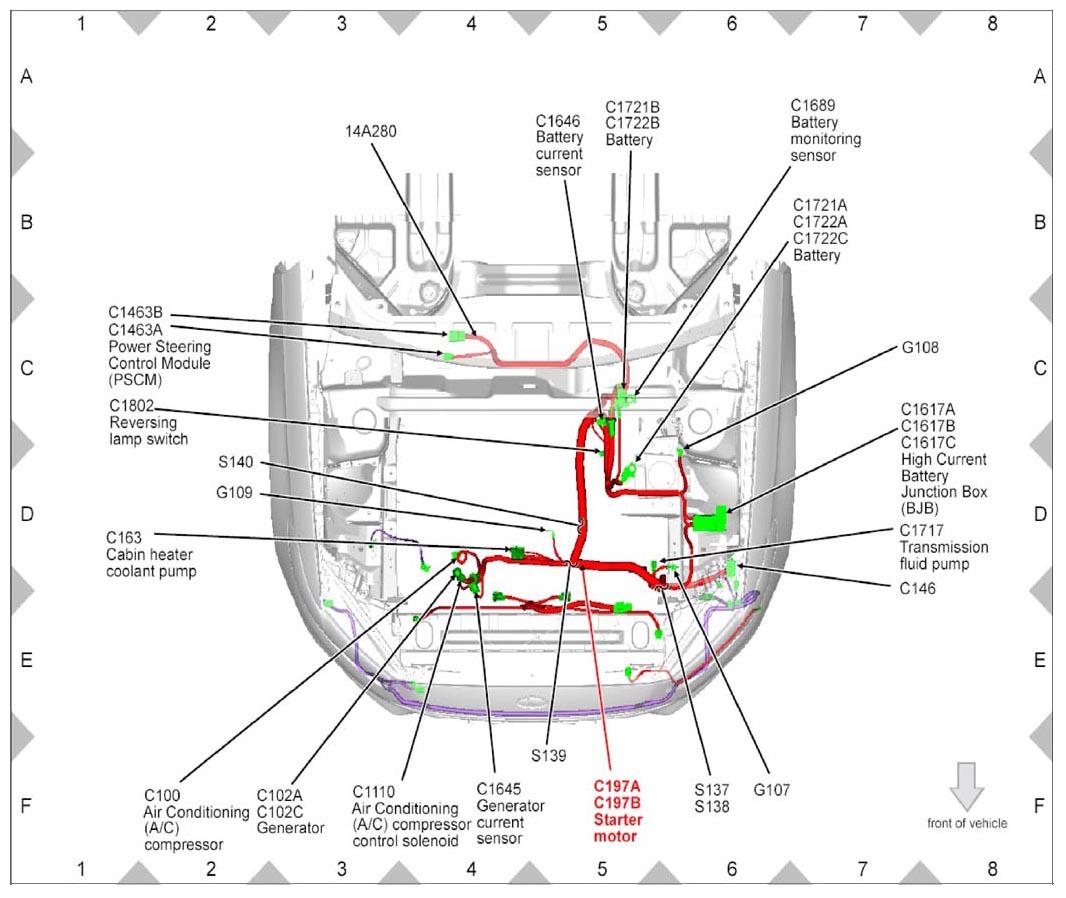

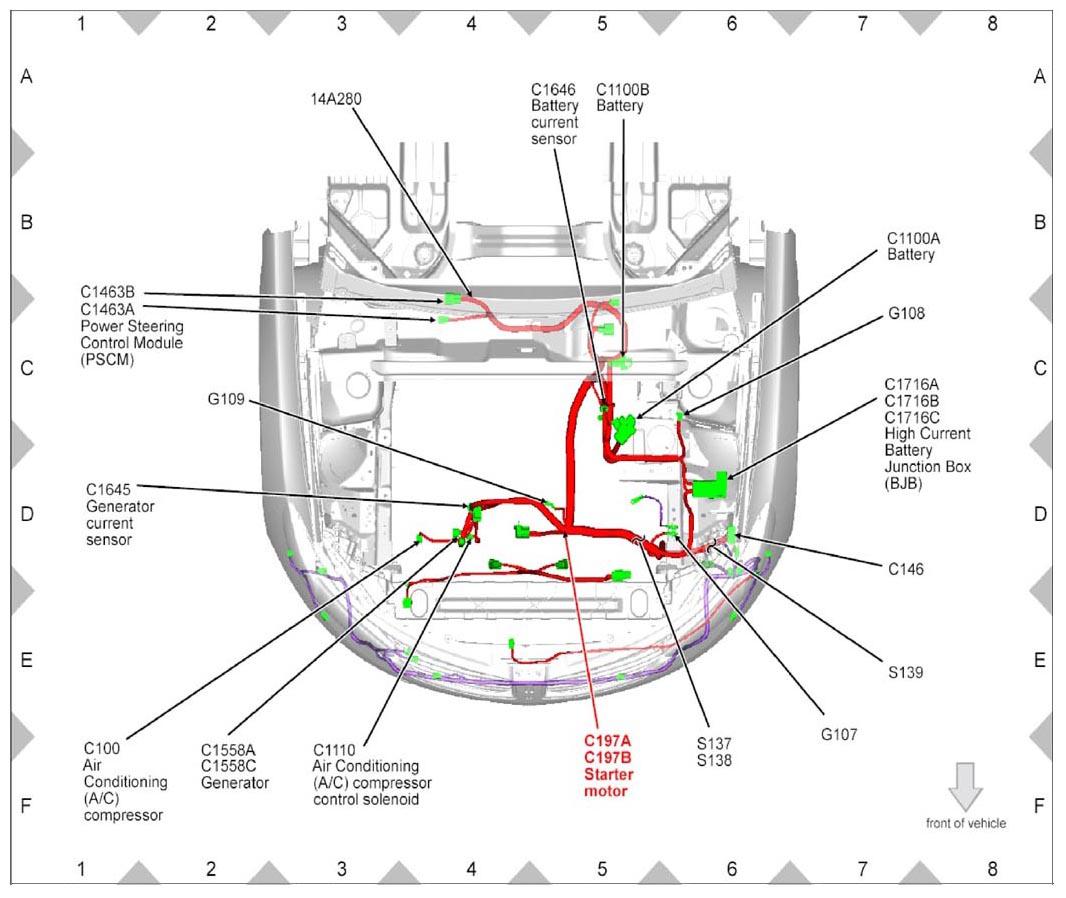

Fig 110: Identifying Starter Motor Connector (C197A And C197B) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 111: Identifying Starter Motor Connector (C197A And C197B) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 112: Identifying Starter Motor Connector (C197A And C197B) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 113: Identifying Starter Motor Connector (C197A And C197B) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 114: Identifying Starter Motor Connector (C197A And C197B) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 115: Identifying Starter Motor Connector (C197A And C197B) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 116: Identifying Headlamp Switch Connector (C205) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 117: Identifying Headlamp Switch Connector (C205) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 118: Identifying Footwell Lamp LH Connector (C209) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 119: Identifying Footwell Lamp LH Connector (C209) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 120: Identifying Connector (C210)

Courtesy of FORD MOTOR CO.

Fig 121: Identifying Connector (C212)

Courtesy of FORD MOTOR CO.

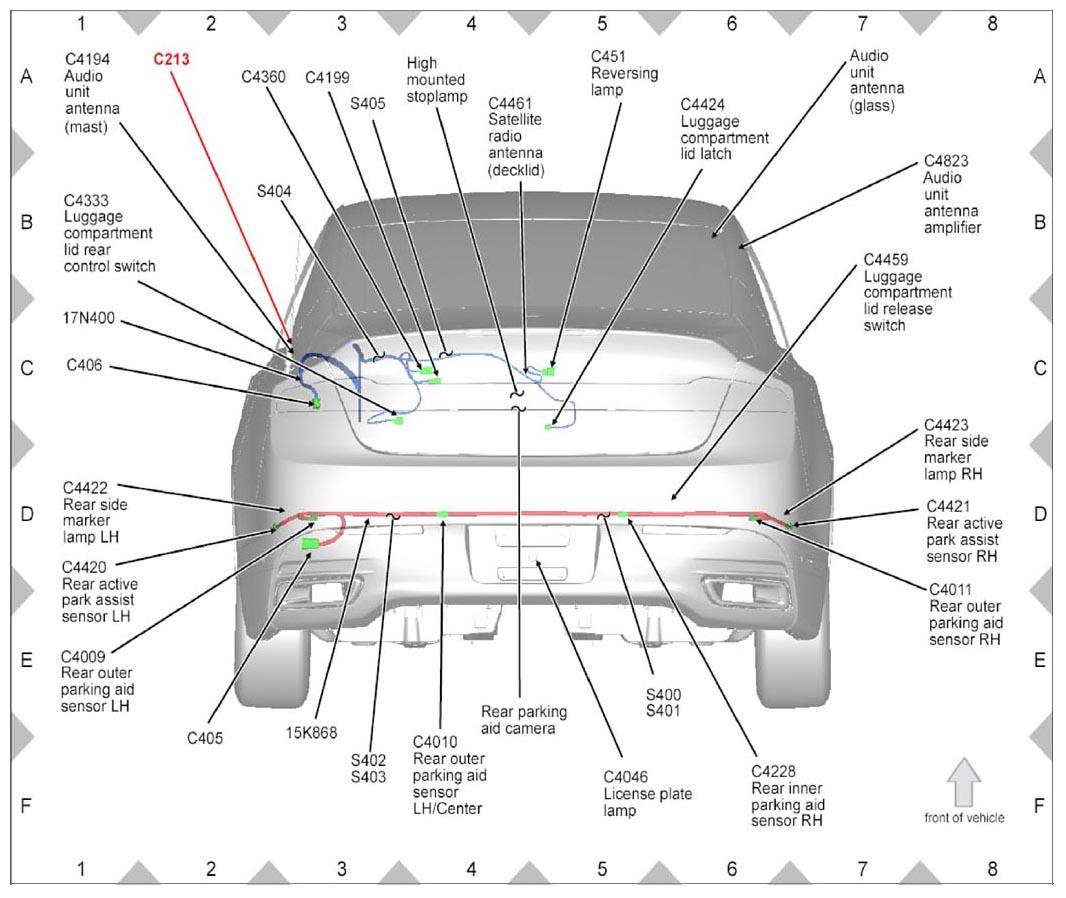

Fig 122: Identifying Connector (C213)

Courtesy of FORD MOTOR CO.

Fig 123: Identifying Connector (C214)

Courtesy of FORD MOTOR CO.

Fig 124: Identifying Connector (C215)

Courtesy of FORD MOTOR CO.

Fig 125: Identifying Driver Airbag Connector (C216A And C216B)

Courtesy of FORD MOTOR CO.

Fig 126: Identifying Driver Airbag Connector (C216A And C216B)

Courtesy of FORD MOTOR CO.

Fig 127: Identifying Horn Switch Connector (C217)

Courtesy of FORD MOTOR CO.

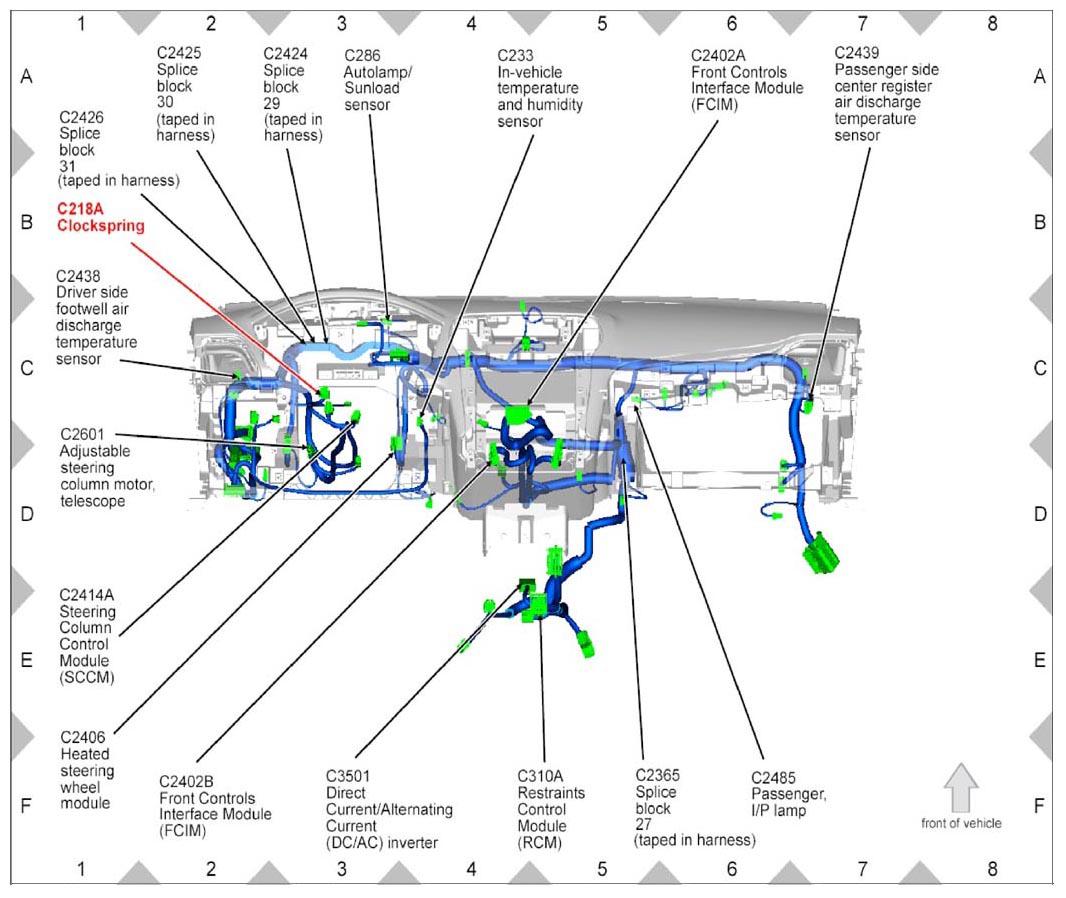

Fig 128: Identifying Clockspring Connector (C218A)

Courtesy of FORD MOTOR CO.

Fig 129: Identifying Clockspring Connector (C218A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 130: Identifying Clockspring Connector (C218A) (MKZ)

Courtesy of FORD MOTOR CO.

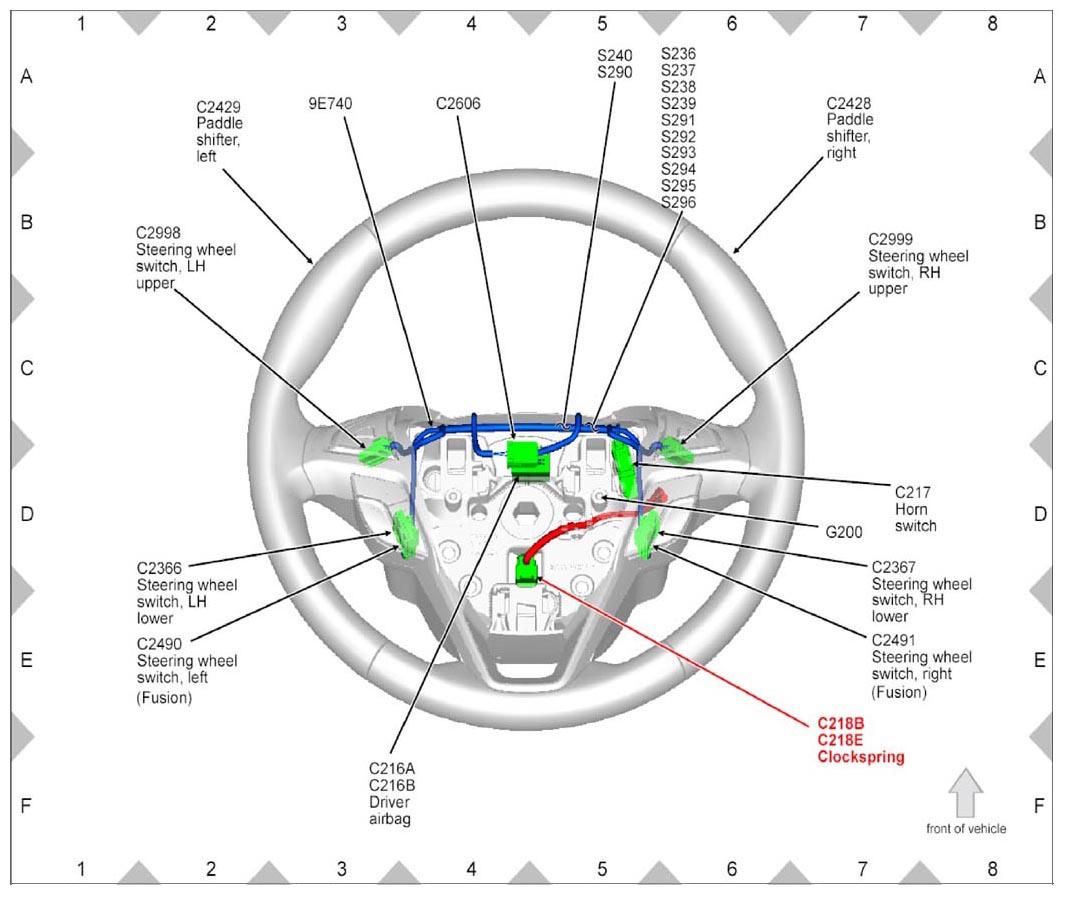

Fig 131: Identifying Clockspring Connector (C218B And C218E)

Courtesy of FORD MOTOR CO.

Fig 132: Identifying Connector (C218C And C2414D)

Courtesy of FORD MOTOR CO.

Fig 133: Identifying Connector (C218C And C2414D)

Courtesy of FORD MOTOR CO.

Fig 134: Identifying Clockspring Connector (C218B And C218E)

Courtesy of FORD MOTOR CO.

Fig 135: Identifying Connector (C219)

Courtesy of FORD MOTOR CO.

Fig 136: Identifying Connector (C219) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 137: Identifying Instrument Panel Cluster Module Connector (C220) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 138: Identifying Instrument Panel Cluster Module Connector (C220) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 139: Identifying Splice Block 22 Connector (C223)

Courtesy of FORD MOTOR CO.

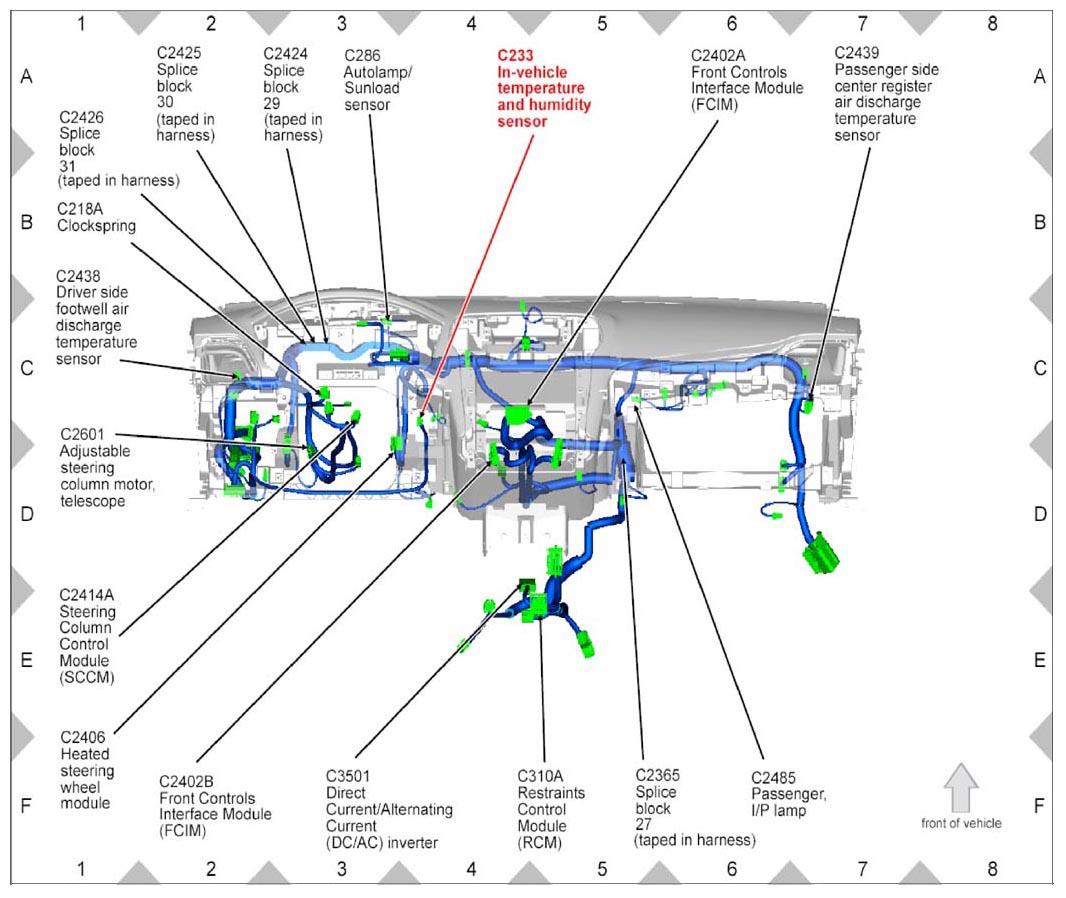

Fig 140: Identifying In-Vehicle Temperature And Humidity Sensor Connector (C233) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 141: Identifying In-Vehicle Temperature And Humidity Sensor Connector (C233) (MKZ)

Courtesy of FORD MOTOR CO.

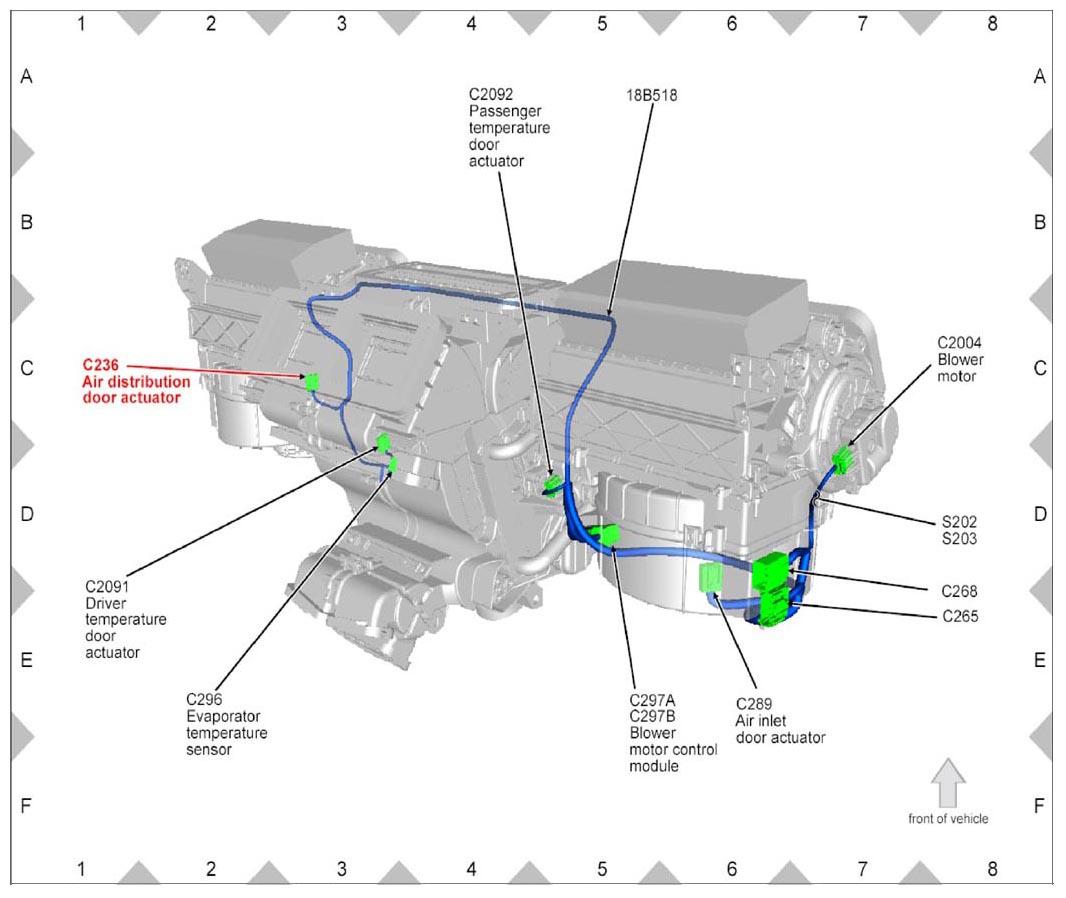

Fig 142: Identifying Air Distribution Door Actuator Connector (C236)

Courtesy of FORD MOTOR CO.

Fig 143: Identifying Connector (C237) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 144: Identifying Connector (C237) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 145: Identifying Connector (C238)

Courtesy of FORD MOTOR CO.

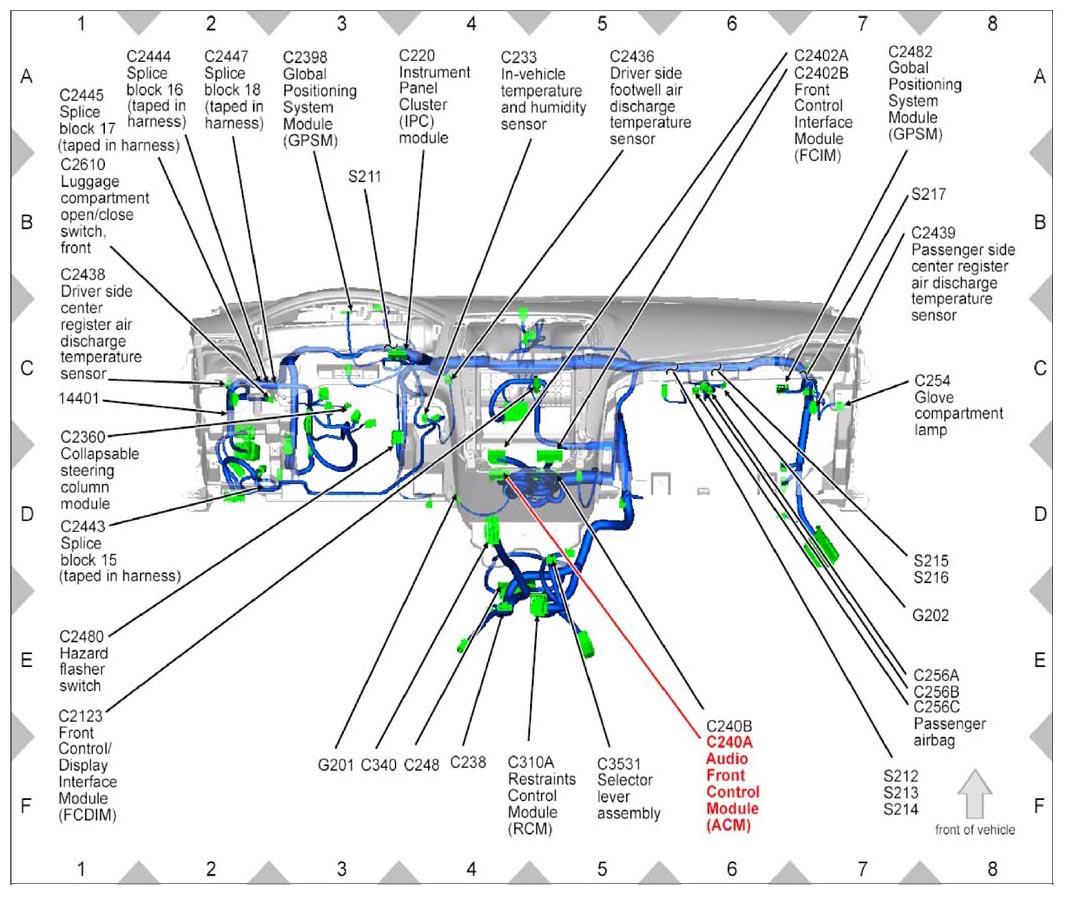

Fig 146: Identifying Audio Front Control Module Connector (C240A)

Courtesy of FORD MOTOR CO.

Fig 147: Identifying Connector (C240B)

Courtesy of FORD MOTOR CO.

Fig 148: Identifying Splice Block 23 Connector (C244)

Courtesy of FORD MOTOR CO.

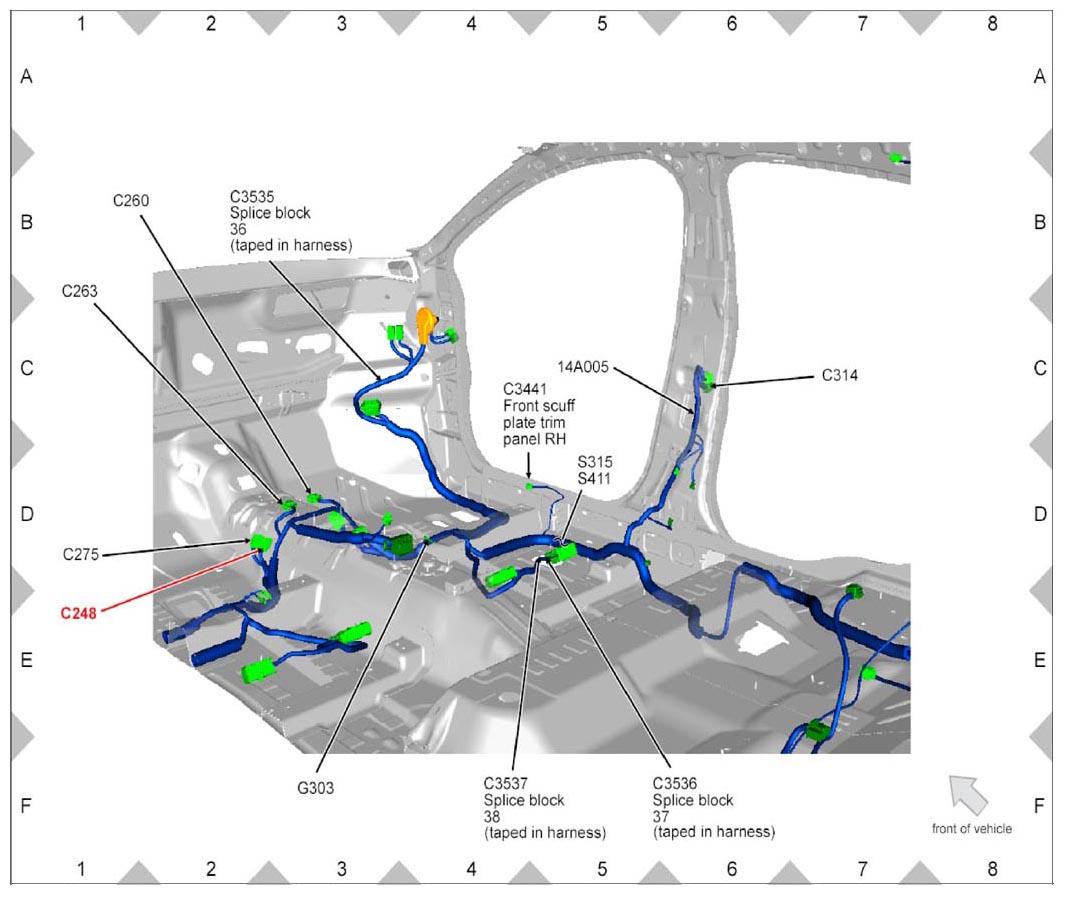

Fig 149: Identifying Connector (C248)

Courtesy of FORD MOTOR CO.

Fig 150: Identifying Connector (C248) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 151: Identifying Connector (C248) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 152: Identifying Ignition Switch Connector (C250)

Courtesy of FORD MOTOR CO.

Fig 153: Identifying Data Link Connector (DLC) Connector (C251) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 154: Identifying Data Link Connector (Dlc) Connector (C251) (MKZ)

Courtesy of FORD MOTOR CO.

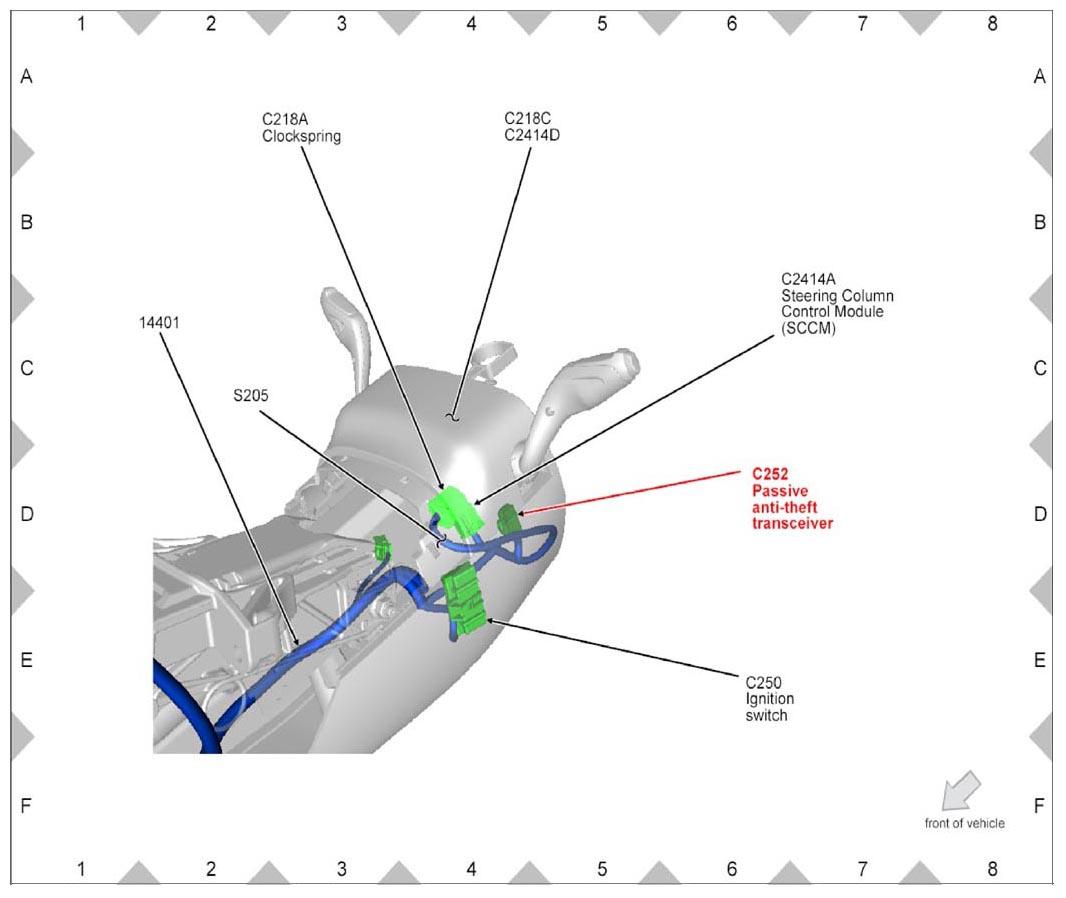

Fig 155: Identifying Passive Anti-Theft Transceiver Connector (C252)

Courtesy of FORD MOTOR CO.

Fig 156: Identifying Glove Compartment Lamp Connector (C254) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 157: Identifying Glove Compartment Lamp Connector (C254) (MKZ)

Courtesy of FORD MOTOR CO.

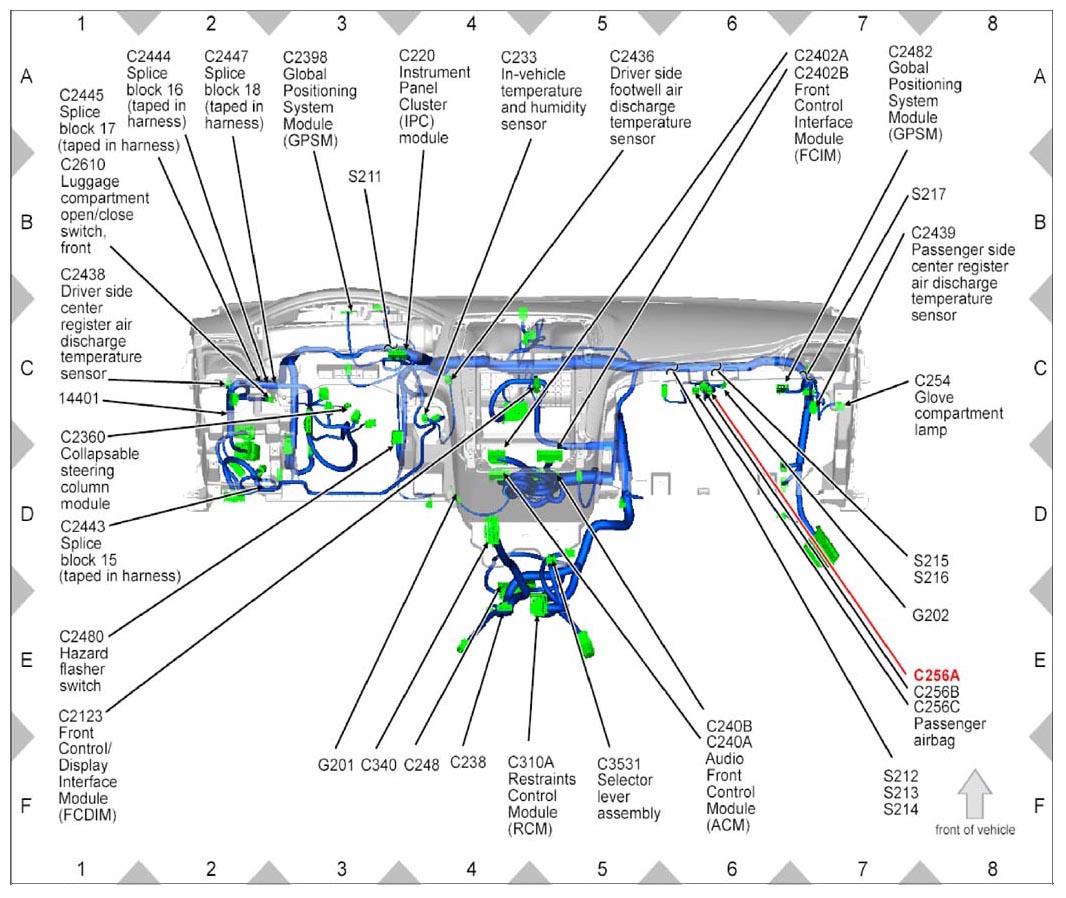

Fig 158: Identifying Connector (C256A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 159: Identifying Connector (C256A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 160: Identifying Connector (C256B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 161: Identifying Connector (C256B) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 162: Identifying Passenger Airbag Connector (C256C) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 163: Identifying Passenger Airbag Connector (C256C) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 164: Identifying Clutch Pedal Position (Cpp) Switch Connector (C257)

Courtesy of FORD MOTOR CO.

Fig 165: Identifying Connector (C260)

Courtesy of FORD MOTOR CO.

Fig 166: Identifying Connector (C260) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 167: Identifying Connector (C260) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 168: Identifying Splice Block 19 Connector (C261)

Courtesy of FORD MOTOR CO.

Fig 169: Identifying Splice Block 20 Connector (C262)

Courtesy of FORD MOTOR CO.

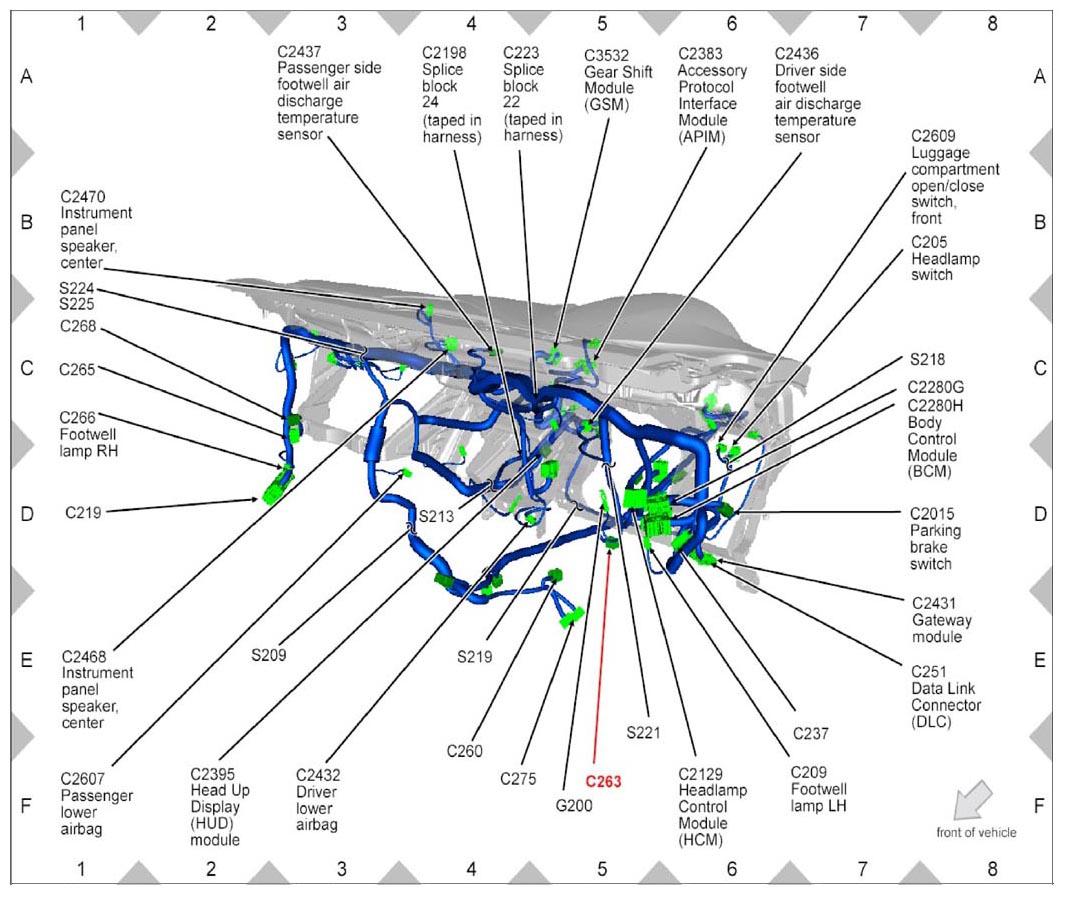

Fig 170: Identifying Connector (C263)

Courtesy of FORD MOTOR CO.

Fig 171: Identifying Connector (C263) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 172: Identifying Connector (C263) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 173: Identifying Connector (C264)

Courtesy of FORD MOTOR CO.

Fig 174: Identifying Connector (C265)

Courtesy of FORD MOTOR CO.

Fig 175: Identifying Connector (C265) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 176: Identifying Connector (C265) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 177: Identifying Footwell Lamp RH Connector (C266) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 178: Identifying Footwell Lamp RH Connector (C266) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 179: Identifying Connector (C268)

Courtesy of FORD MOTOR CO.

Fig 180: Identifying Connector (C268) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 181: Identifying Connector (C268) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 182: Identifying Connector (C275)

Courtesy of FORD MOTOR CO.

Fig 183: Identifying Connector (C275) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 184: Identifying Stoplamp Switch Connector (C278)

Courtesy of FORD MOTOR CO.

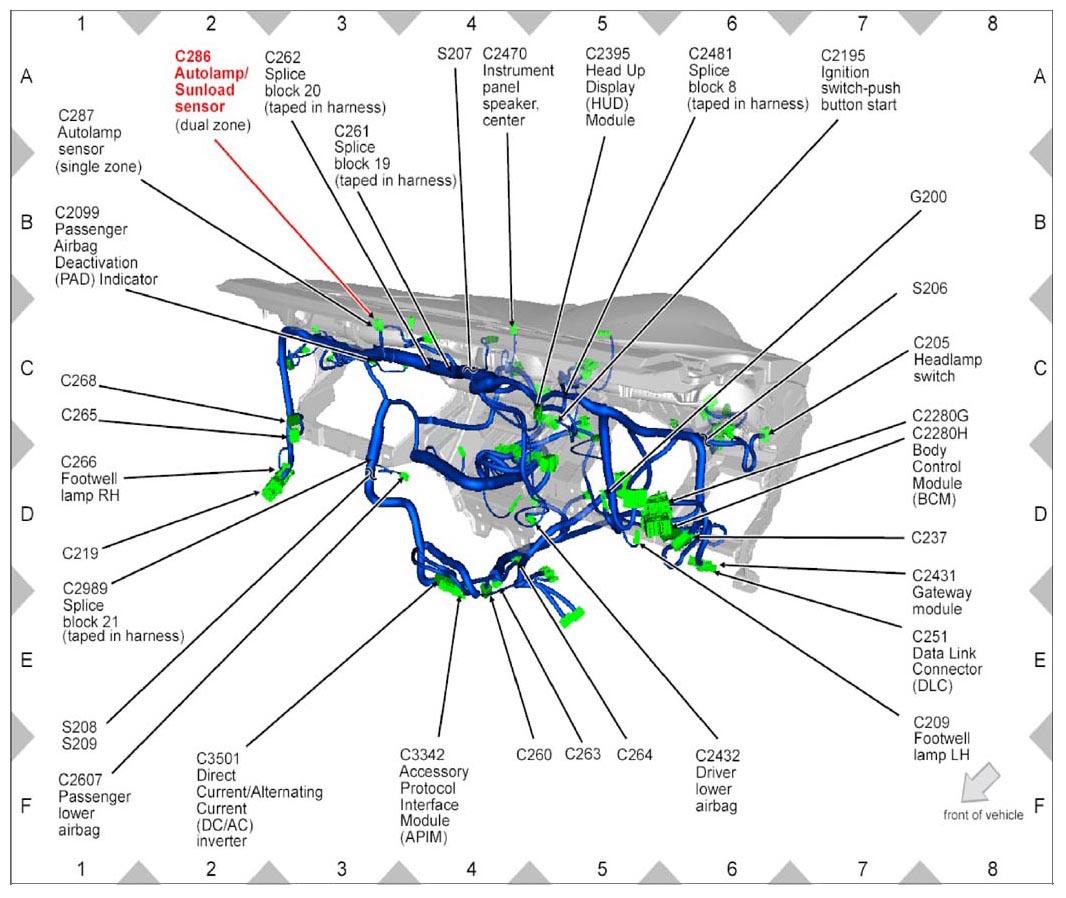

Fig 185: Identifying Autolamp/Sunload Sensor Connector (C286) (Fusion - Dual Zone A/C)

Courtesy of FORD MOTOR CO.

Fig 186: Identifying Autolamp/Sunload Sensor Connector (C286) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 187: Identifying Autolamp Sensor Connector (C287)

Courtesy of FORD MOTOR CO.

Fig 188: Identifying Air Inlet Door Actuator Connector (C289)

Courtesy of FORD MOTOR CO.

Fig 189: Identifying Connector (C291)

Courtesy of FORD MOTOR CO.

Fig 190: Identifying Connector (C291) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 191: Identifying Evaporator Temperature Sensor Connector (C296)

Courtesy of FORD MOTOR CO.

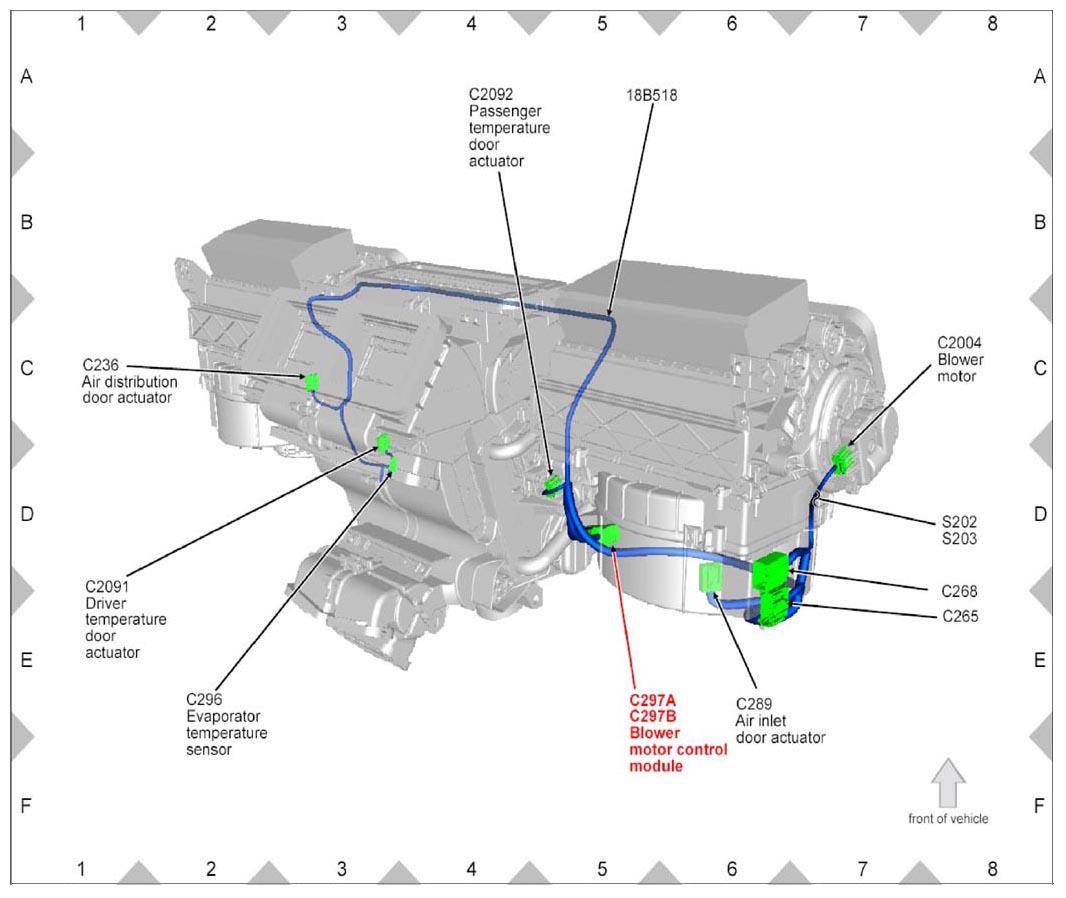

Fig 192: Identifying Blower Motor Control Module Connector (C297A And C297B)

Courtesy of FORD MOTOR CO.

Fig 193: Identifying Blower Motor Control Module Connector (C297A And C297B)

Courtesy of FORD MOTOR CO.

Fig 194: Identifying Connector (C300)

Courtesy of FORD MOTOR CO.

Fig 195: Identifying Connector (C300)

Courtesy of FORD MOTOR CO.

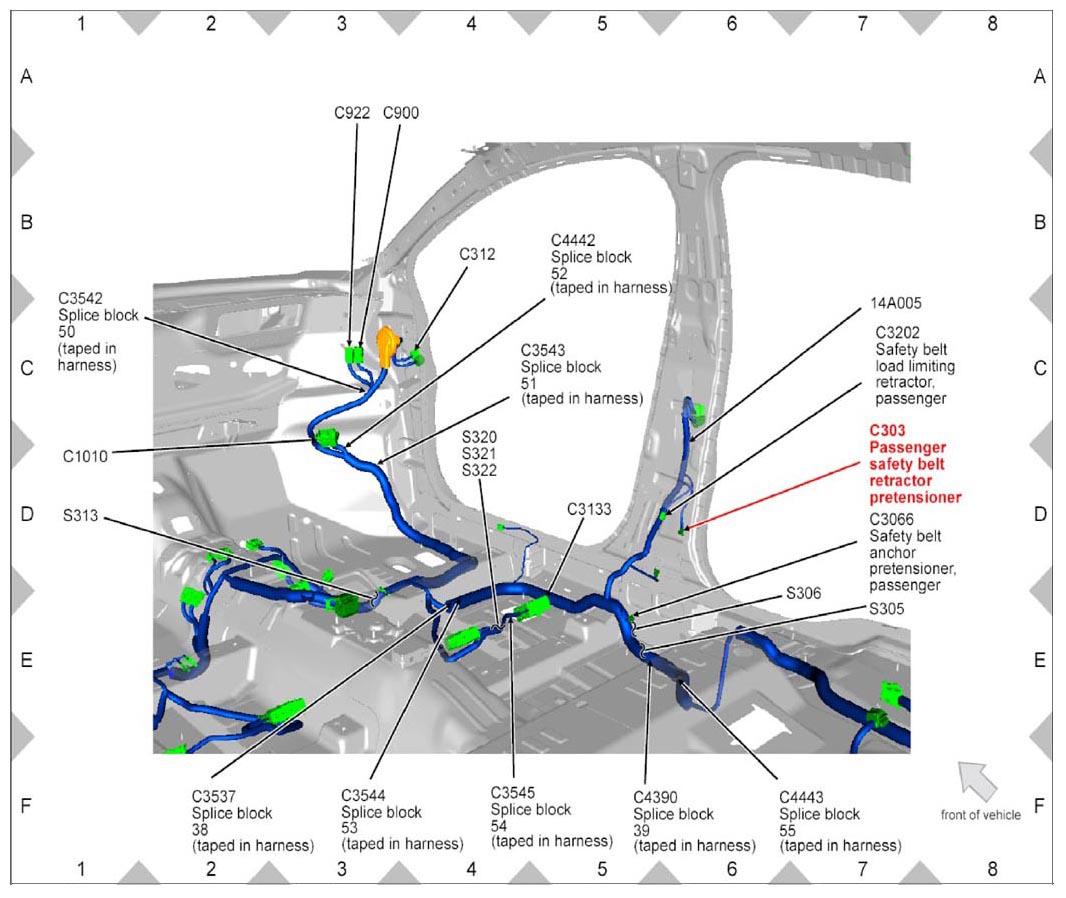

Fig 196: Identifying Passenger Safety Belt Retractor Pretensioner Connector (C303)

Courtesy of FORD MOTOR CO.

Fig 197: Identifying Parking Brake Switch Connector (C306)

Courtesy of FORD MOTOR CO.

Fig 198: Identifying Restraints Control Module Connector (C310A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 199: Identifying Restraints Control Module Connector (C310A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 200: Identifying Restraints Control Module Connector (C310B)

Courtesy of FORD MOTOR CO.

Fig 201: Identifying Connector (C311)

Courtesy of FORD MOTOR CO.

Fig 202: Identifying Connector (C311) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 203: Identifying Connector (C311) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 204: Identifying Connector (C312)

Courtesy of FORD MOTOR CO.

Fig 205: Identifying Connector (C312) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 206: Identifying Connector (C312) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 207: Identifying Connector (C313)

Courtesy of FORD MOTOR CO.

Fig 208: Identifying Connector (C313) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 209: Identifying Connector (C313) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 210: Identifying Connector (C314)

Courtesy of FORD MOTOR CO.

Fig 211: Identifying Connector (C314) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 212: Identifying Connector (C314) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 213: Identifying Connector (C315)

Courtesy of FORD MOTOR CO.

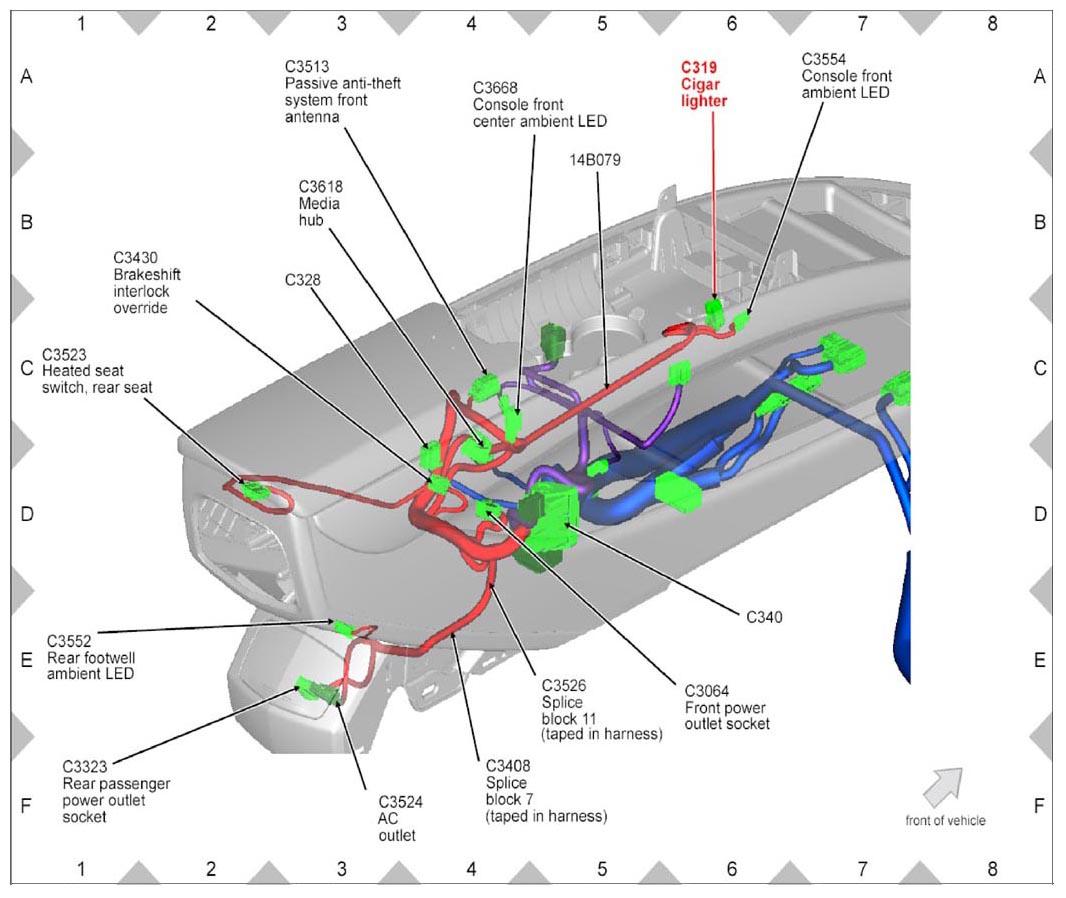

Fig 214: Identifying Cigar Lighter Connector (C319) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 215: Identifying Cigar Lighter Connector (C319) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 216: Identifying Driver Safety Belt Retractor Pretensioner Connector (C323)

Courtesy of FORD MOTOR CO.

Fig 217: Identifying Connector (C328)

Courtesy of FORD MOTOR CO.

Fig 218: Identifying Connector (C328) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 219: Identifying Connector (C328) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 220: Identifying Passenger Seat Rear Height Motor Connector (C330)

Courtesy of FORD MOTOR CO.

Fig 221: Identifying Passenger Seat Horizontal Motor Connector (C332)

Courtesy of FORD MOTOR CO.

Fig 222: Identifying Seat Cushion Heater, Right Front Connector (C334)

Courtesy of FORD MOTOR CO.

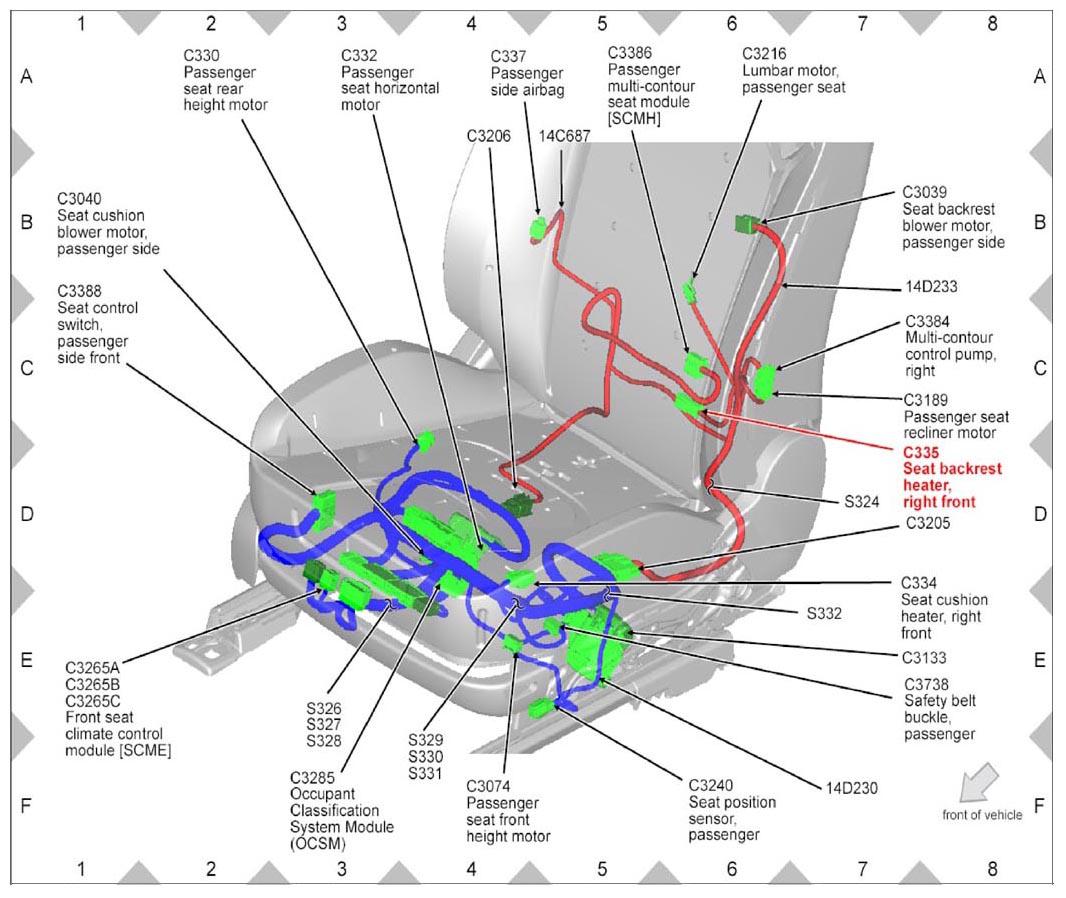

Fig 223: Identifying Seat Backrest Heater, Right Front Connector (C335)

Courtesy of FORD MOTOR CO.

Fig 224: Identifying Passenger Side Airbag Connector (C337)

Courtesy of FORD MOTOR CO.

Fig 225: Identifying Connector (C340) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 226: Identifying Connector (C340) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 227: Identifying Connector (C340) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 228: Identifying Connector (C340) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 229: Identifying Driver Seat Module Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 230: Identifying Driver Seat Module Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 231: Identifying Driver Seat Module Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 232: Identifying Driver Seat Module Connector (C341A, C341B, C341C And C341D)

Courtesy of FORD MOTOR CO.

Fig 233: Identifying Seat Position Sensor, Driver Connector (C356)

Courtesy of FORD MOTOR CO.

Fig 234: Identifying Driver Seat Horizontal Motor Connector (C362)

Courtesy of FORD MOTOR CO.

Fig 235: Identifying Driver Seat Rear Height Motor Connector (C363)

Courtesy of FORD MOTOR CO.

Fig 236: Identifying Seat Backrest Heater, Left Front Connector (C365)

Courtesy of FORD MOTOR CO.

Fig 237: Identifying Driver Side Airbag Connector (C367)

Courtesy of FORD MOTOR CO.

Fig 238: Identifying Driver Seat Front Height Motor Connector (C382)

Courtesy of FORD MOTOR CO.

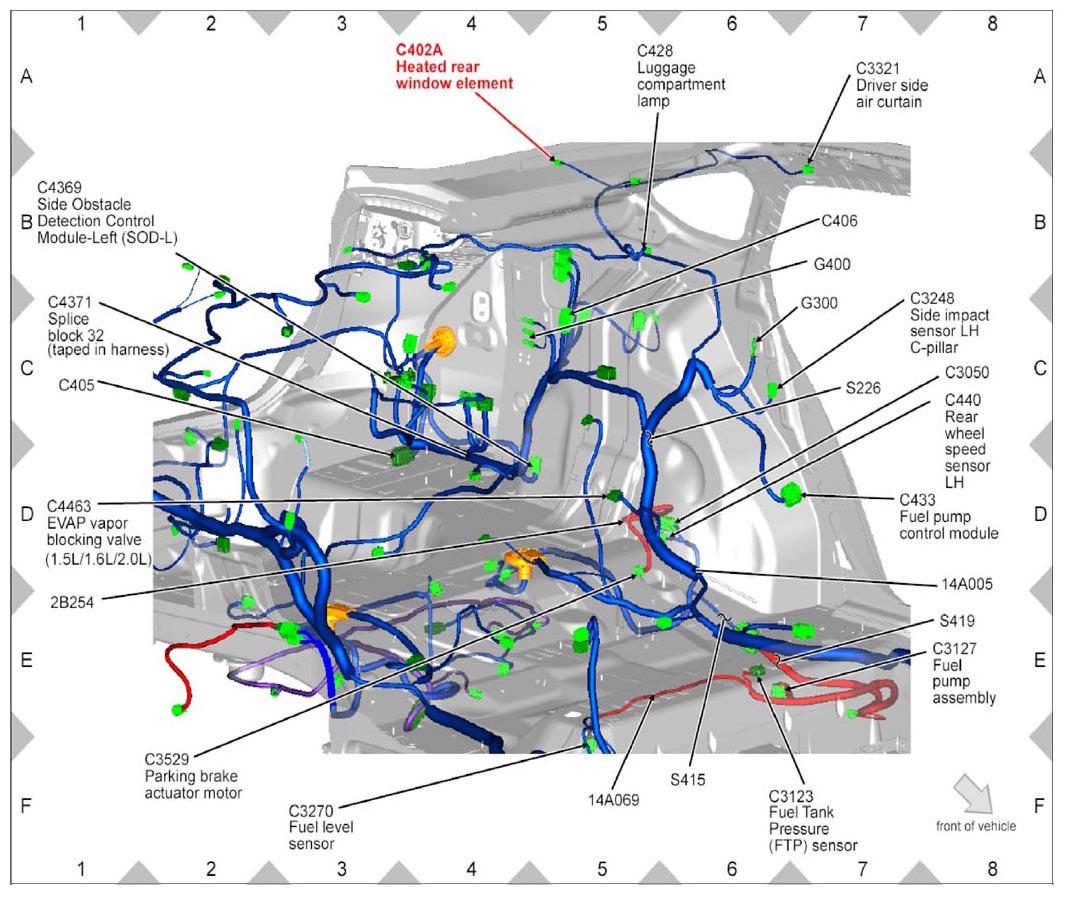

Fig 239: Identifying Heated Rear Window Element Connector (C402A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 240: Identifying Heated Rear Window Element Connector (C402A) (MKZ)

Courtesy of FORD MOTOR CO.

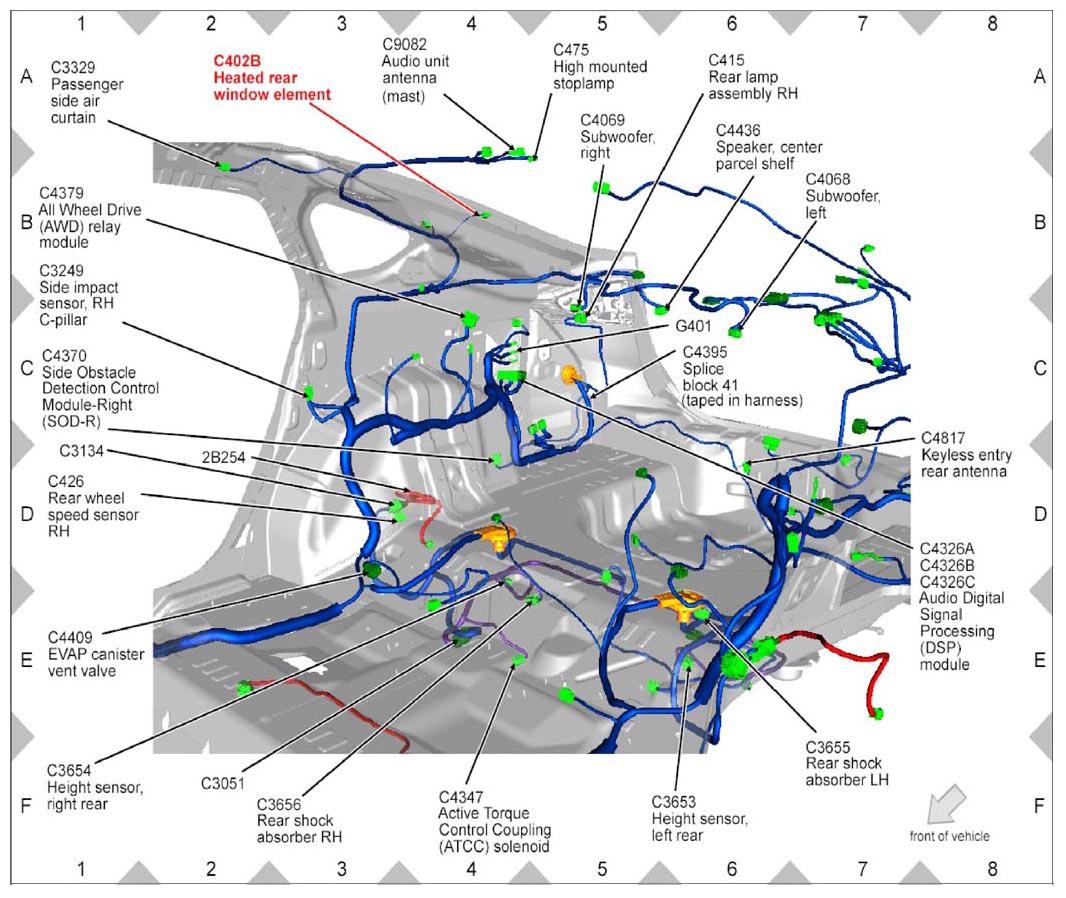

Fig 241: Identifying Heated Rear Window Element Connector (C402B)

Courtesy of FORD MOTOR CO.

Fig 242: Identifying Connector (C405) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 243: Identifying Connector (C405) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 244: Identifying Connector (C405) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 245: Identifying Connector (C405) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 246: Identifying Connector (C406) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 247: Identifying Connector (C406) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 248: Identifying Connector (C406) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 249: Identifying Connector (C406) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 250: Identifying Connector (C408)

Courtesy of FORD MOTOR CO.

Fig 251: Identifying Rear Lamp Assembly LH Connector (C412)

Courtesy of FORD MOTOR CO.

Fig 252: Identifying Rear Lamp Assembly RH Connector (C415) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 253: Identifying Rear Lamp Assembly RH Connector (C415) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 254: Identifying Rear Wheel Speed Sensor RH Connector (C426)

Courtesy of FORD MOTOR CO.

Fig 255: Identifying Rear Wheel Speed Sensor RH Connector (C426) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 256: Identifying Luggage Compartment Lamp Connector (C428) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 257: Identifying Luggage Compartment Lamp Connector (C428) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 258: Identifying Fuel Pump Control Module Connector (C433) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 259: Identifying Fuel Pump Control Module Connector (C433) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 260: Identifying Rear Wheel Speed Sensor LH Connector (C440) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 261: Identifying Rear Wheel Speed Sensor LH Connector (C440) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 262: Identifying Reversing Lamp Connector (C451)

Courtesy of FORD MOTOR CO.

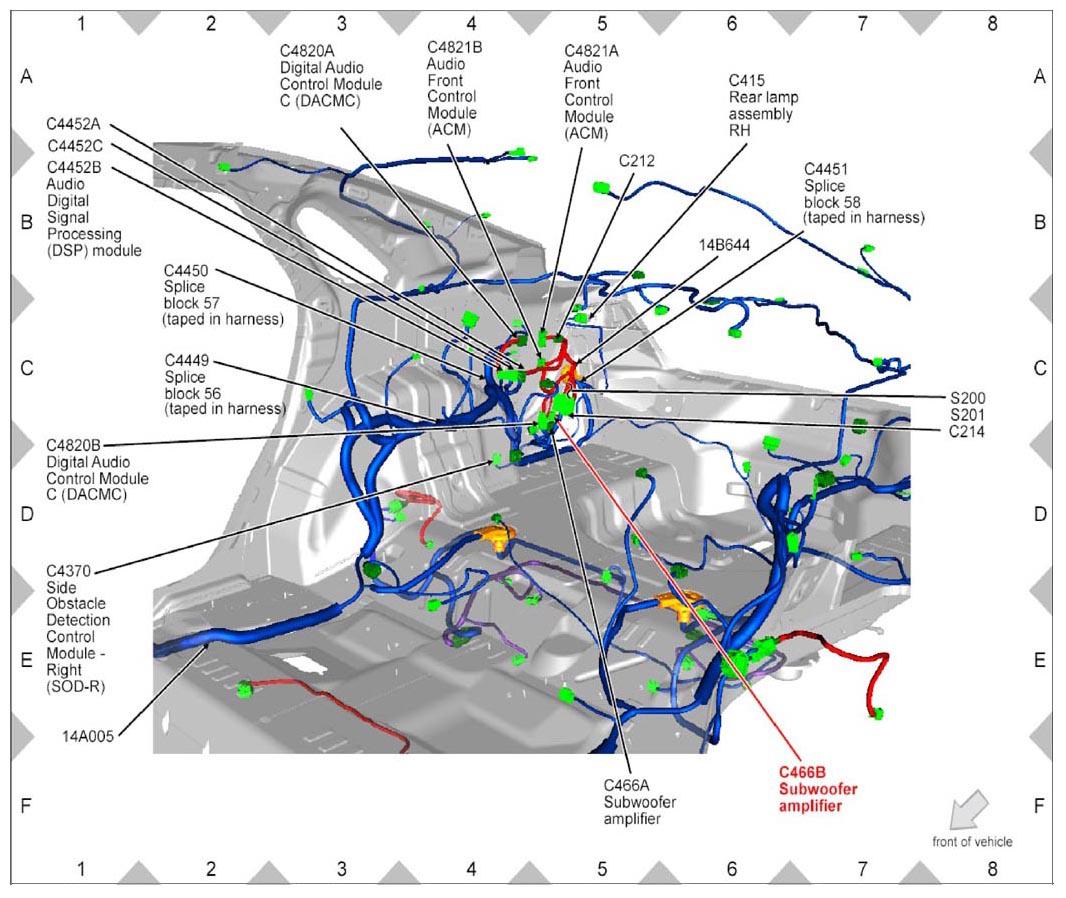

Fig 263: Identifying Subwoofer Amplifier Connector (C466A)

Courtesy of FORD MOTOR CO.

Fig 264: Identifying Subwoofer Amplifier Connector (C466B)

Courtesy of FORD MOTOR CO.

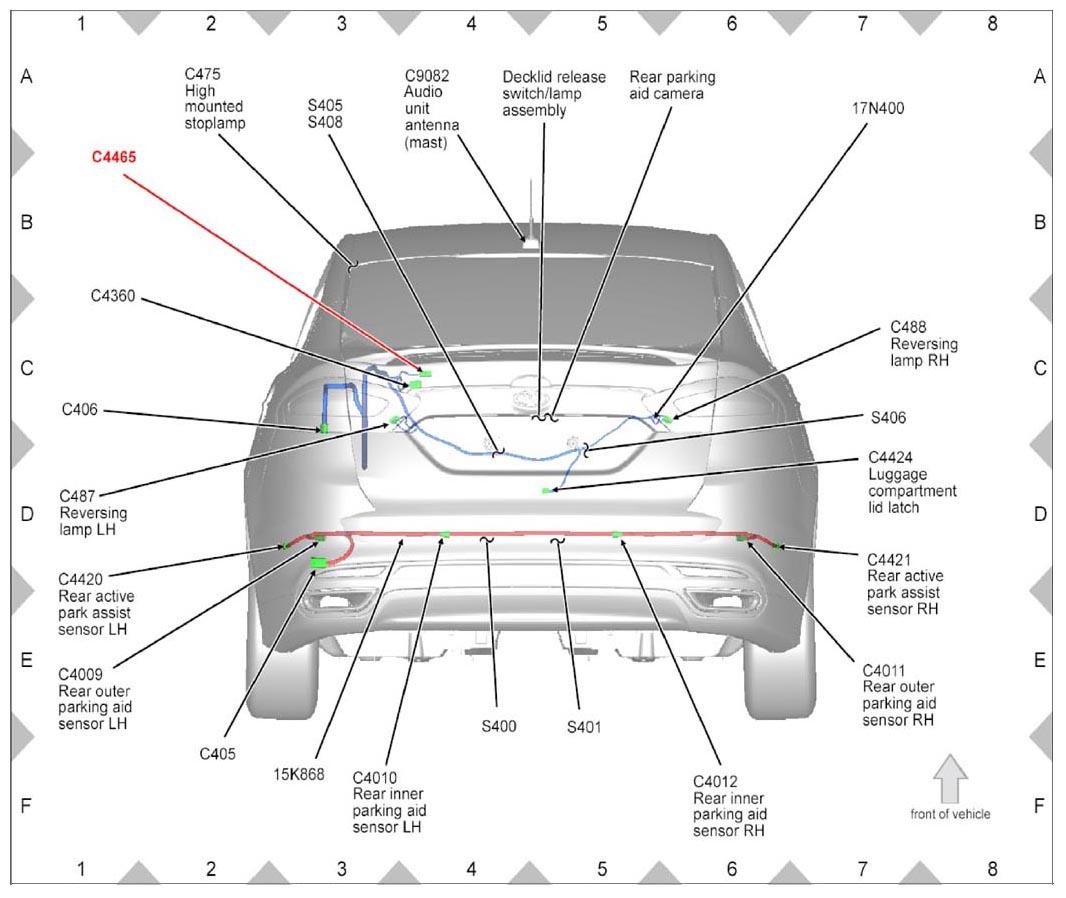

Fig 265: Identifying High Mounted Stoplamp Connector (C475)

Courtesy of FORD MOTOR CO.

Fig 266: Identifying Reversing Lamp LH Connector (C487)

Courtesy of FORD MOTOR CO.

Fig 267: Identifying Reversing Lamp RH Connector (C488)

Courtesy of FORD MOTOR CO.

Fig 268: Identifying Driver Door Module Connector (C501A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 269: Identifying Driver Door Module Connector (C501A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 270: Identifying Driver Door Module Connector (C501B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 271: Identifying Driver Door Module Connector (C501B) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 272: Identifying Front Door Lock Switch LH Connector (C505)

Courtesy of FORD MOTOR CO.

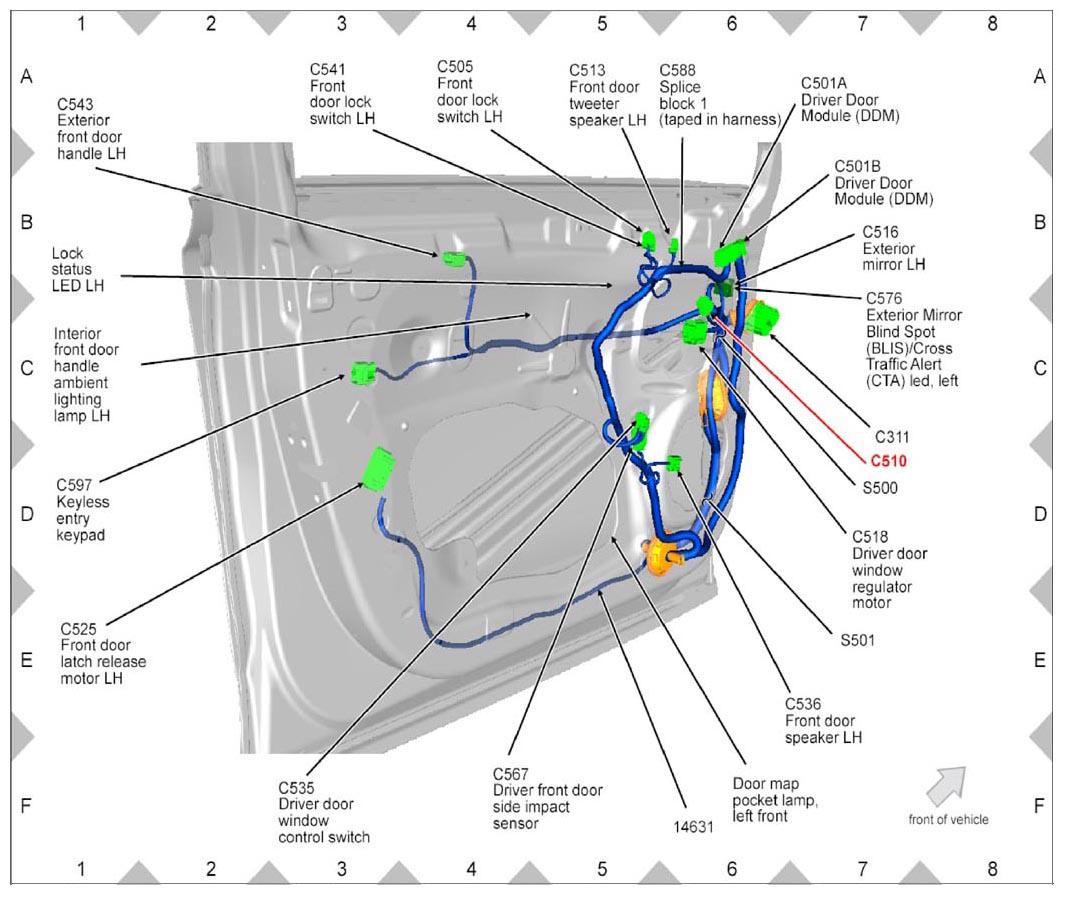

Fig 273: Identifying Connector (C510) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 274: Identifying Connector (C510) (MKZ)

Courtesy of FORD MOTOR CO.

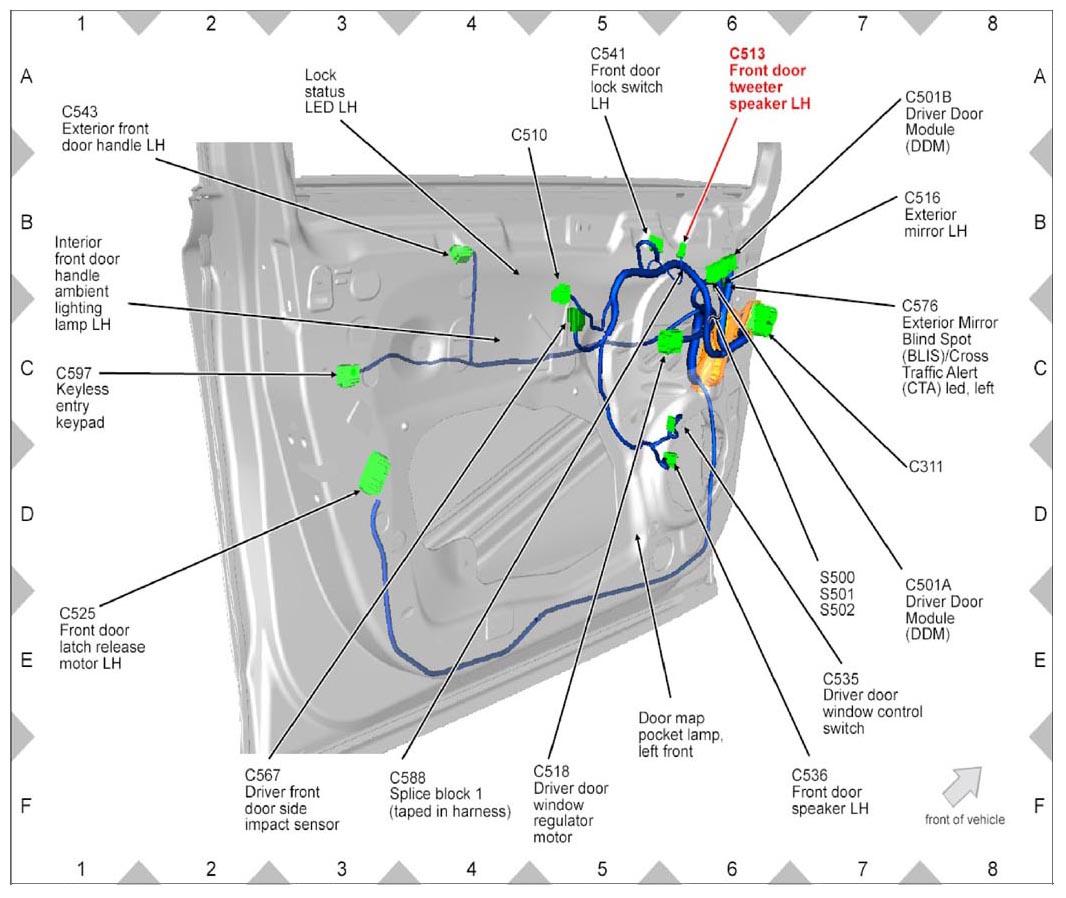

Fig 275: Identifying Front Door Tweeter Speaker LH Connector (C513) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 276: Identifying Front Door Tweeter Speaker LH Connector (C513) (MKZ)

Courtesy of FORD MOTOR CO.

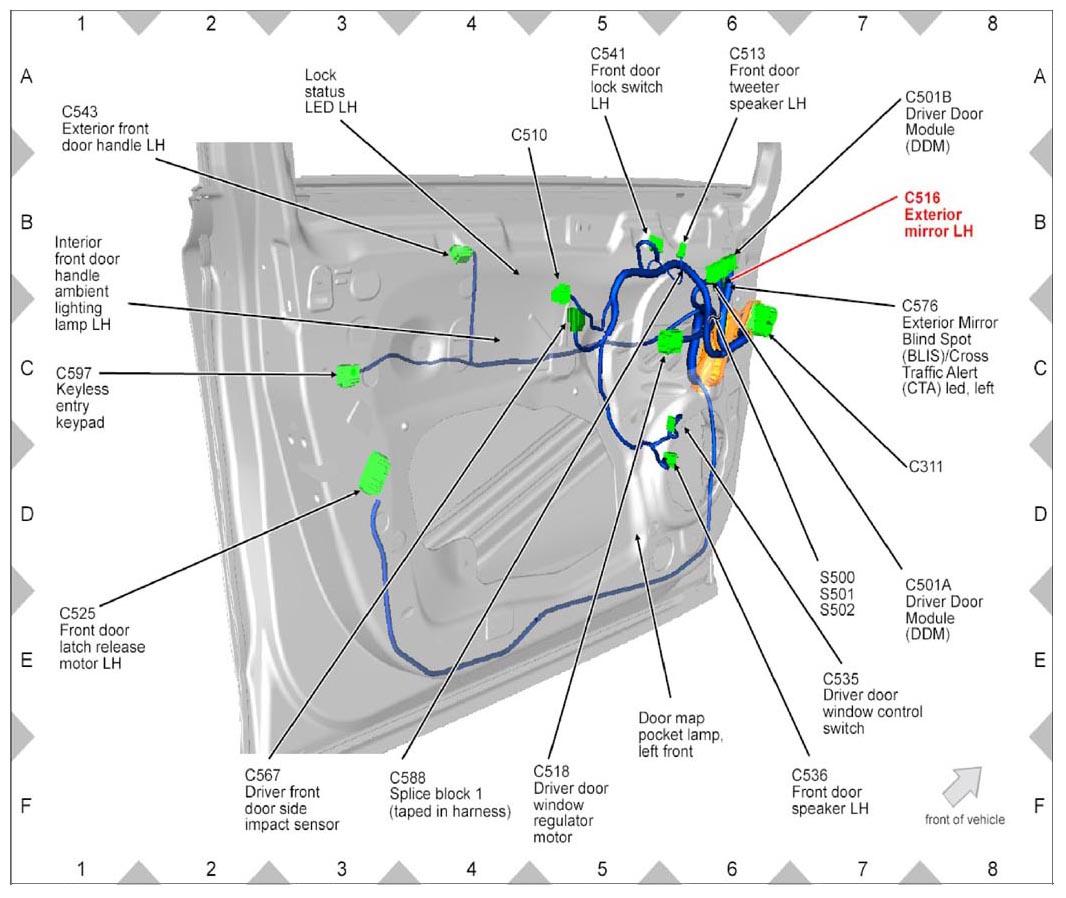

Fig 277: Identifying Exterior Mirror LH Connector (C516) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 278: Identifying Exterior Mirror LH Connector (C516) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 279: Identifying Driver Door Window Regulator Motor Connector (C518) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 280: Identifying Driver Door Window Regulator Motor Connector (C518) (MKZ)

Courtesy of FORD MOTOR CO.

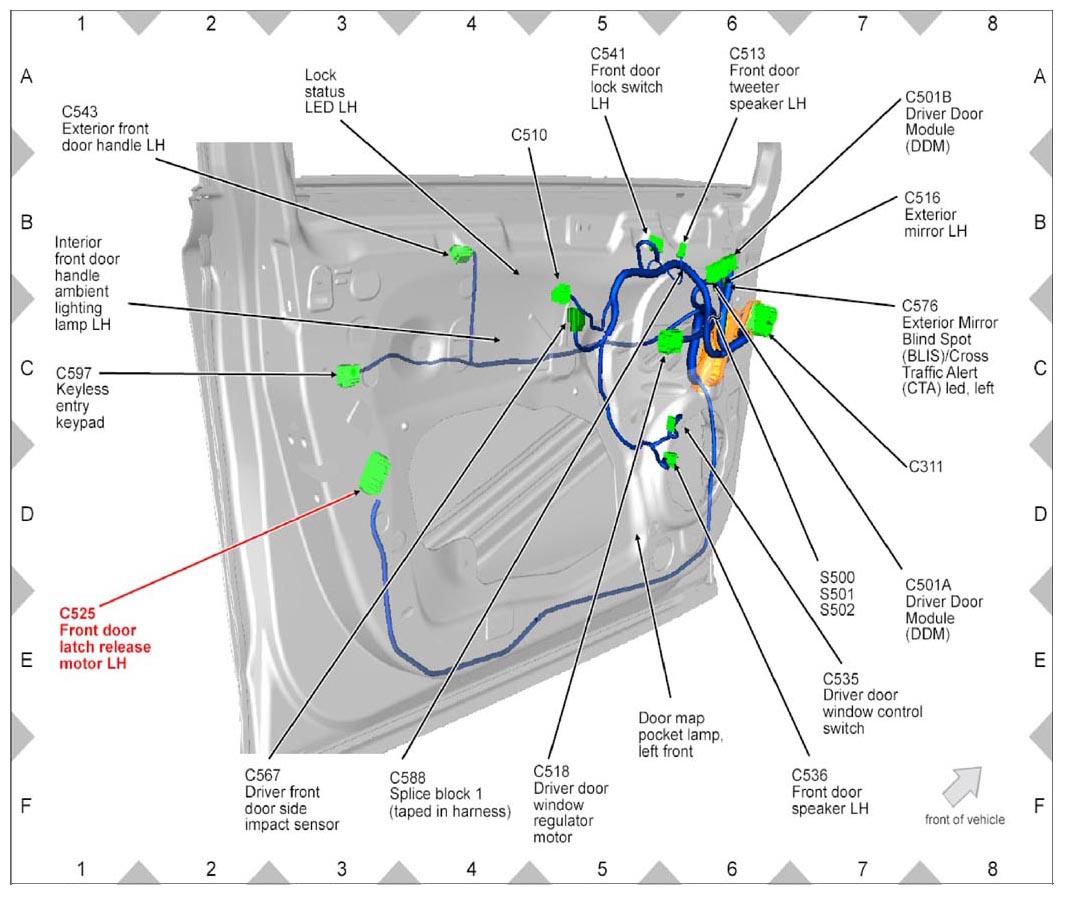

Fig 281: Identifying Front Door Latch Release Motor LH Connector (C525) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 282: Identifying Front Door Latch Release Motor LH Connector (C525) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 283: Identifying Driver Door Window Control Switch Connector (C535) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 284: Identifying Driver Door Window Control Switch Connector (C535) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 285: Identifying Front Door Speaker LH Connector (C536) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 286: Identifying Front Door Speaker LH Connector (C536) (MKZ)

Courtesy of FORD MOTOR CO.

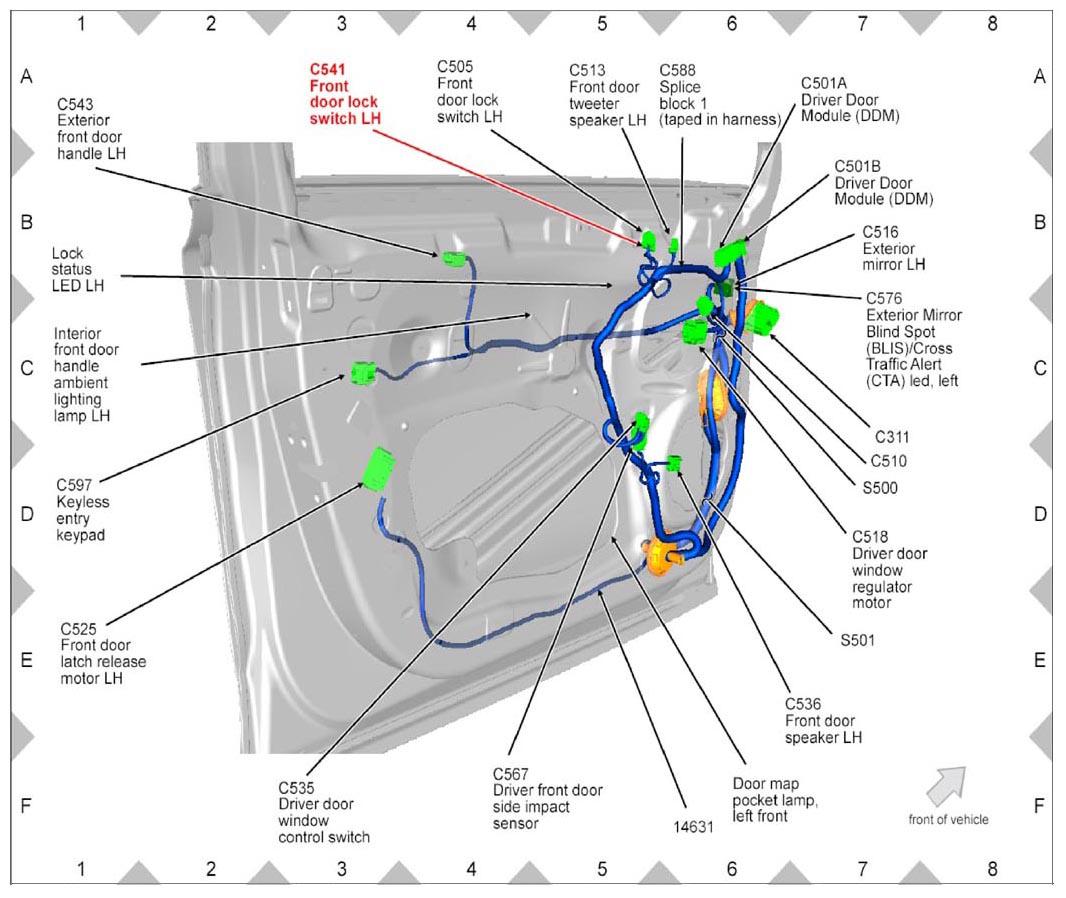

Fig 287: Identifying Front Door Lock Switch LH Connector (C541) (Fusion - With Memory)

Courtesy of FORD MOTOR CO.

Fig 288: Identifying Front Door Lock Switch LH Connector (C541) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 289: Identifying Exterior Front Door Handle LH Connector (C543) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 290: Identifying Exterior Front Door Handle LH Connector (C543) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 291: Identifying Driver Front Door Side Impact Sensor Connector (C567) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 292: Identifying Driver Front Door Side Impact Sensor Connector (C567) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 293: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert Led, Left Connector (C576) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 294: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert Led, Left Connector (C576) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 295: Identifying Splice Block 1 Connector (C588) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 296: Identifying Splice Block 1 Connector (C588) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 297: Identifying Keyless Entry Keypad Connector (C597) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 298: Identifying Keyless Entry Keypad Connector (C597) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 299: Identifying Exterior Mirror RH Connector (C601) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 300: Identifying Exterior Mirror RH Connector (C601) (MKZ)

Courtesy of FORD MOTOR CO.

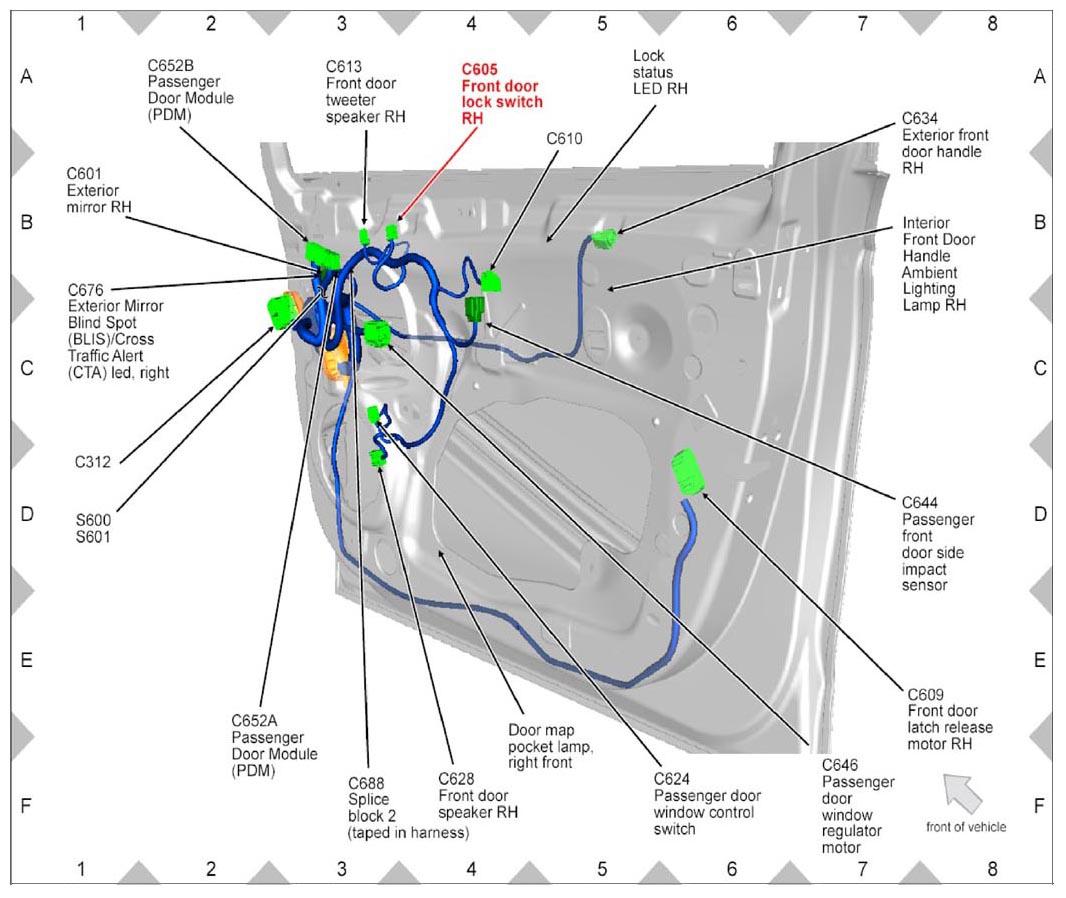

Fig 301: Identifying Front Door Lock Switch RH Connector (C605) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 302: Identifying Front Door Lock Switch RH Connector (C605) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 303: Identifying Front Door Latch Release Motor RH Connector (C609) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 304: Identifying Front Door Latch Release Motor RH Connector (C609) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 305: Identifying Connector (C610) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 306: Identifying Connector (C610) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 307: Identifying Front Door Tweeter Speaker RH Connector (C613) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 308: Identifying Front Door Tweeter Speaker RH Connector (C613) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 309: Identifying Passenger Door Window Control Switch Connector (C624) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 310: Identifying Passenger Door Window Control Switch Connector (C624) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 311: Identifying Front Door Speaker RH Connector (C628) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 312: Identifying Front Door Speaker RH Connector (C628) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 313: Identifying Exterior Front Door Handle RH Connector (C634) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 314: Identifying Exterior Front Door Handle RH Connector (C634) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 315: Identifying Passenger Front Door Side Impact Sensor Connector (C644) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 316: Identifying Passenger Front Door Side Impact Sensor Connector (C644) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 317: Identifying Passenger Door Window Regulator Motor Connector (C646) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 318: Identifying Passenger Door Window Regulator Motor Connector (C646) (MKZ)

Courtesy of FORD MOTOR CO.

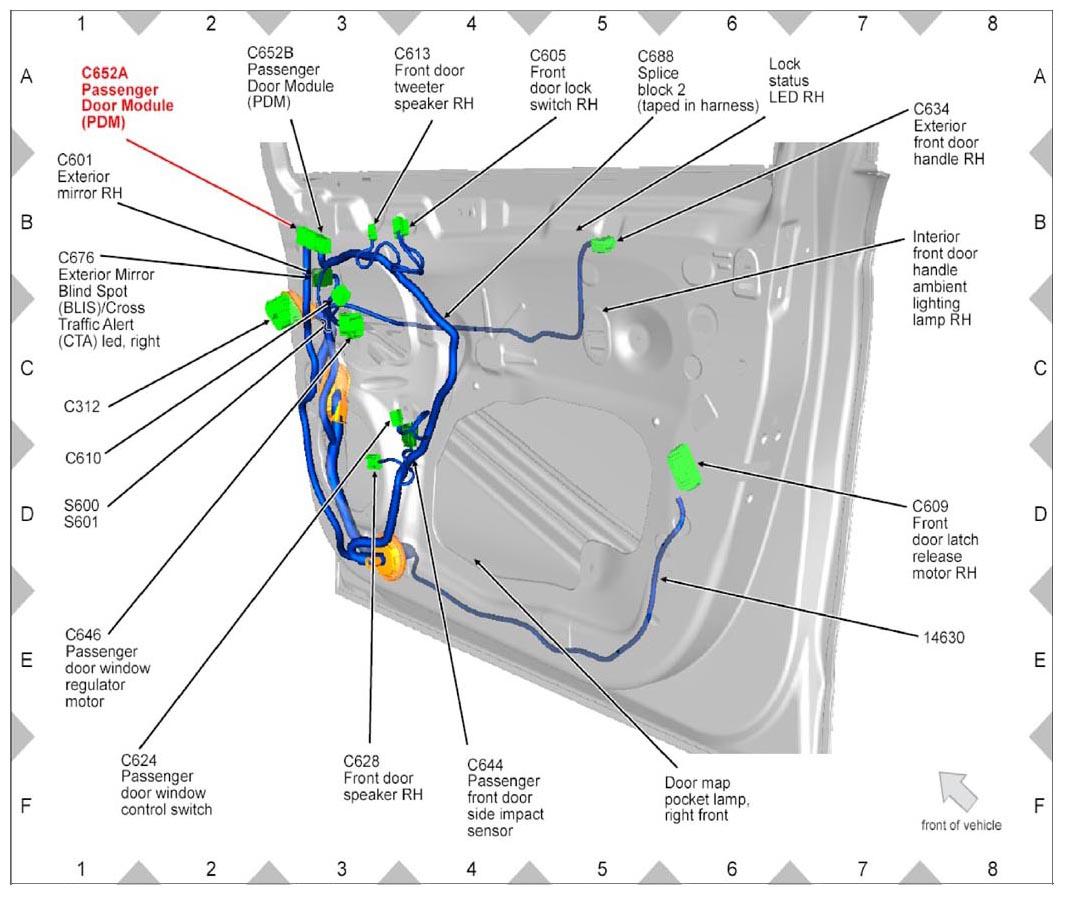

Fig 319: Identifying Passenger Door Module Connector (C652A) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 320: Identifying Passenger Door Module Connector (C652A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 321: Identifying Passenger Door Module Connector (C652B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 322: Identifying Passenger Door Module Connector (C652B) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 323: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert Led, Right Connector (C676) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 324: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert Led, Right Connector (C676) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 325: Identifying Splice Block 2 Connector (C688) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 326: Identifying Splice Block 2 Connector (C688) (MKZ)

Courtesy of FORD MOTOR CO.

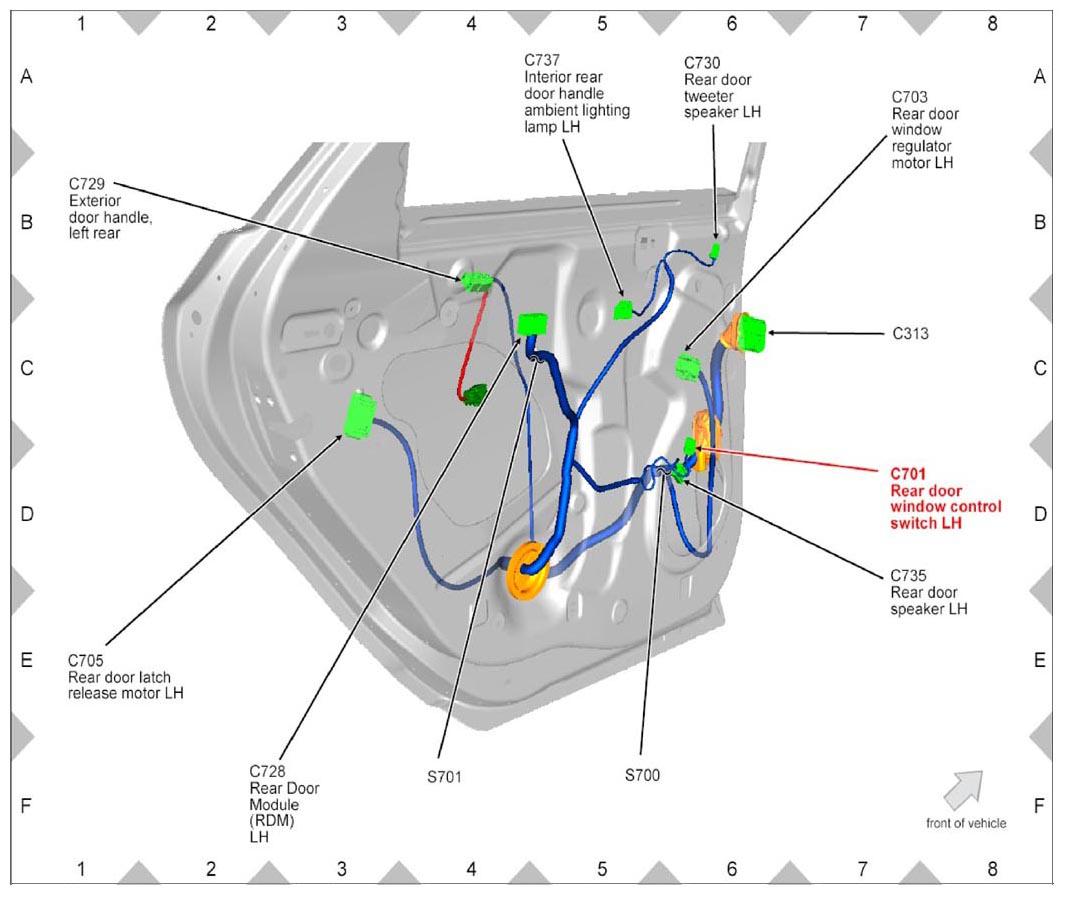

Fig 327: Identifying Rear Door Window Control Switch LH Connector (C701) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 328: Identifying Rear Door Window Control Switch LH Connector (C701) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 329: Identifying Rear Door Window Regulator Motor LH Connector (C703) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 330: Identifying Rear Door Window Regulator Motor LH Connector (C703) (MKZ)

Courtesy of FORD MOTOR CO.

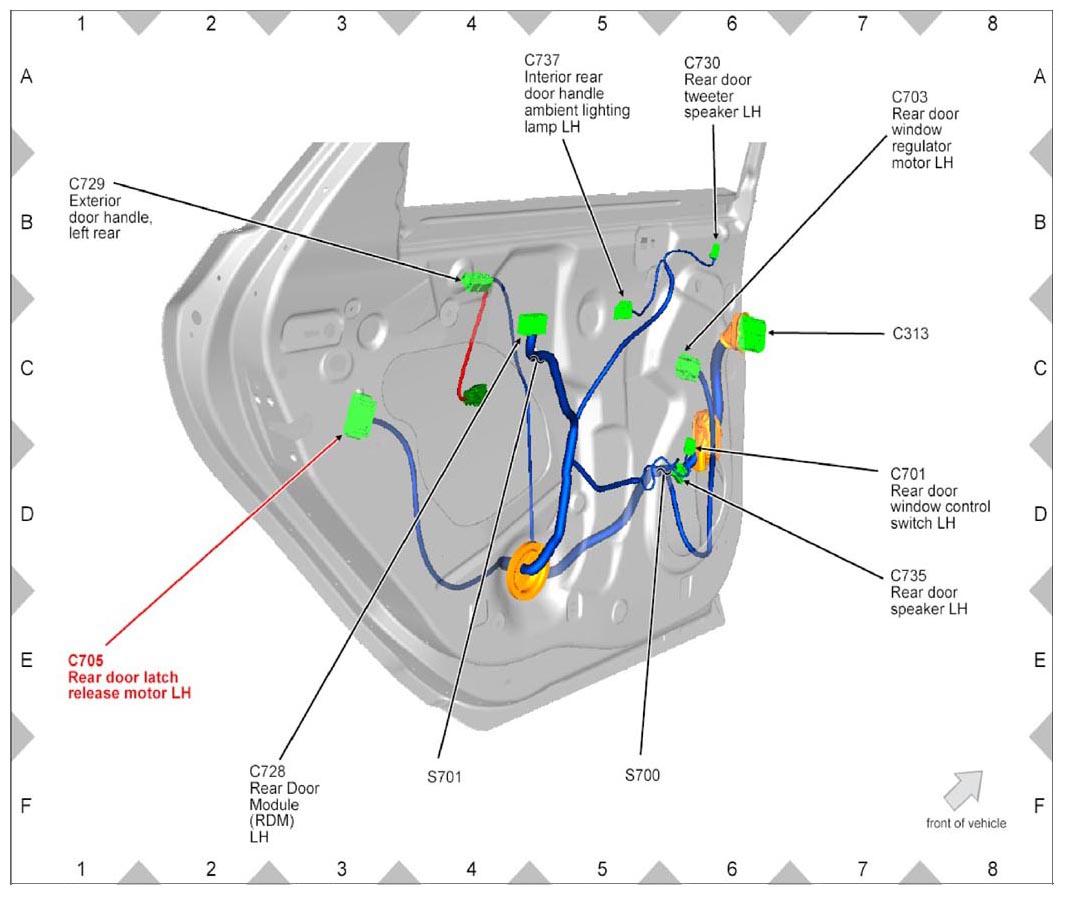

Fig 331: Identifying Rear Door Latch Release Motor LH Connector (C705) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 332: Identifying Rear Door Latch Release Motor LH Connector (C705) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 333: Identifying Rear Door Module LH Connector (C728) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 334: Identifying Rear Door Module LH Connector (C728) (MKZ)

Courtesy of FORD MOTOR CO.

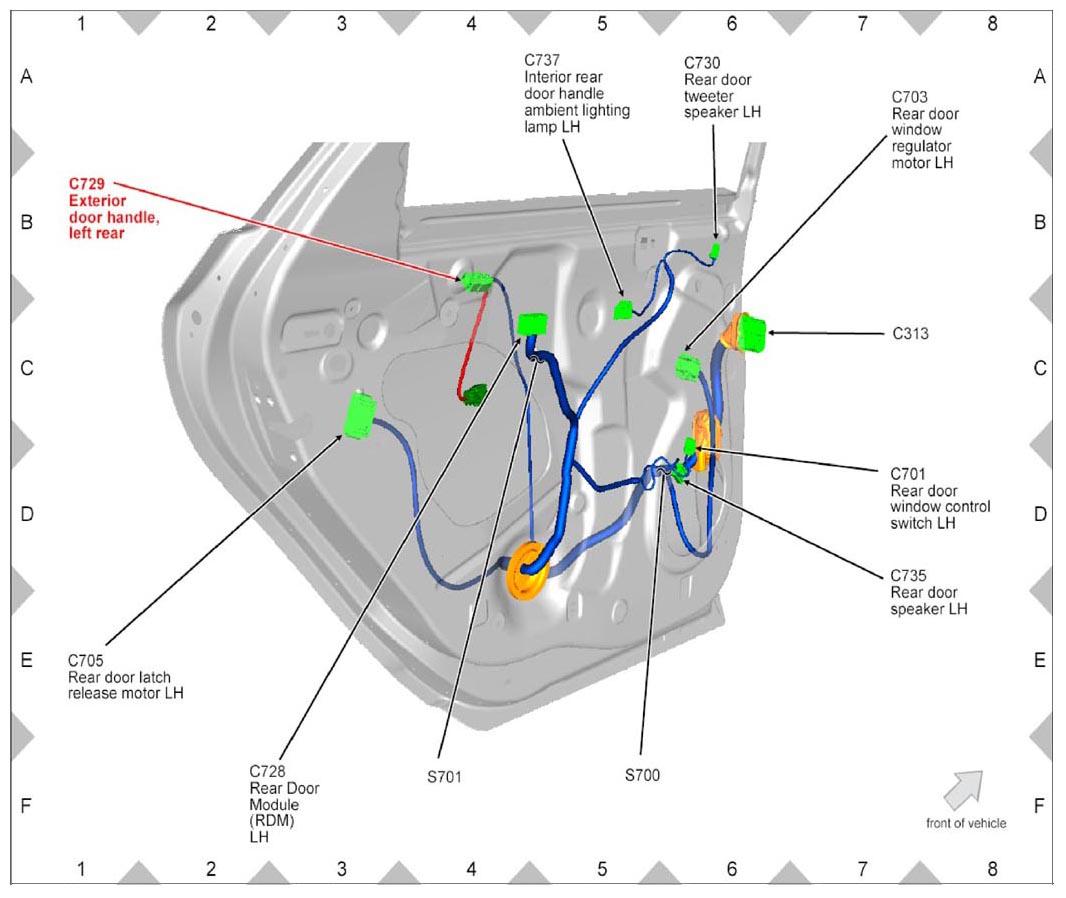

Fig 335: Identifying Exterior Door Handle, Left Rear Connector (C729)

Courtesy of FORD MOTOR CO.

Fig 336: Identifying Rear Door Tweeter Speaker LH Connector (C730) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 337: Identifying Rear Door Tweeter Speaker LH Connector (C730) (MKZ)

Courtesy of FORD MOTOR CO.

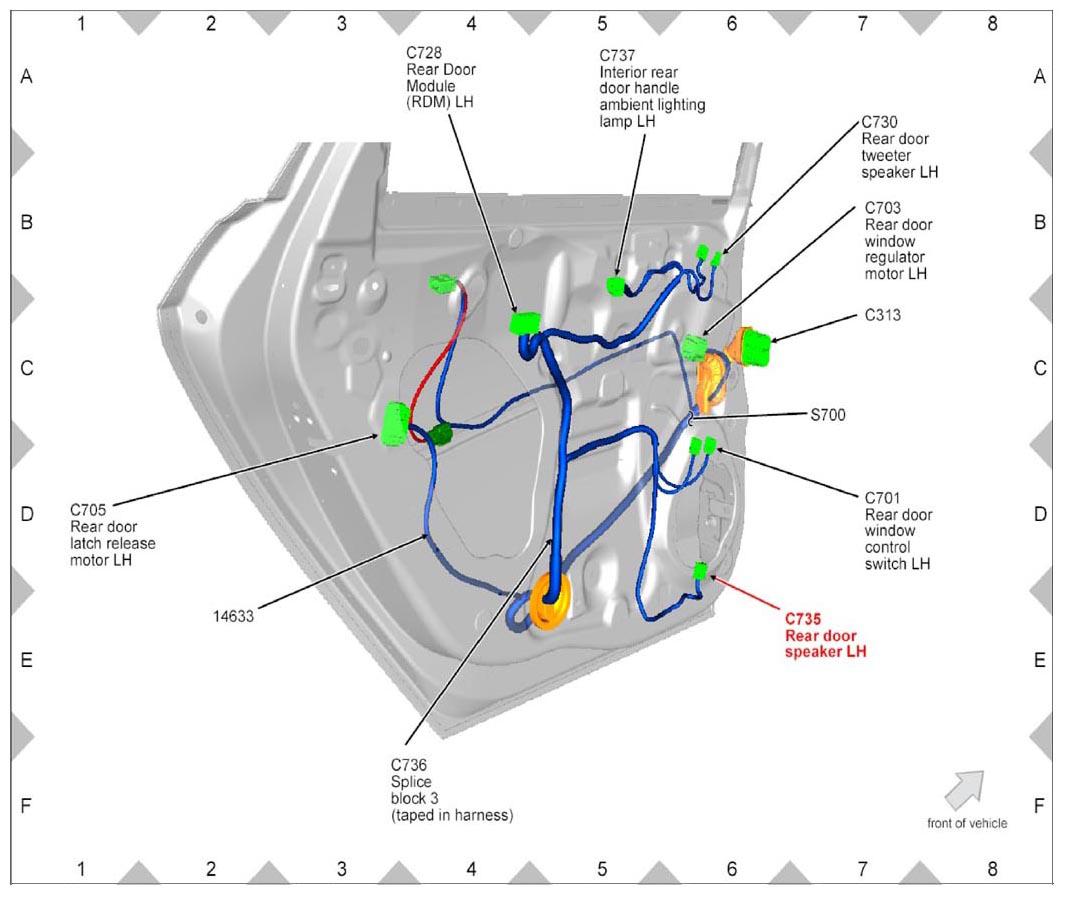

Fig 338: Identifying Rear Door Speaker LH Connector (C735) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 339: Identifying Rear Door Speaker LH Connector (C735) (MKZ)

Courtesy of FORD MOTOR CO.

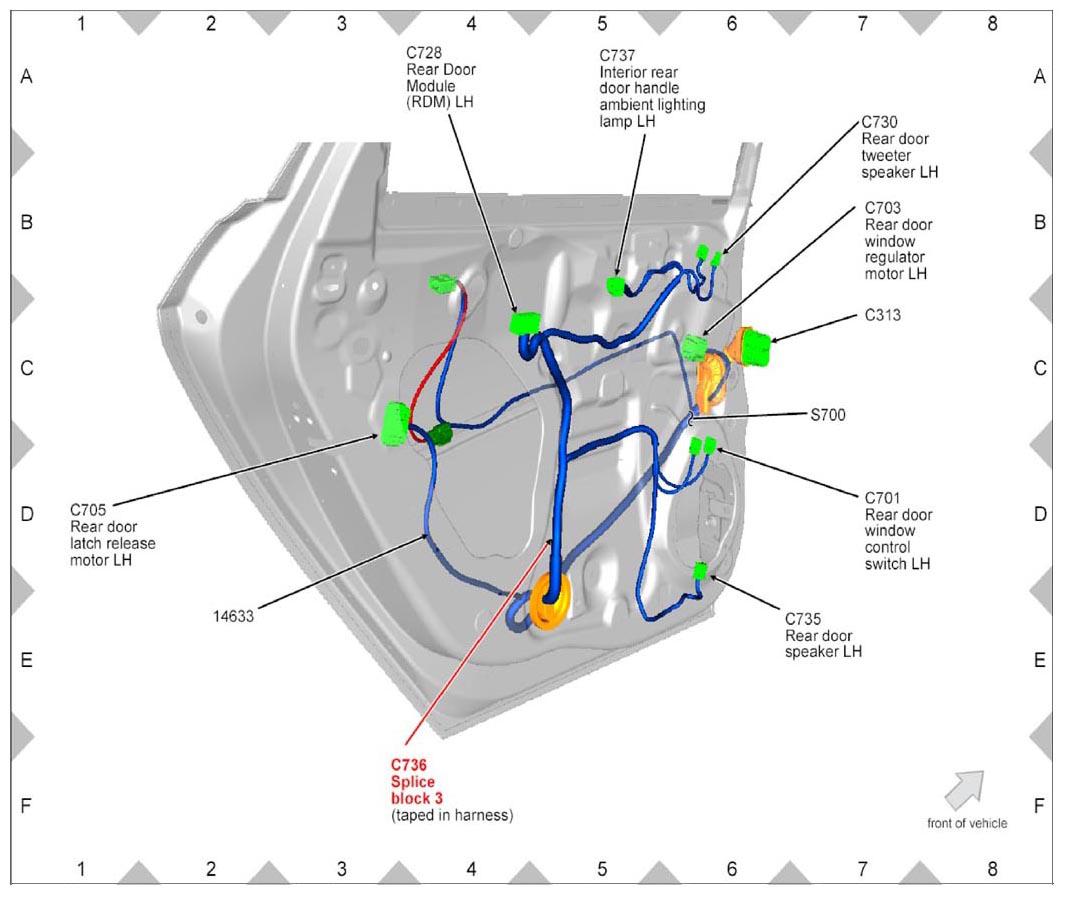

Fig 340: Identifying Splice Block 3 Connector (C736)

Courtesy of FORD MOTOR CO.

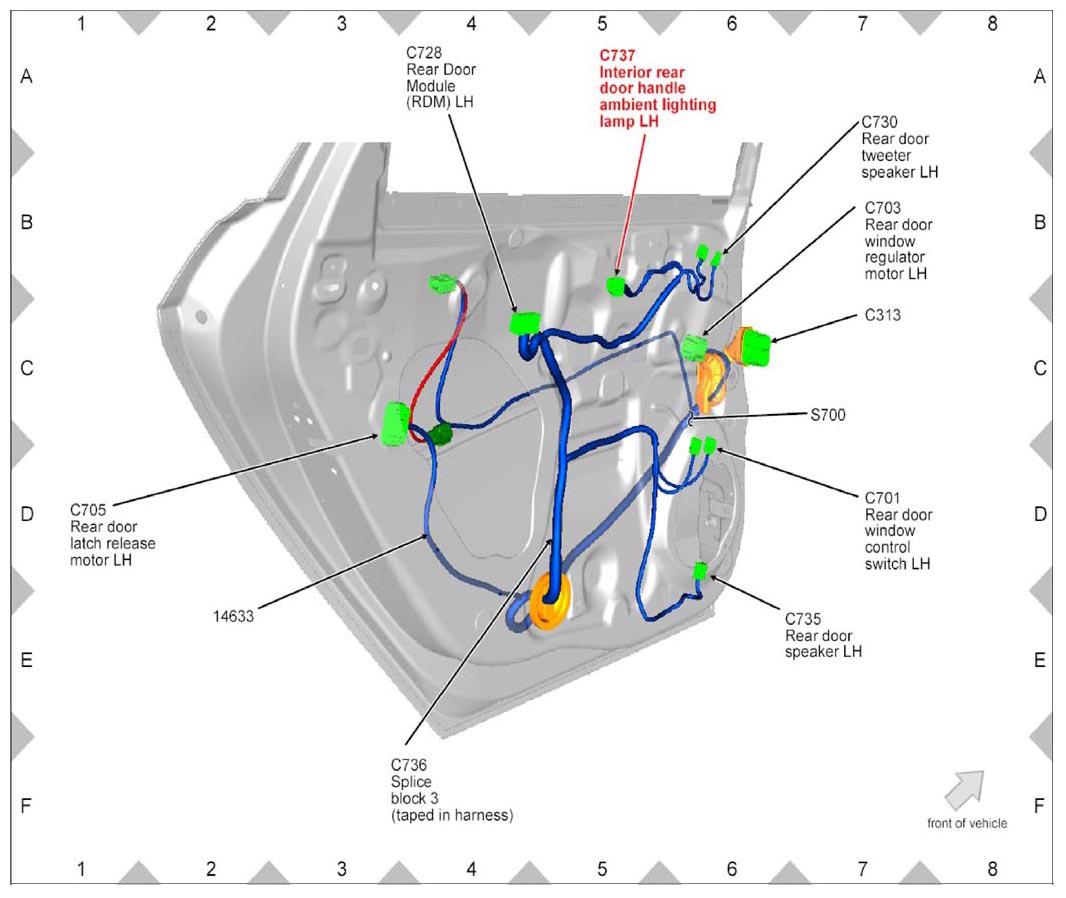

Fig 341: Identifying Interior Rear Door Handle Ambient Lighting Lamp LH Connector (C737) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 342: Identifying Interior Rear Door Handle Ambient Lighting Lamp LH Connector (C737) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 343: Identifying Rear Door Window Control Switch RH Connector (C801) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 344: Identifying Rear Door Window Control Switch RH Connector (C801) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 345: Identifying Rear Door Window Regulator Motor RH Connector (C803) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 346: Identifying Rear Door Window Regulator Motor RH Connector (C803) (MKZ)

Courtesy of FORD MOTOR CO.

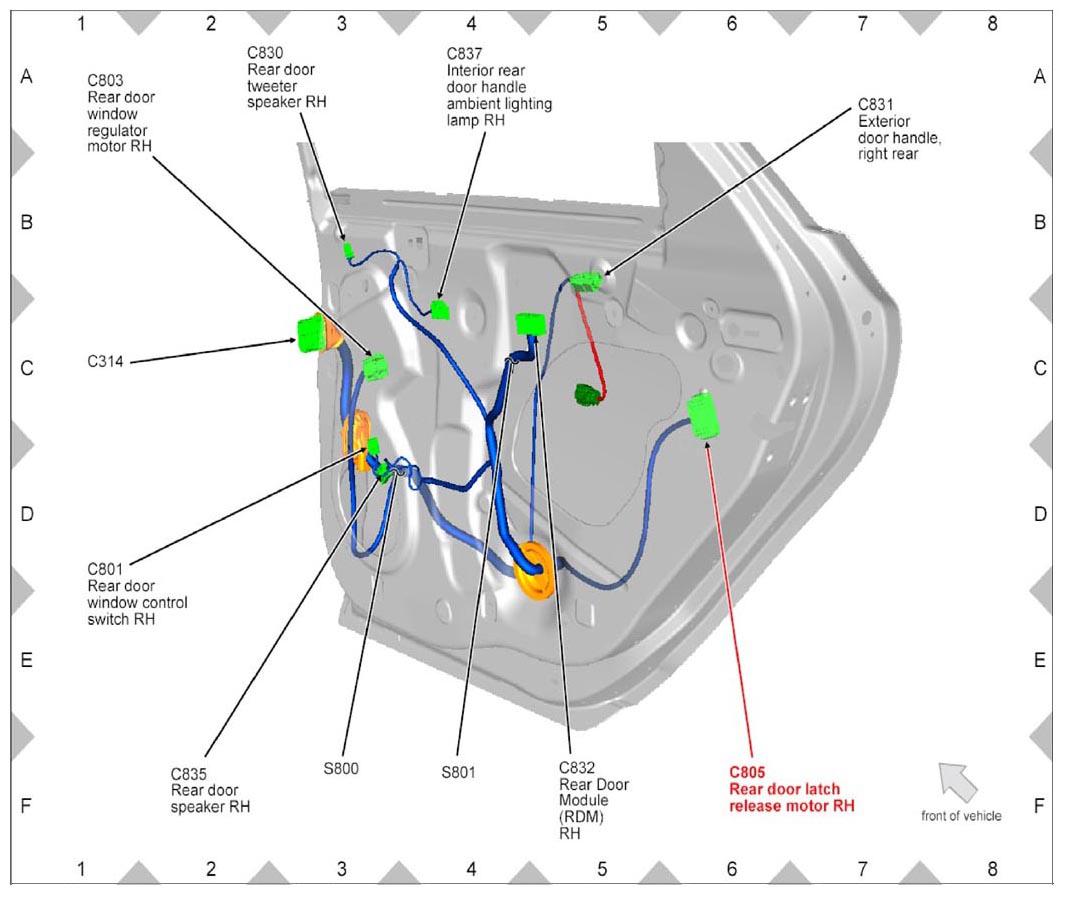

Fig 347: Identifying Rear Door Latch Release Motor RH Connector (C805) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 348: Identifying Rear Door Latch Release Motor RH Connector (C805) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 349: Identifying Rear Door Tweeter Speaker RH Connector (C830) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 350: Identifying Rear Door Tweeter Speaker RH Connector (C830) (MKZ)

Courtesy of FORD MOTOR CO.

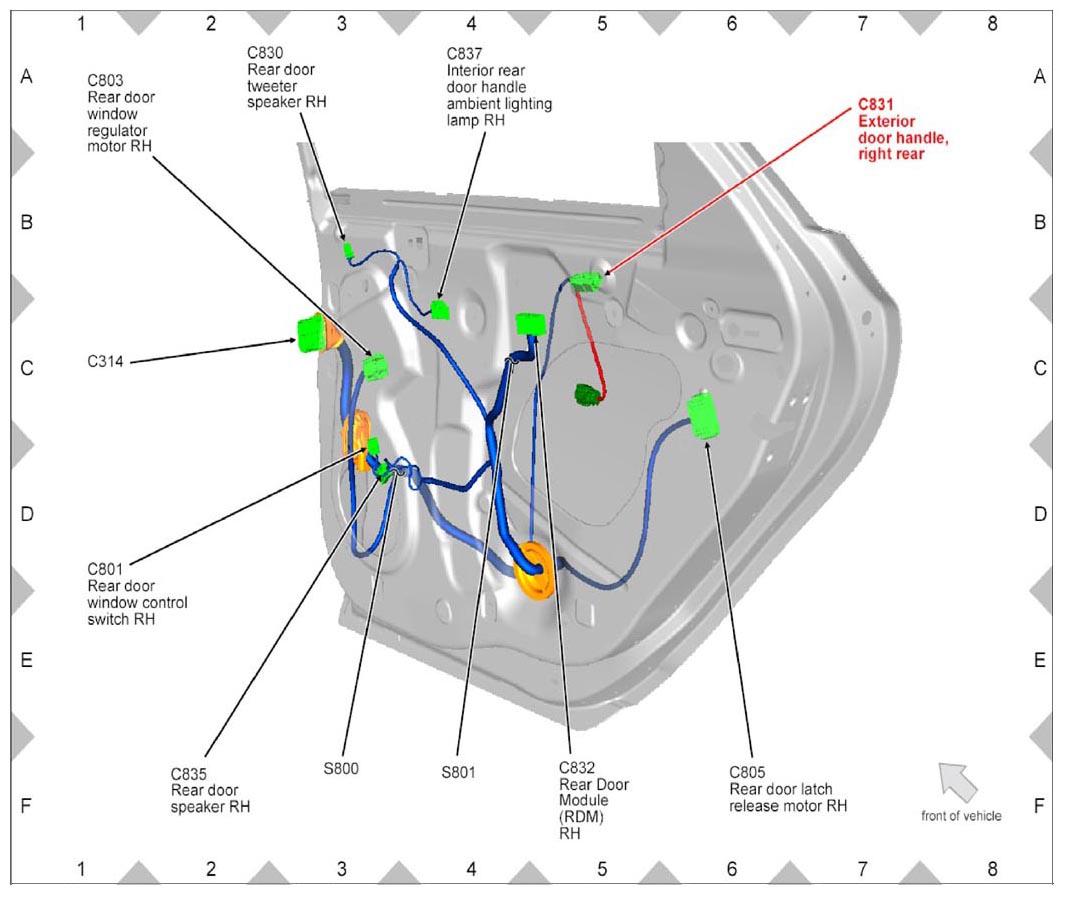

Fig 351: Identifying Exterior Door Handle, Right Rear Connector (C831)

Courtesy of FORD MOTOR CO.

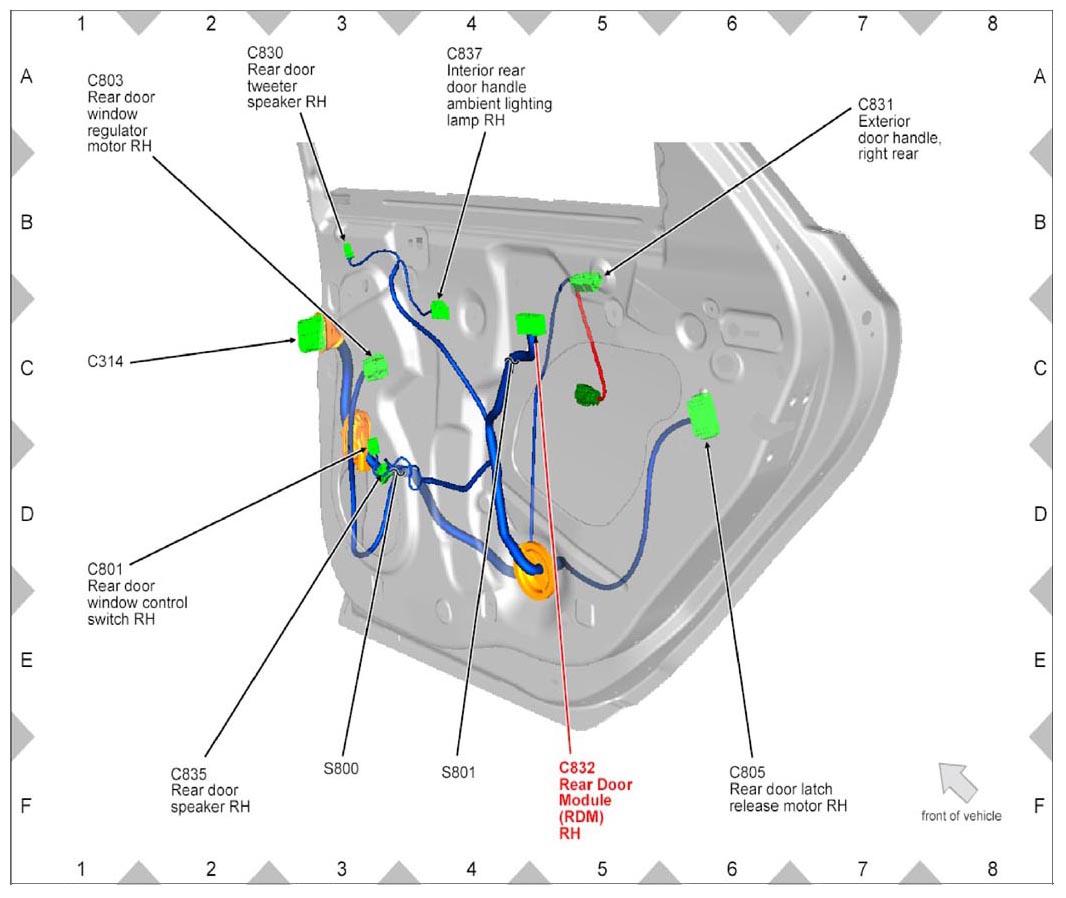

Fig 352: Identifying Rear Door Module RH Connector (C832) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 353: Identifying Rear Door Module RH Connector (C832) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 354: Identifying Rear Door Speaker RH Connector (C835) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 355: Identifying Rear Door Speaker RH Connector (C835) (MKZ)

Courtesy of FORD MOTOR CO.

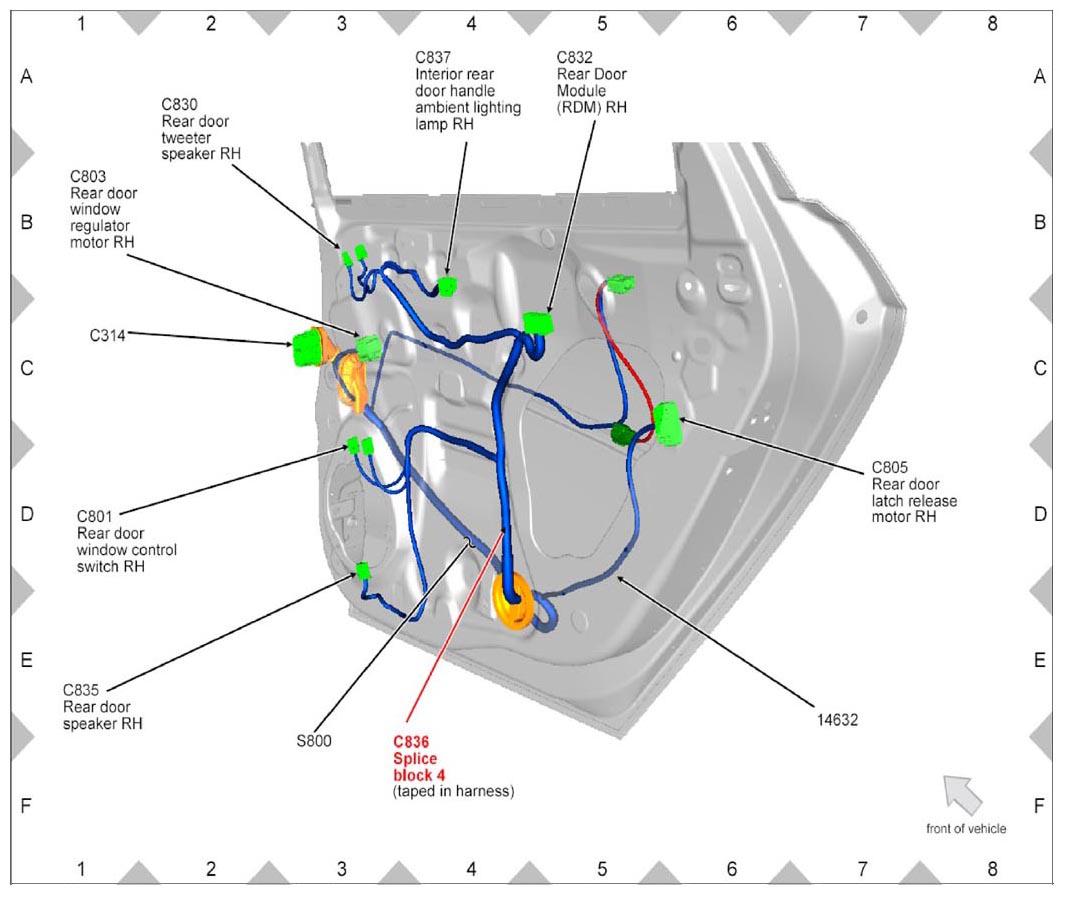

Fig 356: Identifying Splice Block 4 Connector (C836)

Courtesy of FORD MOTOR CO.

Fig 357: Identifying Interior Rear Door Handle Ambient Lighting Lamp RH Connector (C837) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 358: Identifying Interior Rear Door Handle Ambient Lighting Lamp RH Connector (C837) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 359: Identifying Connector (C900)

Courtesy of FORD MOTOR CO.

Fig 360: Identifying Interior Lamp, Second Row Connector (C901)

Courtesy of FORD MOTOR CO.

Fig 361: Identifying Splice Block 5 Connector (C902)

Courtesy of FORD MOTOR CO.

Fig 362: Identifying Vanity Mirror Lamp RH Connector (C906)

Courtesy of FORD MOTOR CO.

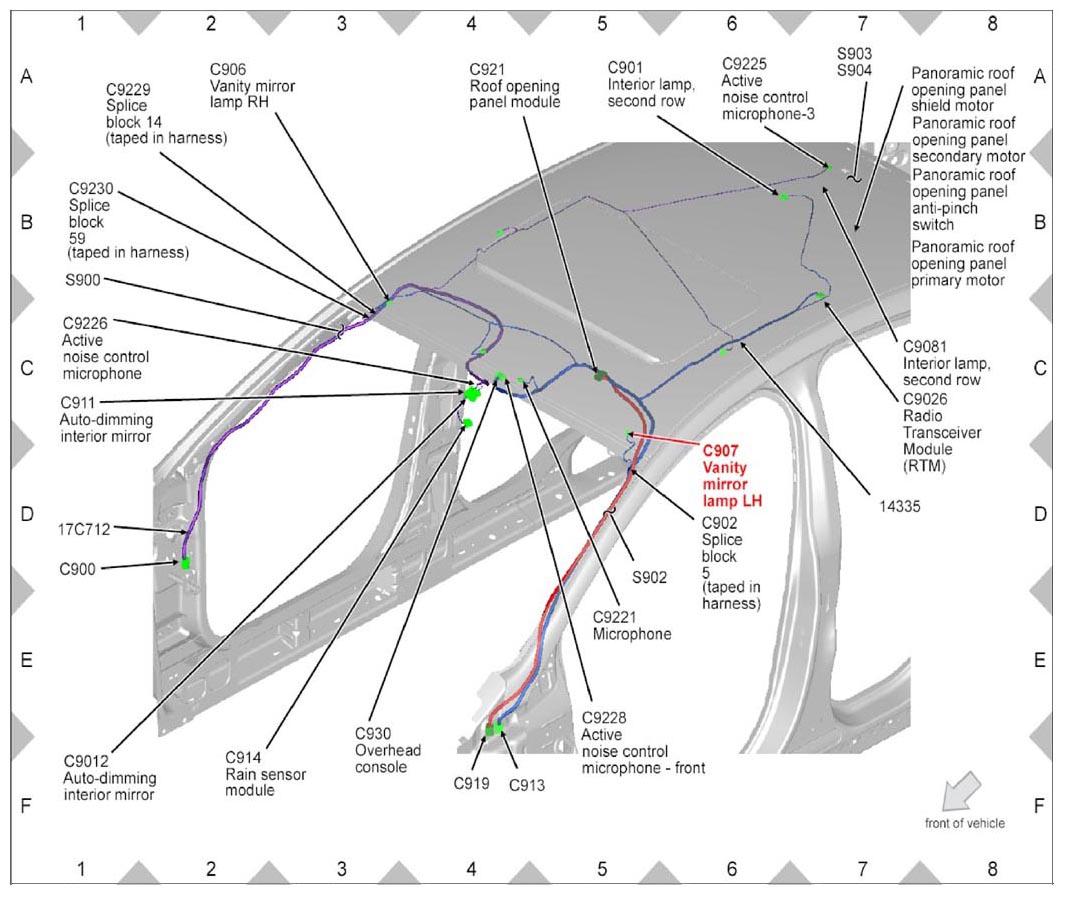

Fig 363: Identifying Vanity Mirror Lamp LH Connector (C907)

Courtesy of FORD MOTOR CO.

Fig 364: Identifying Auto-Dimming Interior Mirror Connector (C911)

Courtesy of FORD MOTOR CO.

Fig 365: Identifying Connector (C913)

Courtesy of FORD MOTOR CO.

Fig 366: Identifying Rain Sensor Module Connector (C914)

Courtesy of FORD MOTOR CO.

Fig 367: Identifying Connector (C919)

Courtesy of FORD MOTOR CO.

Fig 368: Identifying Roof Opening Panel Module Connector (C921)

Courtesy of FORD MOTOR CO.

Fig 369: Identifying Connector (C922)

Courtesy of FORD MOTOR CO.

Fig 370: Identifying Connector (C925)

Courtesy of FORD MOTOR CO.

Fig 371: Identifying Overhead Console Connector (C930)

Courtesy of FORD MOTOR CO.

Fig 372: Identifying Connector (C1010)

Courtesy of FORD MOTOR CO.

Fig 373: Identifying Connector (C1019)

Courtesy of FORD MOTOR CO.

Fig 374: Identifying Park/Turn Lamp, Left Front Connector (C1023)

Courtesy of FORD MOTOR CO.

Fig 375: Identifying Connector (C1026)

Courtesy of FORD MOTOR CO.

Fig 376: Identifying Connector (C1026) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 377: Identifying Connector (C1026) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 378: Identifying Connector (C1026) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 379: Identifying Connector (C1026) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 380: Identifying Connector (C1026) (3.7L)

Courtesy of FORD MOTOR CO.

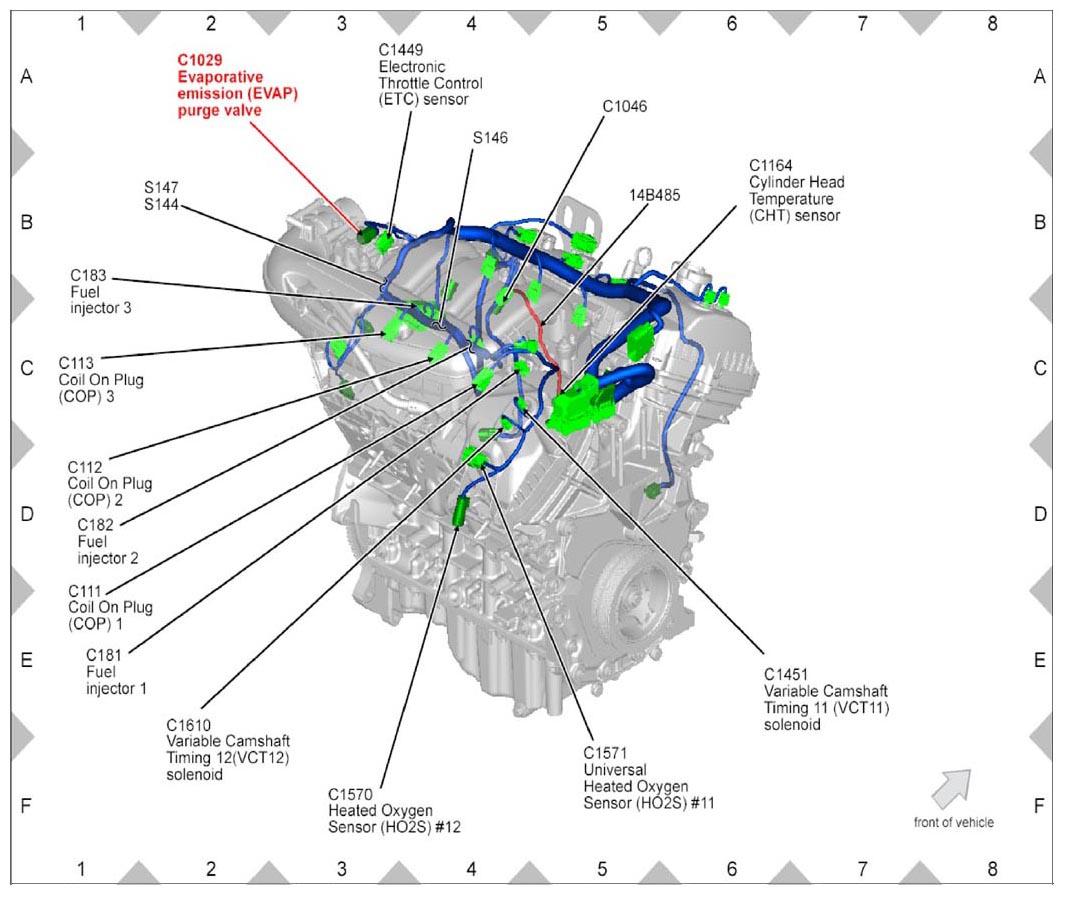

Fig 381: Identifying Evaporative Emission Purge Valve Connector (C1029) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 382: Identifying Evaporative Emission Purge Valve Connector (C1029) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 383: Identifying Connector (C1033)

Courtesy of FORD MOTOR CO.

Fig 384: Identifying Battery Junction Box Connector (C1035A)

Courtesy of FORD MOTOR CO.

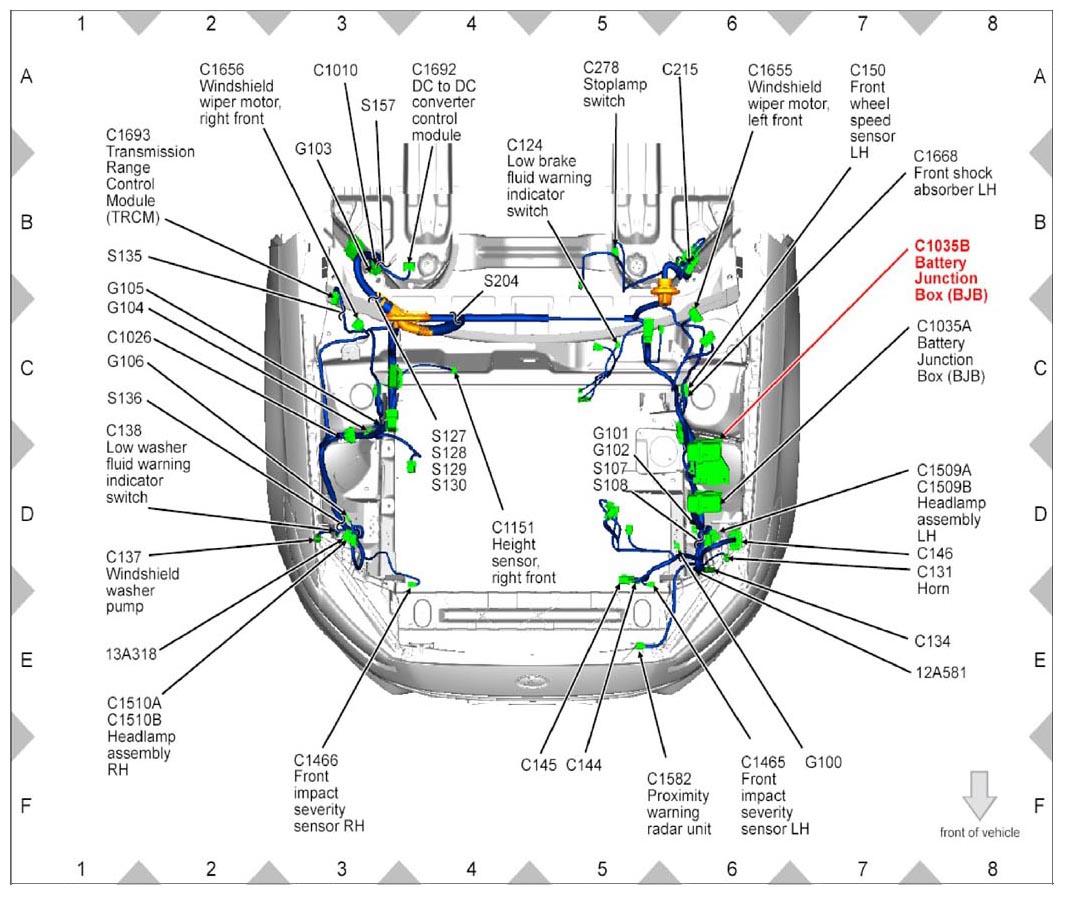

Fig 385: Identifying Battery Junction Box Connector (C1035B)

Courtesy of FORD MOTOR CO.

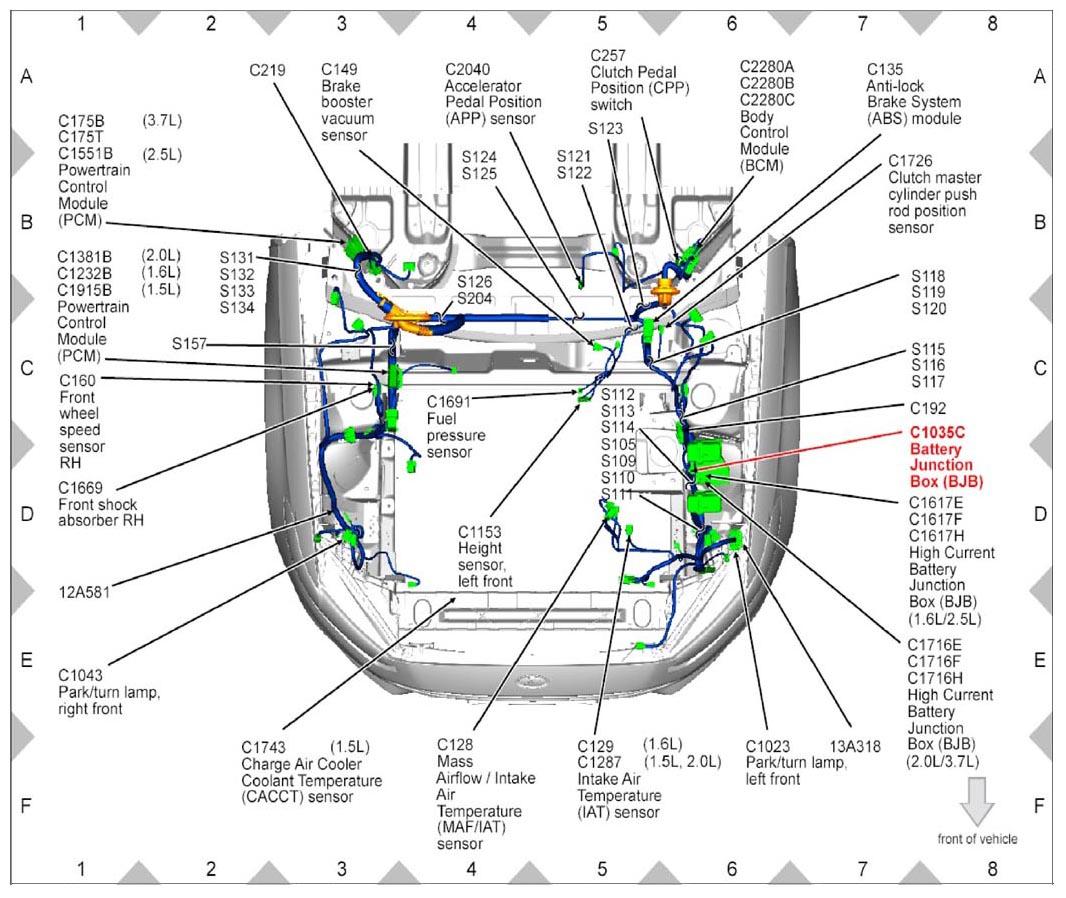

Fig 386: Identifying Battery Junction Box Connector (C1035C)

Courtesy of FORD MOTOR CO.

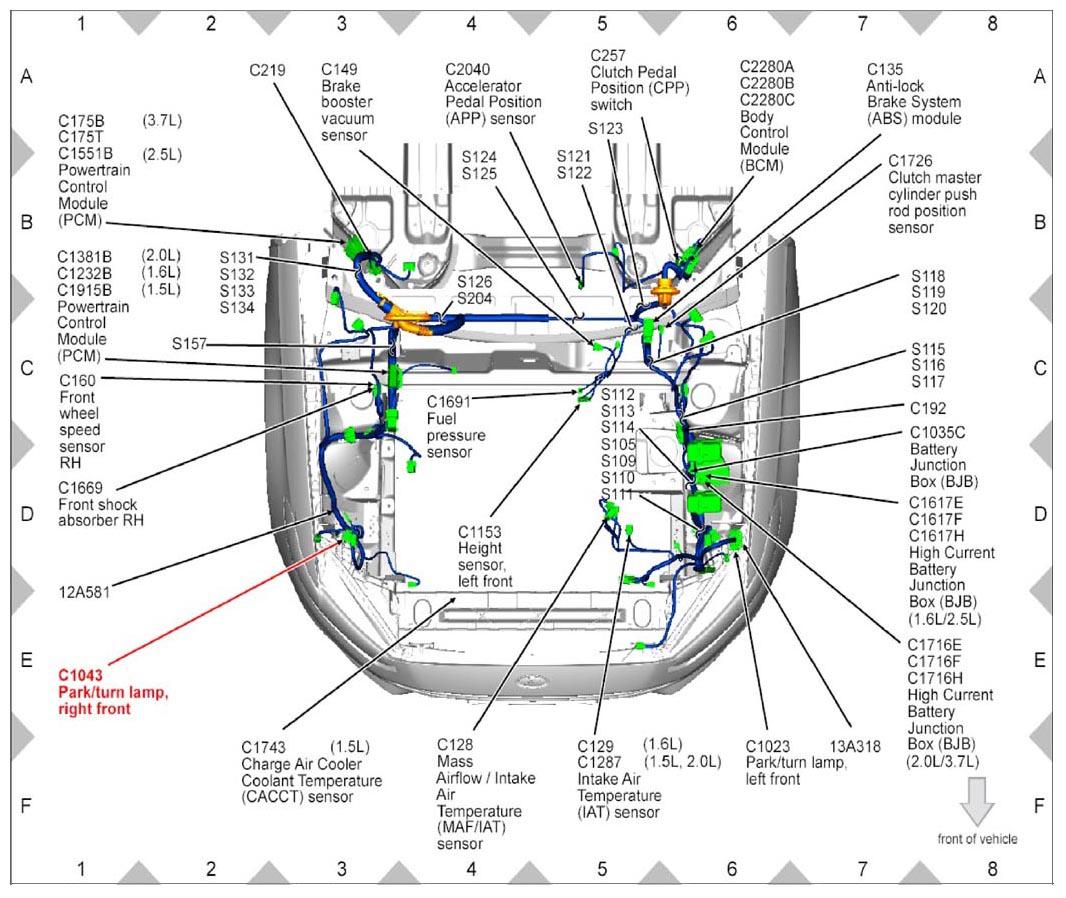

Fig 387: Identifying Park/Turn Lamp, Right Front Connector (C1043)

Courtesy of FORD MOTOR CO.

Fig 388: Identifying Connector (C1045)

Courtesy of FORD MOTOR CO.

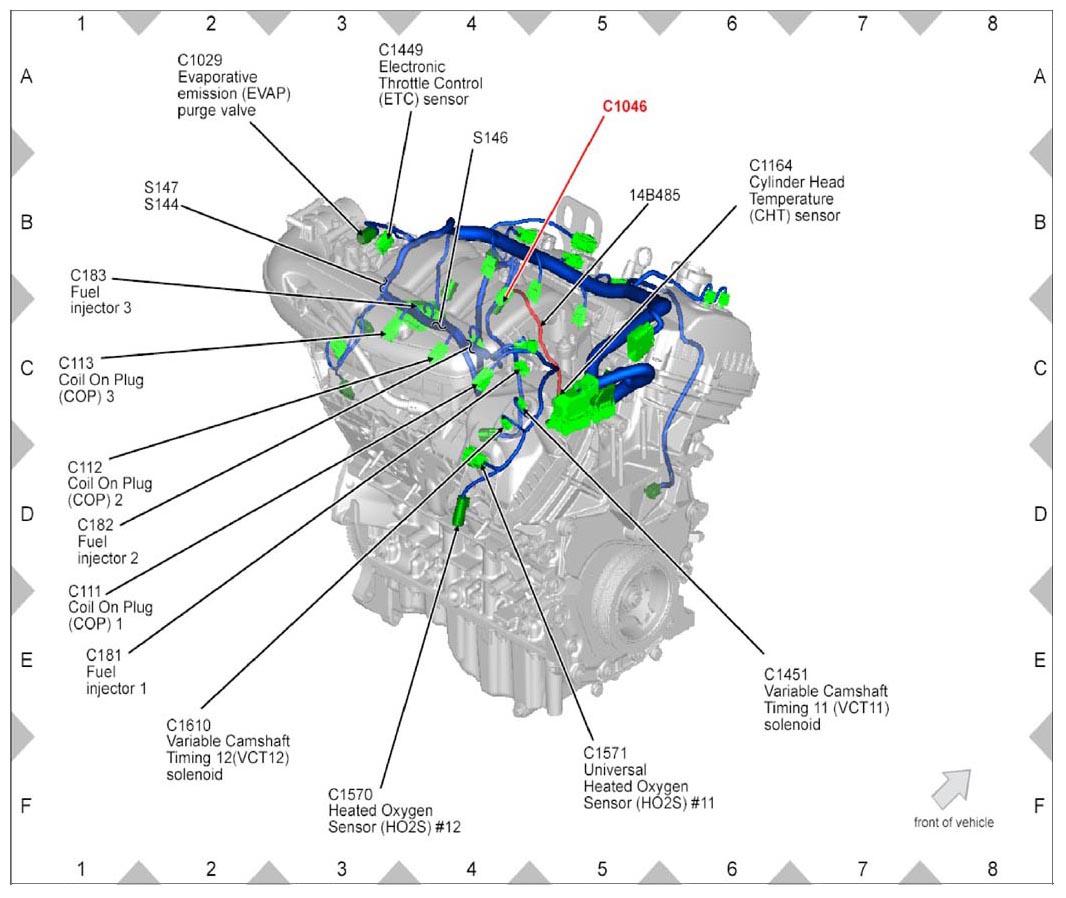

Fig 389: Identifying Connector (C1046)

Courtesy of FORD MOTOR CO.

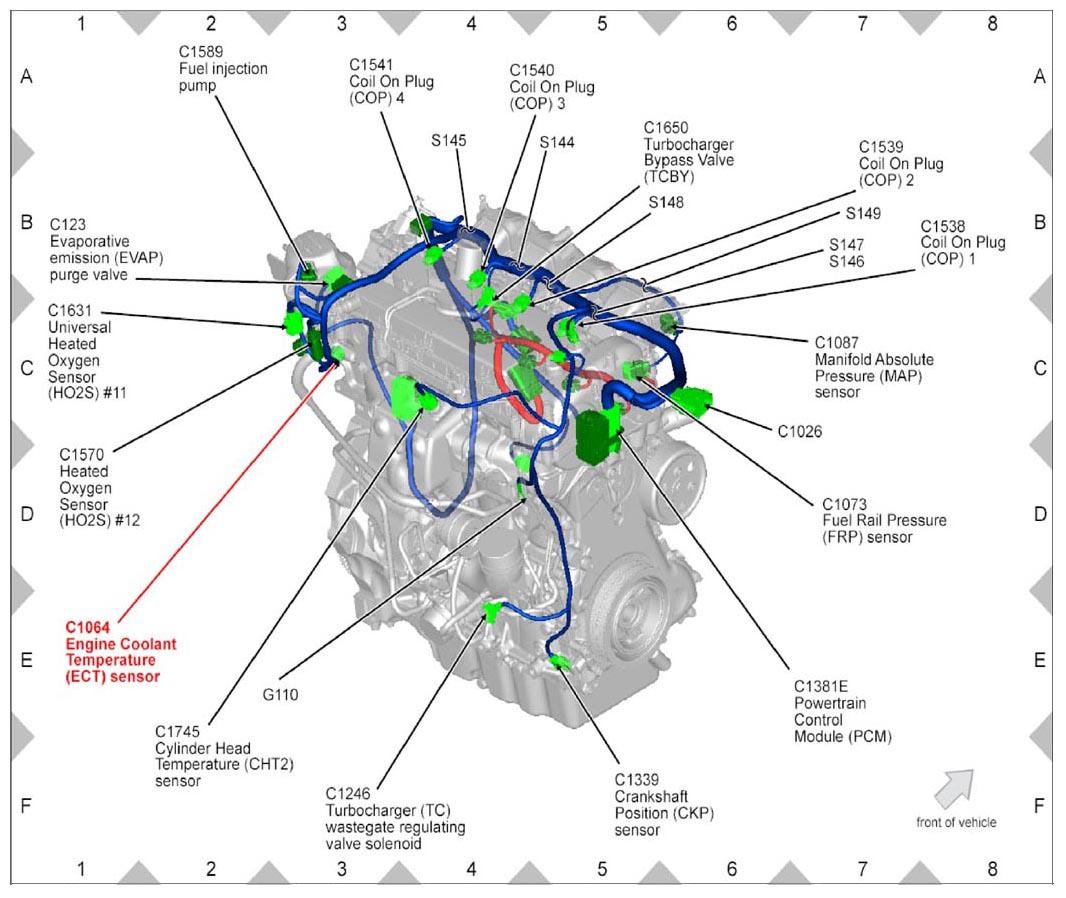

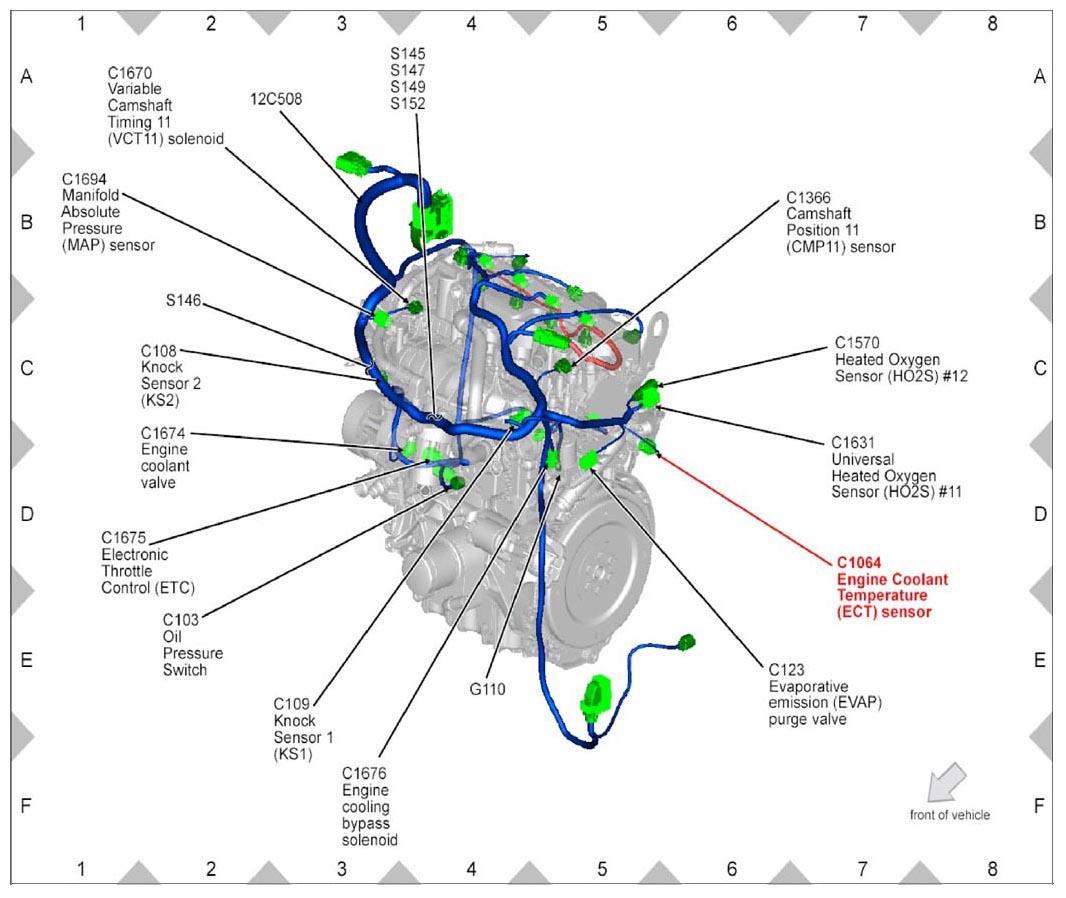

Fig 390: Identifying Engine Coolant Temperature Sensor Connector (C1064) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 391: Identifying Engine Coolant Temperature Sensor Connector (C1064) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 392: Identifying Engine Coolant Temperature Sensor Connector (C1064) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 393: Identifying Fuel Rail Pressure Sensor Connector (C1073) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 394: Identifying Fuel Rail Pressure Sensor Connector (C1073) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 395: Identifying Fuel Rail Pressure Sensor Connector (C1073) (2.0L)

Courtesy of FORD MOTOR CO.

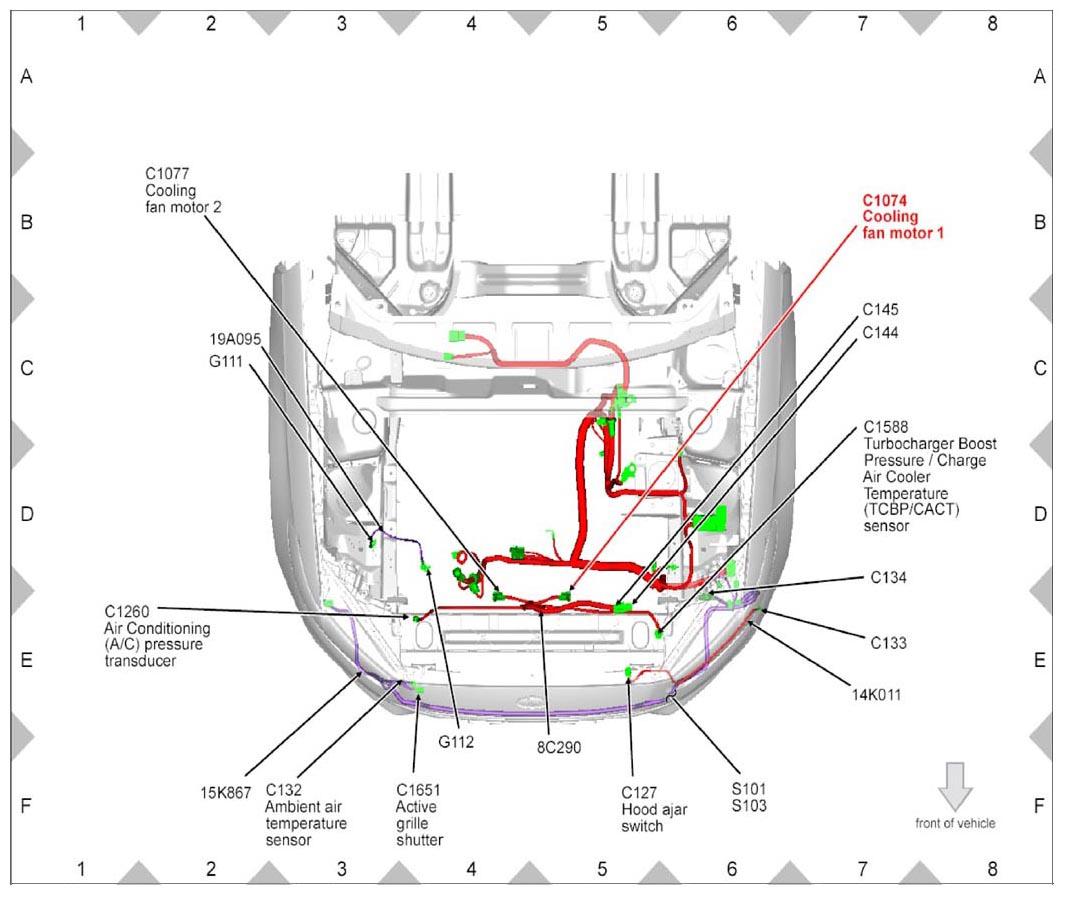

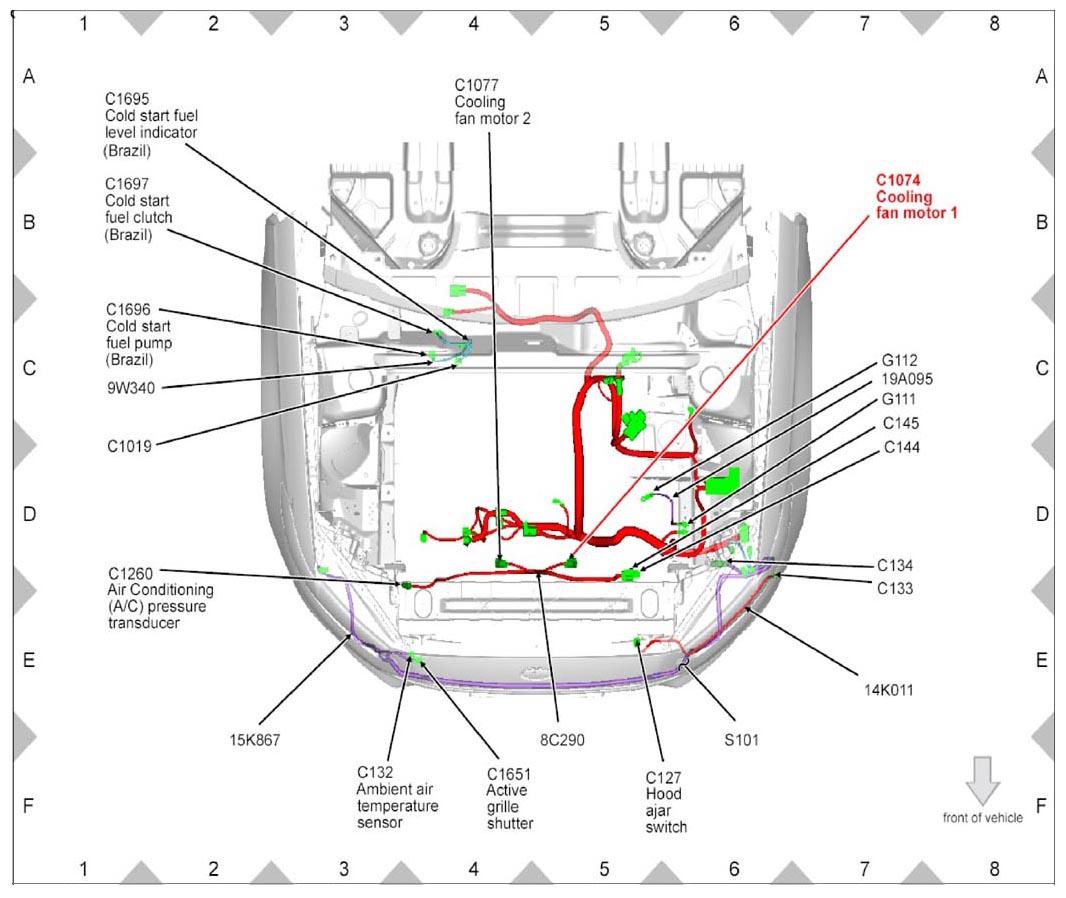

Fig 396: Identifying Cooling Fan Motor 1 Connector (C1074) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 397: Identifying Cooling Fan Motor 1 Connector (C1074) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 398: Identifying Cooling Fan Motor 1 Connector (C1074) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 399: Identifying Cooling Fan Motor 1 Connector (C1074) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 400: Identifying Cooling Fan Motor 1 Connector (C1074) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 401: Identifying Cooling Fan Motor 2 Connector (C1077) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 402: Identifying Cooling Fan Motor 2 Connector (C1077) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 403: Identifying Cooling Fan Motor 2 Connector (C1077) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 404: Identifying Cooling Fan Motor 2 Connector (C1077) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 405: Identifying Cooling Fan Motor 2 Connector (C1077) (3.7L)

Courtesy of FORD MOTOR CO.

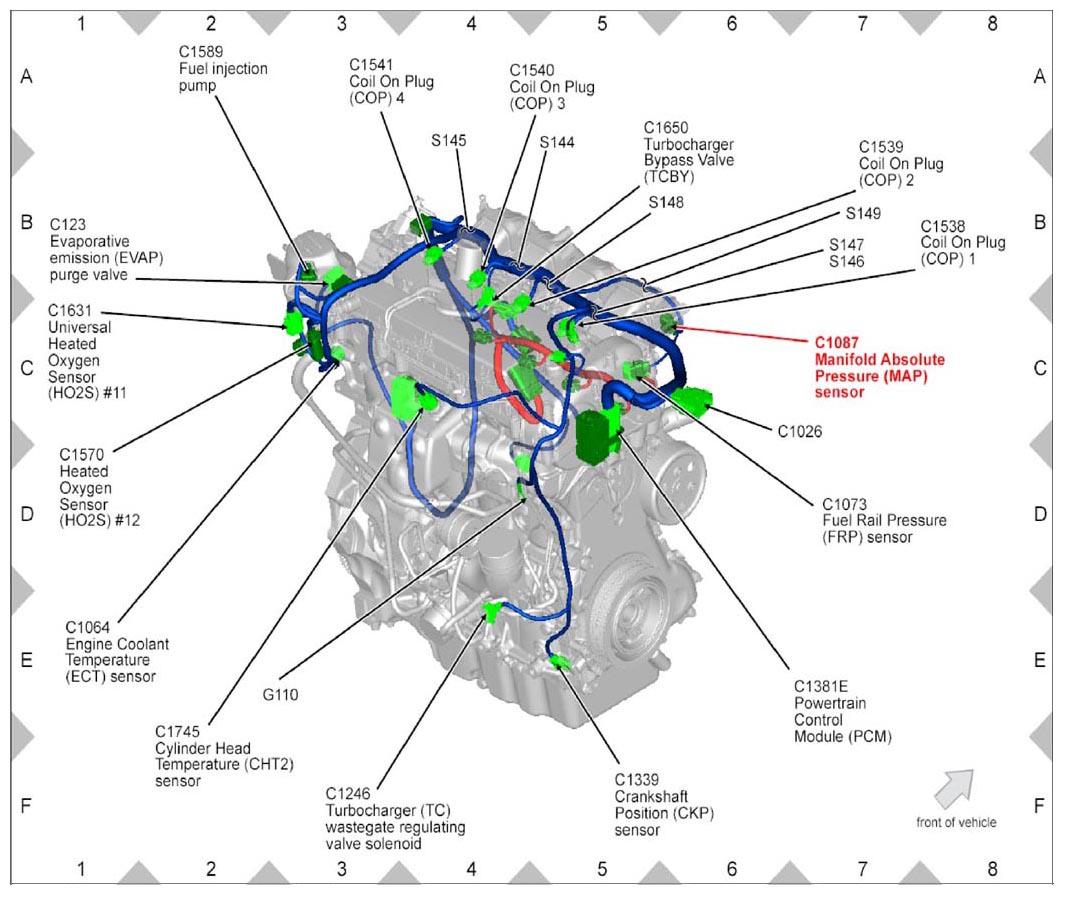

Fig 406: Identifying Manifold Absolute Pressure Sensor Connector (C1087)

Courtesy of FORD MOTOR CO.

Fig 407: Identifying Battery Connector (C1100A) (2.0L)

Courtesy of FORD MOTOR CO.

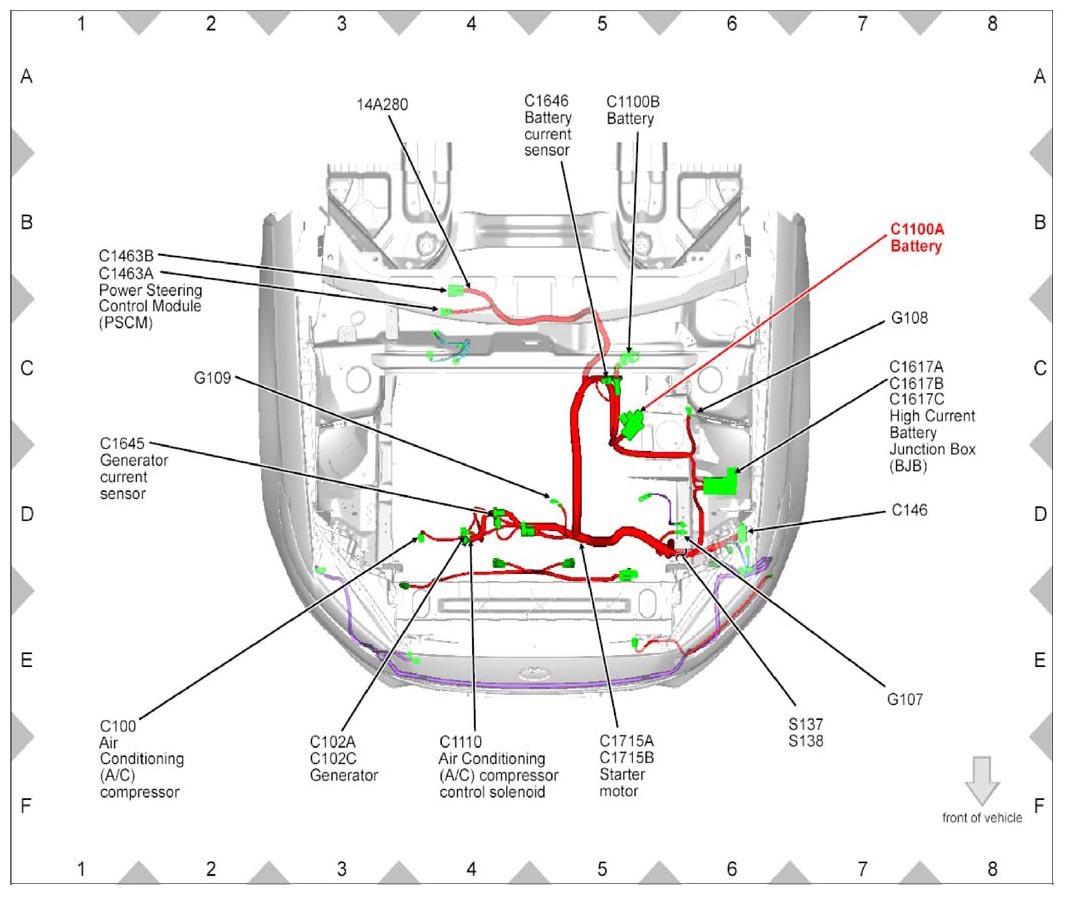

Fig 408: Identifying Battery Connector (C1100A) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 409: Identifying Battery Connector (C1100A) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 410: Identifying Battery Connector (C1100B) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 411: Identifying Battery Connector (C1100B) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 412: Identifying Battery Connector (C1100B) (3.7L)

Courtesy of FORD MOTOR CO.

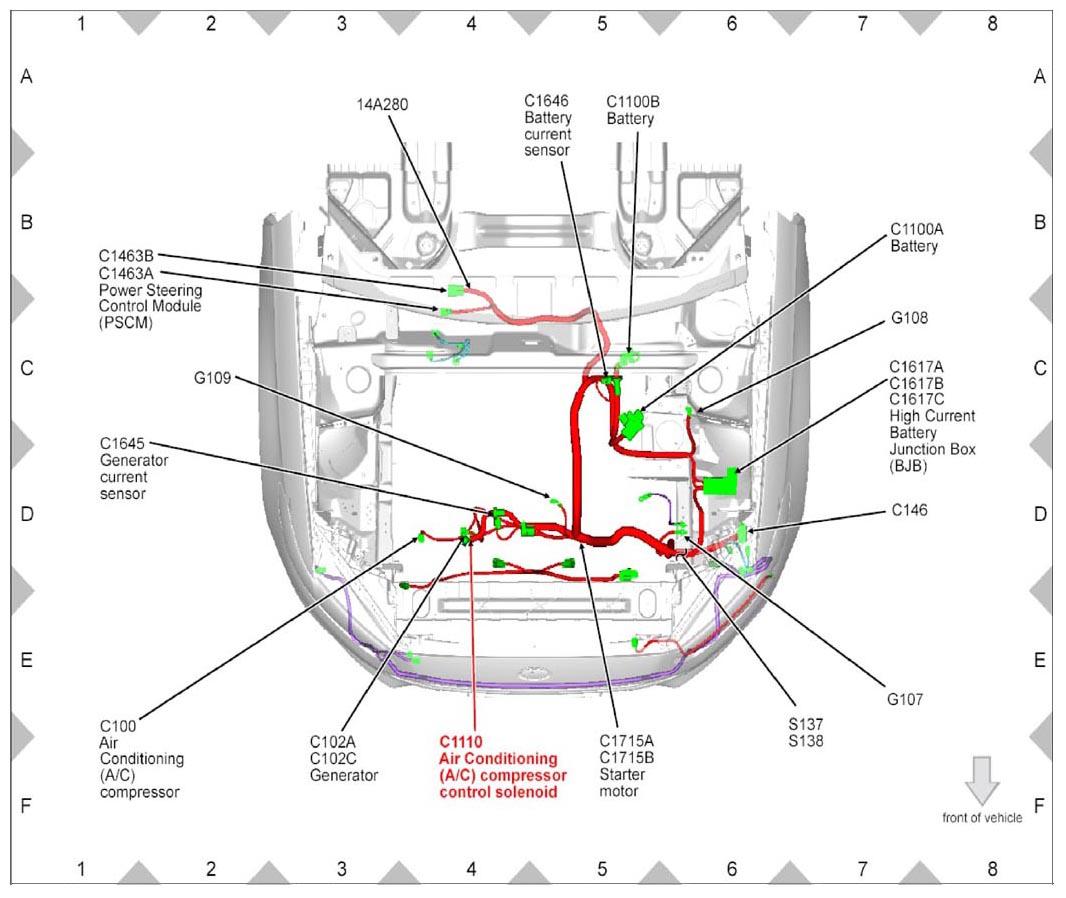

Fig 413: Identifying Air Conditioning Compressor Control Solenoid Connector (C1110) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 414: Identifying Air Conditioning Compressor Control Solenoid Connector (C1110) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 415: Identifying Air Conditioning Compressor Control Solenoid Connector (C1110) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 416: Identifying Air Conditioning Compressor Control Solenoid Connector (C1110) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 417: Identifying Air Conditioning Compressor Control Solenoid Connector (C1110) (3.7L)

Courtesy of FORD MOTOR CO.

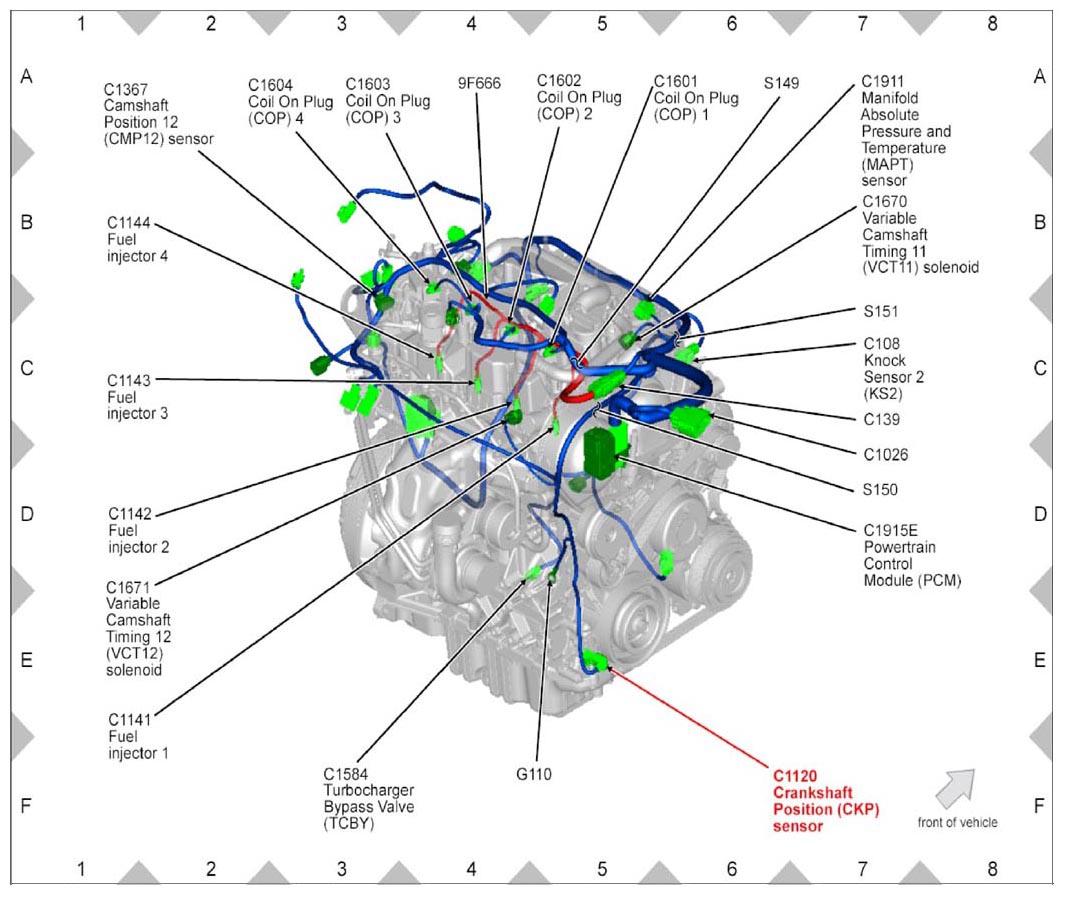

Fig 418: Identifying Crankshaft Position Sensor Connector (C1120) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 419: Identifying Crankshaft Position Sensor Connector (C1120) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 420: Identifying Manifold Absolute Pressure Sensor Connector (C1140)

Courtesy of FORD MOTOR CO.

Fig 421: Identifying Fuel Injector 1 Connector (C1141)

Courtesy of FORD MOTOR CO.

Fig 422: Identifying Fuel Injector 2 Connector (C1142)

Courtesy of FORD MOTOR CO.

Fig 423: Identifying Fuel Injector 3 Connector (C1143)

Courtesy of FORD MOTOR CO.

Fig 424: Identifying Fuel Injector 4 Connector (C1144)

Courtesy of FORD MOTOR CO.

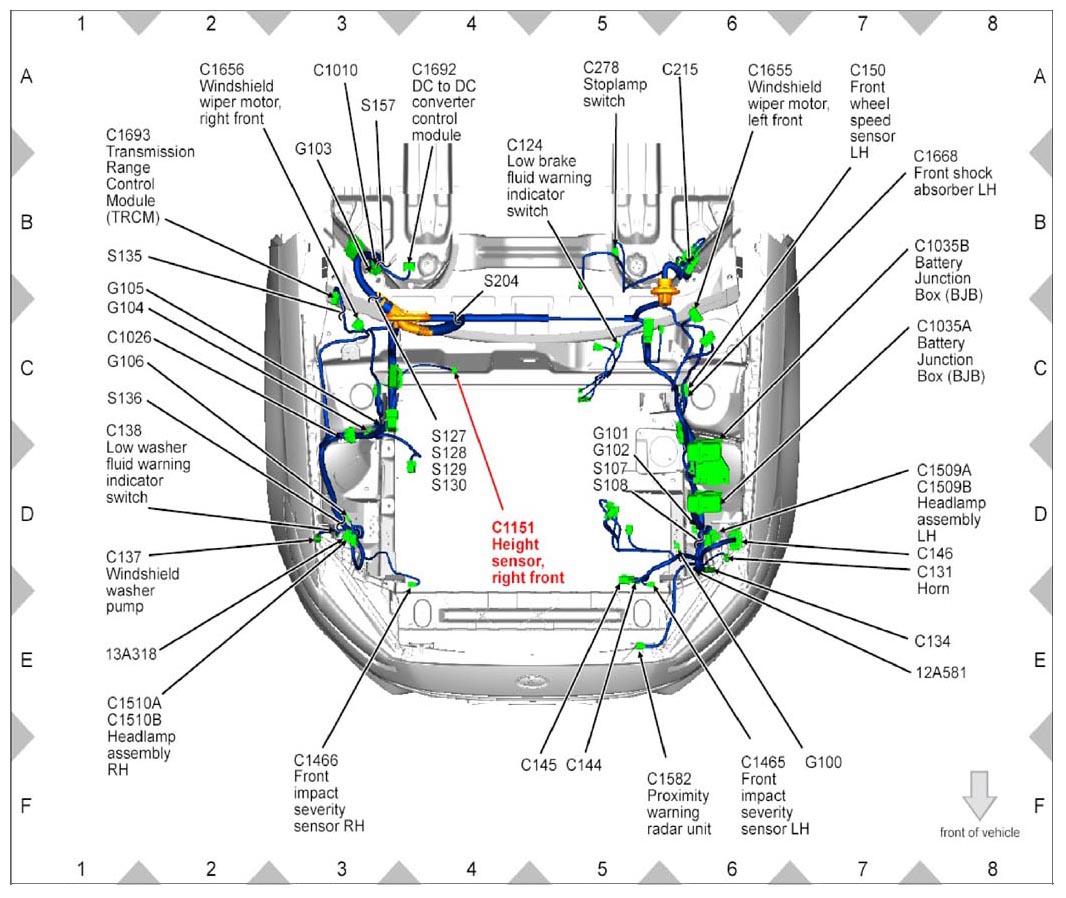

Fig 425: Identifying Height Sensor, Right Front Connector (C1151)

Courtesy of FORD MOTOR CO.

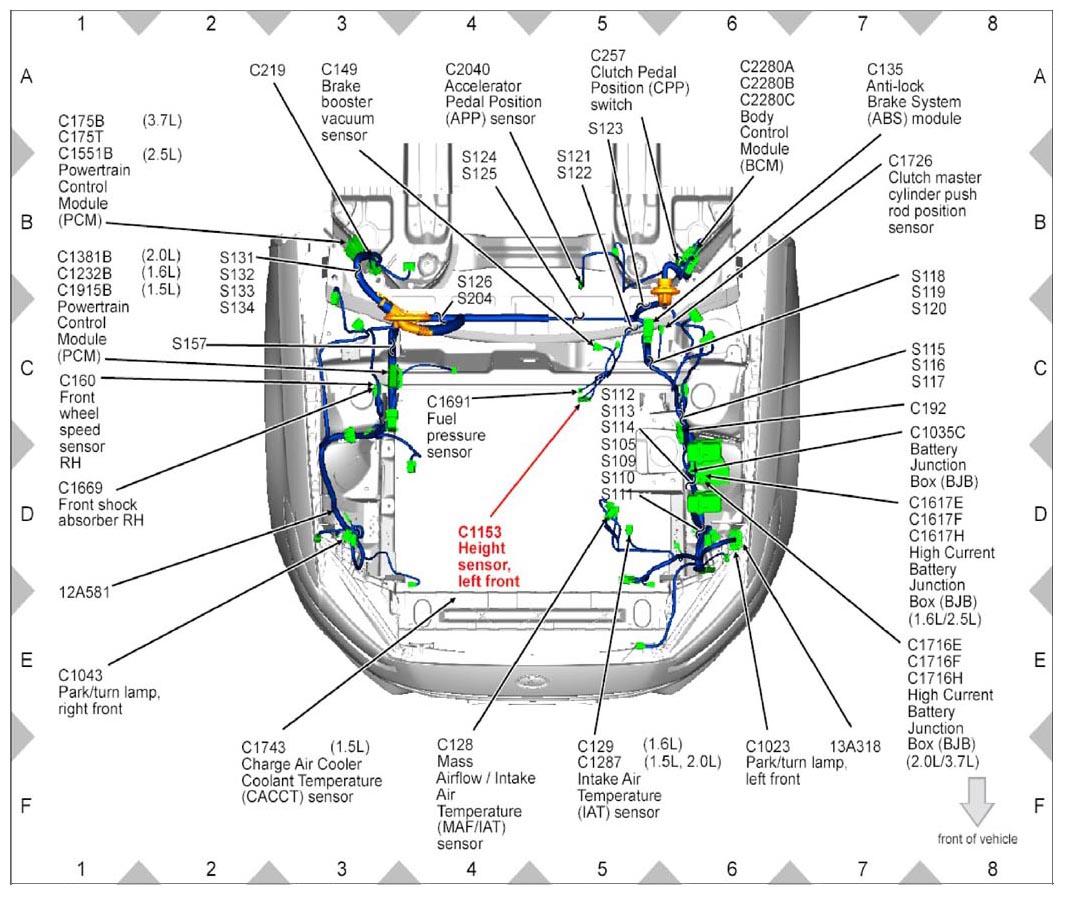

Fig 426: Identifying Height Sensor, Left Front Connector (C1153)

Courtesy of FORD MOTOR CO.

Fig 427: Identifying EGR Stepper Motor Connector (C1160)

Courtesy of FORD MOTOR CO.

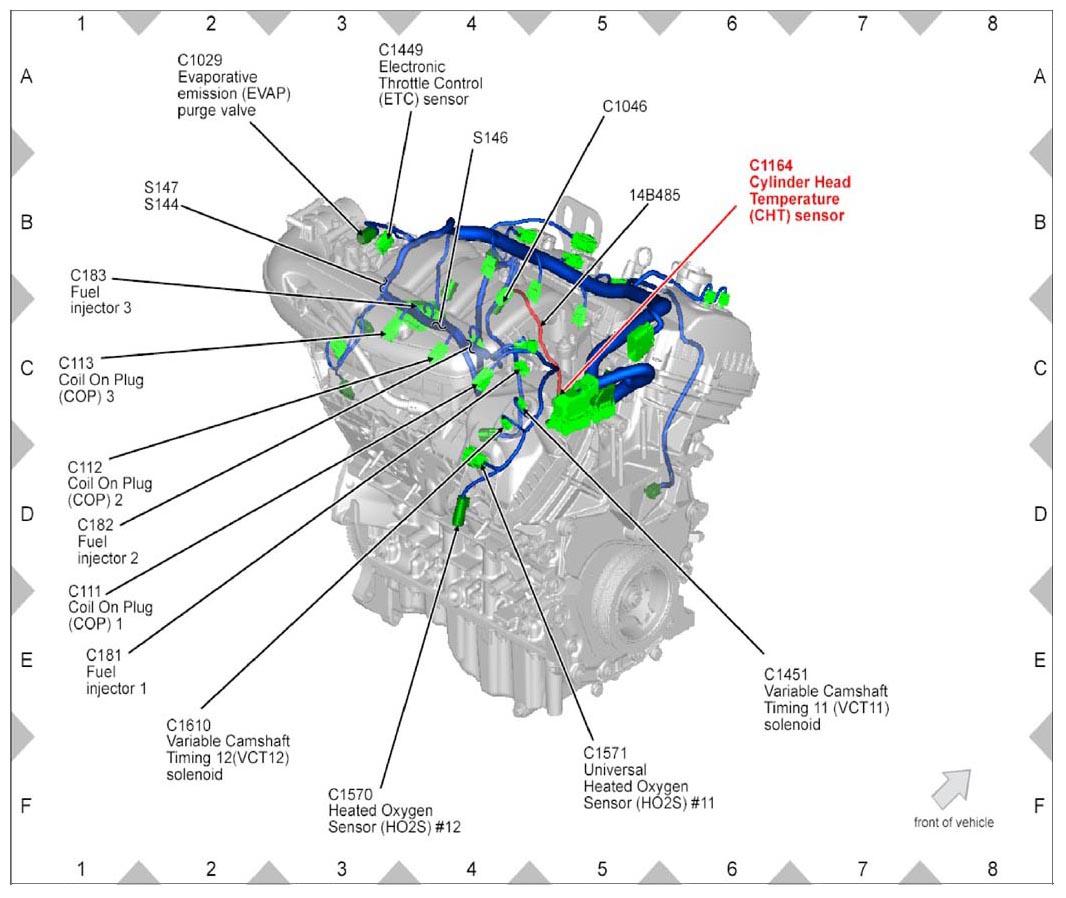

Fig 428: Identifying Cylinder Head Temperature Sensor Connector (C1164)

Courtesy of FORD MOTOR CO.

Fig 429: Identifying Fuel Injector 1 Connector (C1181) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 430: Identifying Fuel Injector 1 Connector (C1181) (2.0L)

Courtesy of FORD MOTOR CO.

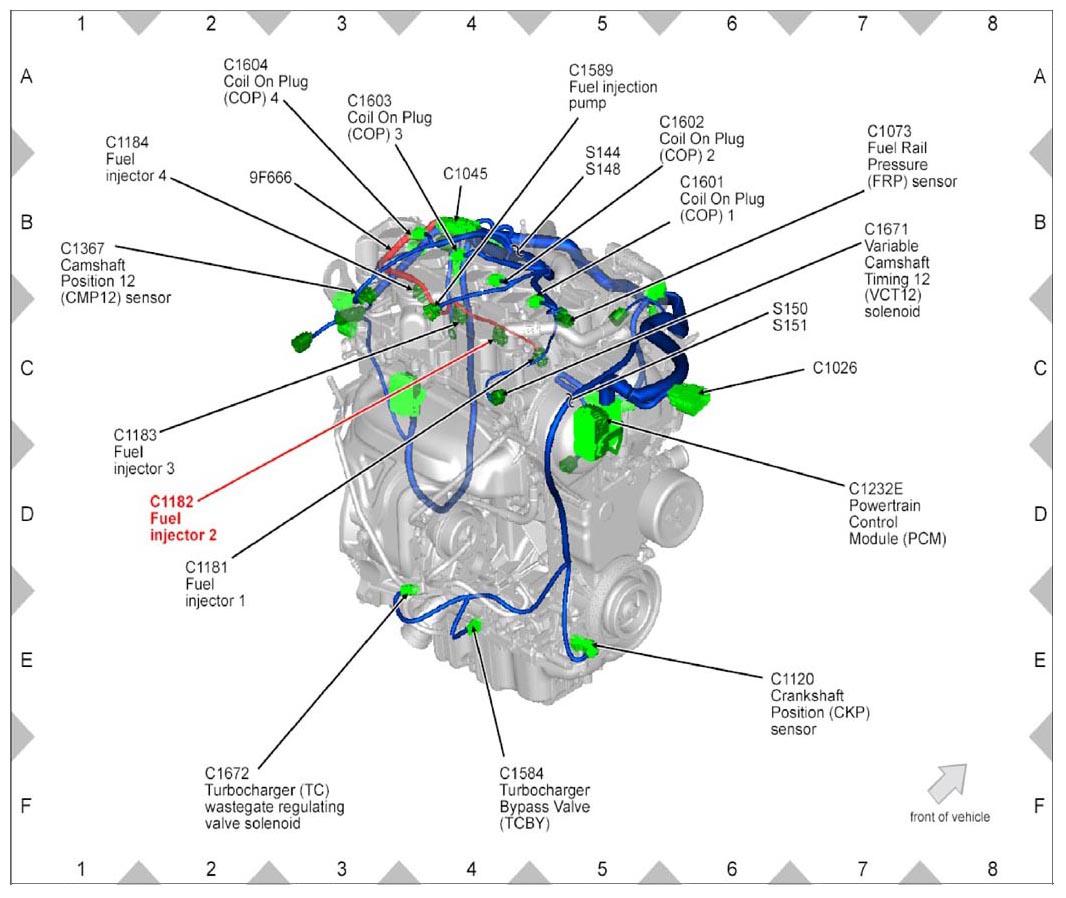

Fig 431: Identifying Fuel Injector 2 Connector (C1182) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 432: Identifying Fuel Injector 2 Connector (C1182) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 433: Identifying Fuel Injector 3 Connector (C1183) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 434: Identifying Fuel Injector 3 Connector (C1183) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 435: Identifying Fuel Injector 4 Connector (C1184) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 436: Identifying Fuel Injector 4 Connector (C1184) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 437: Identifying Ignition Transformer Capacitor Connector (C1196)

Courtesy of FORD MOTOR CO.

Fig 438: Identifying Charge Air Cooler Pump Connector (C1217)

Courtesy of FORD MOTOR CO.

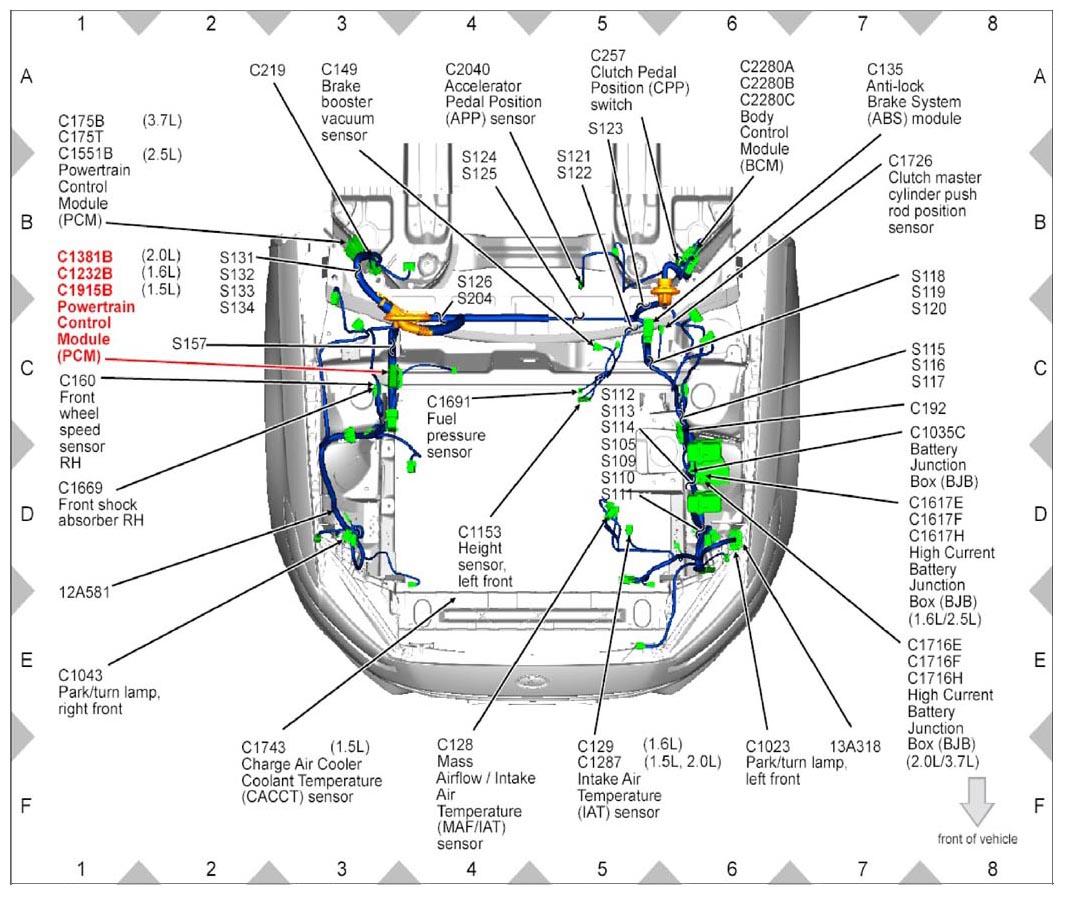

Fig 439: Identifying Powertrain Control Module Connector (C1381B, C1232B And C1915B)

Courtesy of FORD MOTOR CO.

Fig 440: Identifying Powertrain Control Module Connector (C1232E)

Courtesy of FORD MOTOR CO.

Fig 441: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector (C1246)

Courtesy of FORD MOTOR CO.

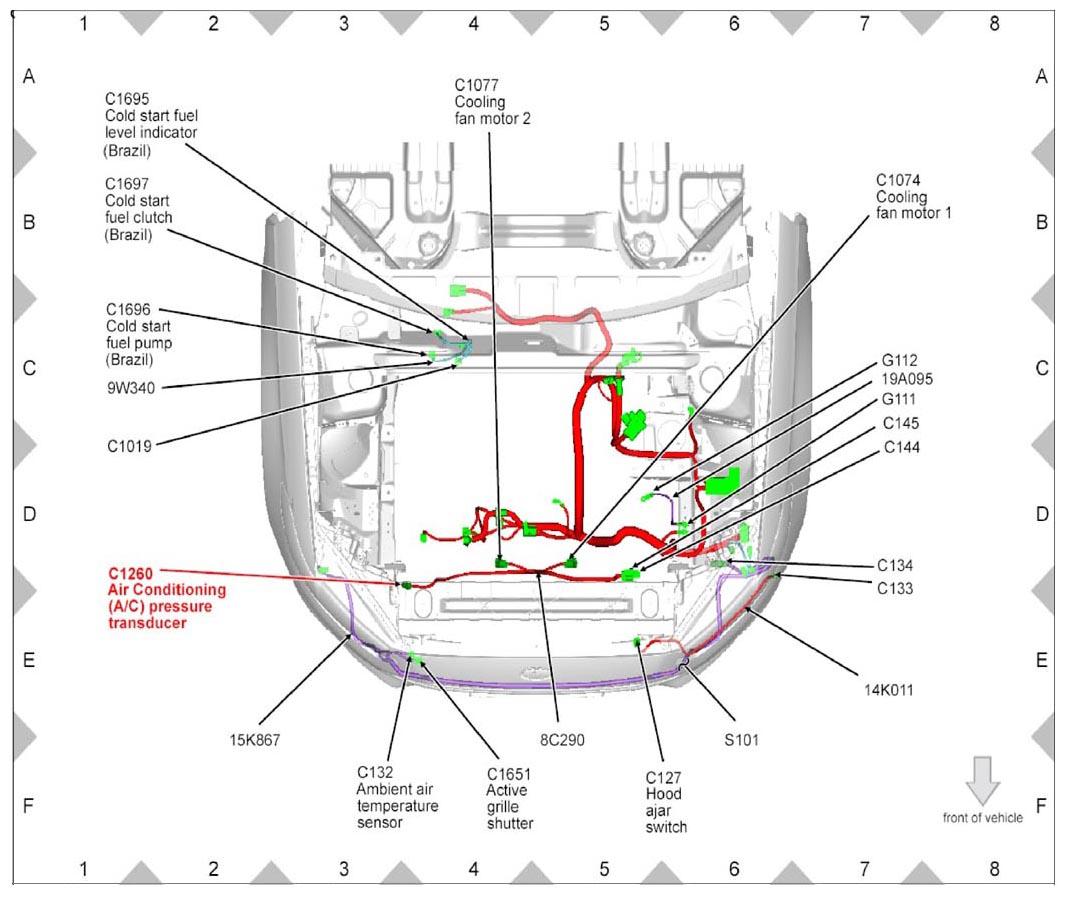

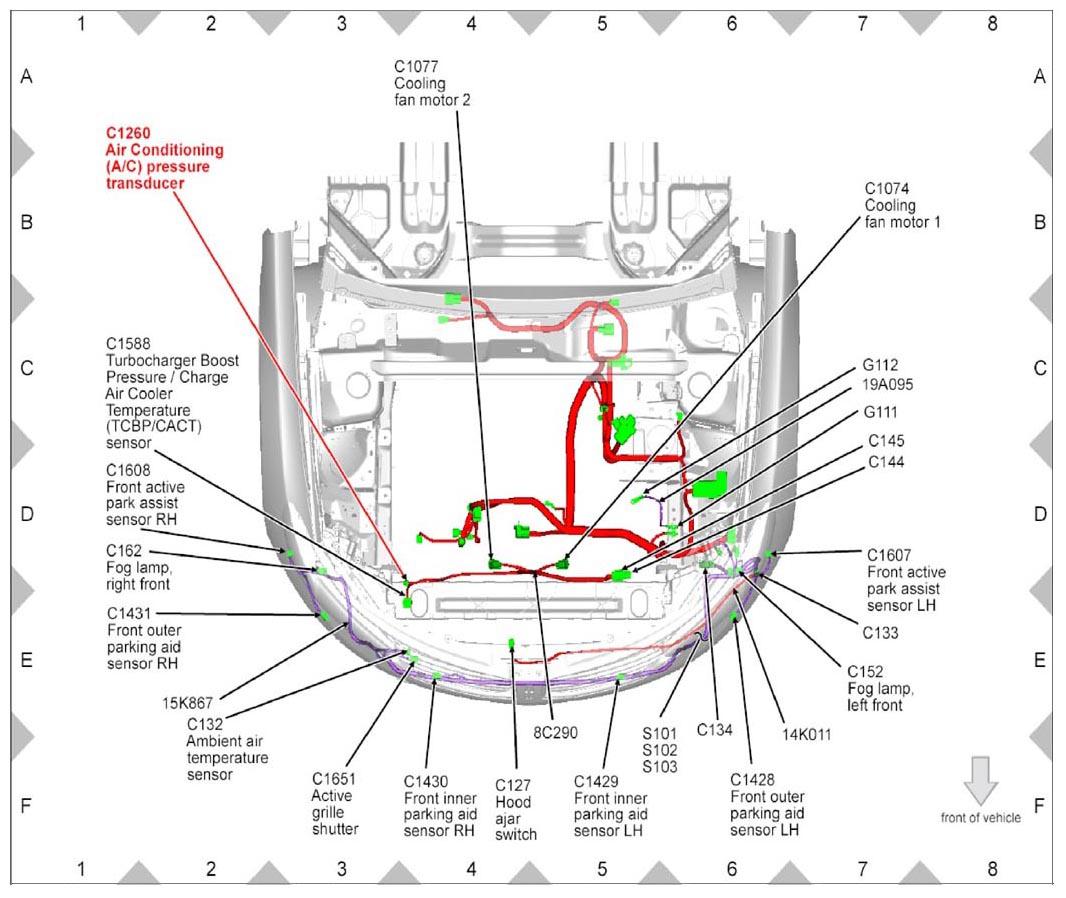

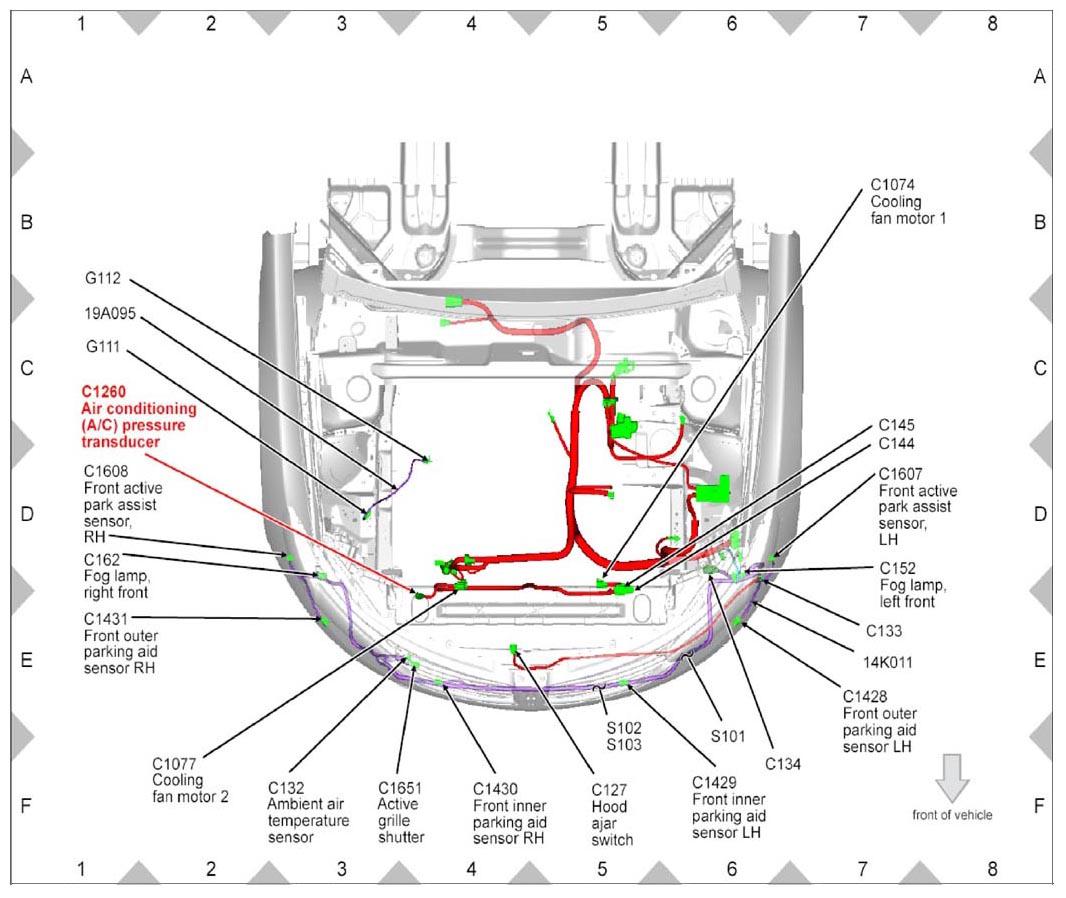

Fig 442: Identifying Air Conditioning Pressure Transducer Connector (C1260) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 443: Identifying Air Conditioning Pressure Transducer Connector (C1260) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 444: Identifying Air Conditioning Pressure Transducer Connector (C1260) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 445: Identifying Air Conditioning Pressure Transducer Connector (C1260) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 446: Identifying Air Conditioning Pressure Transducer Connector (C1260) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 447: Identifying Intake Air Temperature Sensor Connector (C129 And C1287)

Courtesy of FORD MOTOR CO.

Fig 448: Identifying Crankshaft Position Sensor Connector (C1339)

Courtesy of FORD MOTOR CO.

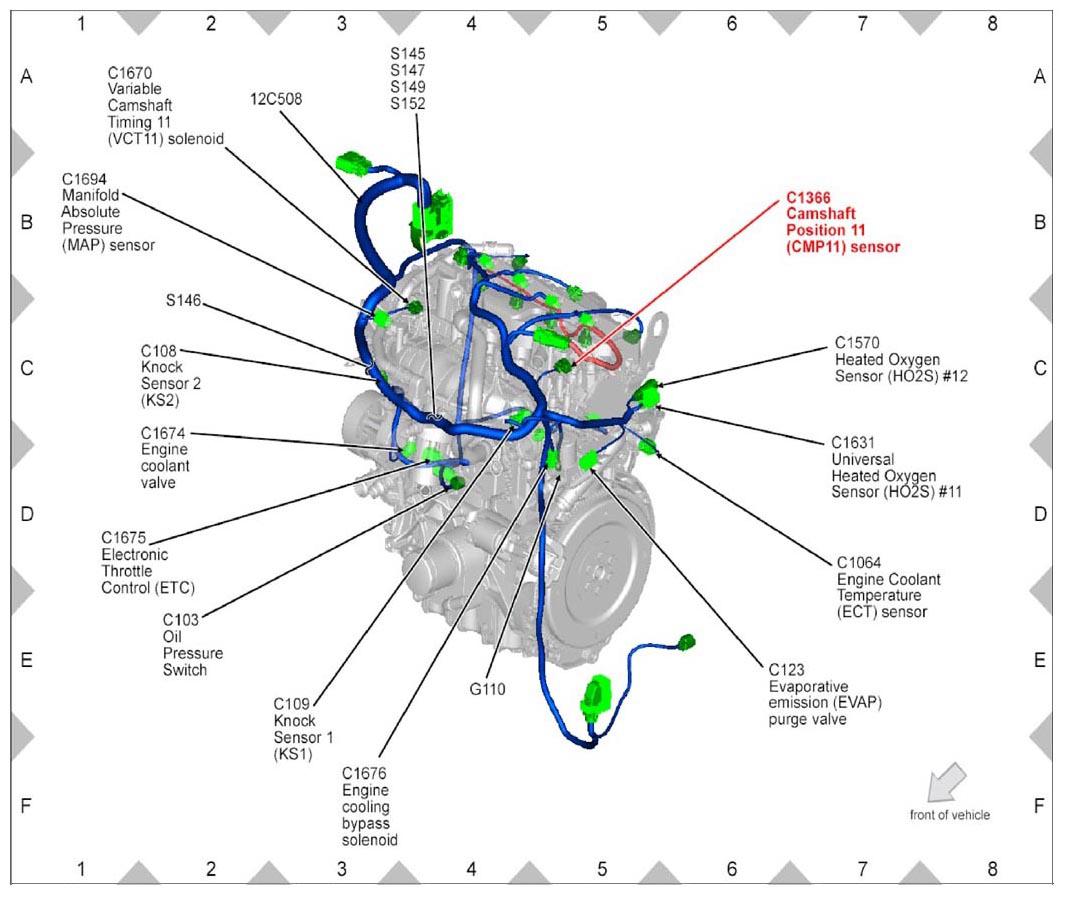

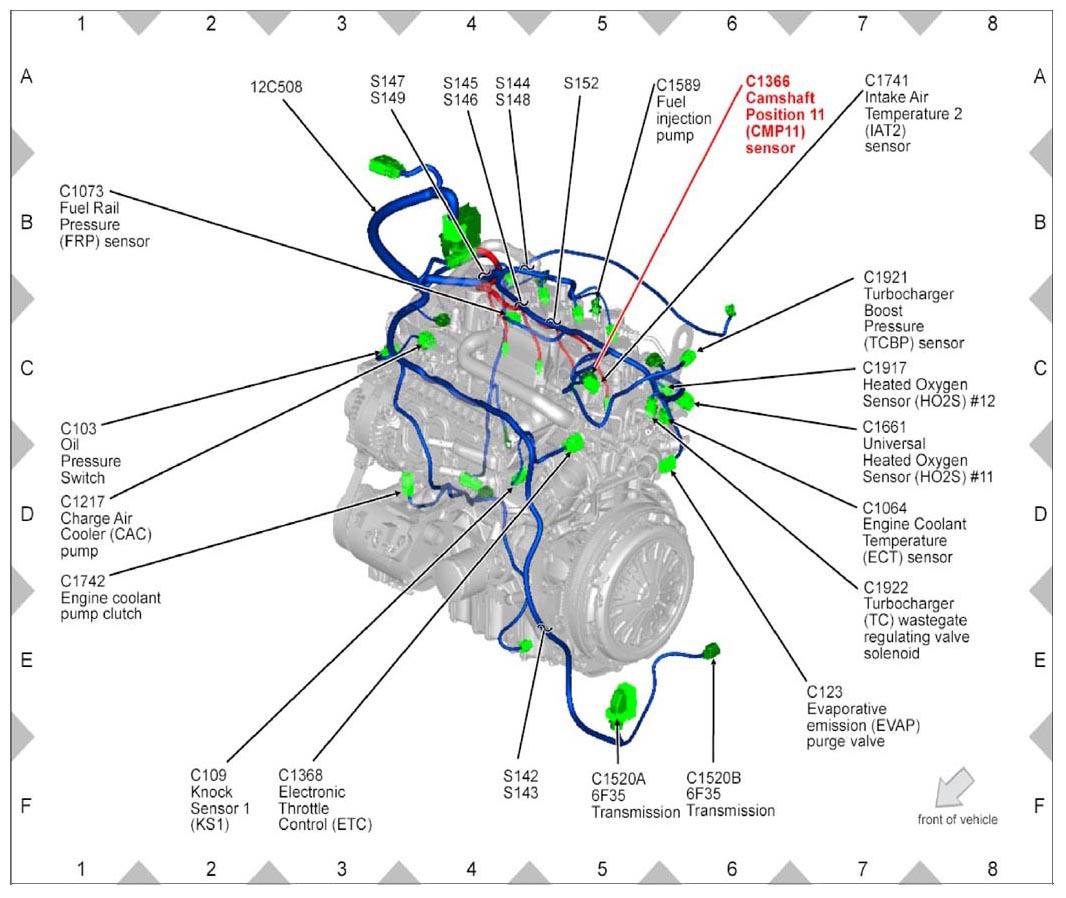

Fig 449: Identifying Camshaft Position 11 Sensor Connector (C1366) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 450: Identifying Camshaft Position 11 Sensor Connector (C1366) (1.6L)

Courtesy of FORD MOTOR CO.

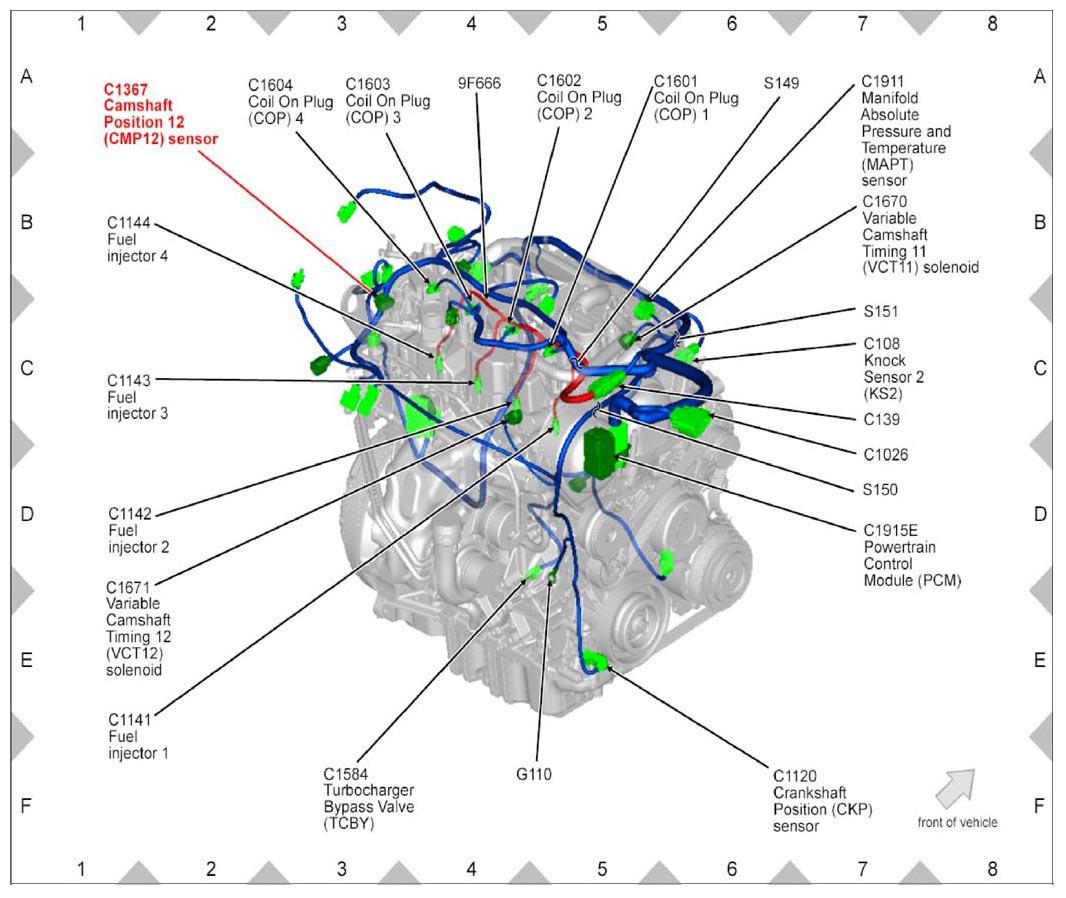

Fig 451: Identifying Camshaft Position 12 Sensor Connector (C1367) (1.5L)

Courtesy of FORD MOTOR CO.

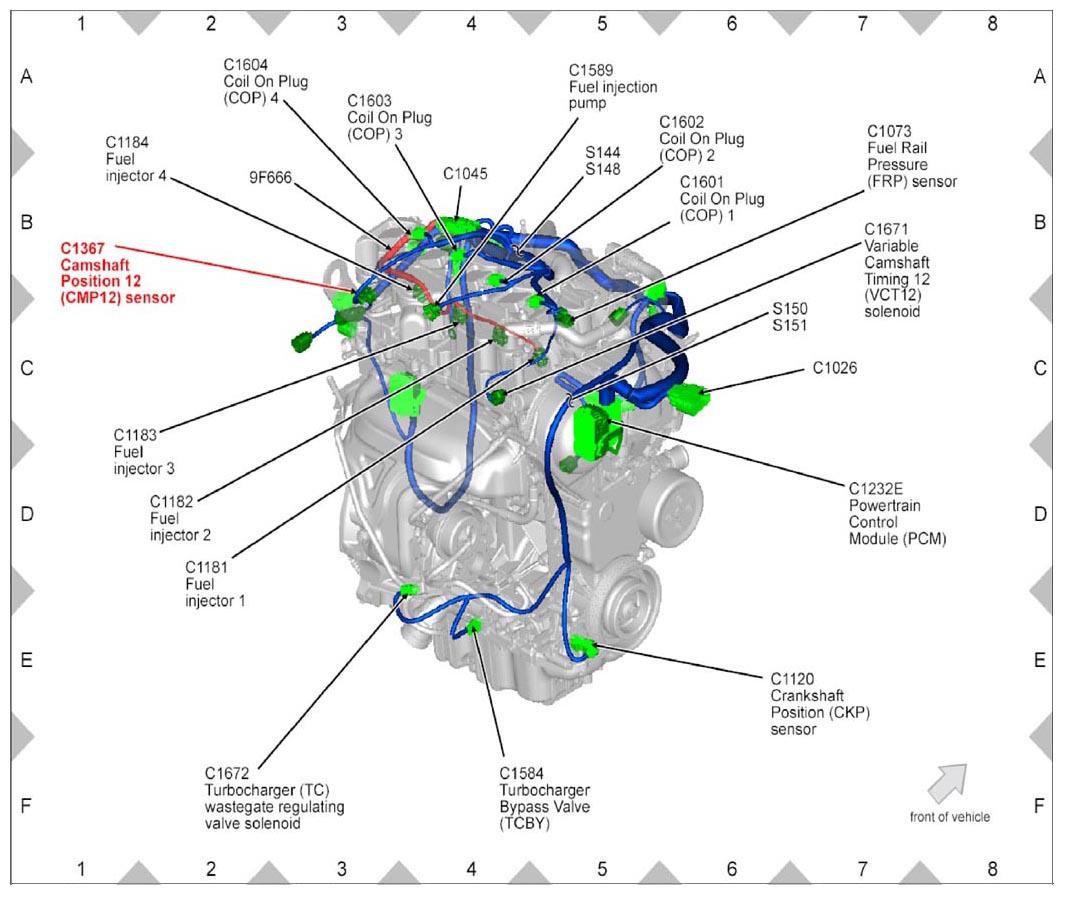

Fig 452: Identifying Camshaft Position 12 Sensor Connector (C1367) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 453: Identifying Electronic Throttle Control Connector (C1368)

Courtesy of FORD MOTOR CO.

Fig 454: Identifying Powertrain Control Module Connector (C1381B, C1232B And C1915B)

Courtesy of FORD MOTOR CO.

Fig 455: Identifying Powertrain Control Module Connector (C1381E)

Courtesy of FORD MOTOR CO.

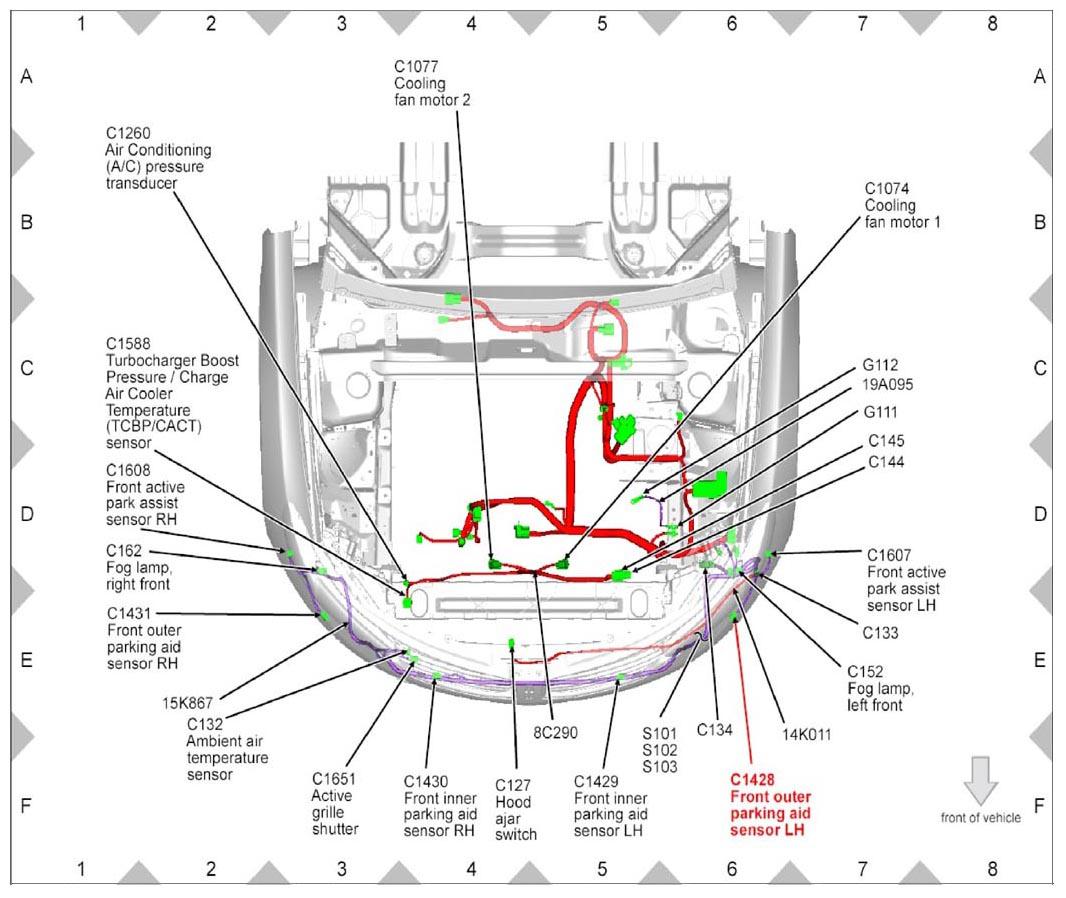

Fig 456: Identifying Front Outer Parking Aid Sensor LH Connector (C1428) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 457: Identifying Front Outer Parking Aid Sensor LH Connector (C1428) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 458: Identifying Front Inner Parking Aid Sensor LH Connector (C1429) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 459: Identifying Front Inner Parking Aid Sensor LH Connector (C1429) (3.7L)

Courtesy of FORD MOTOR CO.

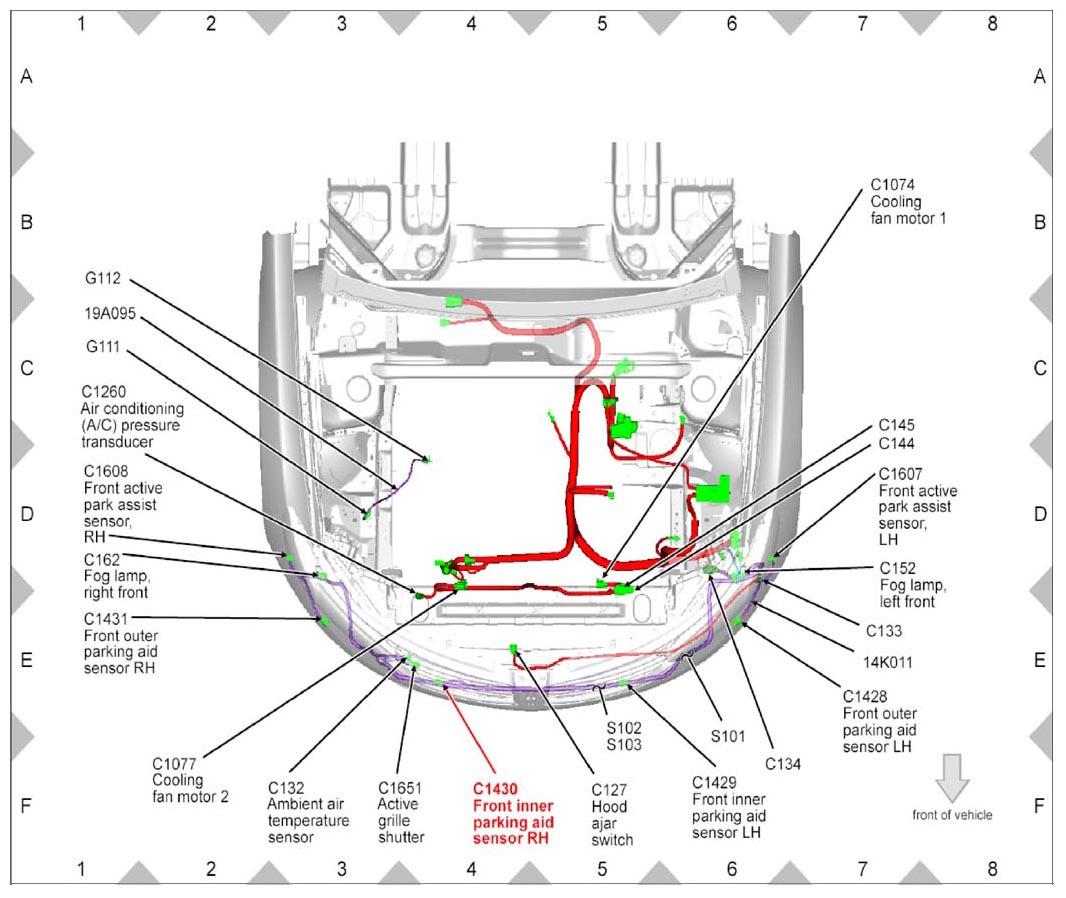

Fig 460: Identifying Front Inner Parking Aid Sensor RH Connector (C1430) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 461: Identifying Front Inner Parking Aid Sensor RH Connector (C1430) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 462: Identifying Front Outer Parking Aid Sensor RH Connector (C1431) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 463: Identifying Front Outer Parking Aid Sensor RH Connector (C1431) (3.7L)

Courtesy of FORD MOTOR CO.

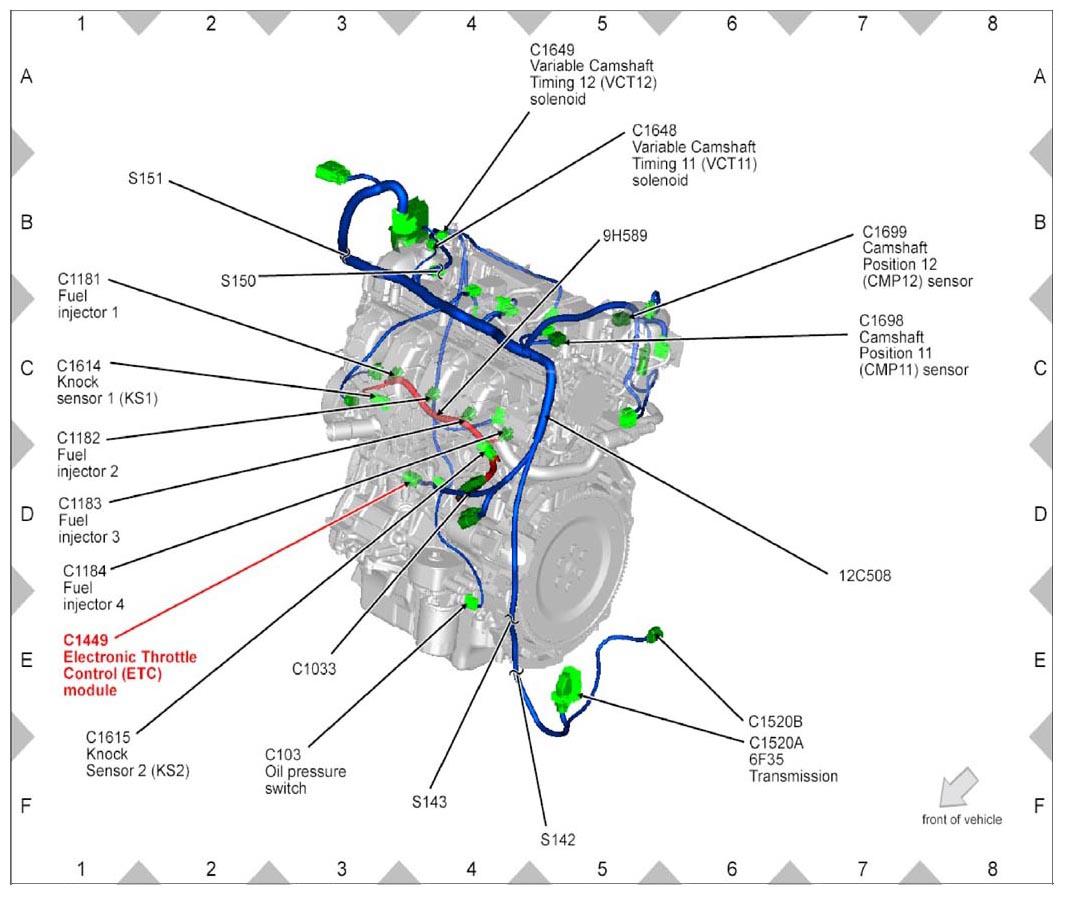

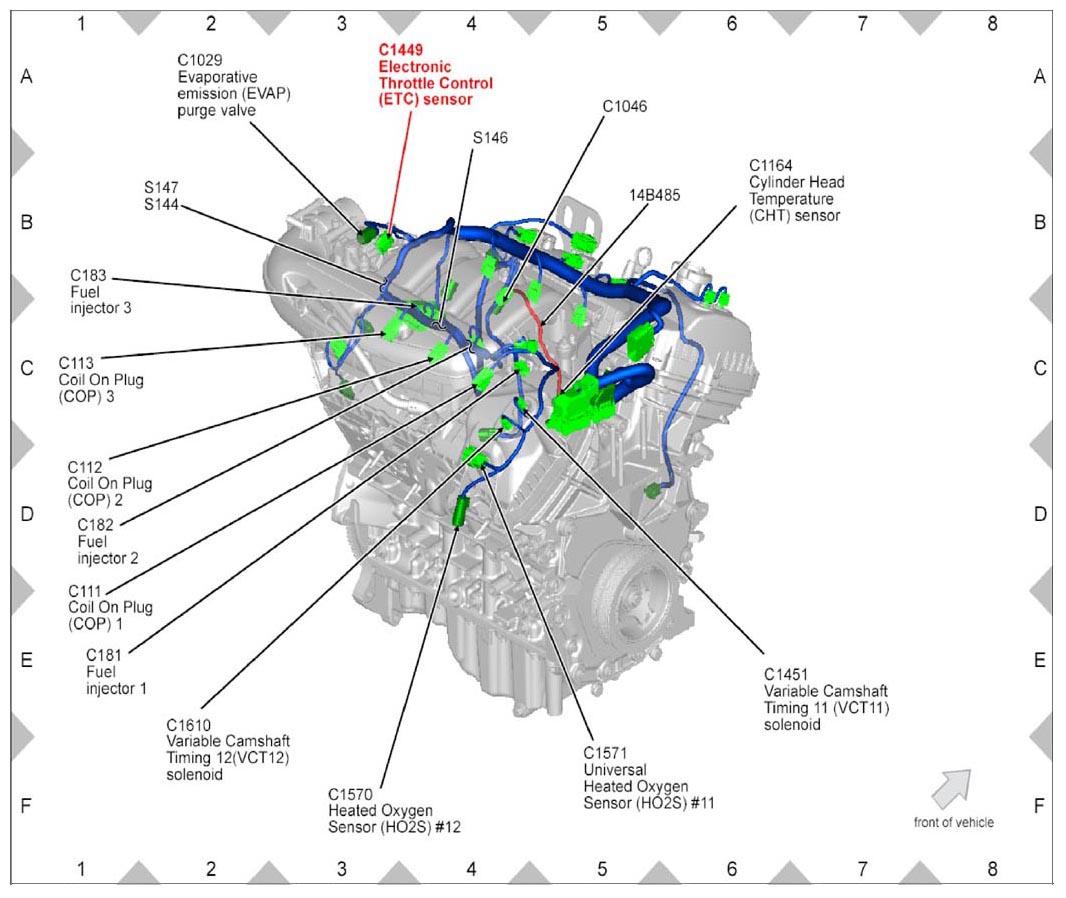

Fig 464: Identifying Electronic Throttle Control Module Connector (C1449) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 465: Identifying Electronic Throttle Control Module Connector (C1449) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 466: Identifying Electronic Throttle Control Module Connector (C1449) (3.7L)

Courtesy of FORD MOTOR CO.

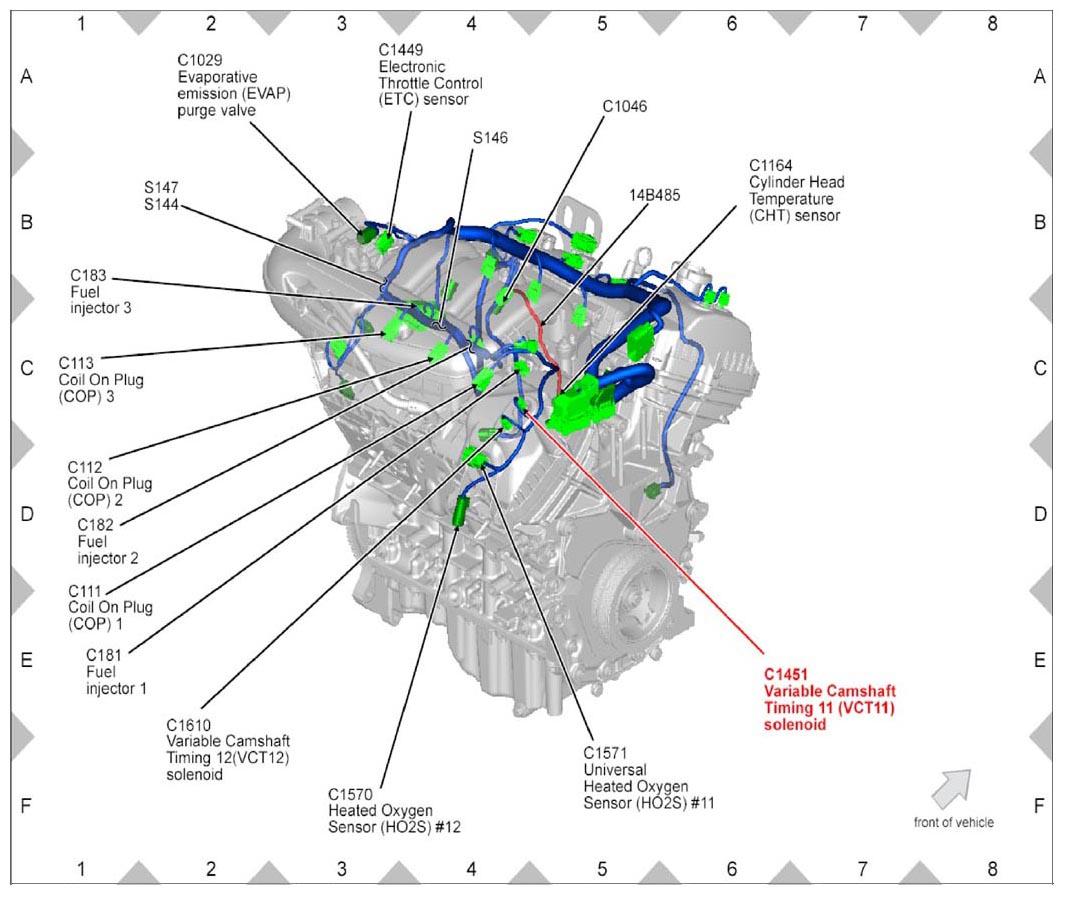

Fig 467: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1451)

Courtesy of FORD MOTOR CO.

Fig 468: Identifying Variable Camshaft Timing 21 Solenoid Connector (C1452)

Courtesy of FORD MOTOR CO.

Fig 469: Identifying Power Steering Control Module Connector (C1463A) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 470: Identifying Power Steering Control Module Connector (C1463A) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 471: Identifying Power Steering Control Module Connector (C1463A) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 472: Identifying Power Steering Control Module Connector (C1463A) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 473: Identifying Power Steering Control Module Connector (C1463A) (3.7L)

Courtesy of FORD MOTOR CO.

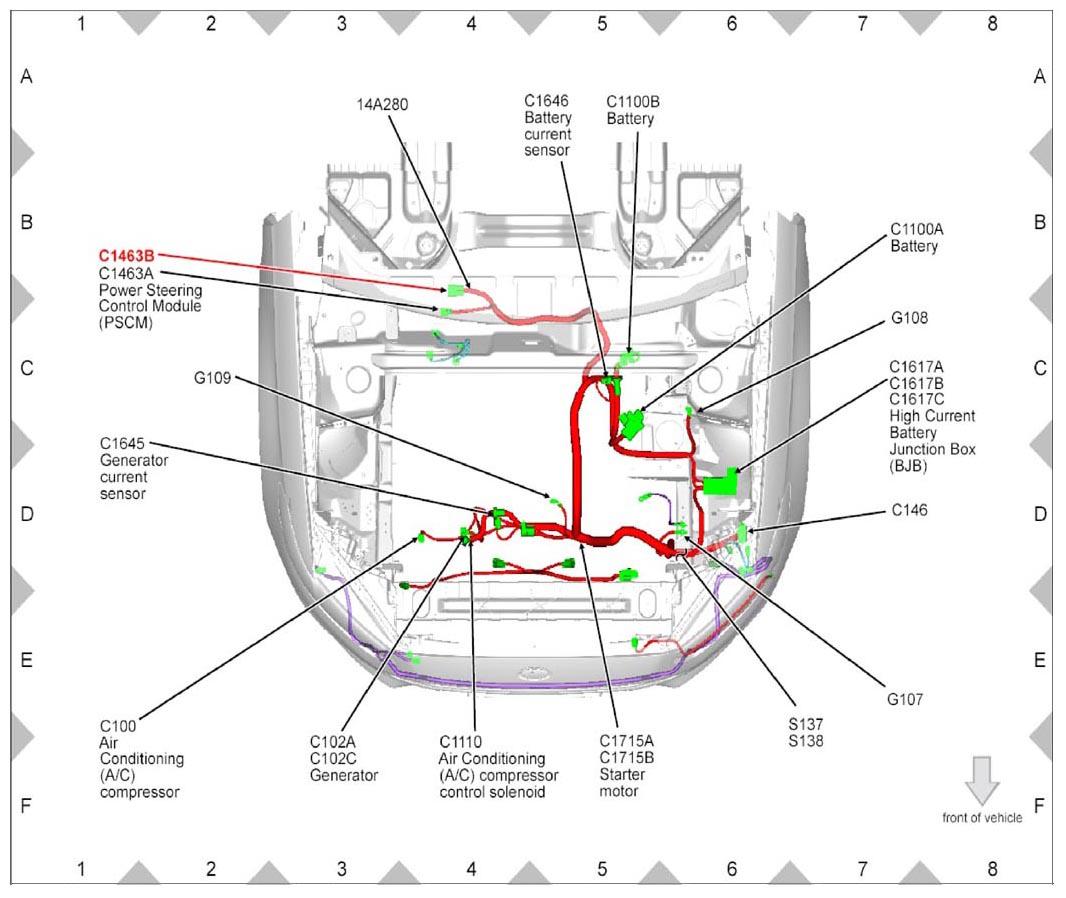

Fig 474: Identifying Connector (C1463B) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 475: Identifying Connector (C1463B) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 476: Identifying Connector (C1463B) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 477: Identifying Connector (C1463B) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 478: Identifying Connector (C1463B) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 479: Identifying Front Impact Severity Sensor LH Connector (C1465)

Courtesy of FORD MOTOR CO.

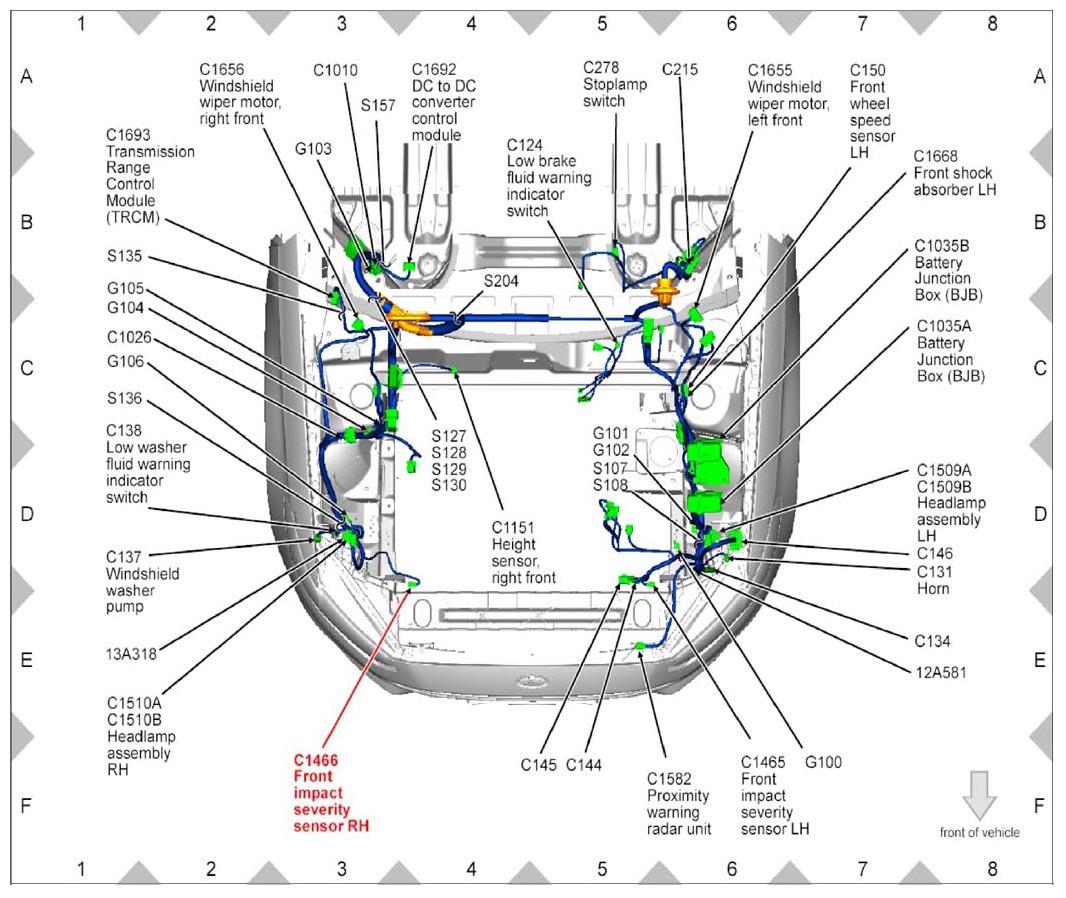

Fig 480: Identifying Front Impact Severity Sensor RH Connector (C1466)

Courtesy of FORD MOTOR CO.

Fig 481: Identifying Headlamp Assembly LH Connector (C1509A And C1509B)

Courtesy of FORD MOTOR CO.

Fig 482: Identifying Headlamp Assembly LH Connector (C1509A And C1509B)

Courtesy of FORD MOTOR CO.

Fig 483: Identifying Headlamp Assembly RH Connector (C1510A And C1510B)

Courtesy of FORD MOTOR CO.

Fig 484: Identifying Headlamp Assembly RH Connector (C1510A And C1510B)

Courtesy of FORD MOTOR CO.

Fig 485: Identifying Knock Sensor Connector (C1512)

Courtesy of FORD MOTOR CO.

Fig 486: Identifying Knock Sensor Connector (C1514)

Courtesy of FORD MOTOR CO.

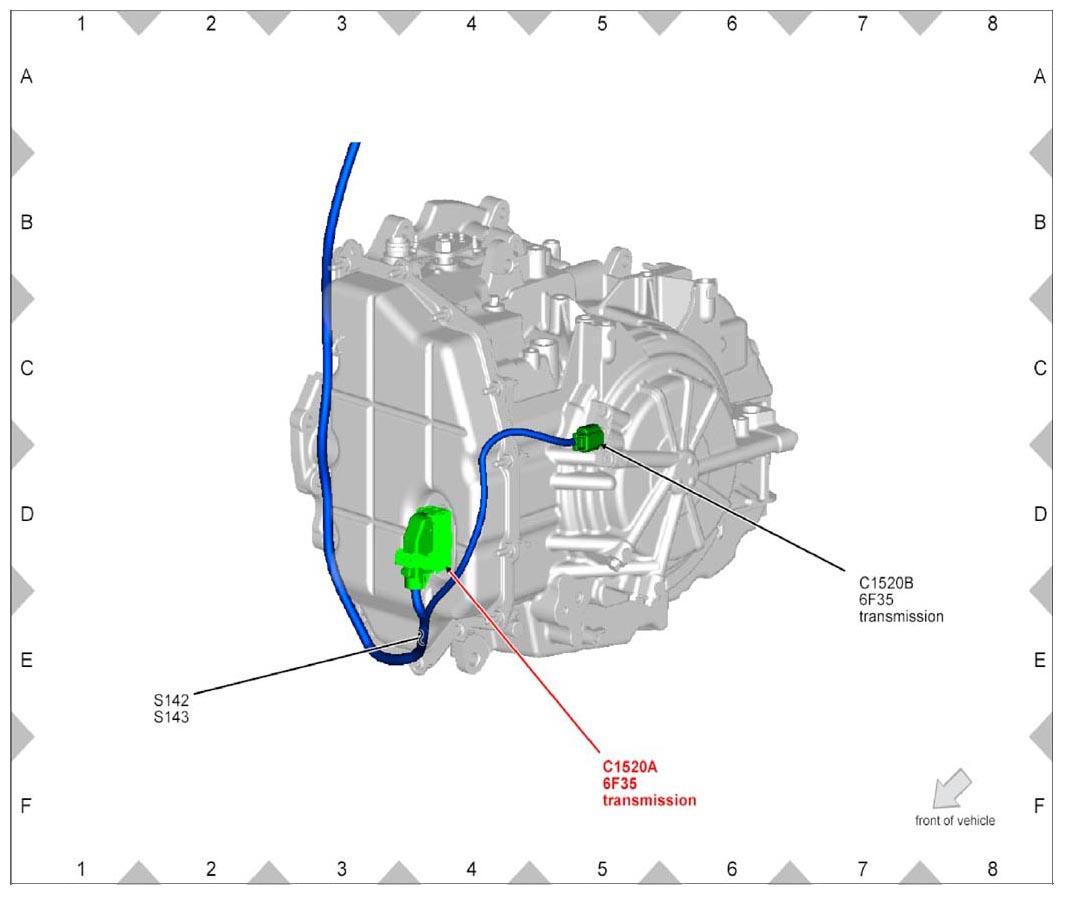

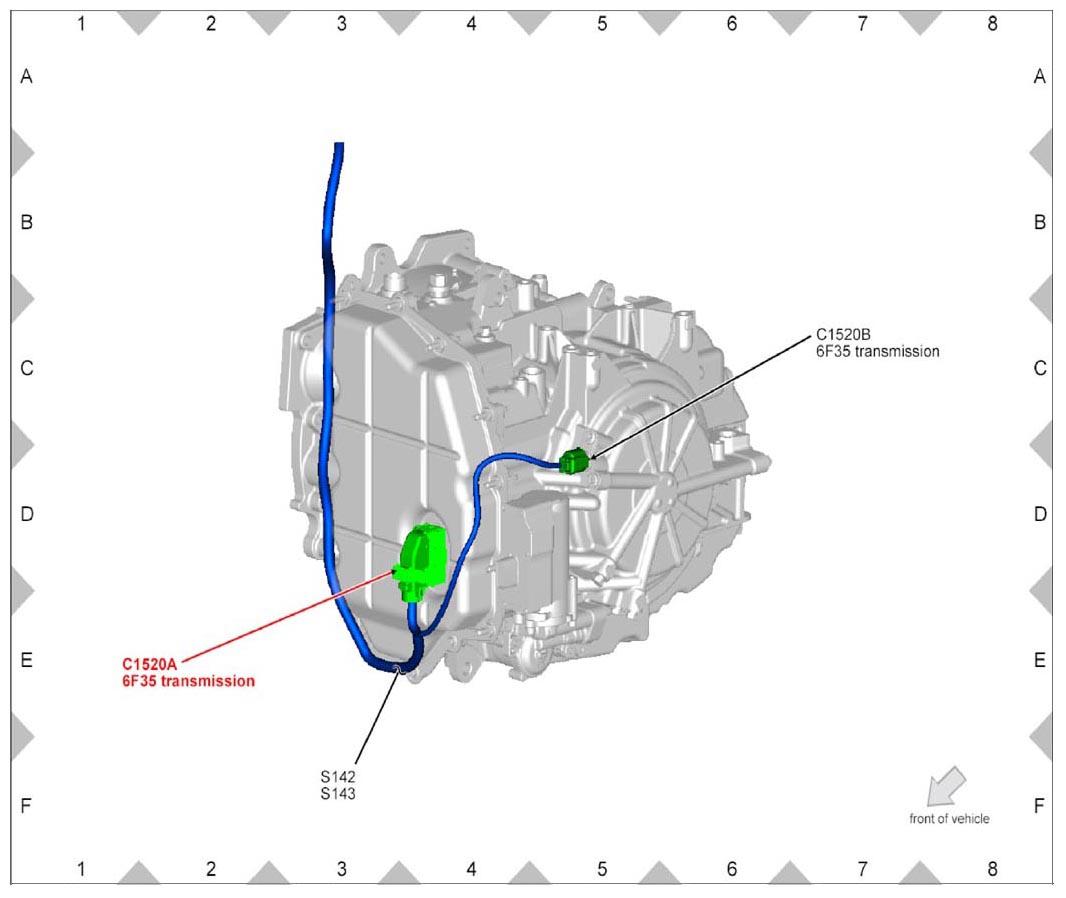

Fig 487: Identifying 6F35 Transmission Connector (C1520A) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 488: Identifying 6F35 Transmission Connector (C1520A) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 489: Identifying 6F35 Transmission Connector (C1520A) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 490: Identifying 6F35 Transmission Connector (C1520A) (3.0L)

Courtesy of FORD MOTOR CO.

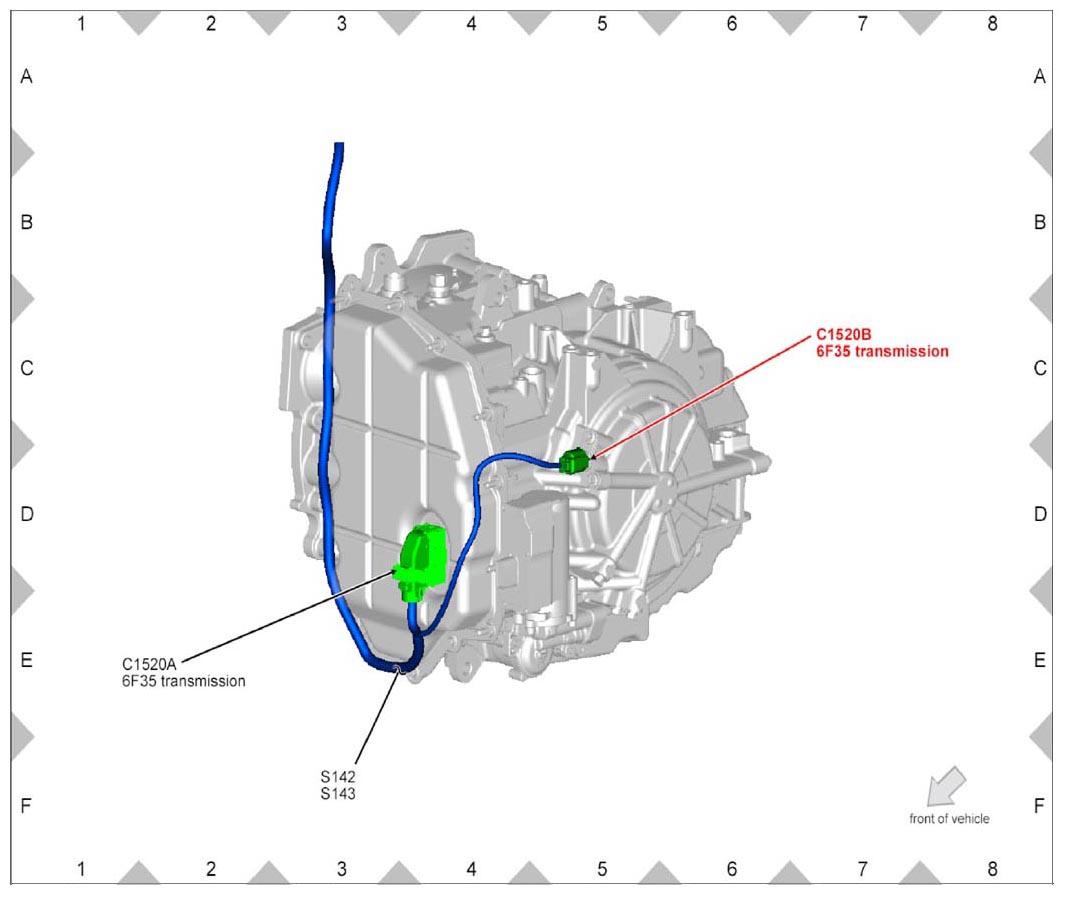

Fig 491: Identifying 6F35 Transmission Connector (C1520B) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 492: Identifying 6F35 Transmission Connector (C1520B) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 493: Identifying Connector (C1520B) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 494: Identifying 6F35 Transmission Connector (C1520B) (3.0L)

Courtesy of FORD MOTOR CO.

Fig 495: Identifying Coil On Plug 1 Connector (C1538)

Courtesy of FORD MOTOR CO.

Fig 496: Identifying Coil On Plug 2 Connector (C1539)

Courtesy of FORD MOTOR CO.

Fig 497: Identifying Coil On Plug 3 Connector (C1540)

Courtesy of FORD MOTOR CO.

Fig 498: Identifying Coil On Plug 4 Connector (C1541)

Courtesy of FORD MOTOR CO.

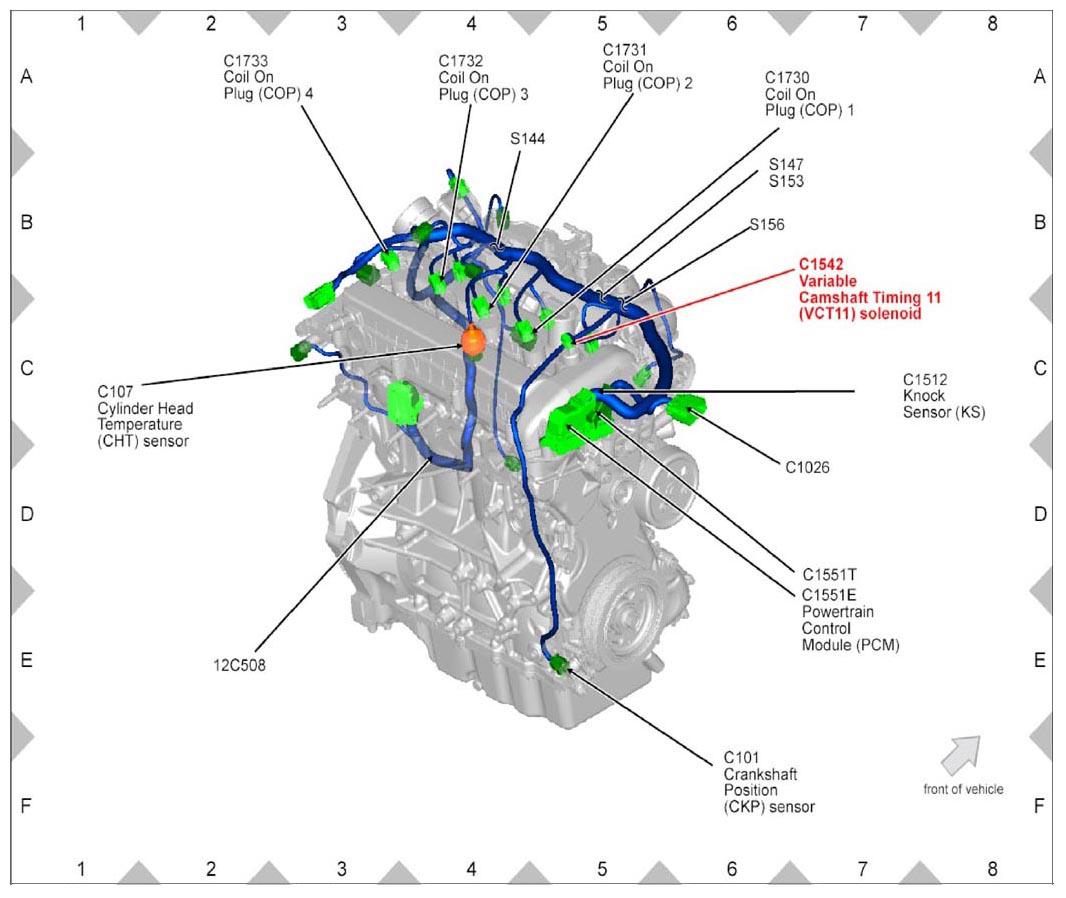

Fig 499: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1542)

Courtesy of FORD MOTOR CO.

Fig 500: Identifying Powertrain Control Module Connector (C175B, C175T And C1551B)

Courtesy of FORD MOTOR CO.

Fig 501: Identifying Powertrain Control Module Connector (C1551E)

Courtesy of FORD MOTOR CO.

Fig 502: Identifying Connector (C1551T)

Courtesy of FORD MOTOR CO.

Fig 503: Identifying Generator Connector (C1558A And C1558C) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 504: Identifying Generator Connector (C1558A And C1558C) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 505: Identifying Generator Connector (C1558A And C1558C) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 506: Identifying Generator Connector (C1558A And C1558C) (3.7L)

Courtesy of FORD MOTOR CO.

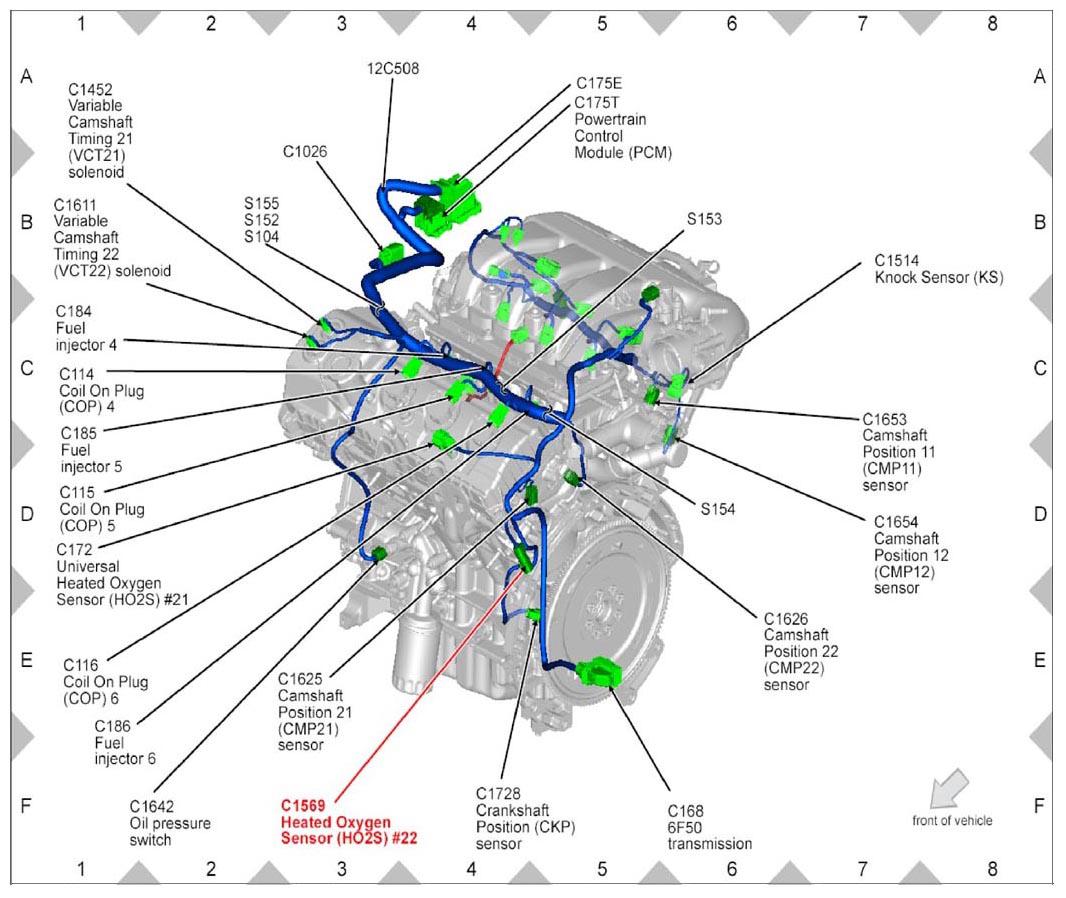

Fig 507: Identifying Heated Oxygen Sensor No. 22 Connector (C1569)

Courtesy of FORD MOTOR CO.

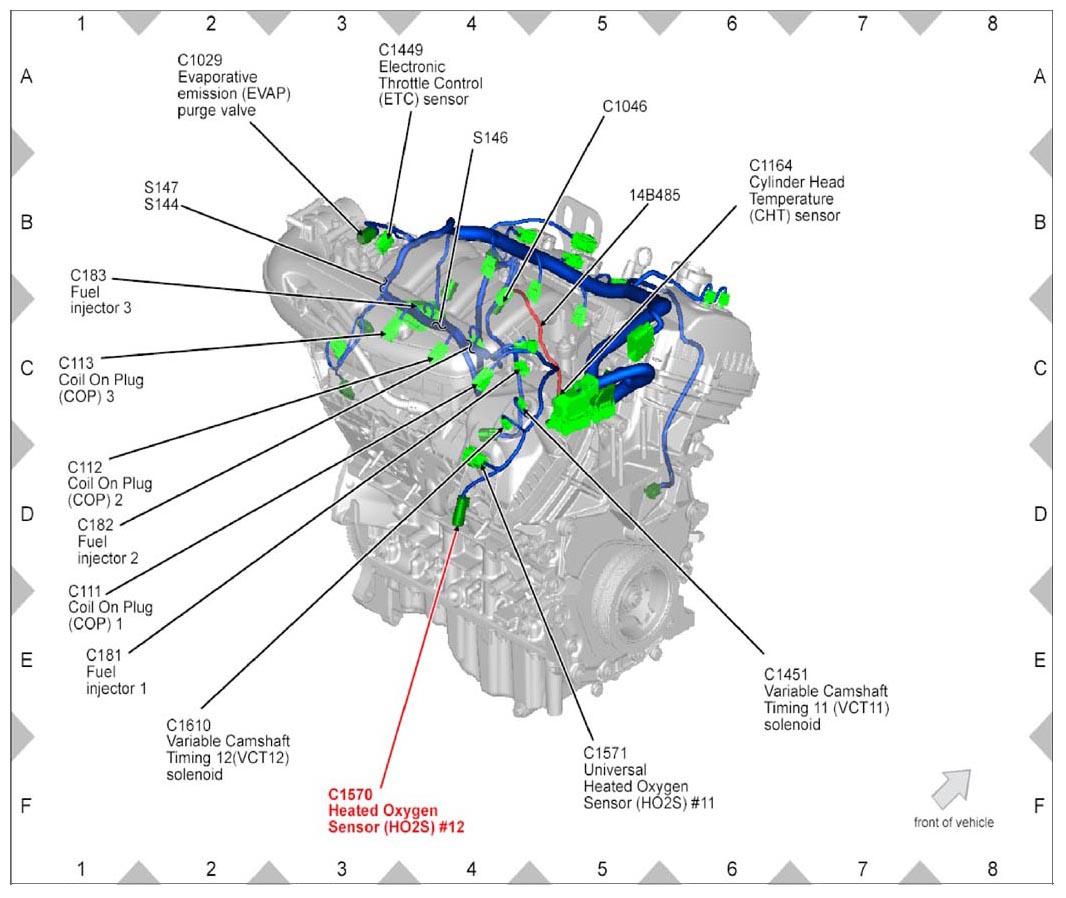

Fig 508: Identifying Heated Oxygen Sensor No. 12 Connector (C1570) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 509: Identifying Heated Oxygen Sensor No. 12 Connector (C1570) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 510: Identifying Heated Oxygen Sensor No. 12 Connector (C1570) (3.7L)

Courtesy of FORD MOTOR CO.

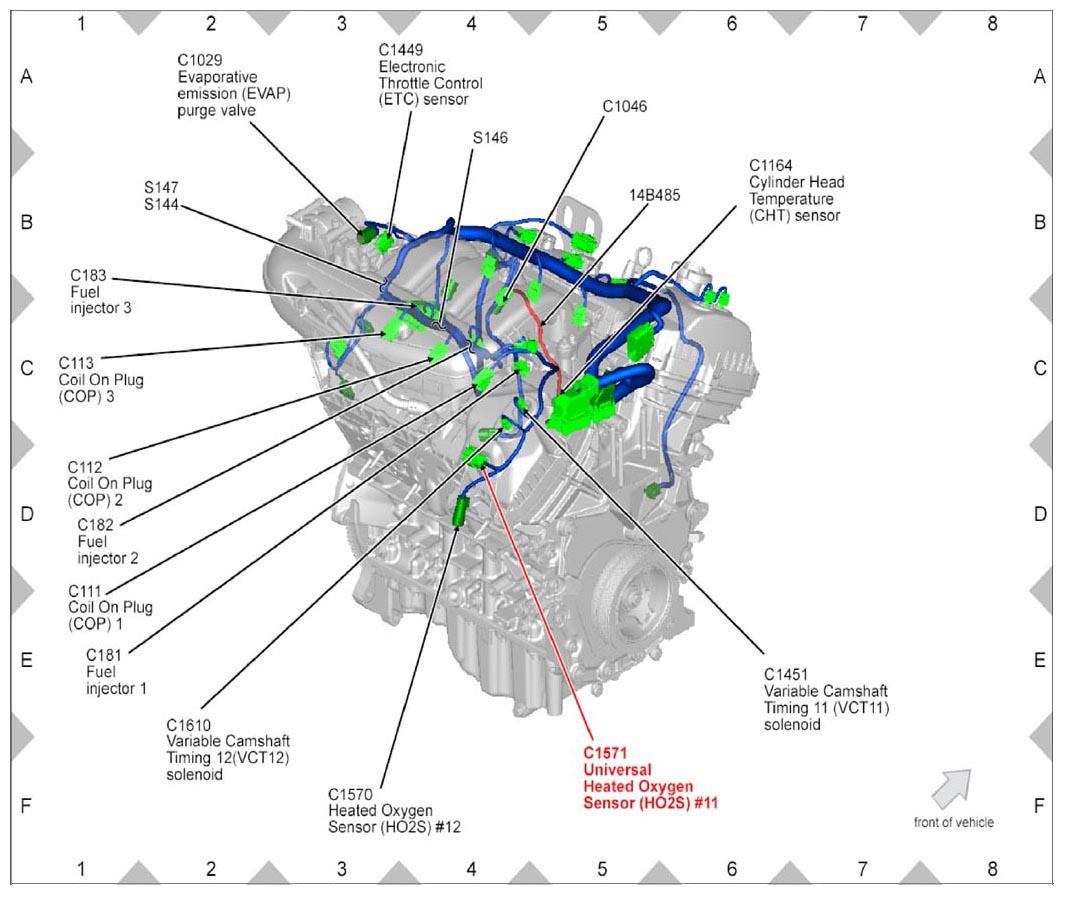

Fig 511: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C1571)

Courtesy of FORD MOTOR CO.

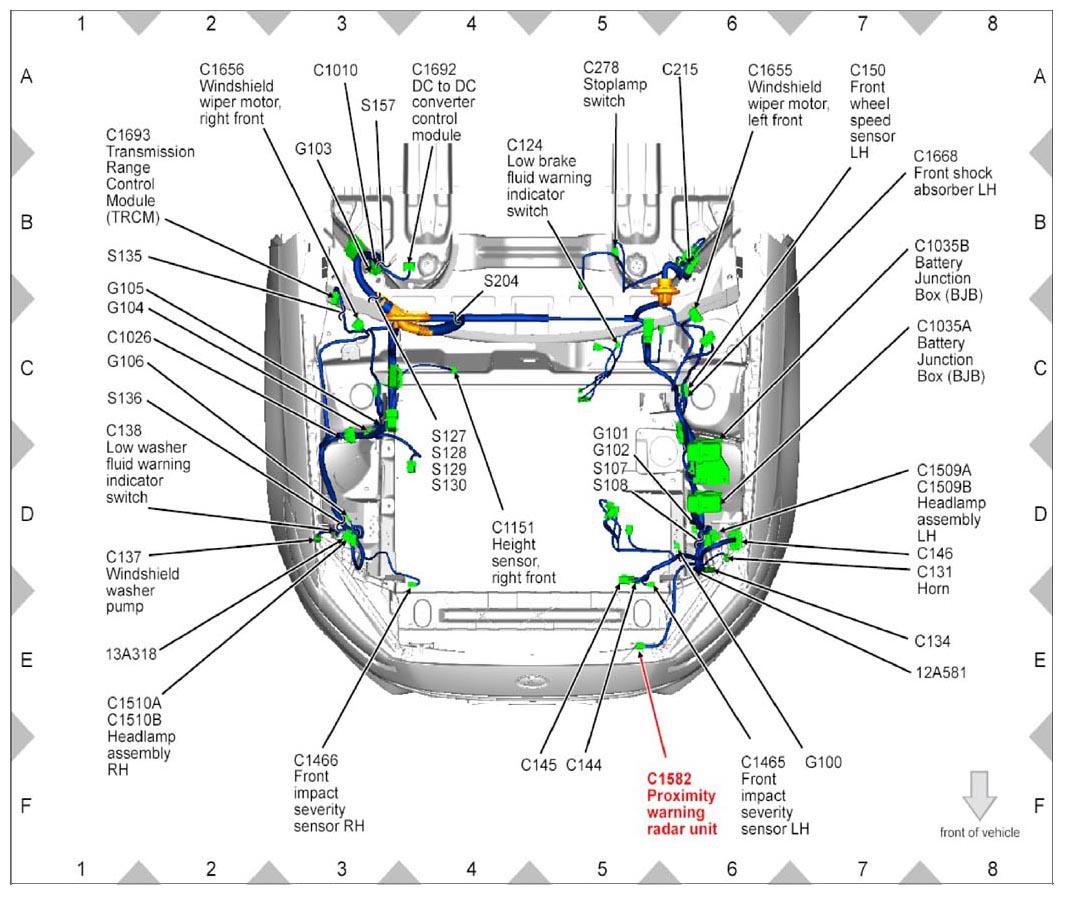

Fig 512: Identifying Proximity Warning Radar Unit Connector (C1582)

Courtesy of FORD MOTOR CO.

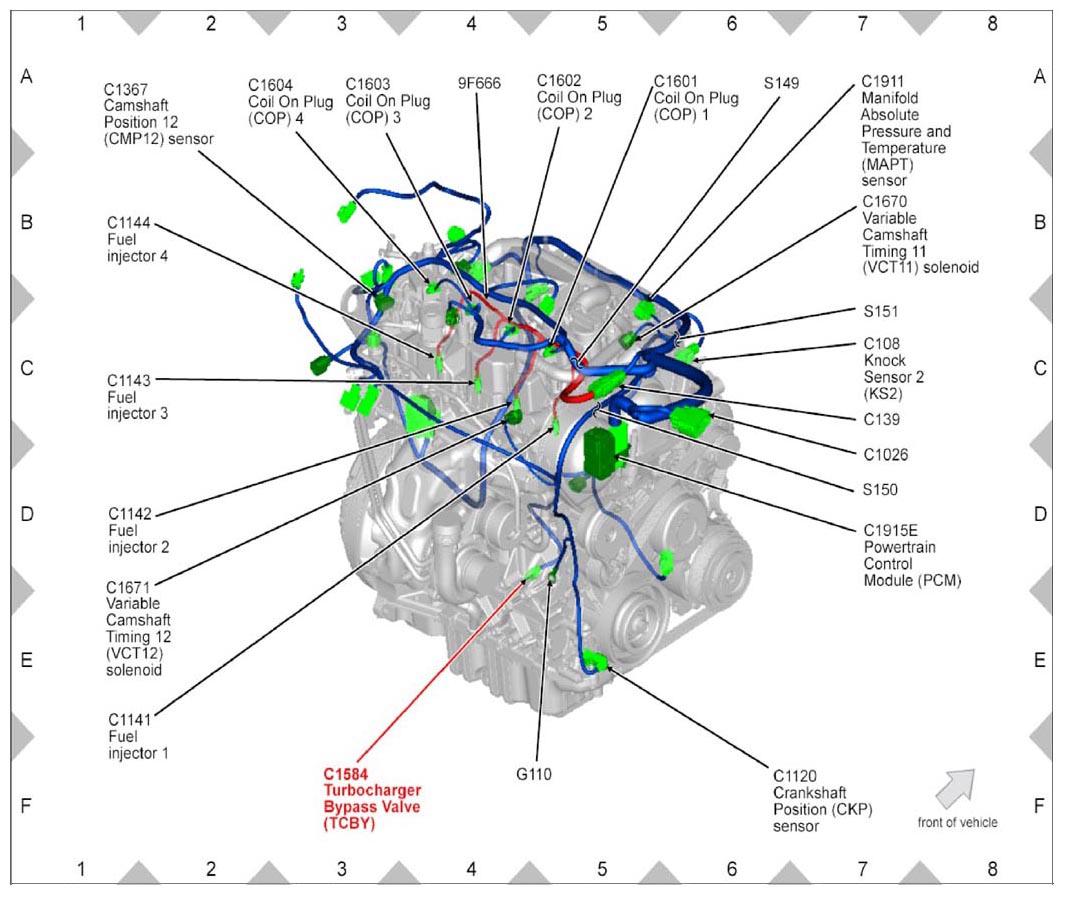

Fig 513: Identifying Turbocharger Bypass Valve Connector (C1584) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 514: Identifying Turbocharger Bypass Valve Connector (C1584) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 515: Identifying Turbocharger Boost Pressure/Charge Air Cooler Temperature Sensor Connector (C1588) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 516: Identifying Turbocharger Boost Pressure/Charge Air Cooler Temperature Sensor Connector (C1588) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 517: Identifying Turbocharger Boost Pressure/Charge Air Cooler Temperature Sensor Connector (C1588) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 518: Identifying Fuel Injection Pump Connector (C1589) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 519: Identifying Fuel Injection Pump Connector (C1589) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 520: Identifying Fuel Injection Pump Connector (C1589) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 521: Identifying Coil On Plug 1 Connector (C1601) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 522: Identifying Coil On Plug 1 Connector (C1601) (1.6L)

Courtesy of FORD MOTOR CO.

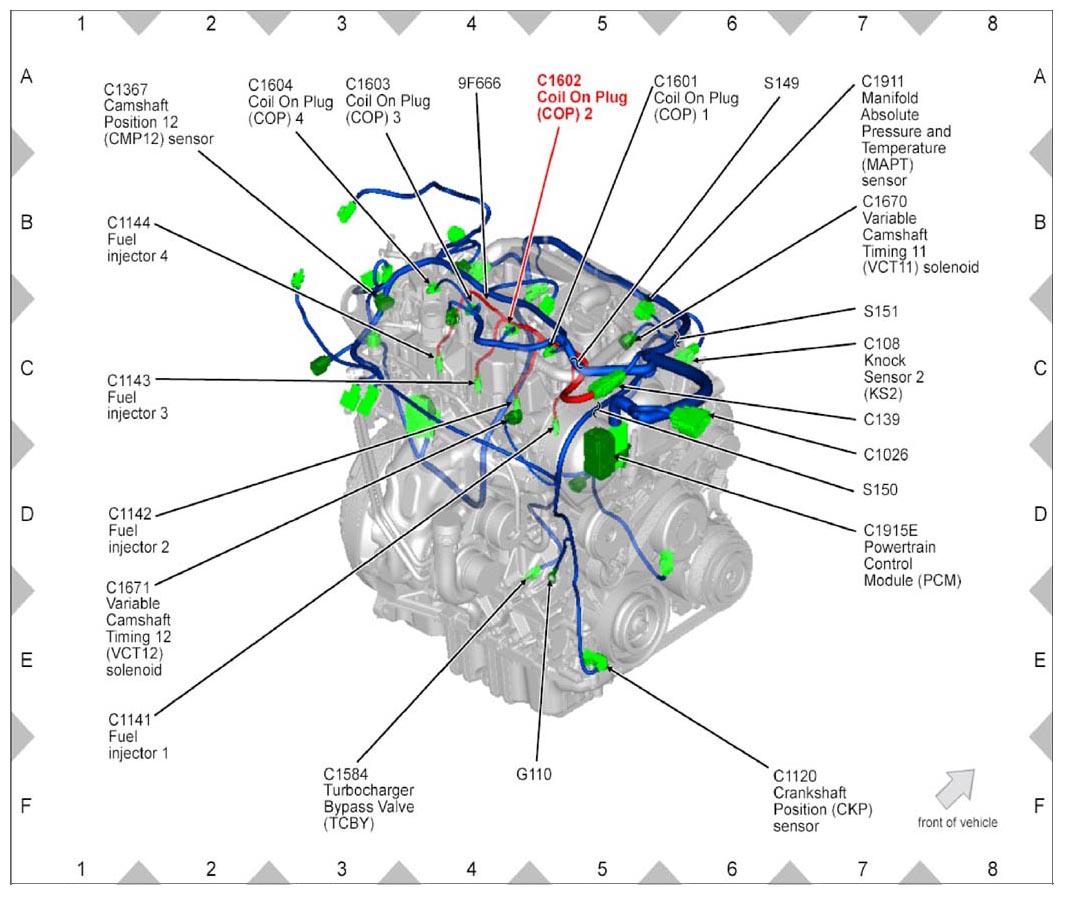

Fig 523: Identifying Coil On Plug 2 Connector (C1602) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 524: Identifying Coil On Plug 2 Connector (C1602) (1.6L)

Courtesy of FORD MOTOR CO.

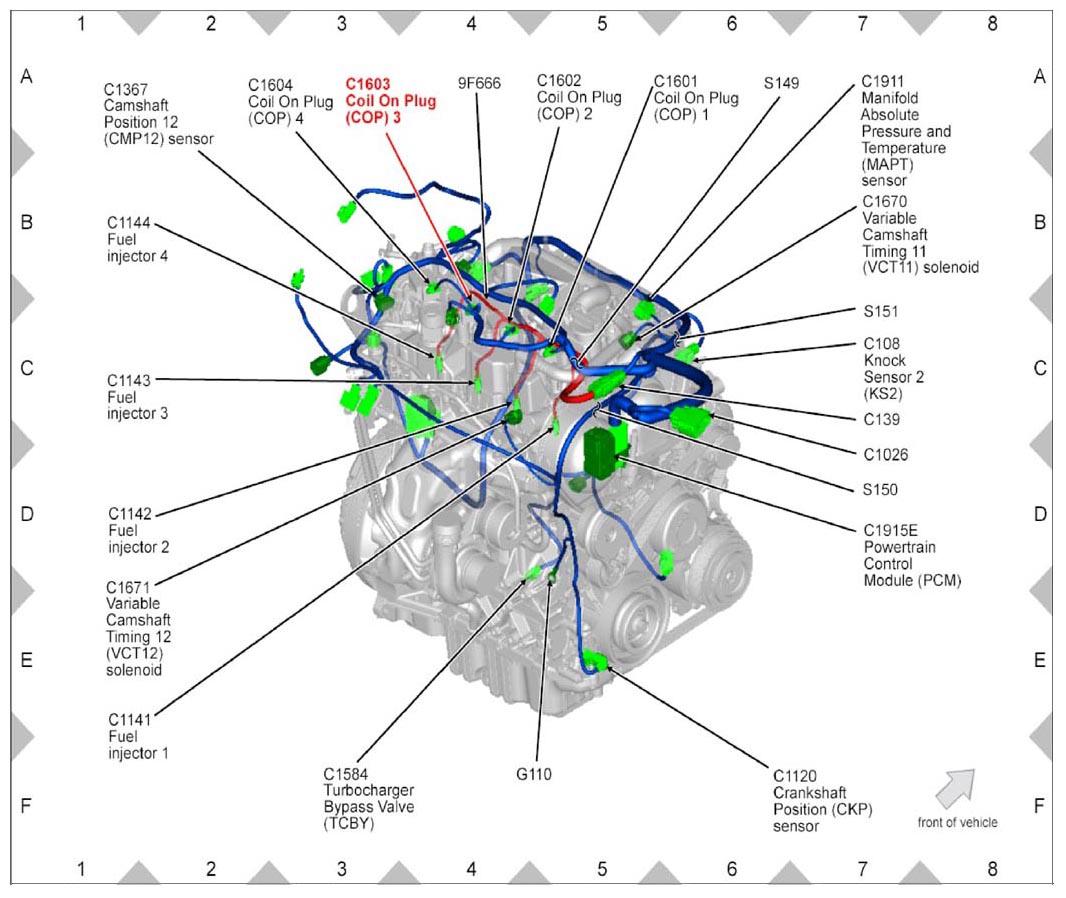

Fig 525: Identifying Coil On Plug 3 Connector (C1603) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 526: Identifying Coil On Plug 3 Connector (C1603) (1.6L)

Courtesy of FORD MOTOR CO.

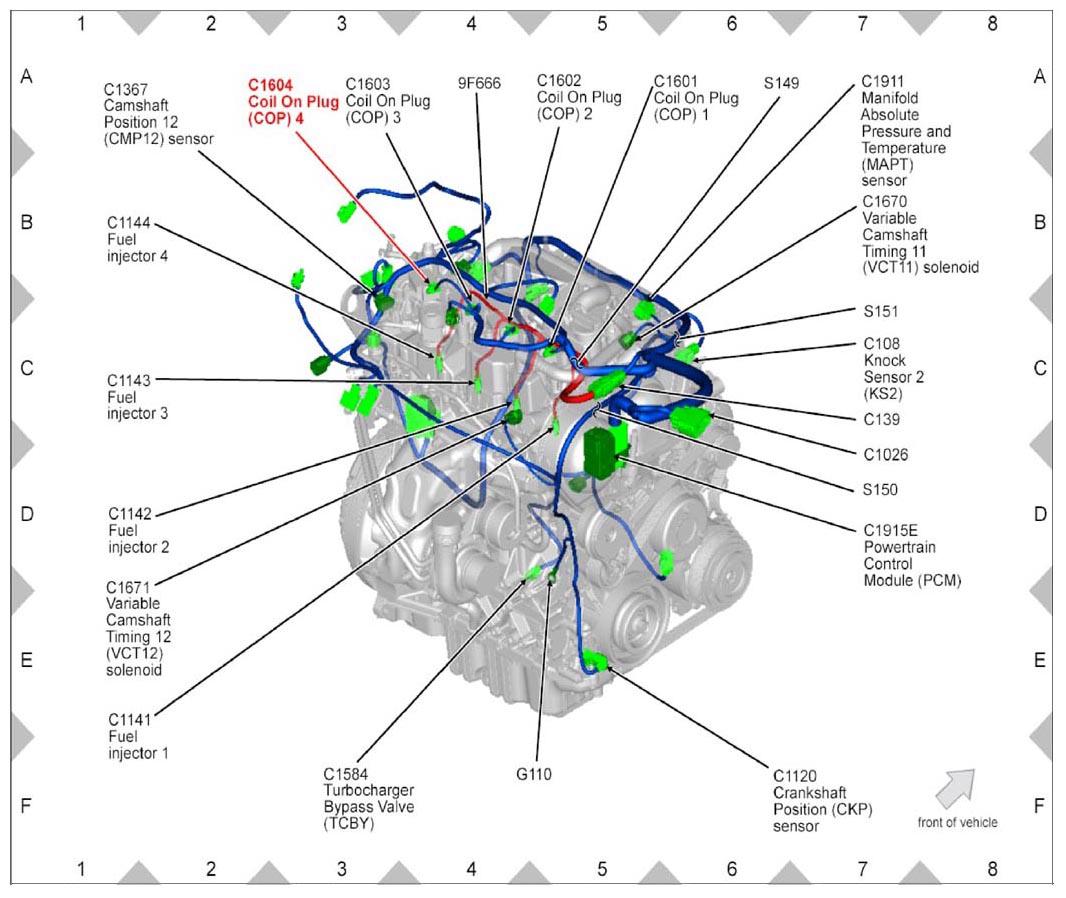

Fig 527: Identifying Coil On Plug 4 Connector (C1604) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 528: Identifying Coil On Plug 4 Connector (C1604) (1.6L)

Courtesy of FORD MOTOR CO.

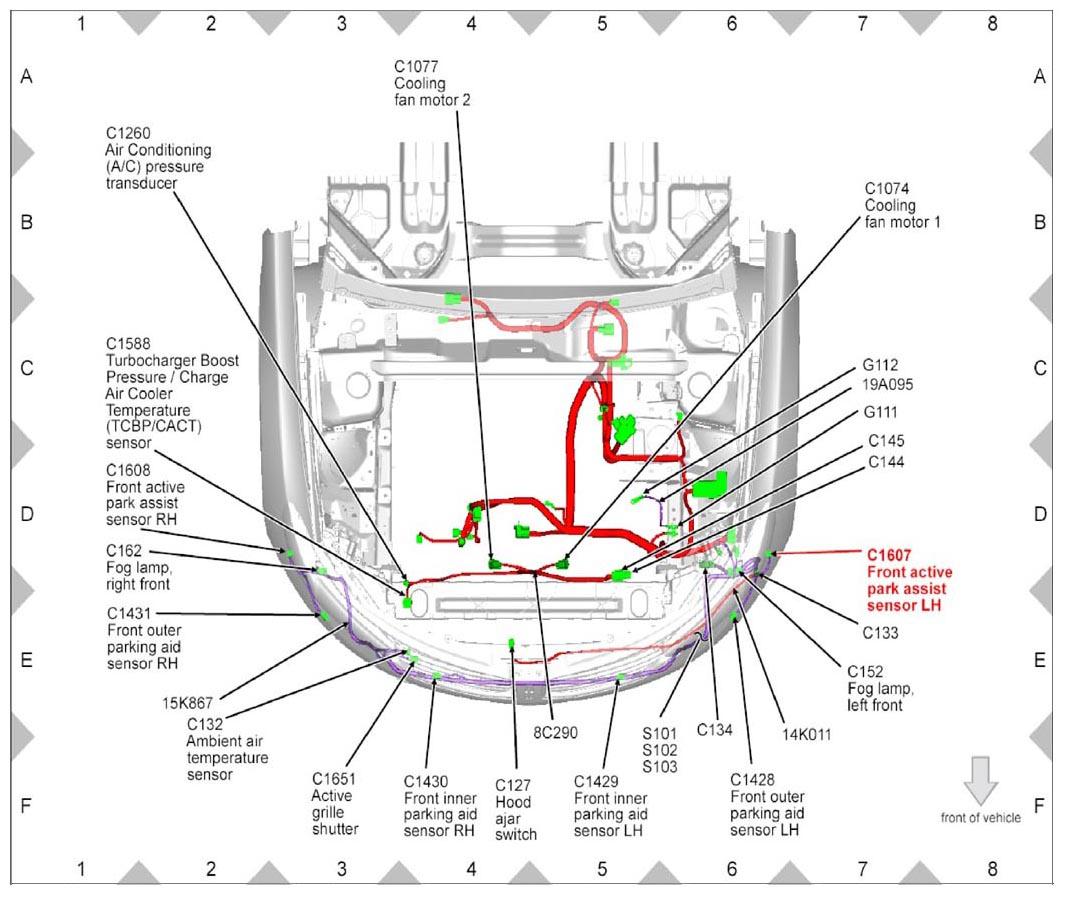

Fig 529: Identifying Front Active Park Assist Sensor LH Connector (C1607) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 530: Identifying Front Active Park Assist Sensor, LH Connector (C1607) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 531: Identifying Front Active Park Assist Sensor RH Connector (C1608) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 532: Identifying Front Active Park Assist Sensor, RH Connector (C1608) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 533: Identifying Variable Camshaft Timing 12 Solenoid Connector (C1610)

Courtesy of FORD MOTOR CO.

Fig 534: Identifying Variable Camshaft Timing 22 Solenoid Connector (C1611)

Courtesy of FORD MOTOR CO.

Fig 535: Identifying Knock Sensor 1 Connector (C1614)

Courtesy of FORD MOTOR CO.

Fig 536: Identifying Knock Sensor 2 Connector (C1615)

Courtesy of FORD MOTOR CO.

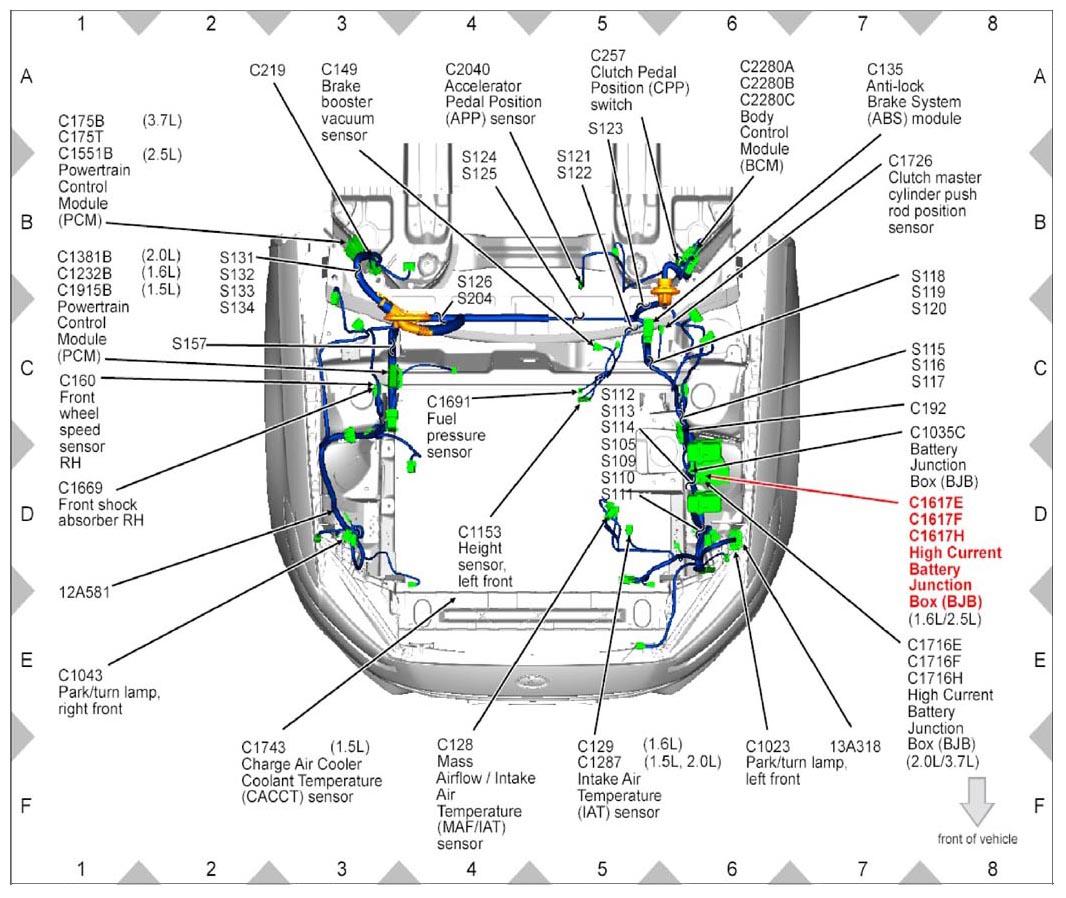

Fig 537: Identifying High Current Battery Junction Box Connector (C1617A, C1617B And C1617C) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 538: Identifying High Current Battery Junction Box Connector (C1617A, C1617B And C1617C) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 539: Identifying High Current Battery Junction Box Connector (C1617A, C1617B And C1617C) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 540: Identifying High Current Battery Junction Box Connector (C1617A, C1617B And C1617C) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 541: Identifying High Current Battery Junction Box Connector (C1617A, C1617B And C1617C) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 542: Identifying High Current Battery Junction Box Connector (C1617A, C1617B And C1617C) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 543: Identifying High Current Battery Junction Box Connector (C1617E, C1617F And C1617H)

Courtesy of FORD MOTOR CO.

Fig 544: Identifying High Current Battery Junction Box Connector (C1617E)

Courtesy of FORD MOTOR CO.

Fig 545: Identifying High Current Battery Junction Box Connector (C1617F)

Courtesy of FORD MOTOR CO.

Fig 546: Identifying Camshaft Position 21 Sensor Connector (C1625)

Courtesy of FORD MOTOR CO.

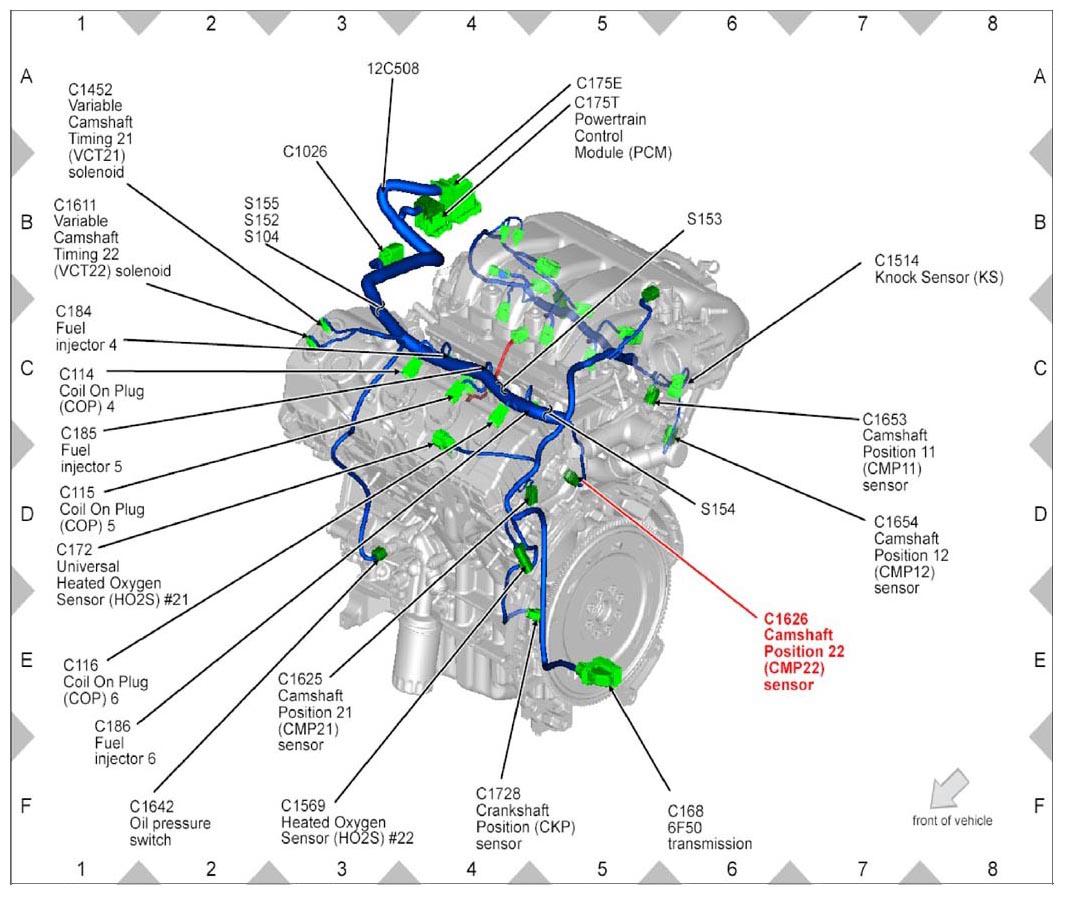

Fig 547: Identifying Camshaft Position 22 Sensor Connector (C1626)

Courtesy of FORD MOTOR CO.

Fig 548: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C1631) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 549: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C1631) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 550: Identifying Oil Pressure Switch Connector (C1642) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 551: Identifying Oil Pressure Switch Connector (C1642) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 552: Identifying Generator Current Sensor Connector (C1645) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 553: Identifying Generator Current Sensor Connector (C1645) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 554: Identifying Generator Current Sensor Connector (C1645) (2.0L)

Courtesy of FORD MOTOR CO.

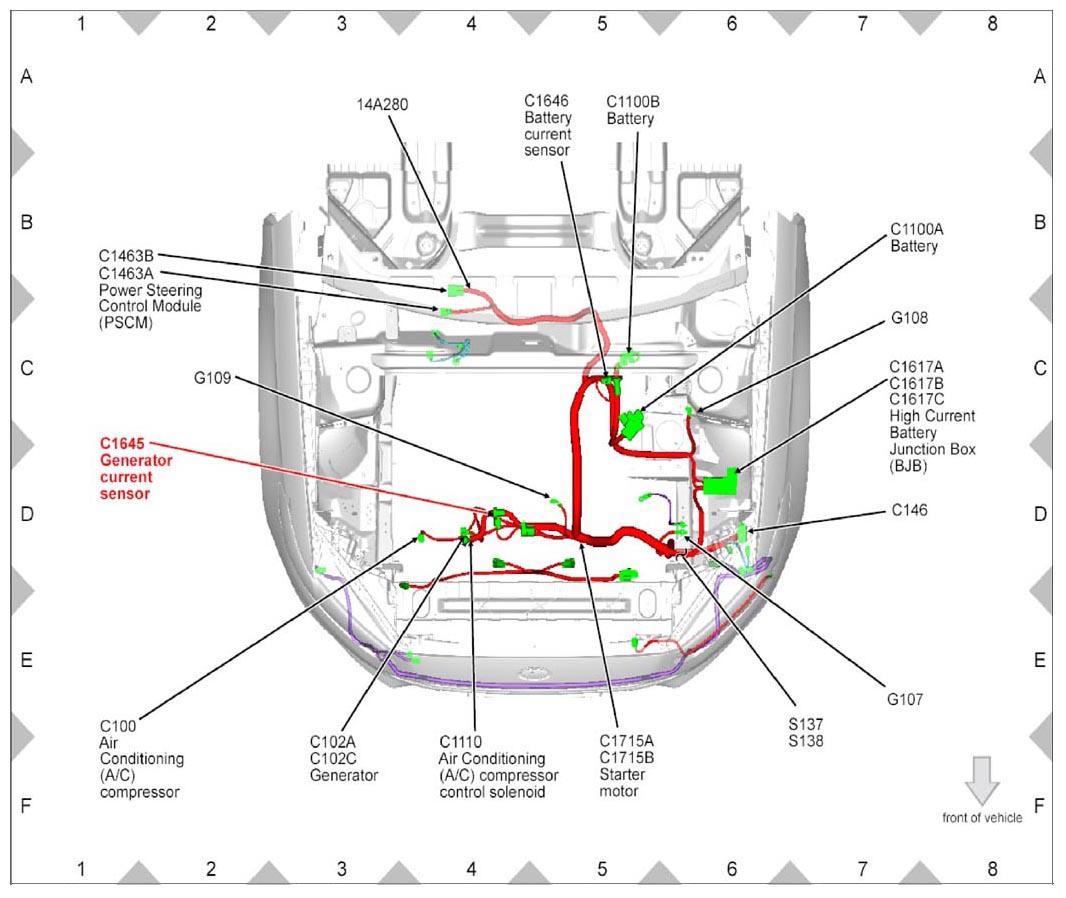

Fig 555: Identifying Generator Current Sensor Connector (C1645) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 556: Identifying Generator Current Sensor Connector (C1645) (3.7L)

Courtesy of FORD MOTOR CO.

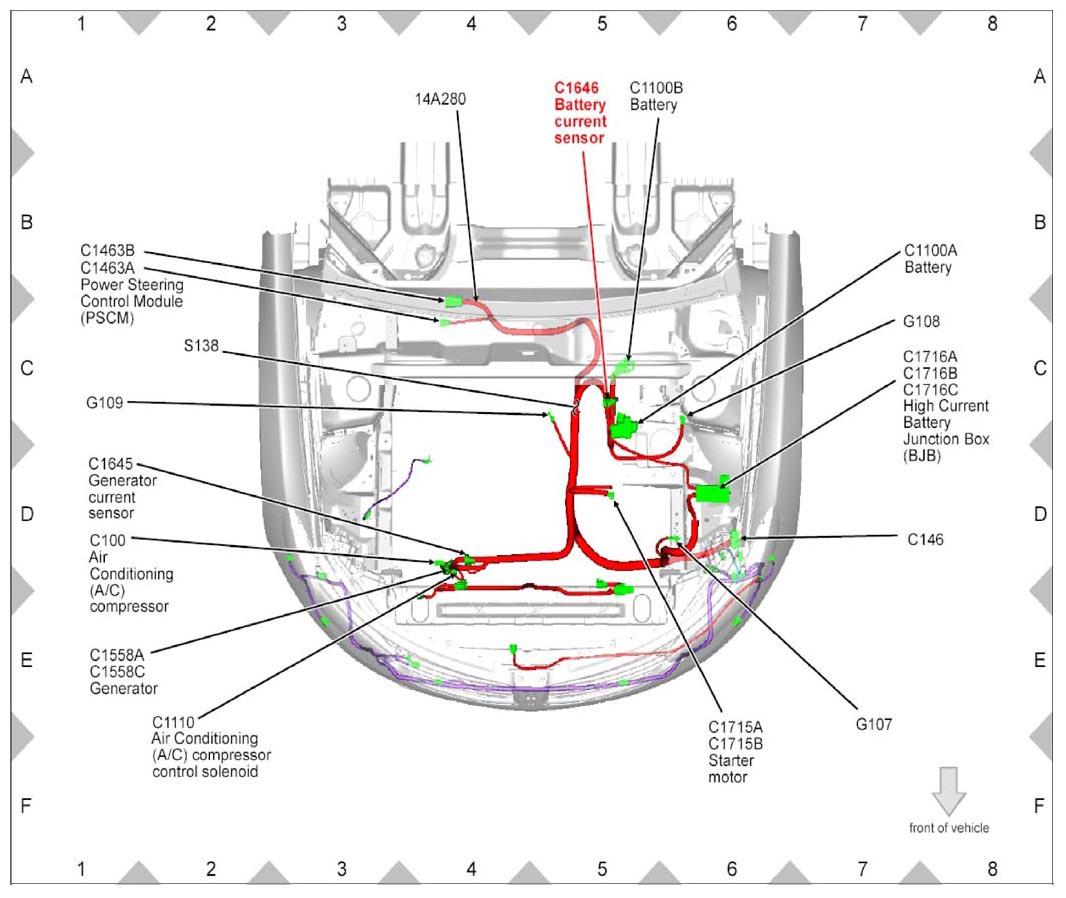

Fig 557: Identifying Battery Current Sensor Connector (C1646) (1.5L)

Courtesy of FORD MOTOR CO.

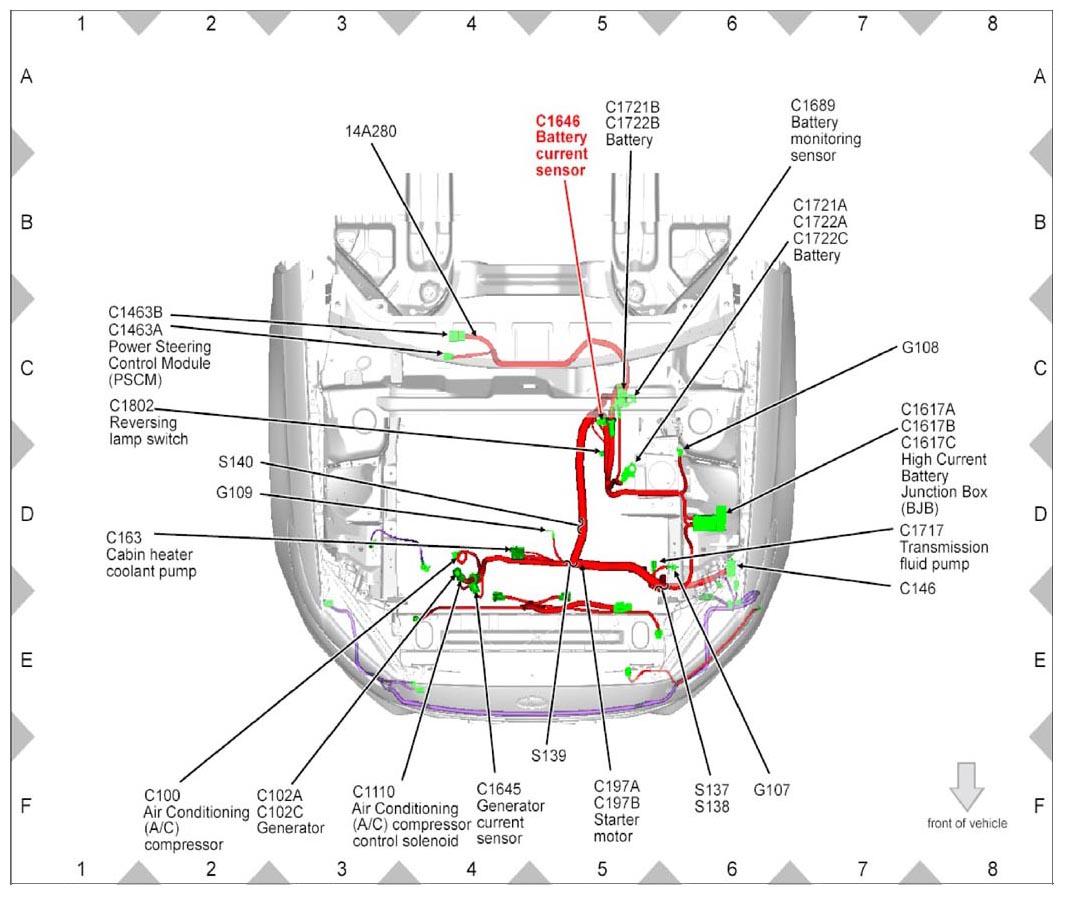

Fig 558: Identifying Battery Current Sensor Connector (C1646) (1.6L)

Courtesy of FORD MOTOR CO.

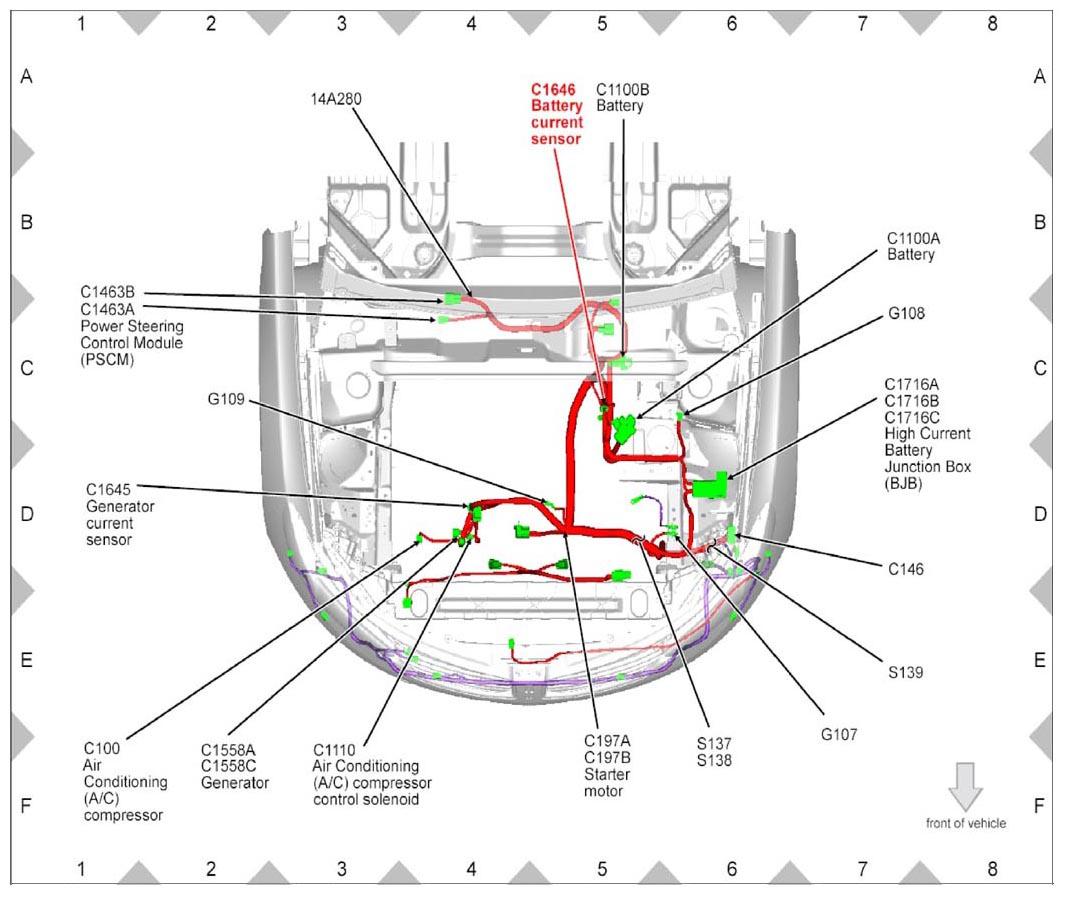

Fig 559: Identifying Battery Current Sensor Connector (C1646) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 560: Identifying Battery Current Sensor Connector (C1646) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 561: Identifying Battery Current Sensor Connector (C1646) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 562: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1648)

Courtesy of FORD MOTOR CO.

Fig 563: Identifying Variable Camshaft Timing 12 Solenoid Connector (C1649)

Courtesy of FORD MOTOR CO.

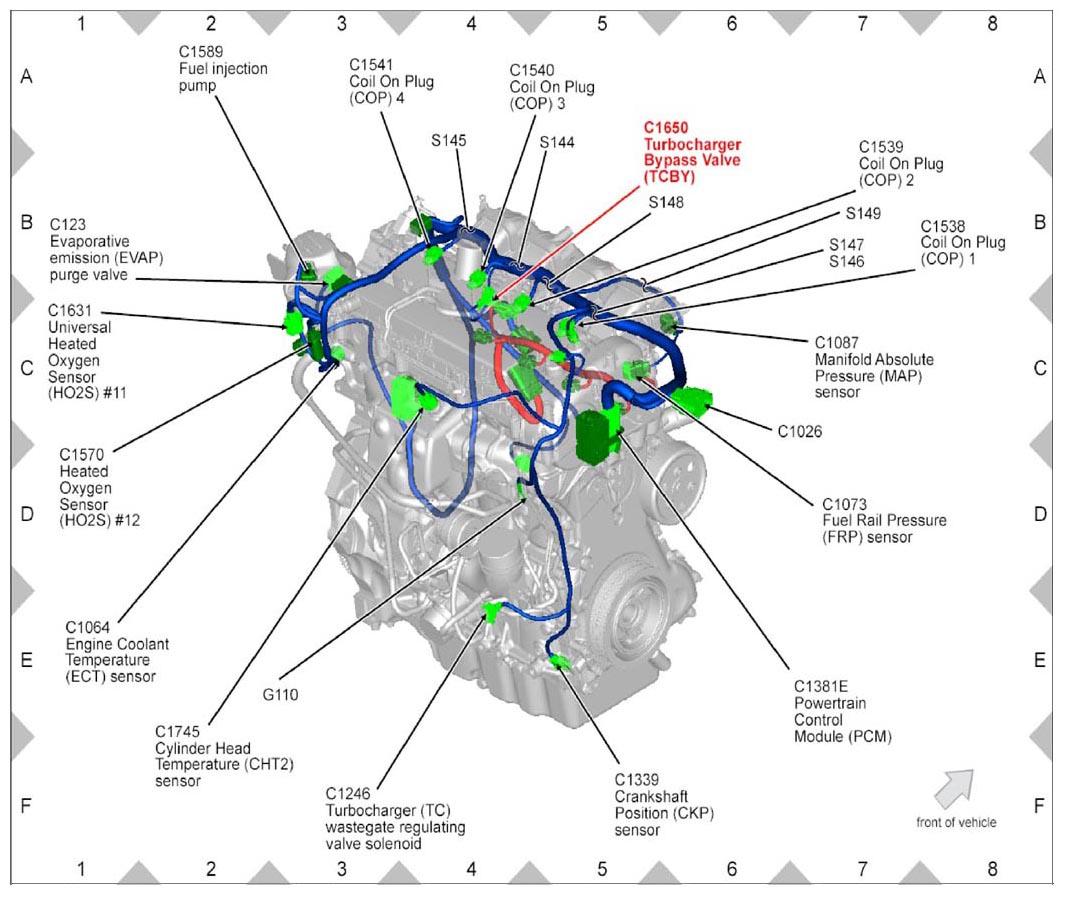

Fig 564: Identifying Turbocharger Bypass Valve Connector (C1650)

Courtesy of FORD MOTOR CO.

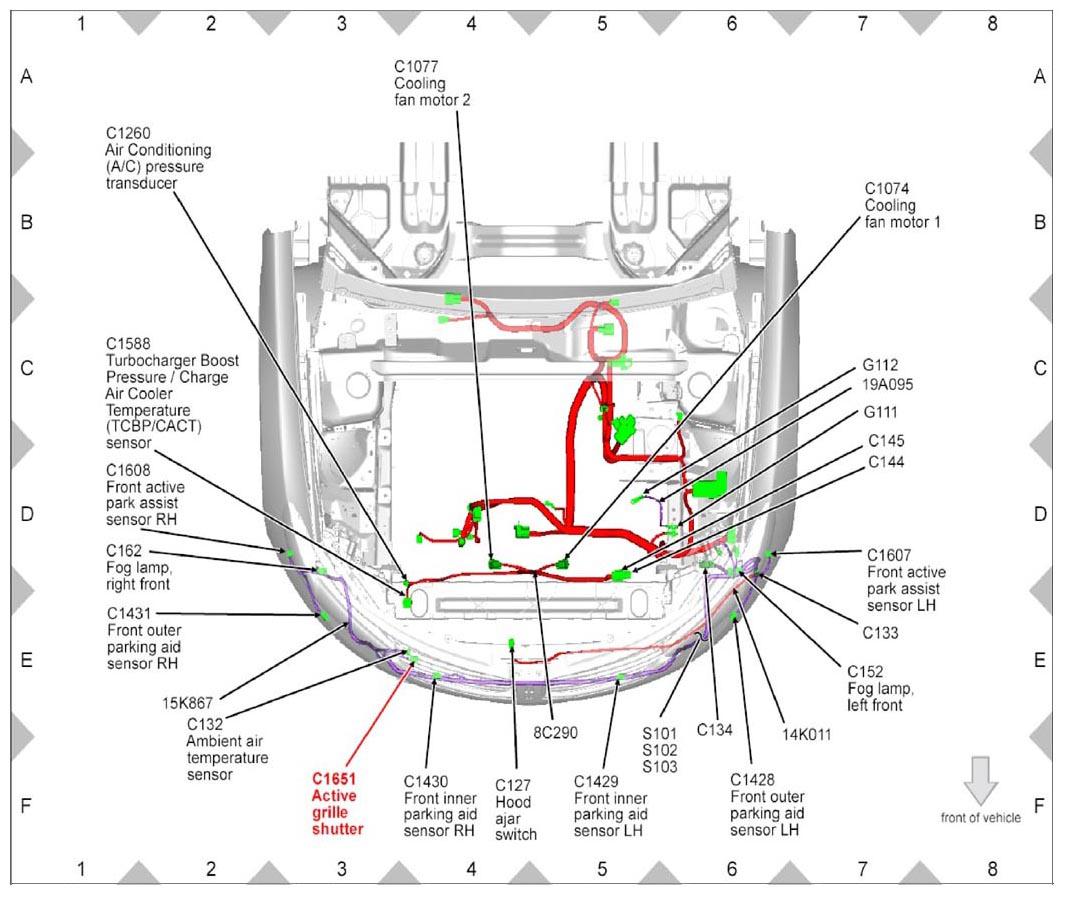

Fig 565: Identifying Active Grille Shutter Connector (C1651) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 566: Identifying Active Grille Shutter Connector (C1651) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 567: Identifying Active Grille Shutter Connector (C1651) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 568: Identifying Active Grille Shutter Connector (C1651) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 569: Identifying Active Grille Shutter Connector (C1651) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 570: Identifying Camshaft Position 11 Sensor Connector (C1653)

Courtesy of FORD MOTOR CO.

Fig 571: Identifying Camshaft Position 12 Sensor Connector (C1654)

Courtesy of FORD MOTOR CO.

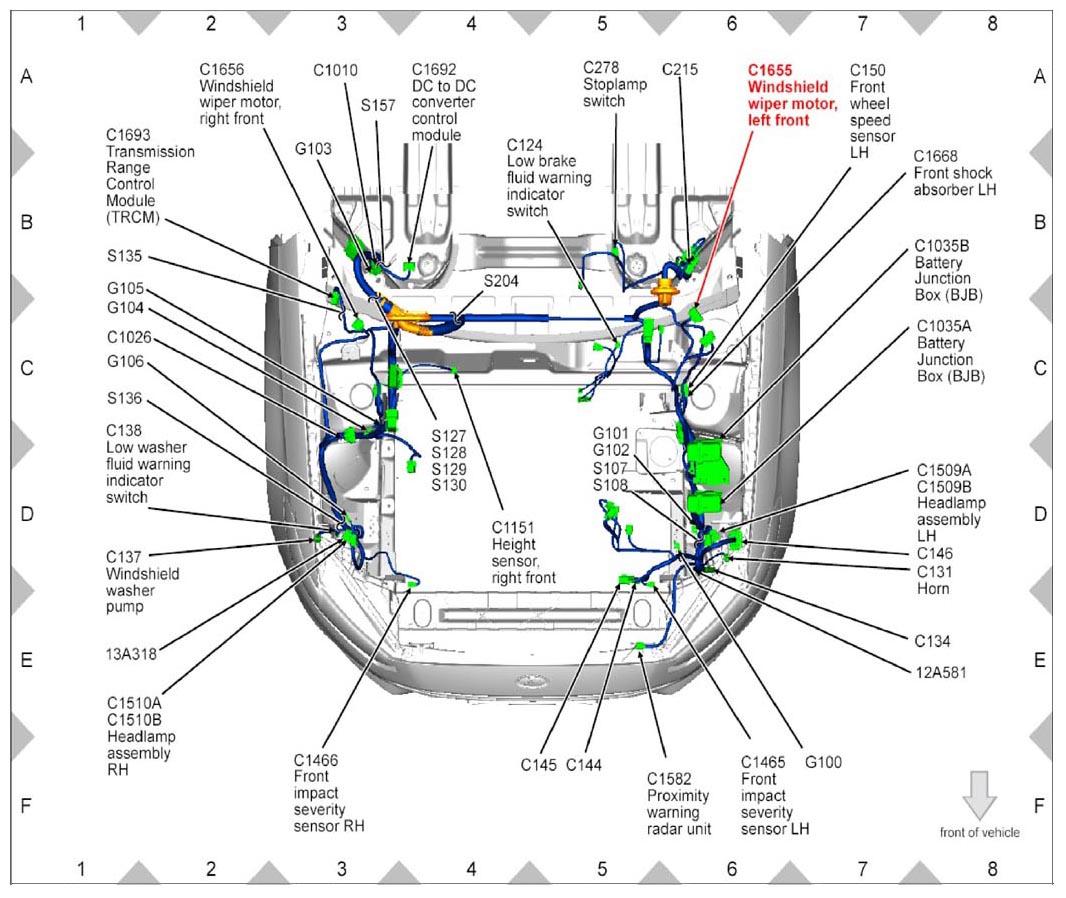

Fig 572: Identifying Windshield Wiper Motor Left Front Connector (C1655)

Courtesy of FORD MOTOR CO.

Fig 573: Identifying Windshield Wiper Motor Right Front Connector (C1656)

Courtesy of FORD MOTOR CO.

Fig 574: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C1661)

Courtesy of FORD MOTOR CO.

Fig 575: Identifying Front Shock Absorber LH Connector (C1668)

Courtesy of FORD MOTOR CO.

Fig 576: Identifying Front Shock Absorber RH Connector (C1669)

Courtesy of FORD MOTOR CO.

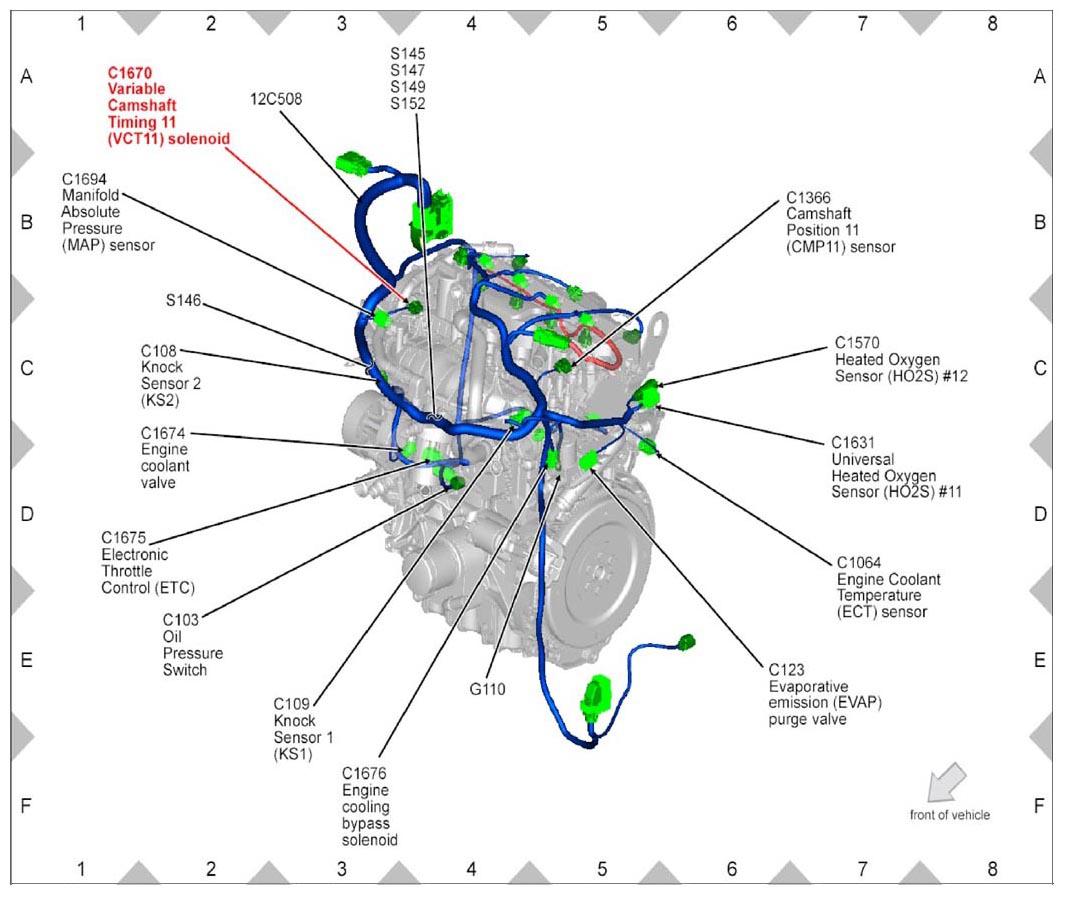

Fig 577: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1670) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 578: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1670) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 579: Identifying Variable Camshaft Timing 12 Solenoid Connector (C1671) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 580: Identifying Variable Camshaft Timing 12 Solenoid Connector (C1671) (1.6L)

Courtesy of FORD MOTOR CO.

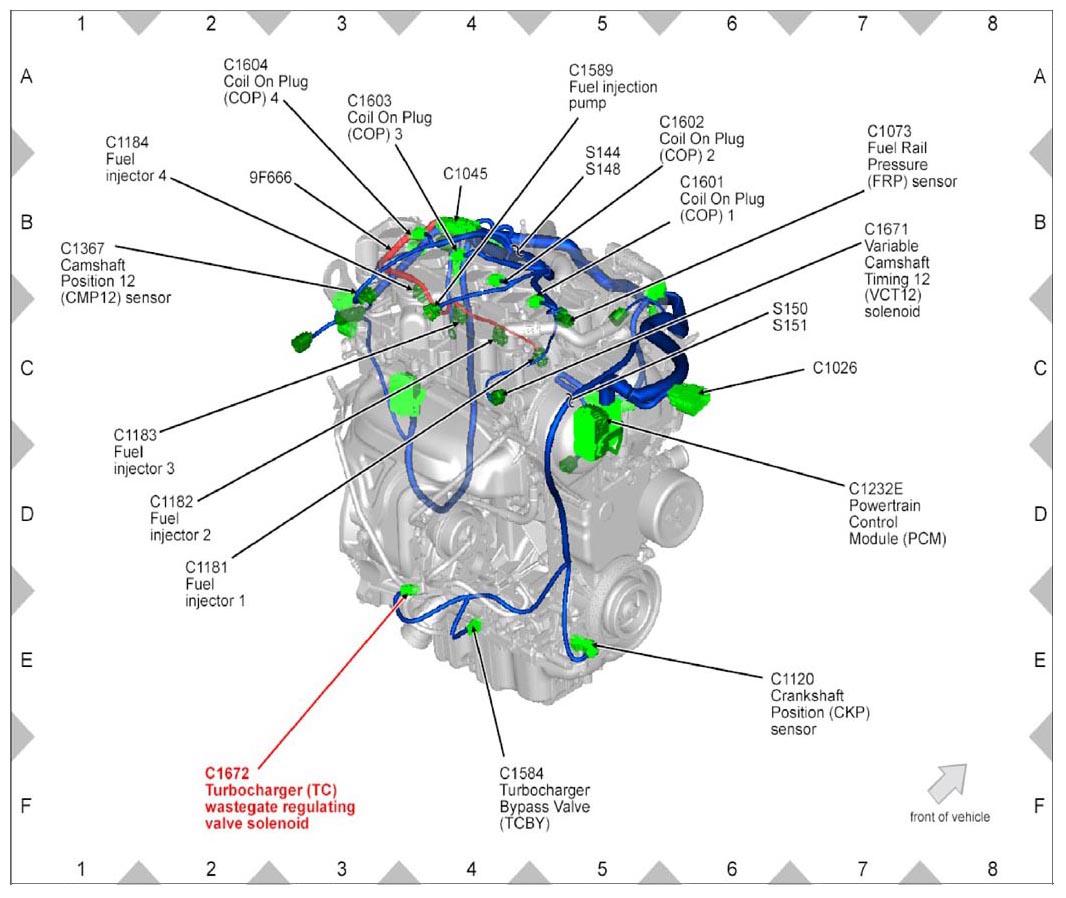

Fig 581: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector (C1672)

Courtesy of FORD MOTOR CO.

Fig 582: Identifying Engine Coolant Valve Connector (C1674)

Courtesy of FORD MOTOR CO.

Fig 583: Identifying Electronic Throttle Control Connector (C1675)

Courtesy of FORD MOTOR CO.

Fig 584: Identifying Engine Cooling Bypass Solenoid Connector (C1676)

Courtesy of FORD MOTOR CO.

Fig 585: Identifying Battery Monitoring Sensor Connector (C1689) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 586: Identifying Battery Monitoring Sensor Connector (C1689) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 587: Identifying Fuel Pressure Sensor Connector (C1691)

Courtesy of FORD MOTOR CO.

Fig 588: Identifying DC To DC Converter Control Module Connector (C1692)

Courtesy of FORD MOTOR CO.

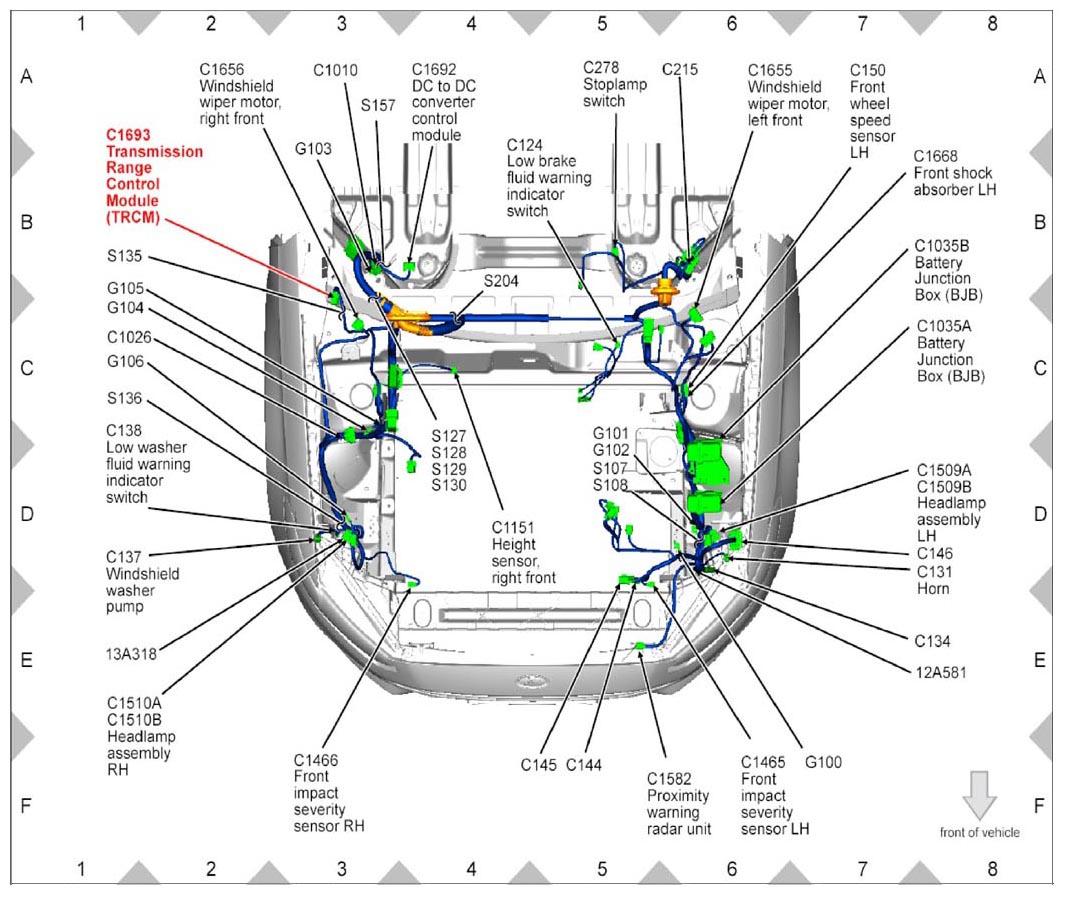

Fig 589: Identifying Transmission Range Control Module Connector (C1693)

Courtesy of FORD MOTOR CO.

Fig 590: Identifying Manifold Absolute Pressure Sensor Connector (C1694)

Courtesy of FORD MOTOR CO.

Fig 591: Identifying Cold Start Fuel Level Indicator Connector (C1695)

Courtesy of FORD MOTOR CO.

Fig 592: Identifying Cold Start Fuel Pump Connector (C1696)

Courtesy of FORD MOTOR CO.

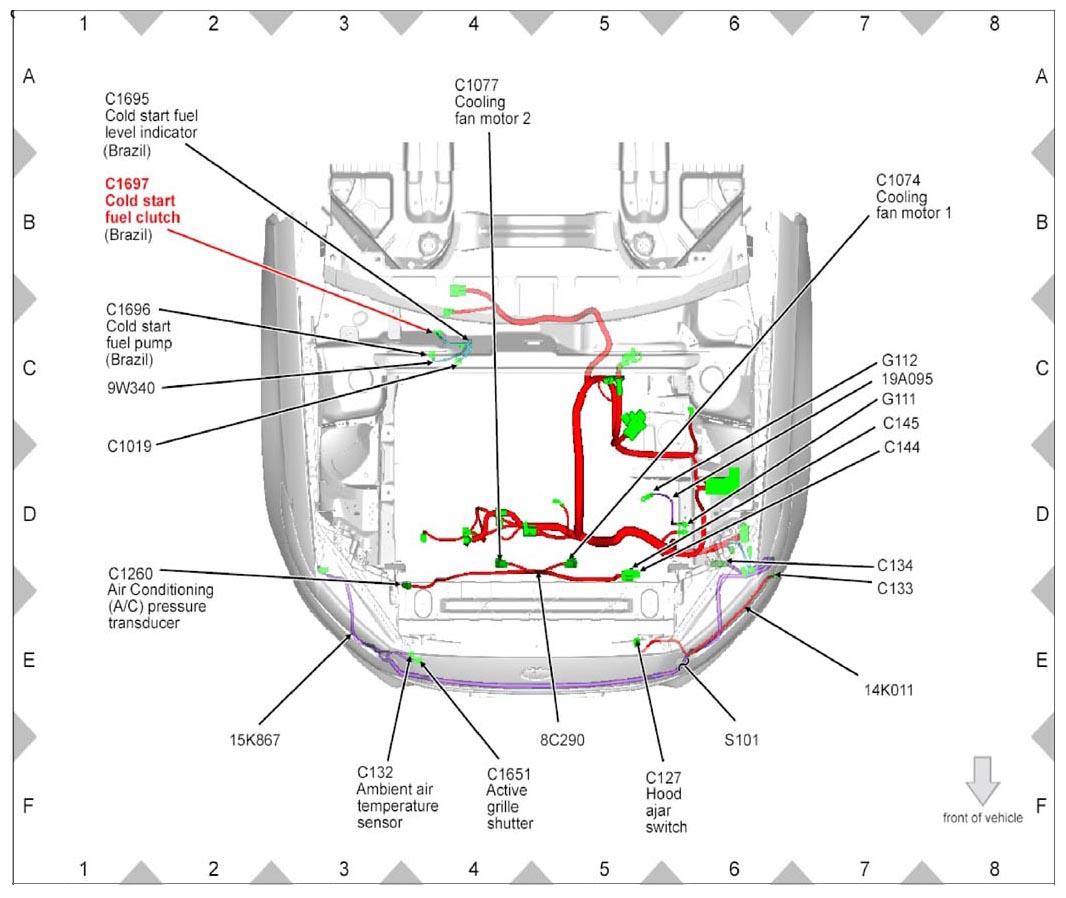

Fig 593: Identifying Cold Start Fuel Clutch Connector (C1697)

Courtesy of FORD MOTOR CO.

Fig 594: Identifying Camshaft Position 11 Sensor Connector (C1698)

Courtesy of FORD MOTOR CO.

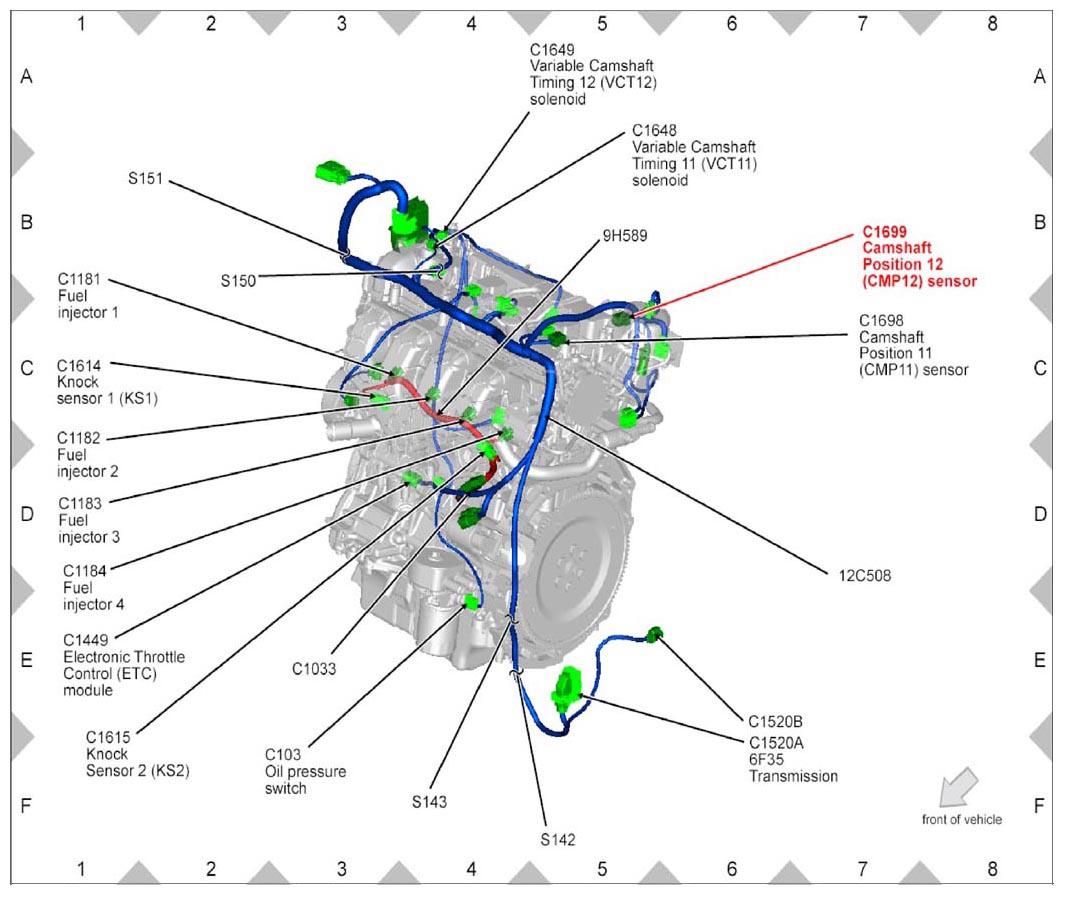

Fig 595: Identifying Camshaft Position 12 Sensor Connector (C1699)

Courtesy of FORD MOTOR CO.

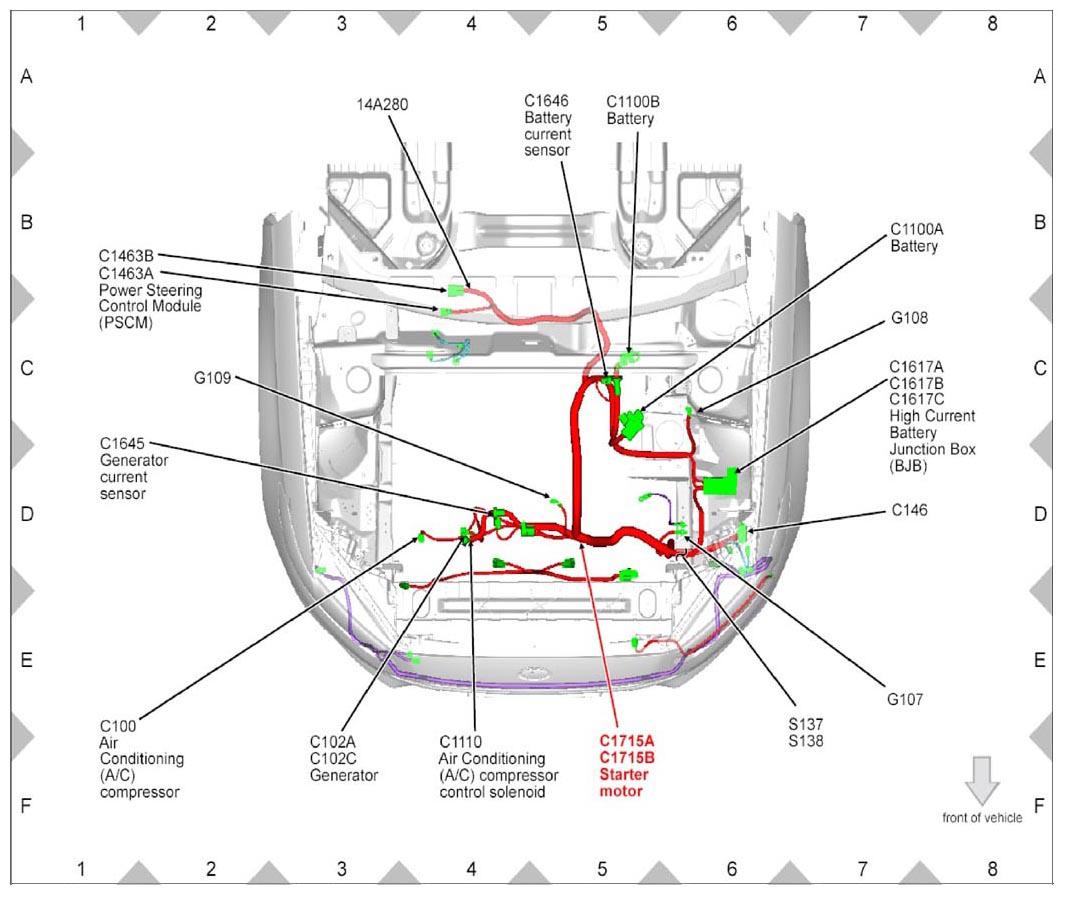

Fig 596: Identifying Starter Motor Connector (C1715A) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 597: Identifying Starter Motor Connector (C1715A) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 598: Identifying Starter Motor Connector (C1715B) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 599: Identifying Starter Motor Connector (C1715B) (3.7L)

Courtesy of FORD MOTOR CO.

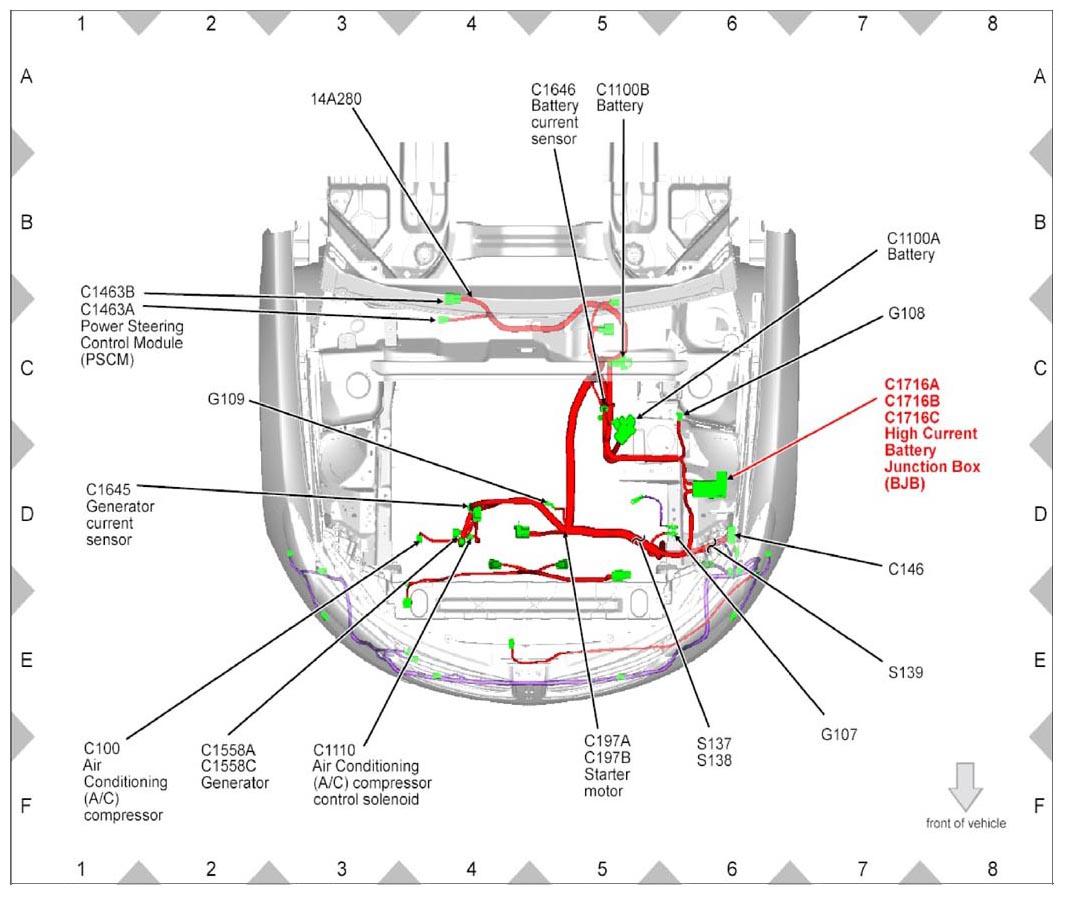

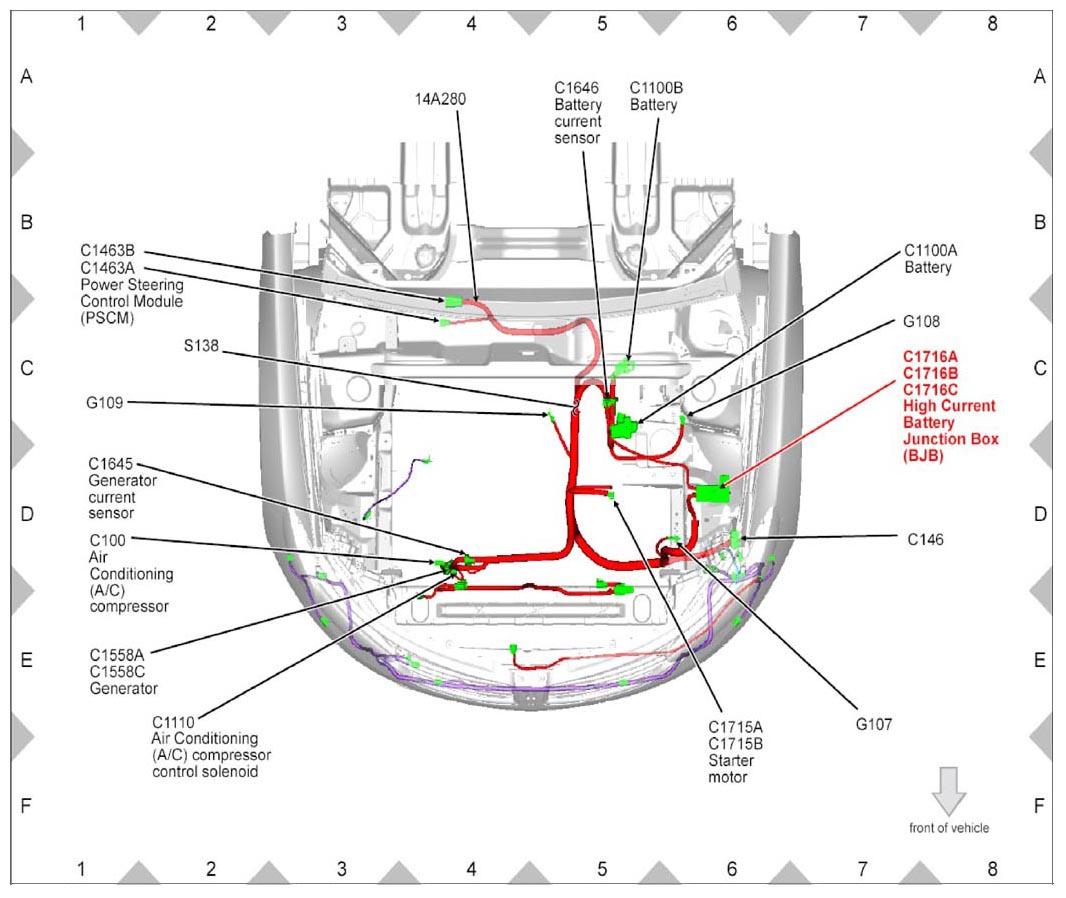

Fig 600: Identifying High Current Battery Junction Box Connector (C1716A, C1716B And C1716C) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 601: Identifying High Current Battery Junction Box Connector (C1716A, C1716B And C1716C) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 602: Identifying High Current Battery Junction Box Connector (C1716A, C1716B And C1716C) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 603: Identifying High Current Battery Junction Box Connector (C1716A, C1716B And C1716C) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 604: Identifying High Current Battery Junction Box Connector (C1716A, C1716B And C1716C) (2.0L)

Courtesy of FORD MOTOR CO.

Fig 605: Identifying High Current Battery Junction Box Connector (C1716A, C1716B And C1716C) (3.7L)

Courtesy of FORD MOTOR CO.

Fig 606: Identifying High Current Battery Junction Box Connector (C1716E, C1716F And C1716H)

Courtesy of FORD MOTOR CO.

Fig 607: Identifying High Current Battery Junction Box Connector (C1716E, C1716F And C1716H)

Courtesy of FORD MOTOR CO.

Fig 608: Identifying High Current Battery Junction Box Connector (C1716E, C1716F And C1716H)

Courtesy of FORD MOTOR CO.

Fig 609: Identifying Transmission Fluid Pump Connector (C1717)

Courtesy of FORD MOTOR CO.

Fig 610: Identifying Connector (C1721A) (1.5L)

Courtesy of FORD MOTOR CO.

Fig 611: Identifying Connector (C1721A) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 612: Identifying Connector (C1721B)

Courtesy of FORD MOTOR CO.

Fig 613: Identifying Battery Connector (C1722A And C1722C)

Courtesy of FORD MOTOR CO.

Fig 614: Identifying Battery Connector (C1722B)

Courtesy of FORD MOTOR CO.

Fig 615: Identifying Battery Connector (C1722A And C1722C)

Courtesy of FORD MOTOR CO.

Fig 616: Identifying Clutch Master Cylinder Push Rod Position Sensor Connector (C1726)

Courtesy of FORD MOTOR CO.

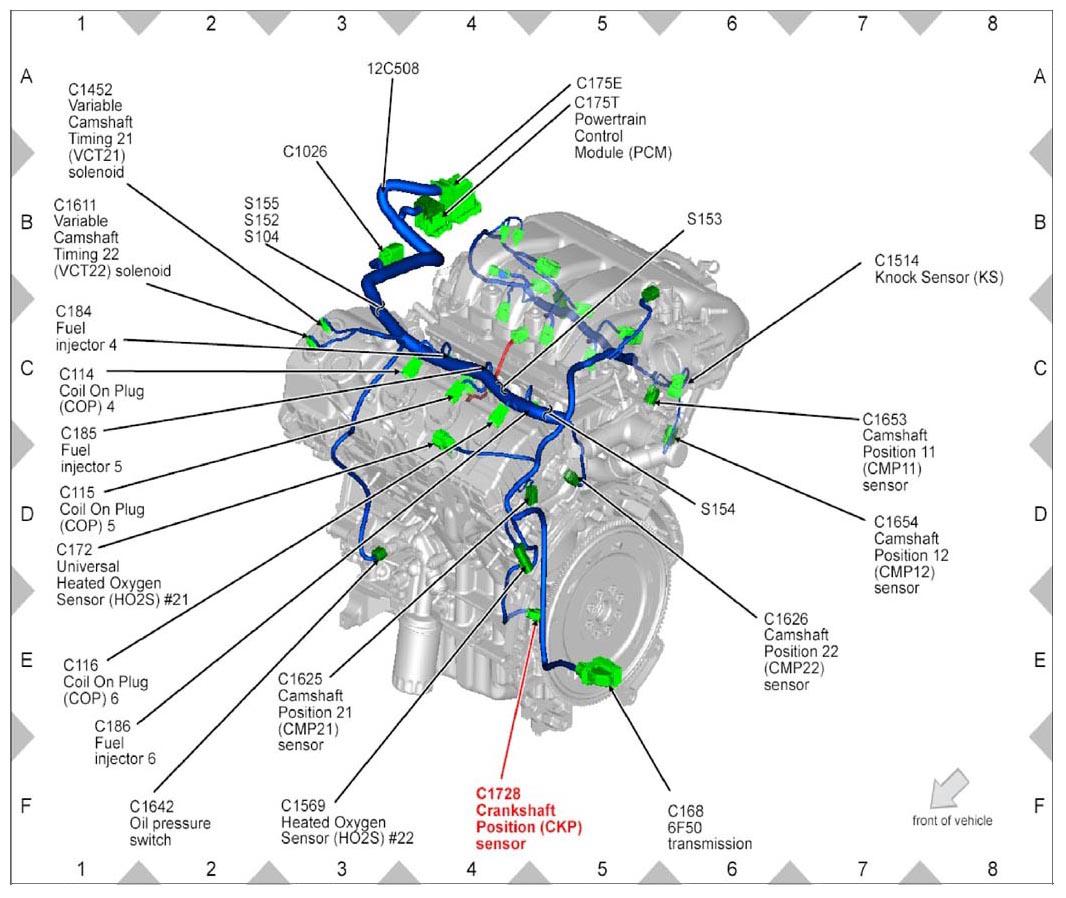

Fig 617: Identifying Crankshaft Position Sensor Connector (C1728)

Courtesy of FORD MOTOR CO.

Fig 618: Identifying Coil On Plug 1 Connector (C1730)

Courtesy of FORD MOTOR CO.

Fig 619: Identifying Coil On Plug 2 Connector (C1731)

Courtesy of FORD MOTOR CO.

Fig 620: Identifying Coil On Plug 3 Connector (C1732)

Courtesy of FORD MOTOR CO.

Fig 621: Identifying Coil On Plug 4 Connector (C1733)

Courtesy of FORD MOTOR CO.

Fig 622: Identifying Intake Air Temperature 2 Sensor Connector (C1741)

Courtesy of FORD MOTOR CO.

Fig 623: Identifying Engine Coolant Pump Clutch Connector (C1742)

Courtesy of FORD MOTOR CO.

Fig 624: Identifying Charge Air Cooler Coolant Temperature Sensor Connector (C1743)

Courtesy of FORD MOTOR CO.

Fig 625: Identifying Cylinder Head Temperature Sensor Connector (C1745)

Courtesy of FORD MOTOR CO.

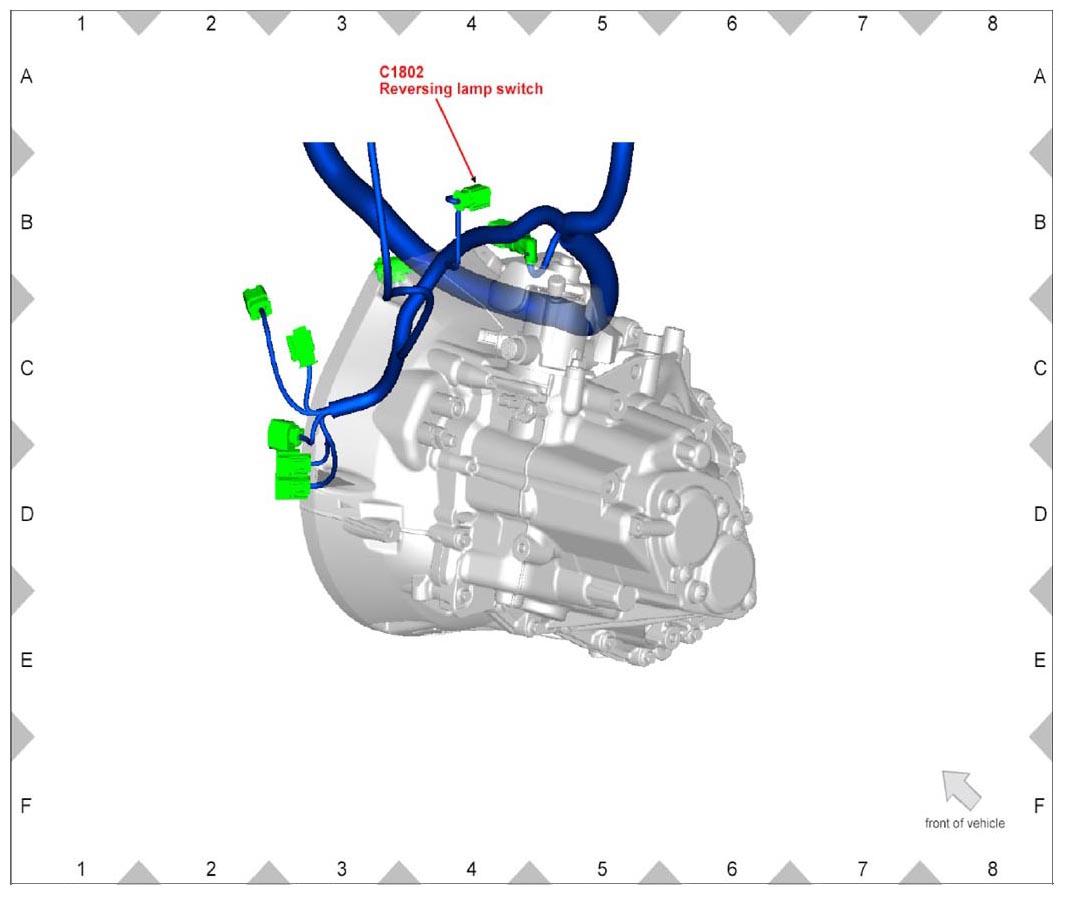

Fig 626: Identifying Reversing Lamp Switch Connector (C1802) (1.6L)

Courtesy of FORD MOTOR CO.

Fig 627: Identifying Reversing Lamp Switch Connector (C1802) (2.5L Manual Transmission)

Courtesy of FORD MOTOR CO.

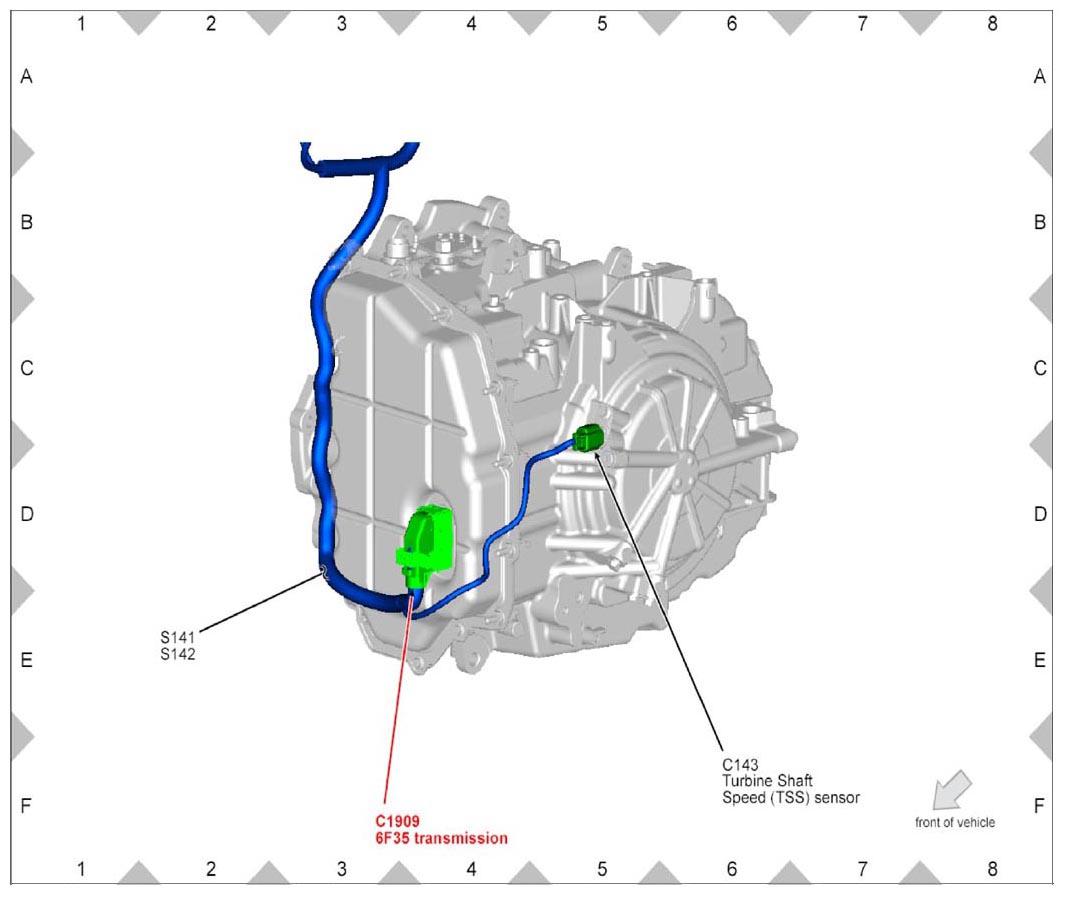

Fig 628: Identifying 6F35 Transmission Connector (C1909) (2.5L)

Courtesy of FORD MOTOR CO.

Fig 629: Identifying 6F35 Transmission Connector (C1909) (2.5L - Automatic Transmission)

Courtesy of FORD MOTOR CO.

Fig 630: Identifying Manifold Absolute Pressure And Temperature Sensor Connector (C1911)

Courtesy of FORD MOTOR CO.

Fig 631: Identifying Powertrain Control Module Connector (C1381B, C1232B And C1915B)

Courtesy of FORD MOTOR CO.

Fig 632: Identifying Powertrain Control Module Connector (C1915E)

Courtesy of FORD MOTOR CO.

Fig 633: Identifying Heated Oxygen Sensor No. 12 Connector (C1917)

Courtesy of FORD MOTOR CO.

Fig 634: Identifying Turbocharger Boost Pressure Sensor Connector (C1921)

Courtesy of FORD MOTOR CO.

Fig 635: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector (C1922)

Courtesy of FORD MOTOR CO.

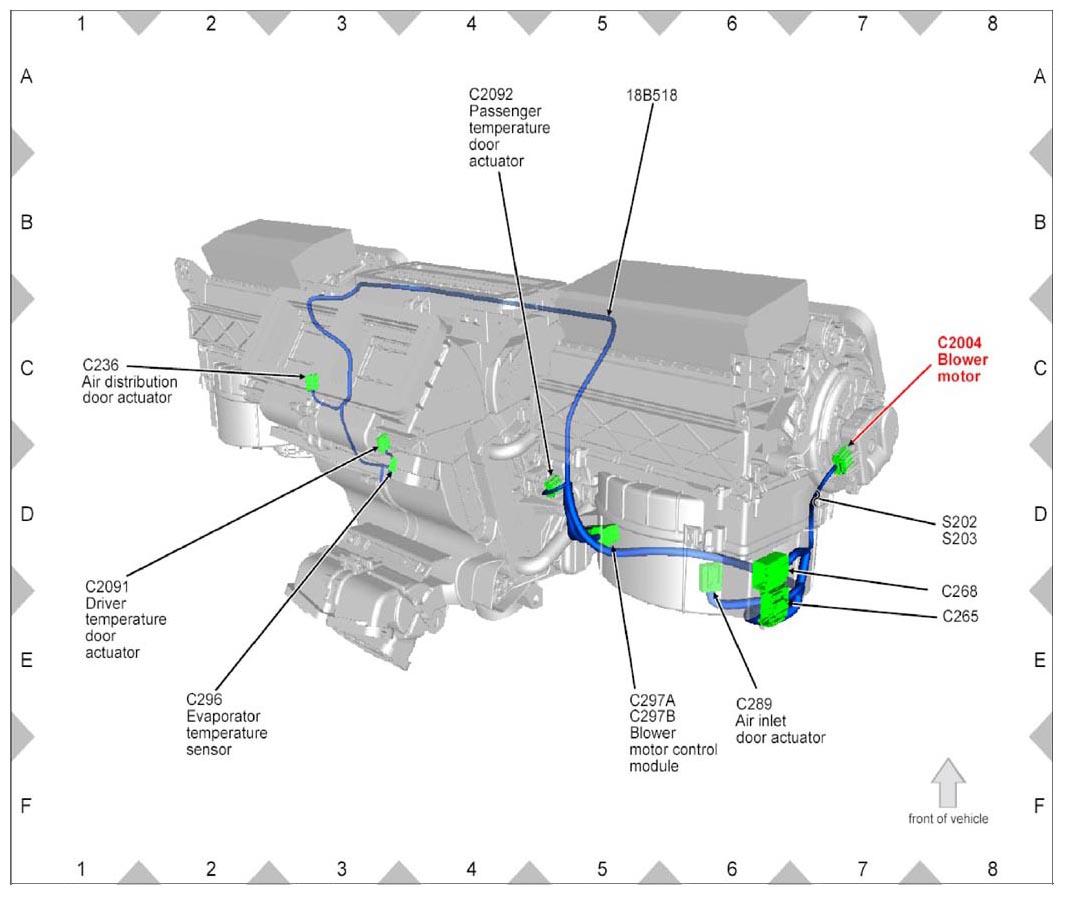

Fig 636: Identifying Blower Motor Connector (C2004)

Courtesy of FORD MOTOR CO.

Fig 637: Identifying Parking Brake Switch Connector (C2015)

Courtesy of FORD MOTOR CO.

Fig 638: Identifying Accelerator Pedal Position Sensor Connector (C2040)

Courtesy of FORD MOTOR CO.

Fig 639: Identifying Driver Temperature Door Actuator Connector (C2091)

Courtesy of FORD MOTOR CO.

Fig 640: Identifying Passenger Temperature Door Actuator Connector (C2092)

Courtesy of FORD MOTOR CO.

Fig 641: Identifying Passenger Airbag Deactivation Indicator Connector (C2099)

Courtesy of FORD MOTOR CO.

Fig 642: Identifying Front Control/Display Interface Module Connector (C2123)

Courtesy of FORD MOTOR CO.

Fig 643: Identifying Headlamp Control Module Connector (C2129)

Courtesy of FORD MOTOR CO.

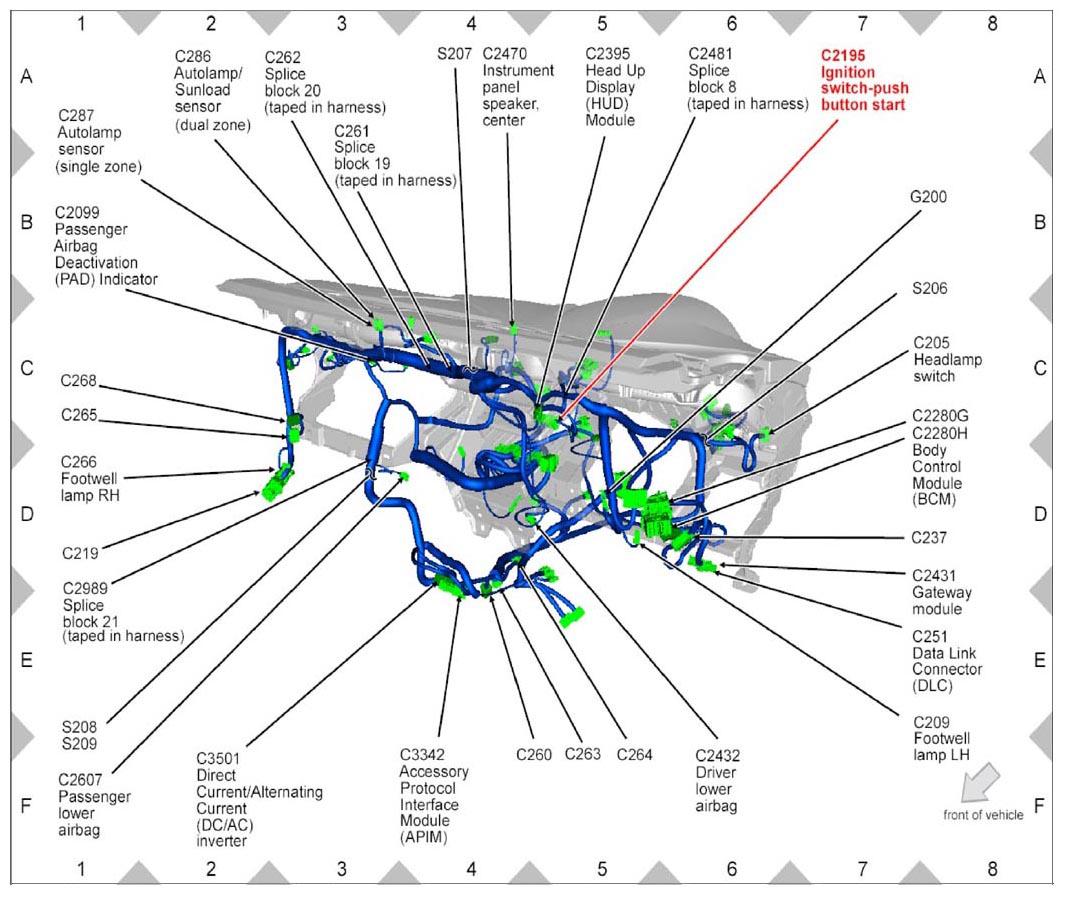

Fig 644: Identifying Ignition Switch-Push Button Start Connector (C2195)

Courtesy of FORD MOTOR CO.

Fig 645: Identifying Splice Block 24 Connector (C2198)

Courtesy of FORD MOTOR CO.

Fig 646: Identifying Splice Block 25 Connector (C2199)

Courtesy of FORD MOTOR CO.

Fig 647: Identifying Splice Block 26 Connector (C2200)

Courtesy of FORD MOTOR CO.

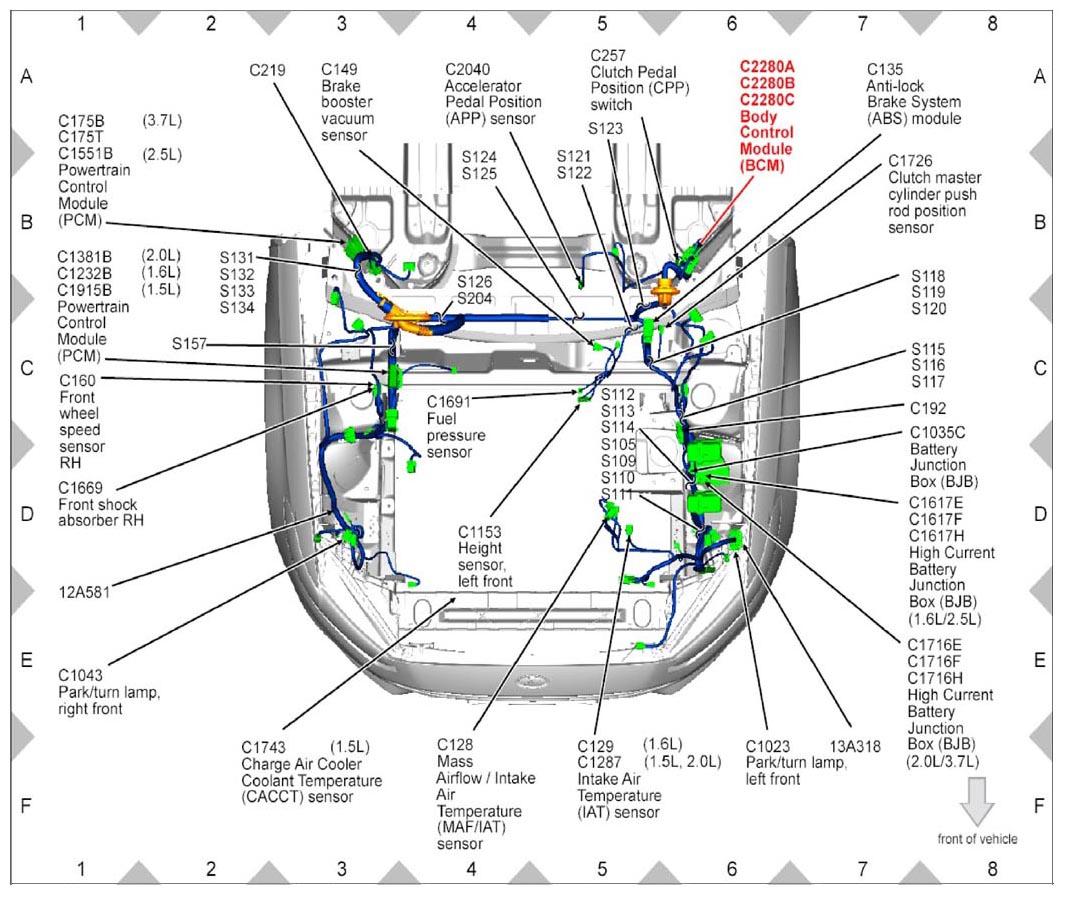

Fig 648: Identifying Body Control Module Connector (C2280A)

Courtesy of FORD MOTOR CO.

Fig 649: Identifying Body Control Module Connector (C2280B)

Courtesy of FORD MOTOR CO.

Fig 650: Identifying Body Control Module Connector (C2280C)

Courtesy of FORD MOTOR CO.

Fig 651: Identifying Body Control Module Connector (C2280D)

Courtesy of FORD MOTOR CO.

Fig 652: Identifying Body Control Module Connector (C2280E)

Courtesy of FORD MOTOR CO.

Fig 653: Identifying Body Control Module Connector (C2280F)

Courtesy of FORD MOTOR CO.

Fig 654: Identifying Connector (C2280G) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 655: Identifying Connector (C2280G) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 656: Identifying Body Control Module Connector (C2280H) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 657: Identifying Body Control Module Connector (C2280H) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 658: Identifying Collapsible Steering Column Module Connector (C2360) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 659: Identifying Collapsible Steering Column Module Connector (C2360) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 660: Identifying Splicer Block 27 Connector (C2365)

Courtesy of FORD MOTOR CO.

Fig 661: Identifying Steering Wheel Switch, LH Lower Connector (C2366)

Courtesy of FORD MOTOR CO.

Fig 662: Identifying Steering Wheel Switch, RH Lower Connector (C2367)

Courtesy of FORD MOTOR CO.

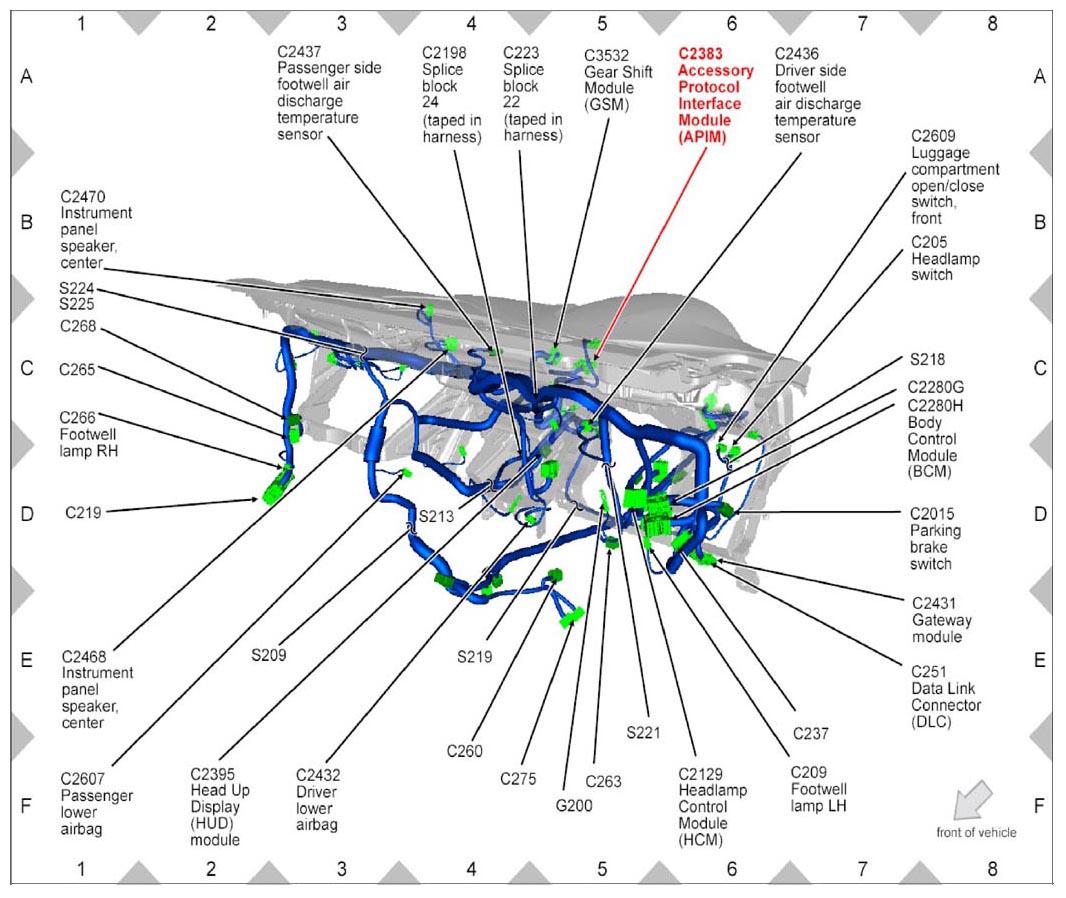

Fig 663: Identifying Accessory Protocol Interface Module Connector (C2383)

Courtesy of FORD MOTOR CO.

Fig 664: Identifying Head Up Display Module Connector (C2395) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 665: Identifying Head Up Display Module Connector (C2395) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 666: Identifying Global Positioning System Module Connector (C2398) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 667: Identifying Global Positioning System Module Connector (C2398) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 668: Identifying Global Positioning System Module Connector (C402A) (Fusion)

Courtesy of FORD MOTOR CO.

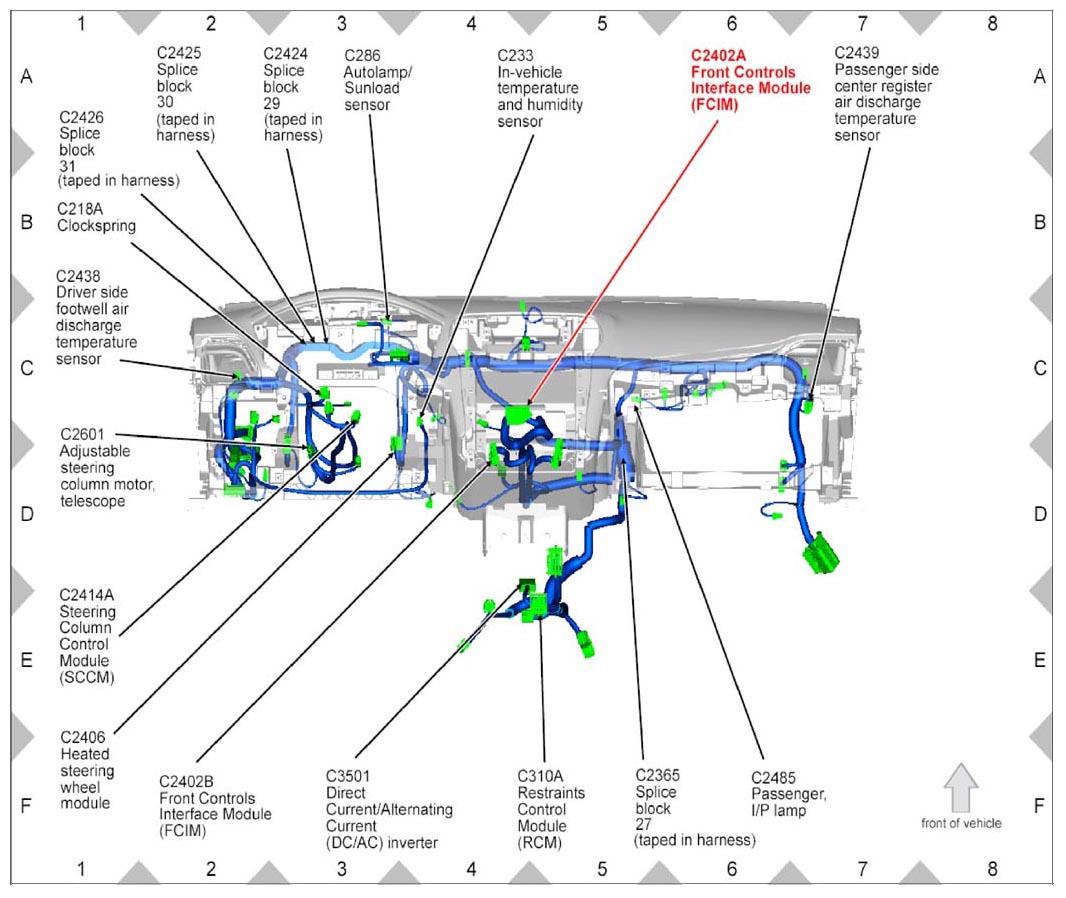

Fig 669: Identifying Front Controls Interface Module Connector (C2402A) (MKZ)

Courtesy of FORD MOTOR CO.

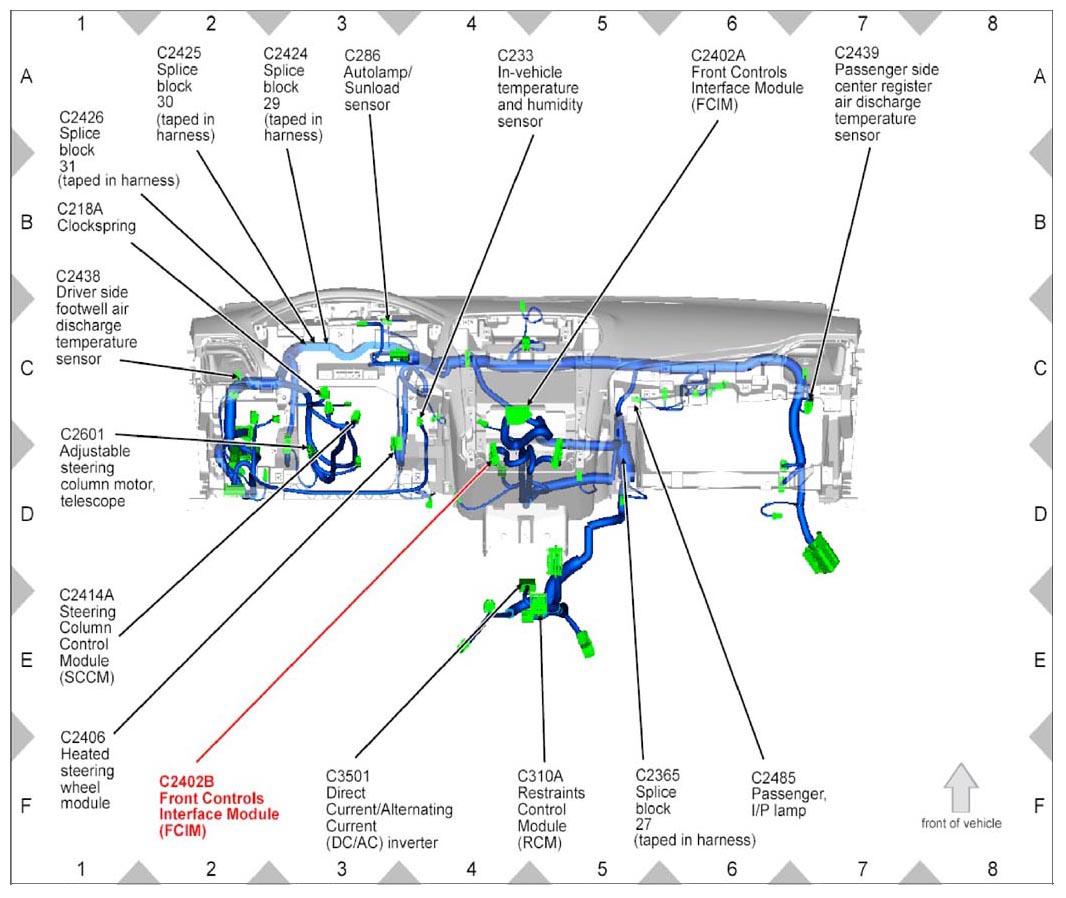

Fig 670: Identifying Front Control Interface Module Connector (C2402B) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 671: Identifying Front Controls Interface Module Connector (C2402B) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 672: Identifying Heated Steering Wheel Module Connector (C2406)

Courtesy of FORD MOTOR CO.

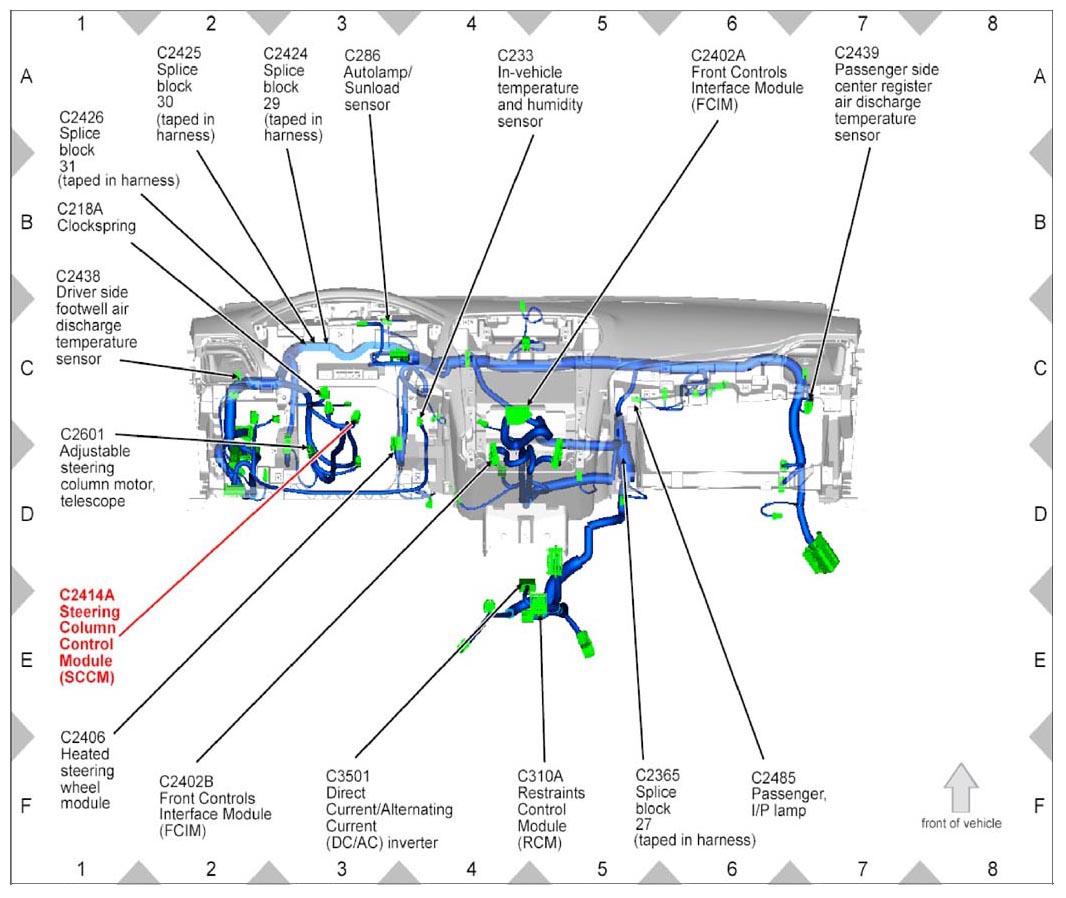

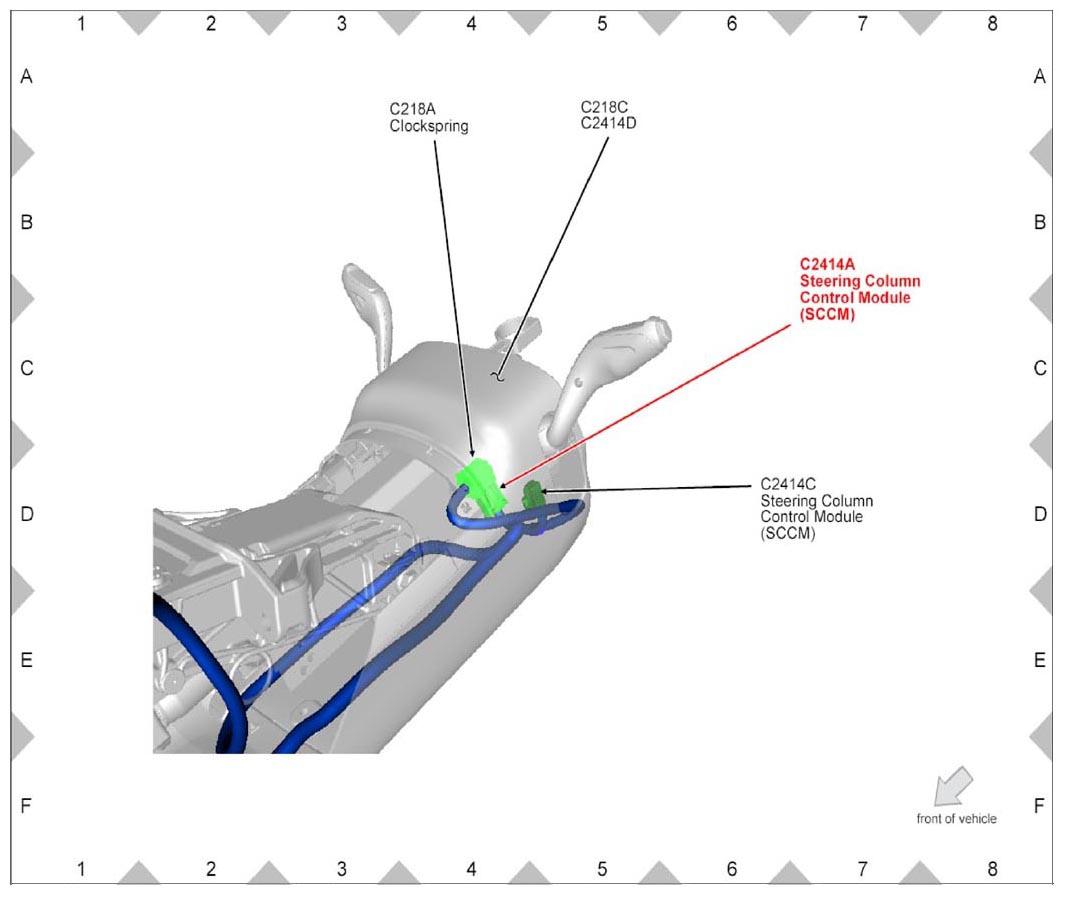

Fig 673: Identifying Steering Column Control Module Connector (C2414A)

Courtesy of FORD MOTOR CO.

Fig 674: Identifying Steering Column Control Module Connector (C2414A) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 675: Identifying Steering Column Control Module Connector (C2414A) (MKZ)

Courtesy of FORD MOTOR CO.

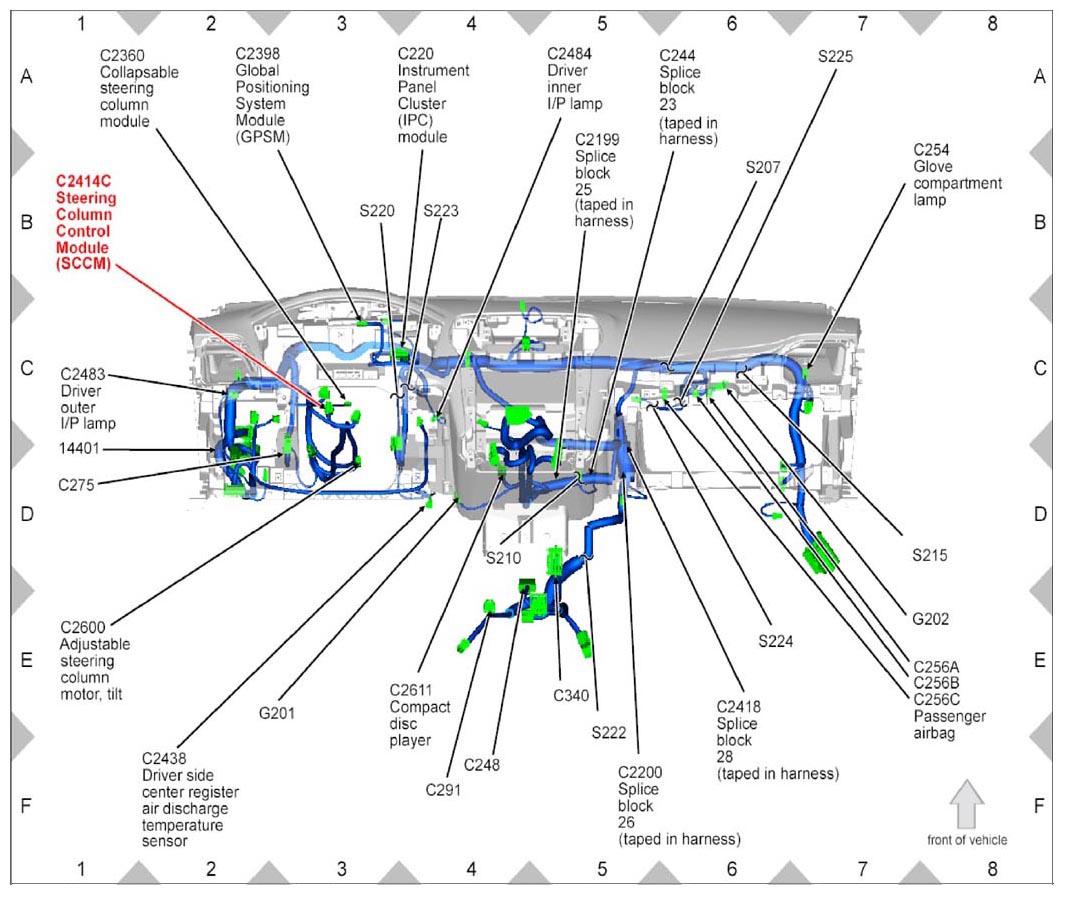

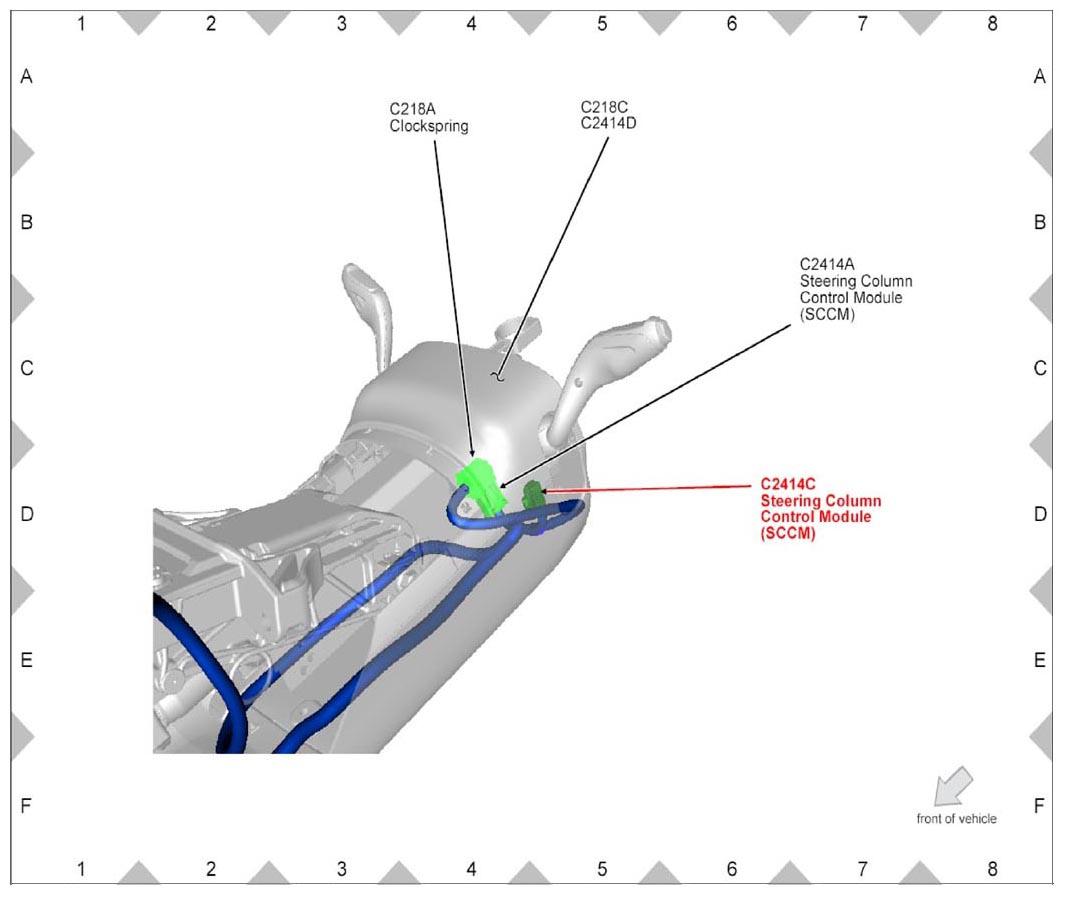

Fig 676: Identifying Steering Column Control Module Connector (C2414C) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 677: Identifying Steering Column Control Module Connector (C2414C) (With Heated Steering Wheel)

Courtesy of FORD MOTOR CO.

Fig 678: Identifying Connector (C218C And C2414D) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 679: Identifying Connector (C218C And C2414D) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 680: Identifying Splice Block 28 Connector (C2418)

Courtesy of FORD MOTOR CO.

Fig 681: Identifying Splice Block 29 Connector (C2424)

Courtesy of FORD MOTOR CO.

Fig 682: Identifying Splice Block 30 Connector (C2425)

Courtesy of FORD MOTOR CO.

Fig 683: Identifying Splice Block 31 Connector (C2426)

Courtesy of FORD MOTOR CO.

Fig 684: Identifying Paddle Shifter, Right Connector (C2428)

Courtesy of FORD MOTOR CO.

Fig 685: Identifying Paddle Shifter, Left Connector (C2429)

Courtesy of FORD MOTOR CO.

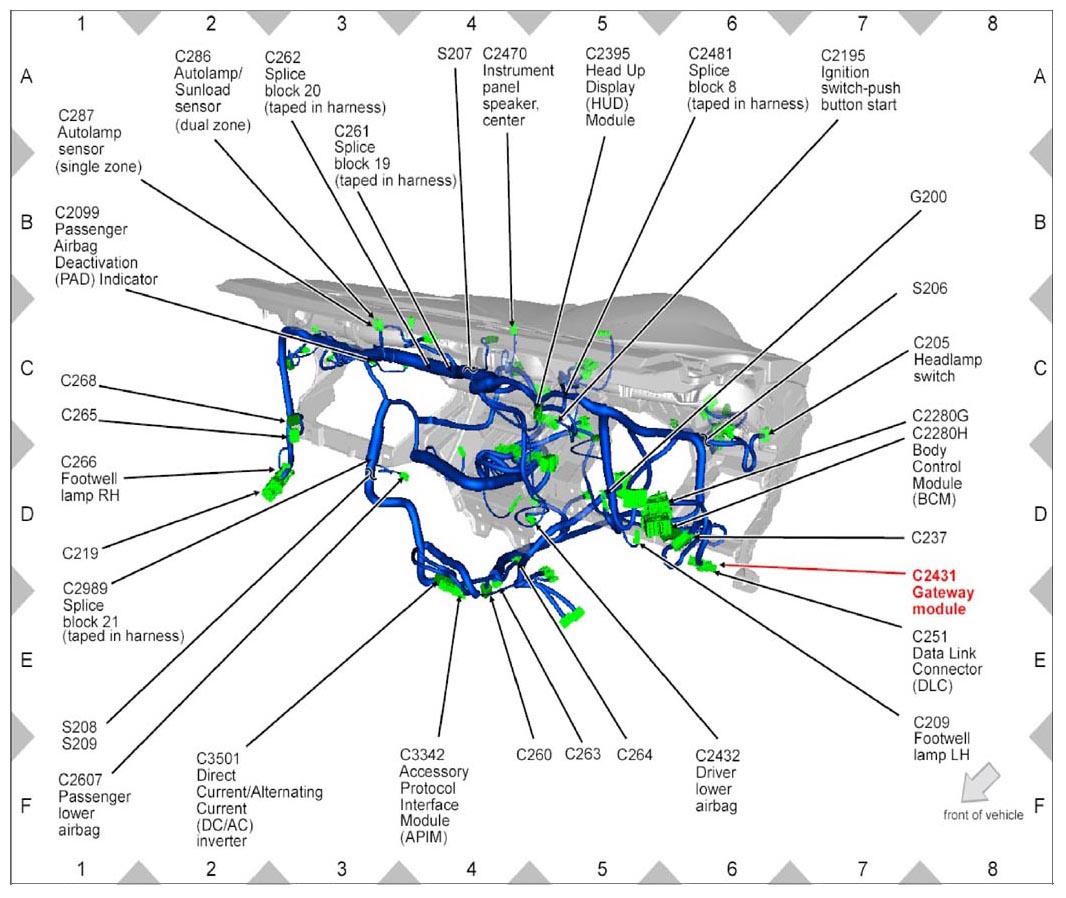

Fig 686: Identifying Gateway Module Connector (C2431) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 687: Identifying Gateway Module Connector (C2431) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 688: Identifying Driver Lower Airbag Connector (C2432) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 689: Identifying Driver Lower Airbag Connector (C2432) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 690: Identifying Driver Side Footwell Air Discharge Temperature Sensor Connector (C2436) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 691: Identifying Driver Side Footwell Air Discharge Temperature Sensor Connector (C2436) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 692: Identifying Passenger Side Footwell Air Discharge Temperature Sensor Connector (C2437)

Courtesy of FORD MOTOR CO.

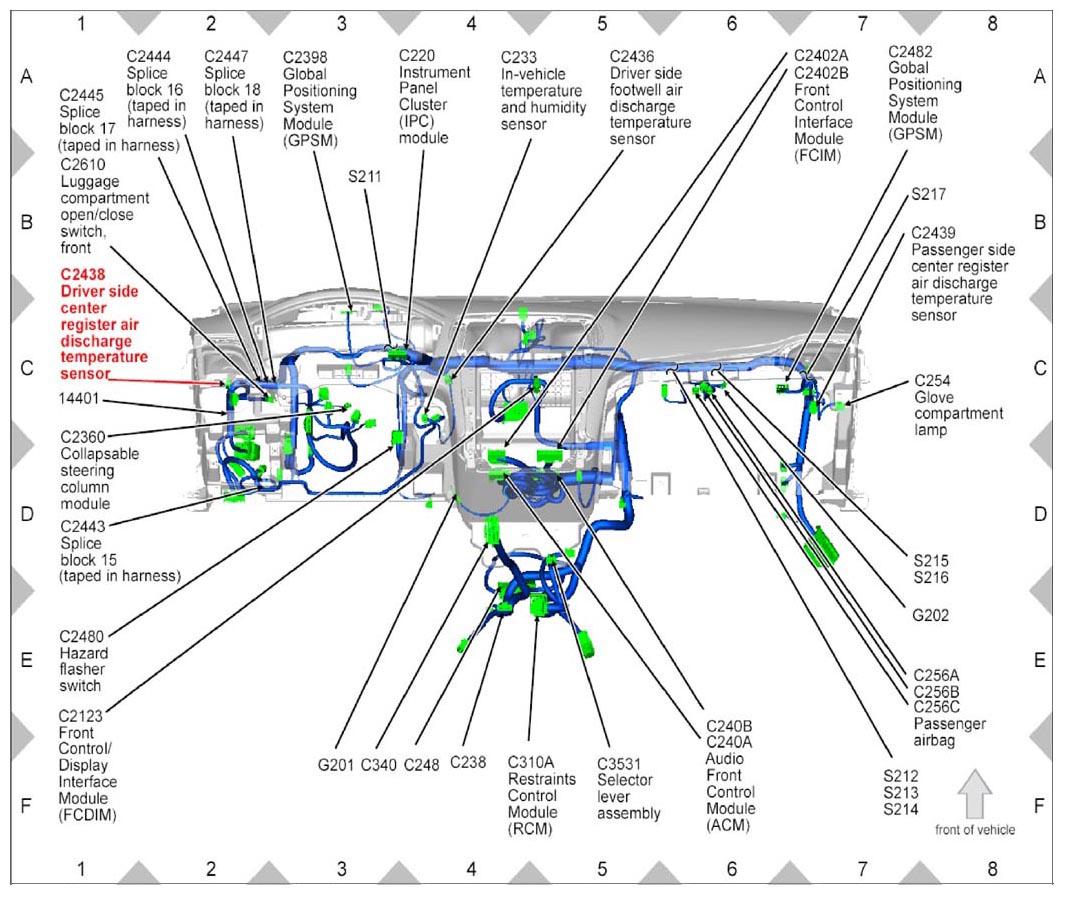

Fig 693: Identifying Driver Side Center Register Air Discharge Temperature Sensor Connector (C2438) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 694: Identifying Driver Side Center Register Air Discharge Temperature Sensor Connector (C2438) (MKZ)

Courtesy of FORD MOTOR CO.

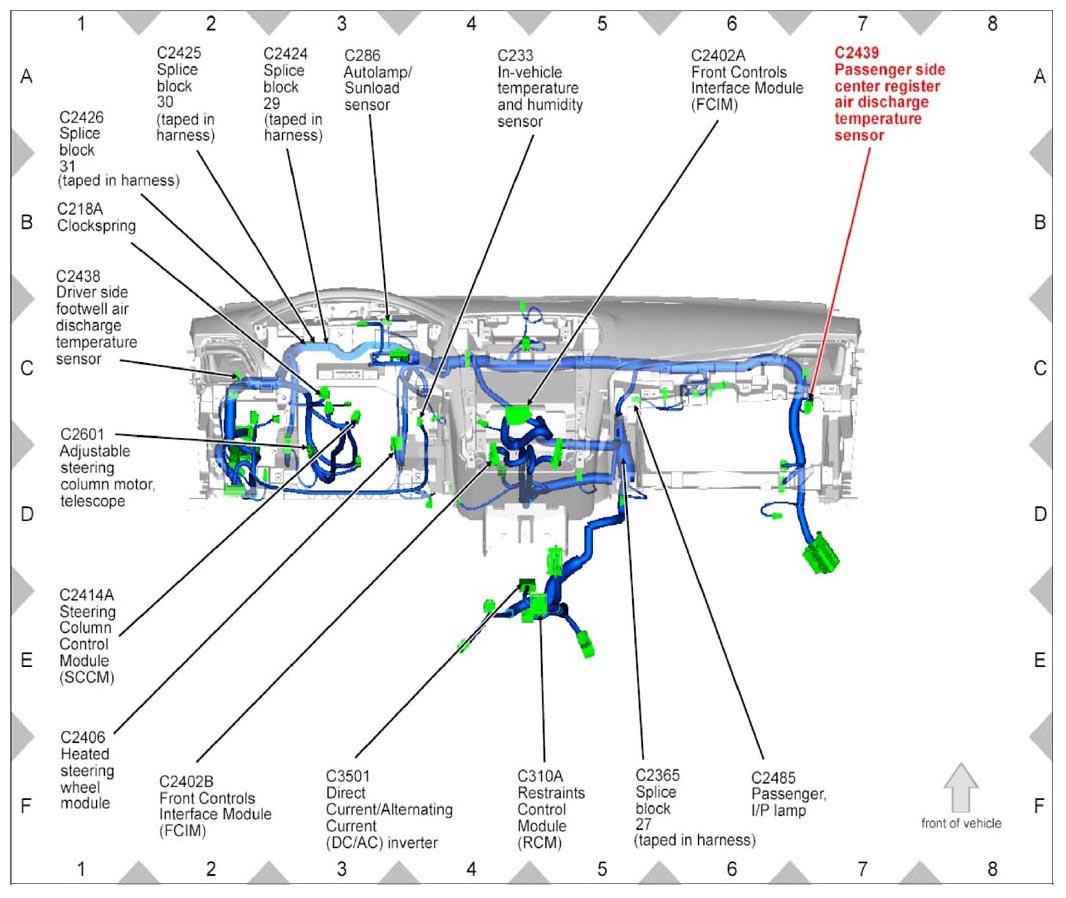

Fig 695: Identifying Passenger Side Center Register Air Discharge Temperature Sensor Connector (C2439) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 696: Identifying Passenger Side Center Register Air Discharge Temperature Sensor Connector (C2439) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 697: Identifying Splice Block 15 Connector (C2443)

Courtesy of FORD MOTOR CO.

Fig 698: Identifying Splice Block 16 Connector (C2444)

Courtesy of FORD MOTOR CO.

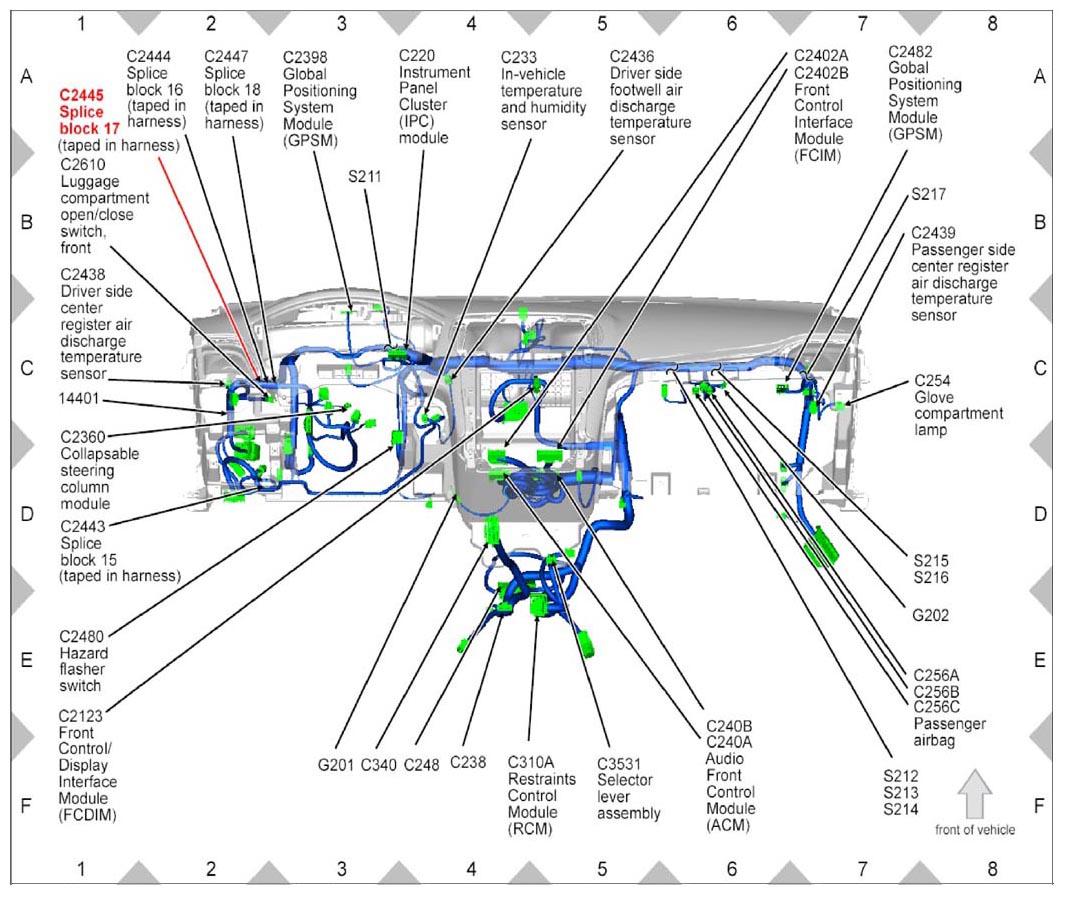

Fig 699: Identifying Splice Block 17 Connector (C2445)

Courtesy of FORD MOTOR CO.

Fig 700: Identifying Splice Block 6 Connector (C2446)

Courtesy of FORD MOTOR CO.

Fig 701: Identifying Splice Block 18 Connector (C2447)

Courtesy of FORD MOTOR CO.

Fig 702: Identifying Instrument Panel Speaker, Center Connector (C2468)

Courtesy of FORD MOTOR CO.

Fig 703: Identifying Instrument Panel Speaker, Center Connector (C2470) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 704: Identifying Instrument Panel Speaker, Center Connector (C2470) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 705: Identifying Hazard Flasher Switch Connector (C2480)

Courtesy of FORD MOTOR CO.

Fig 706: Identifying Splice Block 8 Connector (C2481)

Courtesy of FORD MOTOR CO.

Fig 707: Identifying Global Positioning System Module Connector (C2482)

Courtesy of FORD MOTOR CO.

Fig 708: Identifying Driver Outer I/P Lamp Connector (C2483)

Courtesy of FORD MOTOR CO.

Fig 709: Identifying Driver Inner I/P Lamp Connector (C2484)

Courtesy of FORD MOTOR CO.

Fig 710: Identifying Passenger I/P Lamp Connector (C2485)

Courtesy of FORD MOTOR CO.

Fig 711: Identifying Splice Block 35 Connector (C2486)

Courtesy of FORD MOTOR CO.

Fig 712: Identifying Auto-Start-Stop Deactivation Switch Connector (C2489)

Courtesy of FORD MOTOR CO.

Fig 713: Identifying Steering Wheel Switch, Left Connector (C2490)

Courtesy of FORD MOTOR CO.

Fig 714: Identifying Steering Wheel Switch, Right Connector (C2491)

Courtesy of FORD MOTOR CO.

Fig 715: Identifying Adjustable Steering Column Motor, Tilt Connector (C2600)

Courtesy of FORD MOTOR CO.

Fig 716: Identifying Adjustable Steering Column Motor, Telescope Connector (C2601)

Courtesy of FORD MOTOR CO.

Fig 717: Identifying Connector (C2606)

Courtesy of FORD MOTOR CO.

Fig 718: Identifying Passenger Lower Airbag Connector (C2607) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 719: Identifying Passenger Lower Airbag Connector (C2607) (MKZ)

Courtesy of FORD MOTOR CO.

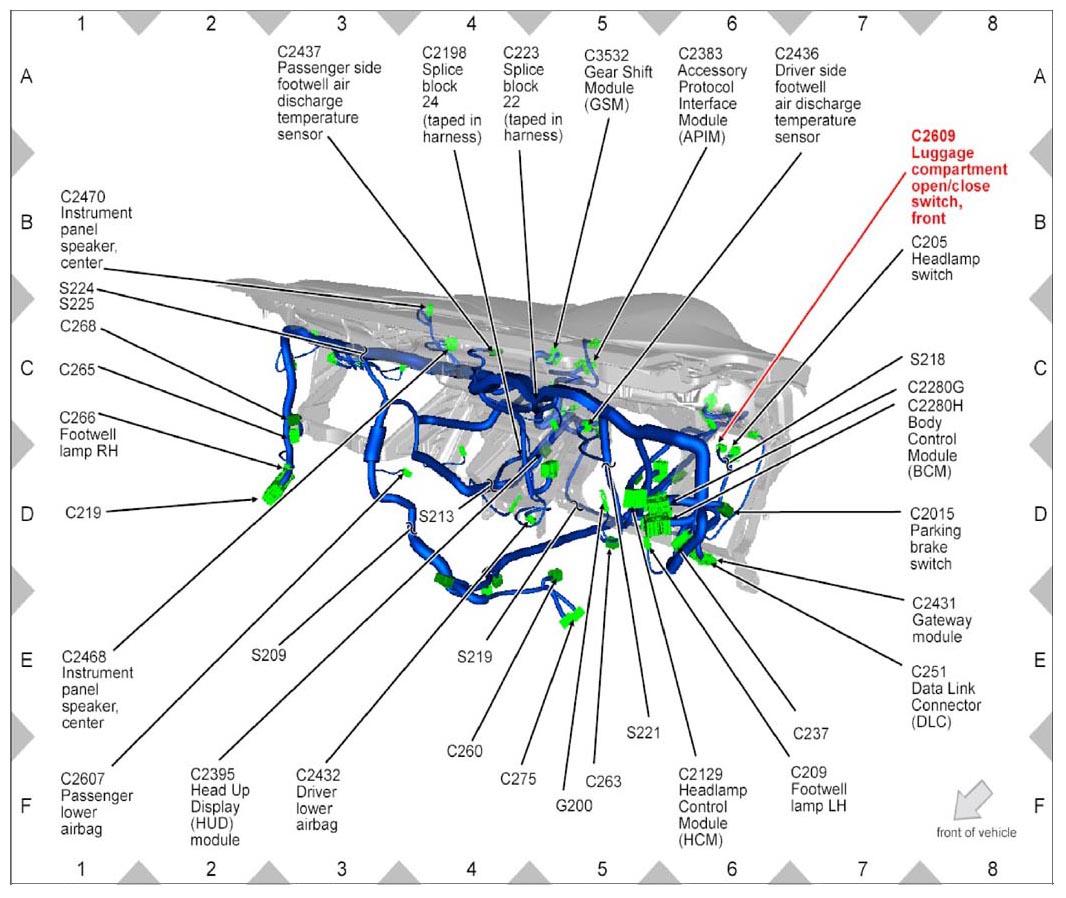

Fig 720: Identifying Luggage Compartment Open/Close Switch, Front Connector (C2609)

Courtesy of FORD MOTOR CO.

Fig 721: Identifying Luggage Compartment Open/Close Switch, Front Connector (C2610)

Courtesy of FORD MOTOR CO.

Fig 722: Identifying Compact Disc Player Connector (C2611)

Courtesy of FORD MOTOR CO.

Fig 723: Identifying Splice Block 21 Connector (C2989)

Courtesy of FORD MOTOR CO.

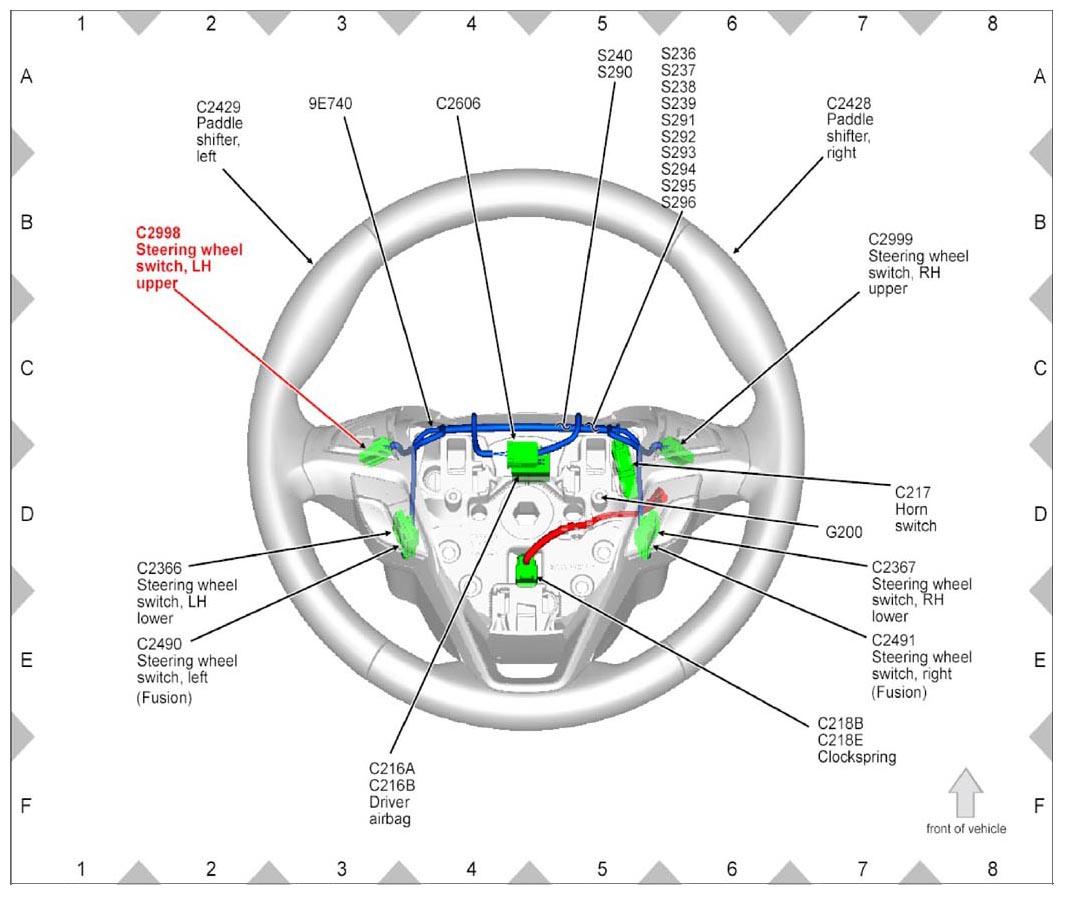

Fig 724: Identifying Steering Wheel Switch, LH Upper Connector (C2998)

Courtesy of FORD MOTOR CO.

Fig 725: Identifying Steering Wheel Switch, RH Upper Connector (C2999)

Courtesy of FORD MOTOR CO.

Fig 726: Identifying Seat Backrest Blower Motor, Driver Side Connector (C3034)

Courtesy of FORD MOTOR CO.

Fig 727: Identifying Seat Cushion Blower Motor, Driver Side Connector (C3035)

Courtesy of FORD MOTOR CO.

Fig 728: Identifying Seat Backrest Blower Motor, Passenger Side Connector (C3039)

Courtesy of FORD MOTOR CO.

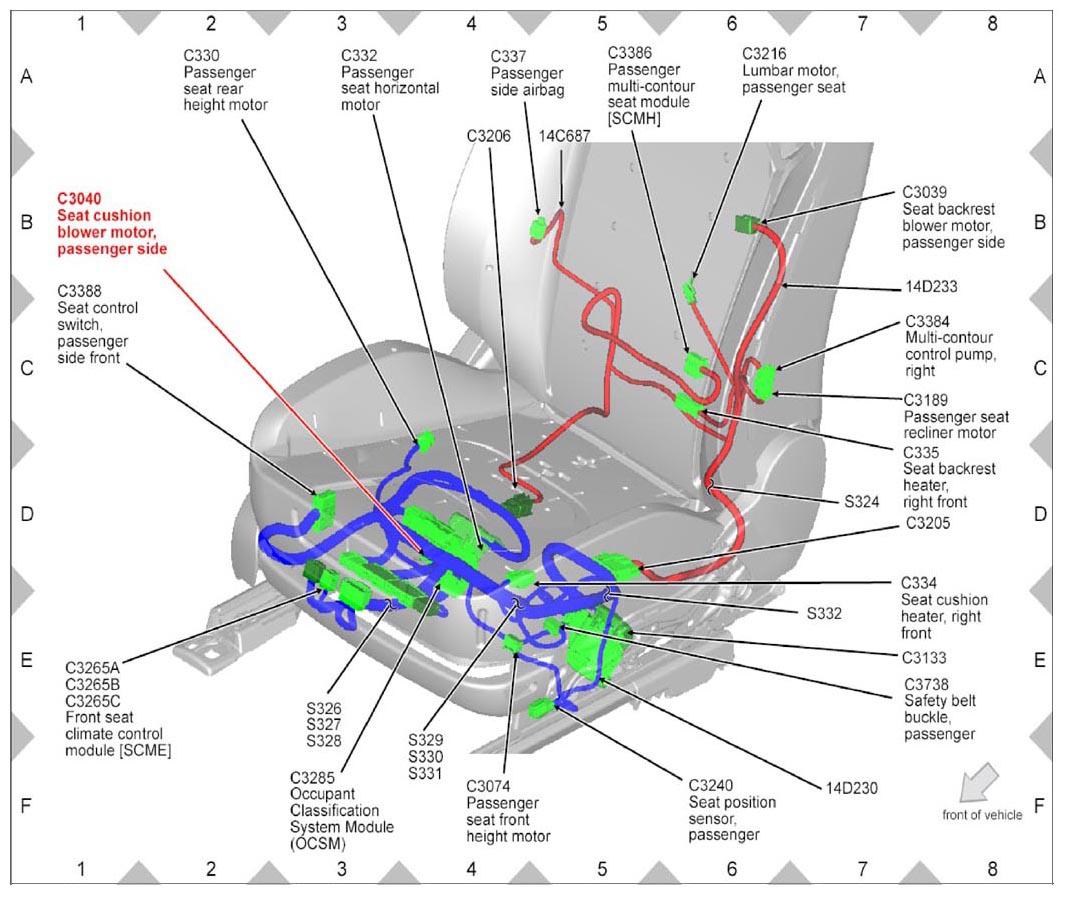

Fig 729: Identifying Seat Cushion Blower Motor, Passenger Side Connector (C3040)

Courtesy of FORD MOTOR CO.

Fig 730: Identifying Connector (C3047)

Courtesy of FORD MOTOR CO.

Fig 731: Identifying Connector (C3047) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 732: Identifying Connector (C3050) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 733: Identifying Connector (C3050) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 734: Identifying Connector (C3051) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 735: Identifying Connector (C3051) (MKZ)

Courtesy of FORD MOTOR CO.

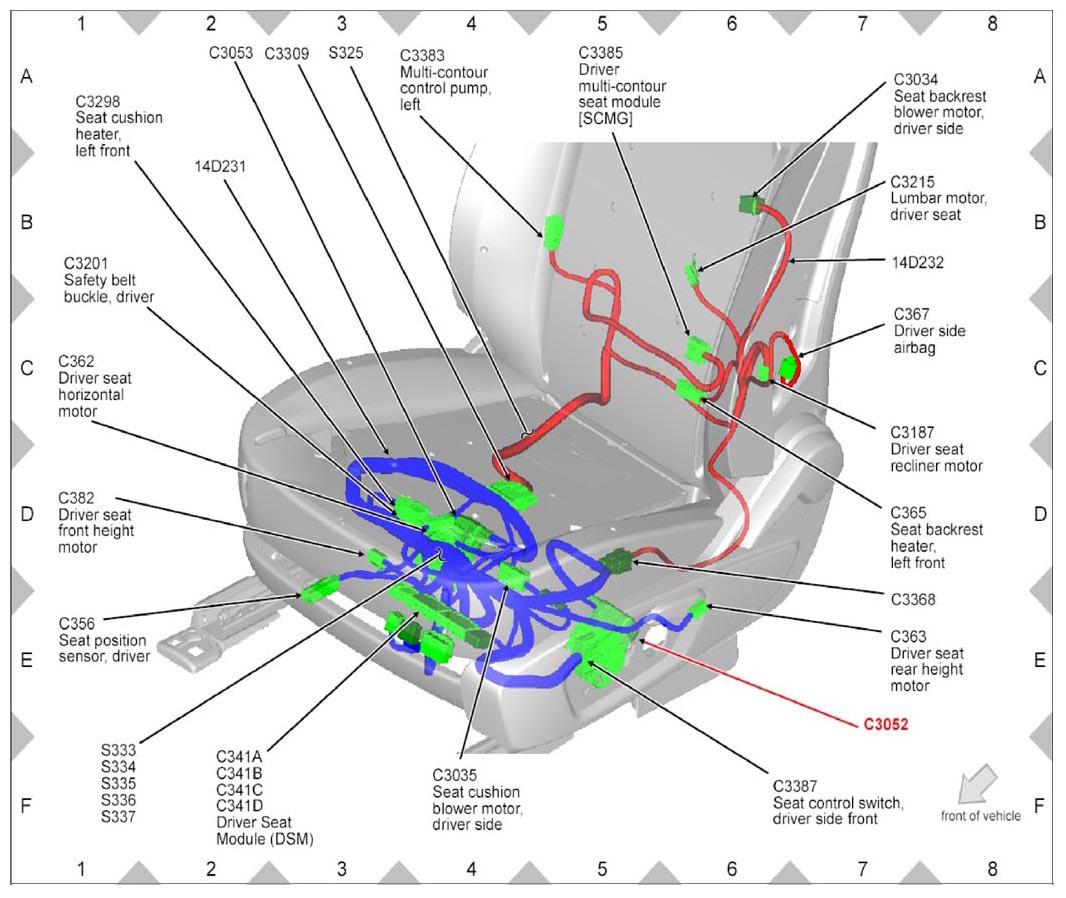

Fig 736: Identifying Connector (C3052)

Courtesy of FORD MOTOR CO.

Fig 737: Identifying Connector (C3053)

Courtesy of FORD MOTOR CO.

Fig 738: Identifying Passenger Side Air Curtain Connector (C3056)

Courtesy of FORD MOTOR CO.

Fig 739: Identifying Front Power Outlet Socket Connector (C3064) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 740: Identifying Front Power Outlet Socket Connector (C3064) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 741: Identifying Safety Belt Anchor Pretensioner, Driver Connector (C3065)

Courtesy of FORD MOTOR CO.

Fig 742: Identifying Safety Belt Anchor Pretensioner, Passenger Connector (C3086)

Courtesy of FORD MOTOR CO.

Fig 743: Identifying Passenger Seat Front Height Motor Connector (C3074)

Courtesy of FORD MOTOR CO.

Fig 744: Identifying Fuel Tank Pressure Sensor Connector (C3123) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 745: Identifying Fuel Tank Pressure Sensor Connector (C3123) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 746: Identifying Fuel Pump Assembly Connector (C3127) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 747: Identifying Fuel Pump Assembly Connector (C3127) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 748: Identifying Connector (C3133)

Courtesy of FORD MOTOR CO.

Fig 749: Identifying Connector (C3133) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 750: Identifying Connector (C3134) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 751: Identifying Connector (C3134) (MKZ)

Courtesy of FORD MOTOR CO.

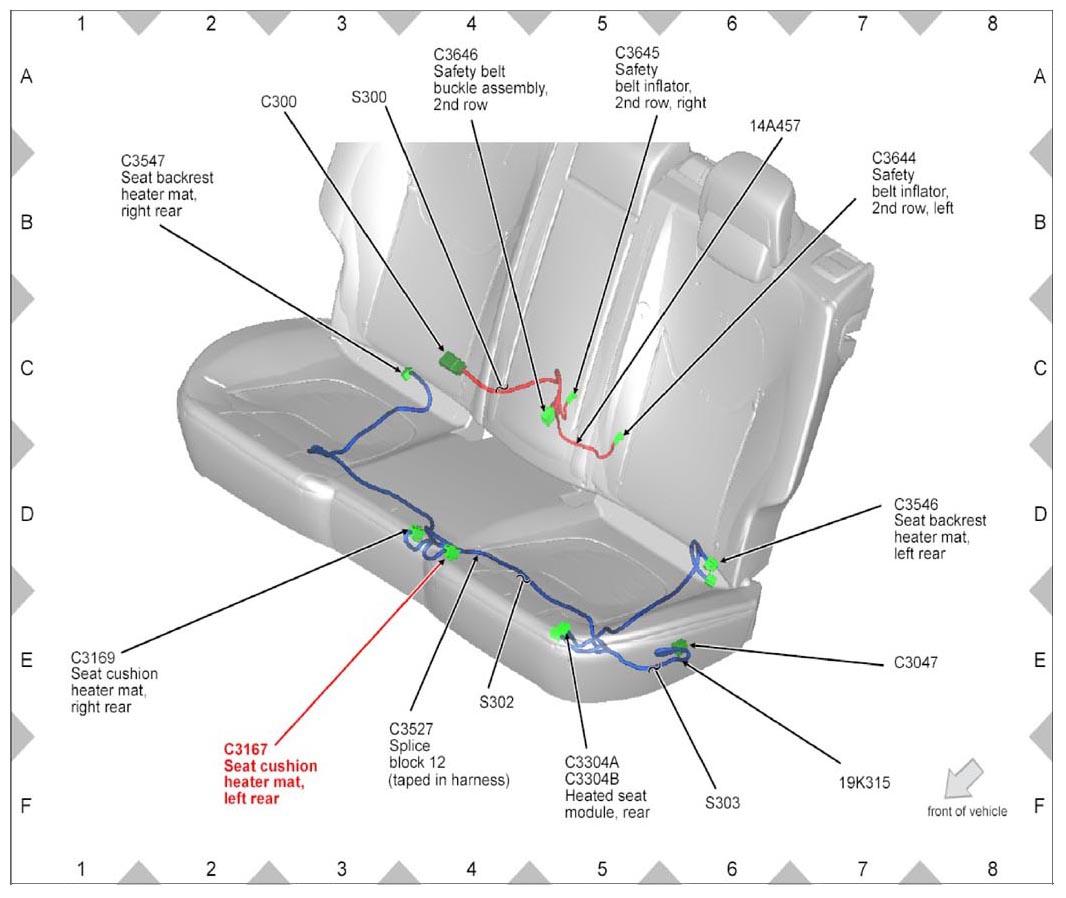

Fig 752: Identifying Seat Cushion Heater Mat, Left Rear Connector (C3167)

Courtesy of FORD MOTOR CO.

Fig 753: Identifying Seat Cushion Heater Mat, Right Rear Connector (C3169)

Courtesy of FORD MOTOR CO.

Fig 754: Identifying Driver Seat Recliner Motor Connector (C3187)

Courtesy of FORD MOTOR CO.

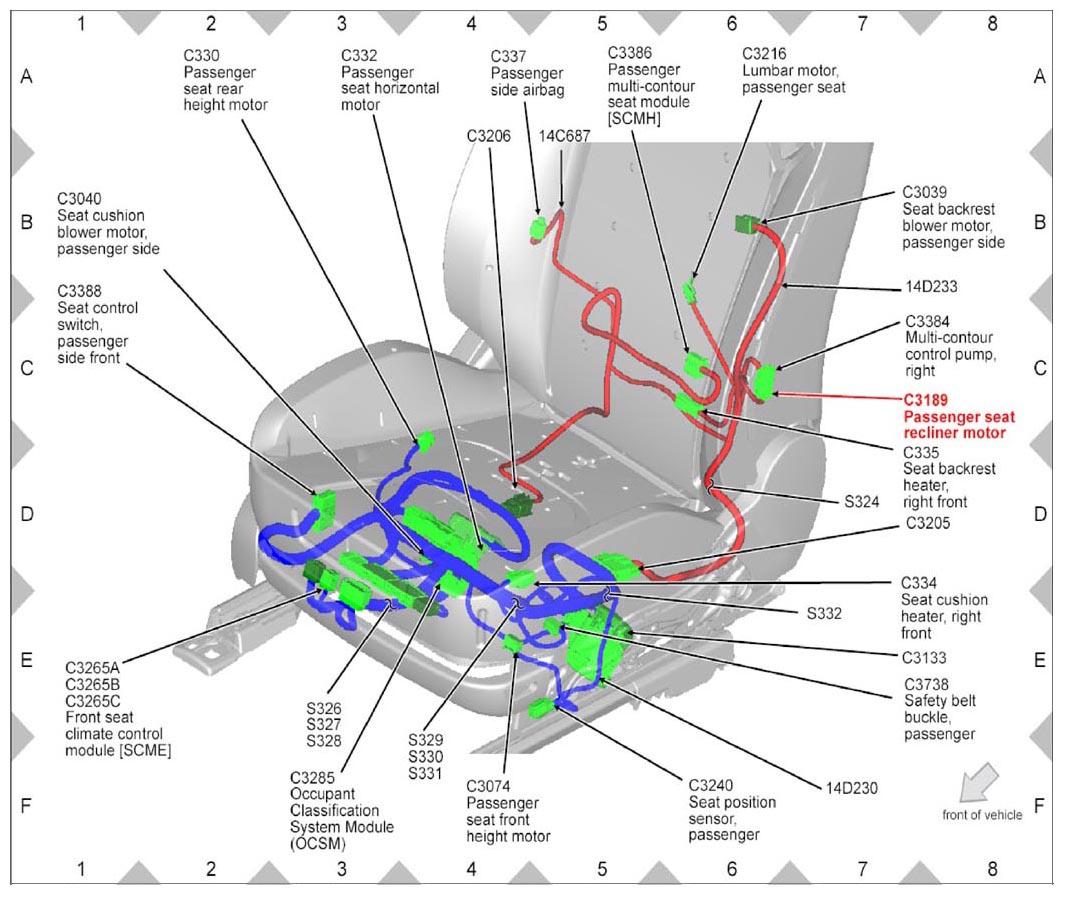

Fig 755: Identifying Passenger Seat Recliner Motor Connector (C3189)

Courtesy of FORD MOTOR CO.

Fig 756: Identifying Safety Belt Buckle, Driver Connector (C3201)

Courtesy of FORD MOTOR CO.

Fig 757: Identifying Safety Belt Load Limiting Retractor, Passenger Connector (C3202)

Courtesy of FORD MOTOR CO.

Fig 758: Identifying Connector (C3205)

Courtesy of FORD MOTOR CO.

Fig 759: Identifying Connector (C3206)

Courtesy of FORD MOTOR CO.

Fig 760: Identifying Lumbar Motor, Driver Seat Connector (C3215)

Courtesy of FORD MOTOR CO.

Fig 761: Identifying Lumbar Motor, Passenger Seat Connector (C3216)

Courtesy of FORD MOTOR CO.

Fig 762: Identifying Seat Position Sensor, Passenger Connector (C3240)

Courtesy of FORD MOTOR CO.

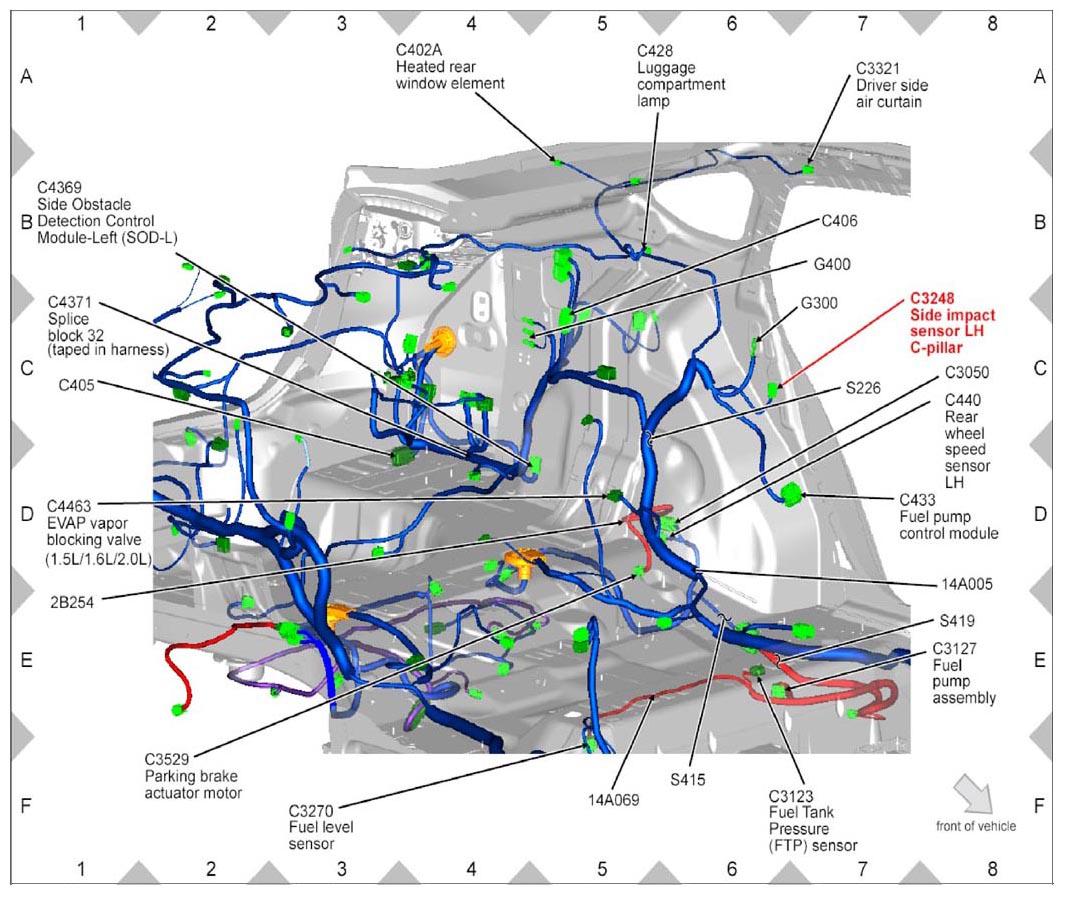

Fig 763: Identifying Side Impact Sensor LH C-Pillar Connector (C3248) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 764: Identifying Side Impact Sensor LH C-Pillar Connector (C3248) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 765: Identifying Side Impact Sensor, RH C-Pillar Connector (C3249) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 766: Identifying Side Impact Sensor, RH C-Pillar Connector (C3249) (MKZ)

Courtesy of FORD MOTOR CO.

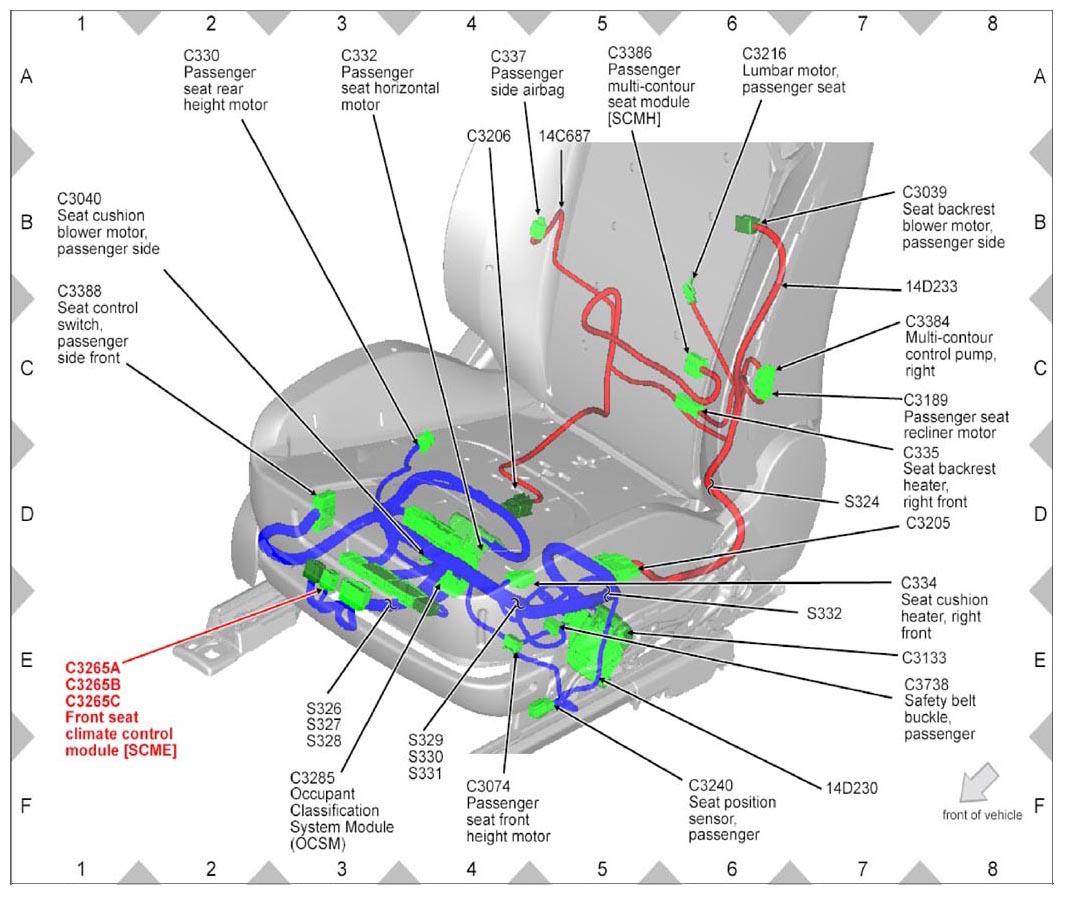

Fig 767: Identifying Front Seat Climate Control Module Connector (C3265A, C3265B And C3265C)

Courtesy of FORD MOTOR CO.

Fig 768: Identifying Front Seat Climate Control Module Connector (C3265A, C3265B And C3265C)

Courtesy of FORD MOTOR CO.

Fig 769: Identifying Front Seat Climate Control Module Connector (C3265A)

Courtesy of FORD MOTOR CO.

Fig 770: Identifying Fuel Level Sensor Connector (C3270) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 771: Identifying Fuel Level Sensor Connector (C3270) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 772: Identifying Occupant Classification System Module Connector (C3285)

Courtesy of FORD MOTOR CO.

Fig 773: Identifying Seat Cushion Heater, Left Front Connector (C3298)

Courtesy of FORD MOTOR CO.

Fig 774: Identifying Heated Seat Module, Rear Connector (C3304A And C3304B)

Courtesy of FORD MOTOR CO.

Fig 775: Identifying Heated Seat Module, Rear Connector (C3304A And C3304B)

Courtesy of FORD MOTOR CO.

Fig 776: Identifying Connector (C3309)

Courtesy of FORD MOTOR CO.

Fig 777: Identifying Audio Input Socket Connector (C3312)

Courtesy of FORD MOTOR CO.

Fig 778: Identifying Driver Side Air Curtain Connector (C3321) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 779: Identifying Driver Side Air Curtain Connector (C3321) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 780: Identifying Rear Passenger Power Outlet Socket Connector (C3323) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 781: Identifying Rear Passenger Power Outlet Socket Connector (C3323) (MKZ)

Courtesy of FORD MOTOR CO.

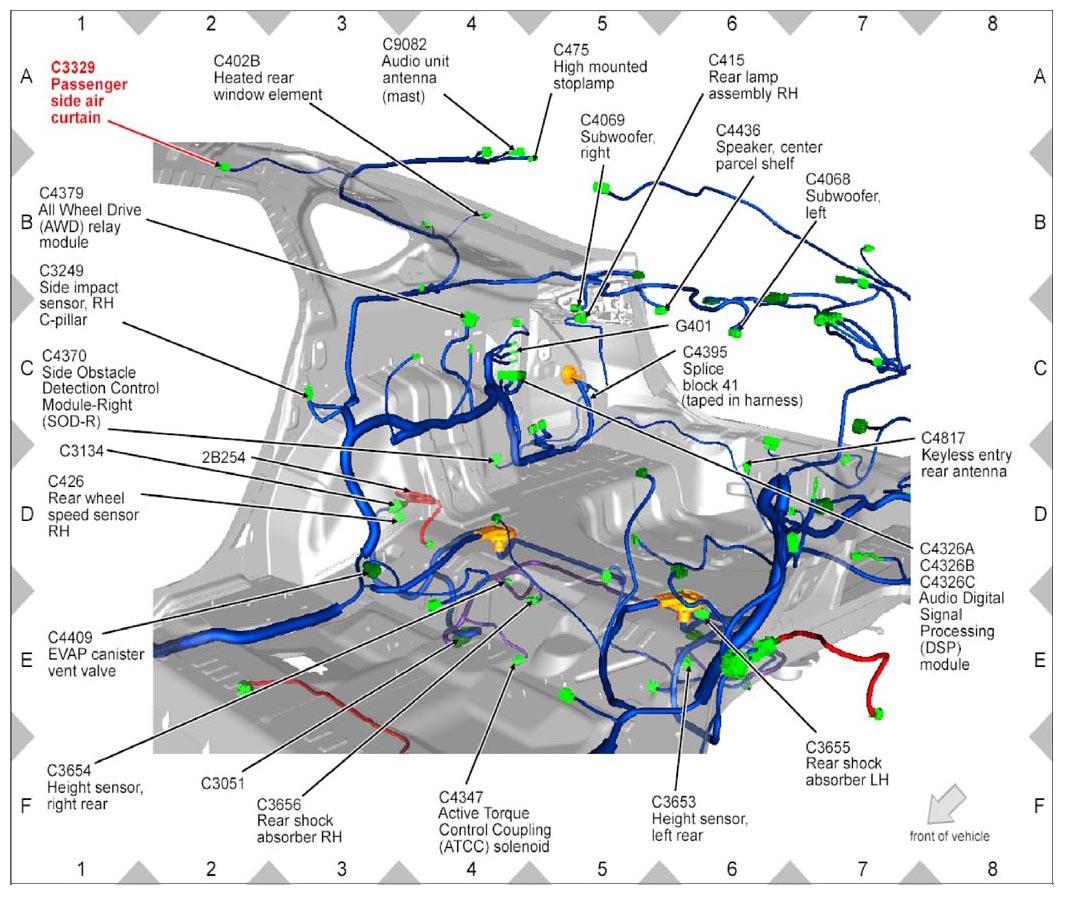

Fig 782: Identifying Passenger Side Air Curtain Connector (C3329)

Courtesy of FORD MOTOR CO.

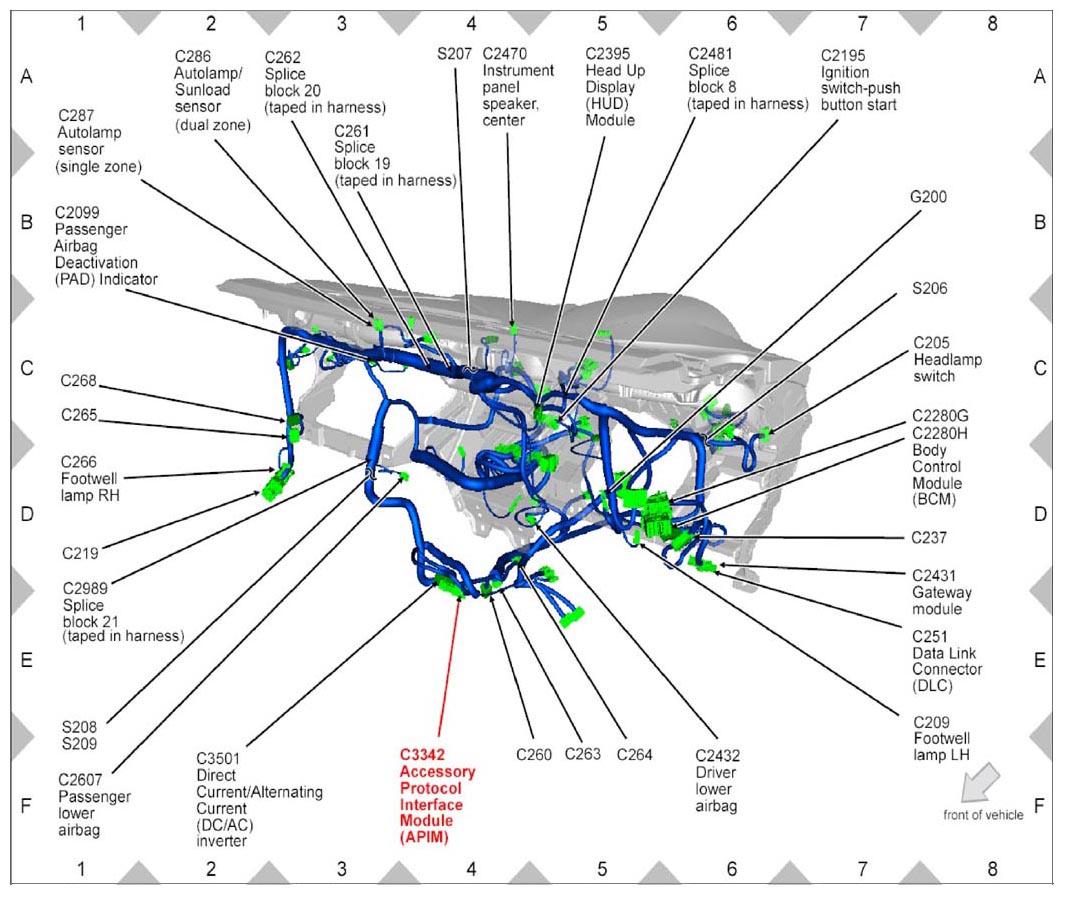

Fig 783: Identifying Accessory Protocol Interface Module Connector (C3342)

Courtesy of FORD MOTOR CO.

Fig 784: Identifying Connector (C3368)

Courtesy of FORD MOTOR CO.

Fig 785: Identifying Multi-Contour Control Pump, Left Connector (C3383)

Courtesy of FORD MOTOR CO.

Fig 786: Identifying Multi-Contour Control Pump, Right Connector (C3384)

Courtesy of FORD MOTOR CO.

Fig 787: Identifying Driver Multi-Contour Seat Module Connector (C3385)

Courtesy of FORD MOTOR CO.

Fig 788: Identifying Passenger Multi-Contour Seat Module Connector (C3386)

Courtesy of FORD MOTOR CO.

Fig 789: Identifying Seat Control Switch, Driver Side Front Connector (C3387)

Courtesy of FORD MOTOR CO.

Fig 790: Identifying Seat Control Switch, Passenger Side Front Connector (C3388)

Courtesy of FORD MOTOR CO.

Fig 791: Identifying Splice Block 7 Connector (C3408) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 792: Identifying Splice Block 7 Connector (C3408) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 793: Identifying AC Outlet Connector (C3429)

Courtesy of FORD MOTOR CO.

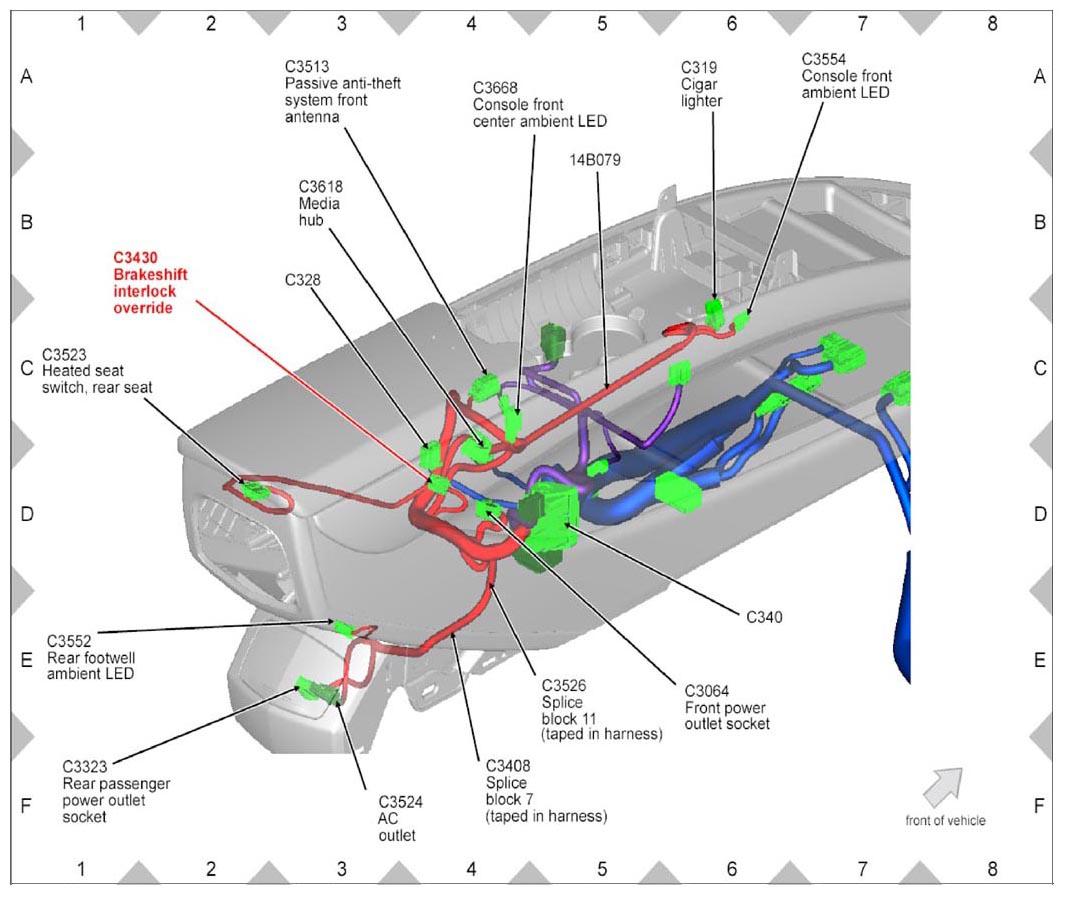

Fig 794: Identifying Brakeshift Interlock Override Connector (C3430)

Courtesy of FORD MOTOR CO.

Fig 795: Identifying Front Scuff Plate Trim Panel LH Connector (C3440)

Courtesy of FORD MOTOR CO.

Fig 796: Identifying Front Scuff Plate Trim Panel RH Connector (C3441)

Courtesy of FORD MOTOR CO.

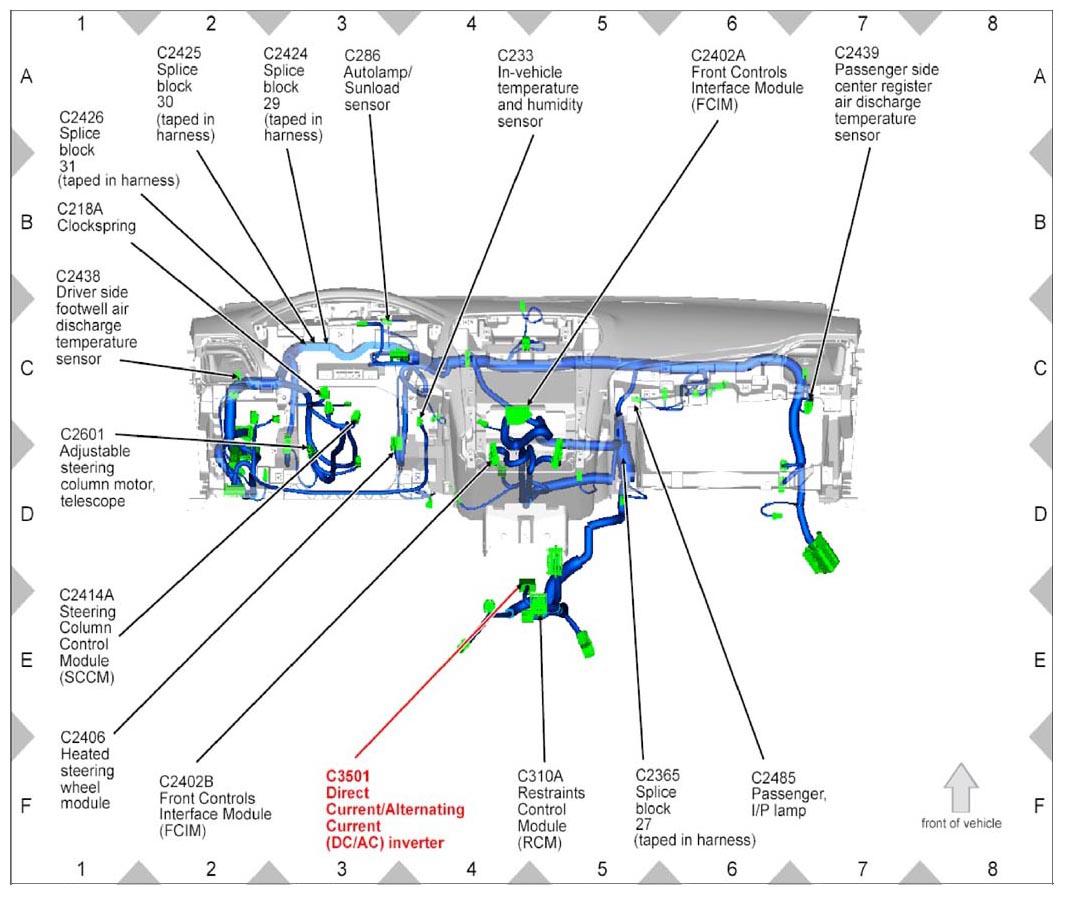

Fig 797: Identifying Direct Current/Alternating Current Inverter Connector (C3501) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 798: Identifying Direct Current/Alternating Current Inverter Connector (C3501) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 799: Identifying Passive Anti-Theft System Front Antenna Connector (C3513) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 800: Identifying Passive Anti-Theft System Front Antenna Connector (C3513) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 801: Identifying Heated Seat Switch, Rear Seat Connector (C3523) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 802: Identifying Heated Seat Switch, Rear Seat Connector (C3523) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 803: Identifying AC Outlet Connector (C3524)

Courtesy of FORD MOTOR CO.

Fig 804: Identifying Splice Block 11 Connector (C3626)

Courtesy of FORD MOTOR CO.

Fig 805: Identifying Splice Block 12 Connector (C3527)

Courtesy of FORD MOTOR CO.

Fig 806: Identifying Parking Brake Actuator Motor Connector (C3529) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 807: Identifying Parking Brake Actuator Motor Connector (C3529) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 808: Identifying Selector Lever Assembly Connector (C3531)

Courtesy of FORD MOTOR CO.

Fig 809: Identifying Gear Shift Module Connector (C3532)

Courtesy of FORD MOTOR CO.

Fig 810: Identifying Splice Block 33 Connector (C3533)

Courtesy of FORD MOTOR CO.

Fig 811: Identifying Splice Block 34 Connector (C3534)

Courtesy of FORD MOTOR CO.

Fig 812: Identifying Splice Block 36 Connector (C3535)

Courtesy of FORD MOTOR CO.

Fig 813: Identifying Splice Block 37 Connector (C3536)

Courtesy of FORD MOTOR CO.

Fig 814: Identifying Splice Block 38 Connector (C3537)

Courtesy of FORD MOTOR CO.

Fig 815: Identifying Splice Block 46 Connector (C3538)

Courtesy of FORD MOTOR CO.

Fig 816: Identifying Splice Block 47 Connector (C3539)

Courtesy of FORD MOTOR CO.

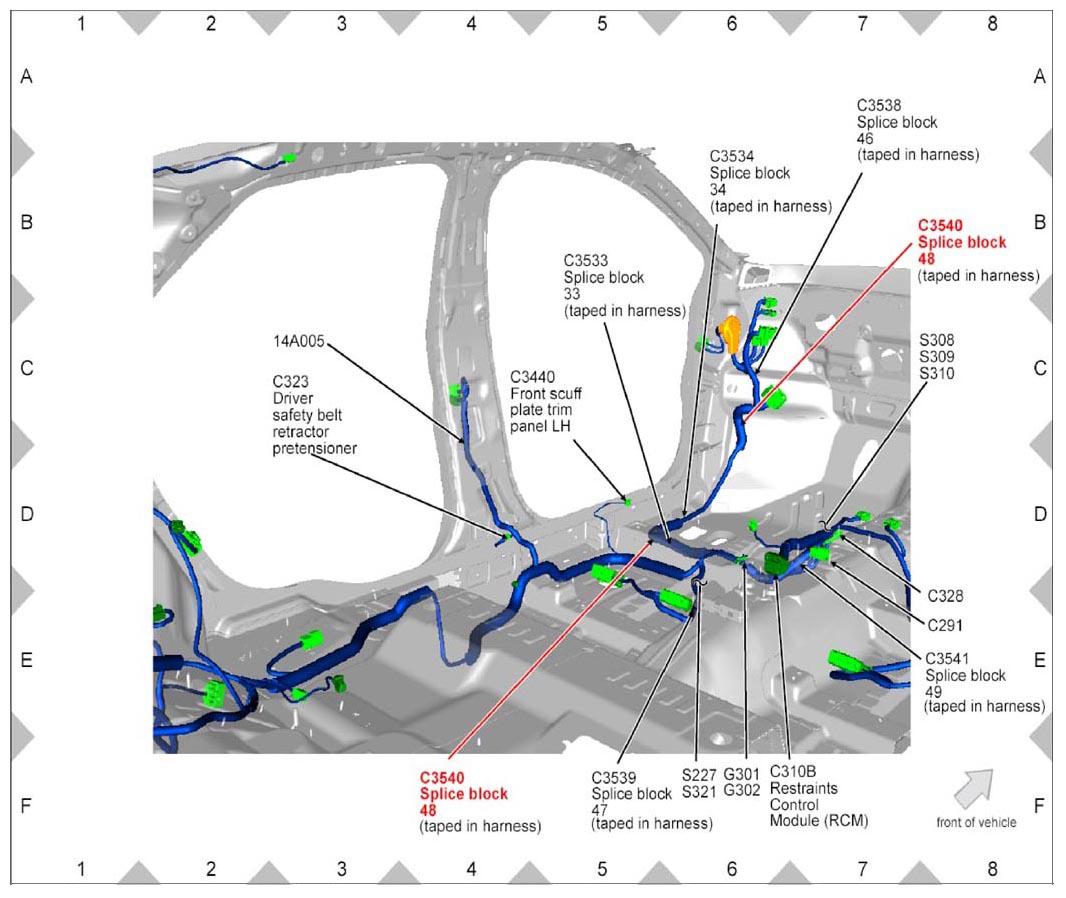

Fig 817: Identifying Splice Block 48 Connector (C3540)

Courtesy of FORD MOTOR CO.

Fig 818: Identifying Splice Block 49 Connector (C3541)

Courtesy of FORD MOTOR CO.

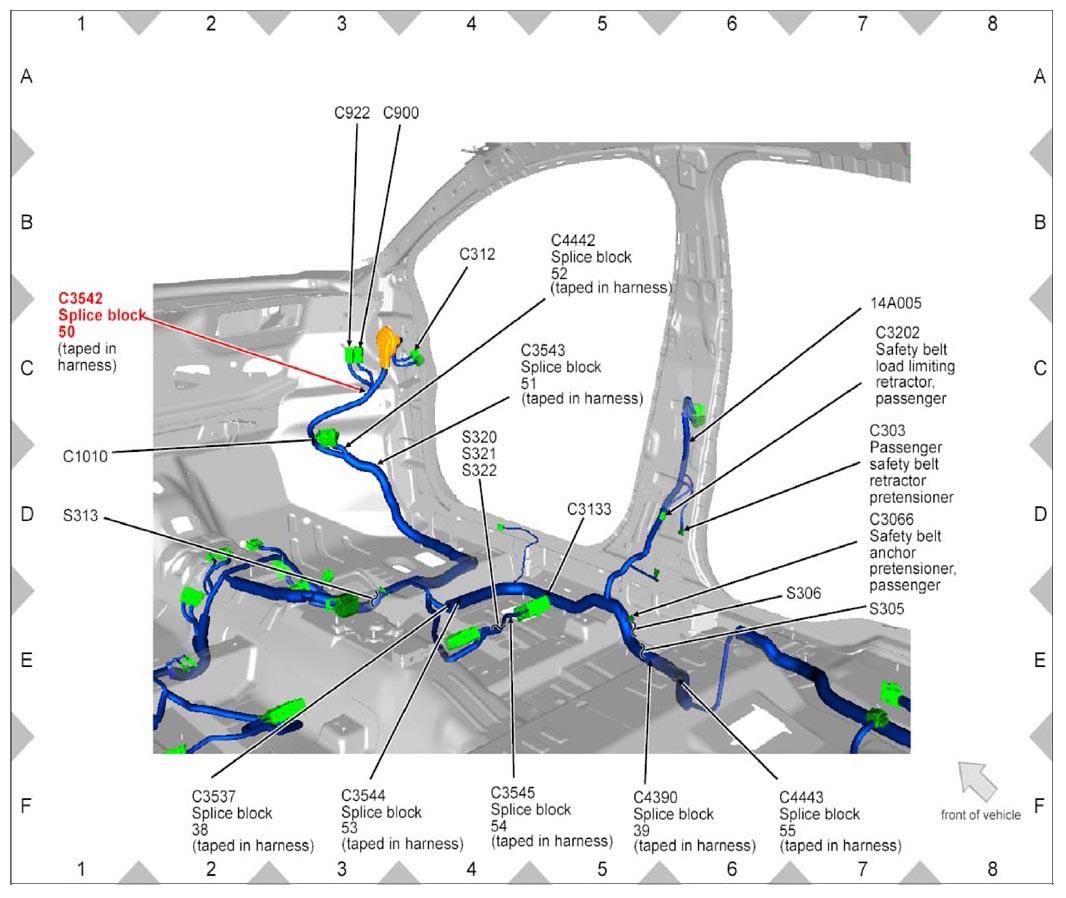

Fig 819: Identifying Splice Block 50 Connector (C3542)

Courtesy of FORD MOTOR CO.

Fig 820: Identifying Splice Block 51 Connector (C3543)

Courtesy of FORD MOTOR CO.

Fig 821: Identifying Splice Block 53 Connector (C3544)

Courtesy of FORD MOTOR CO.

Fig 822: Identifying Splice Block 54 Connector (C3545)

Courtesy of FORD MOTOR CO.

Fig 823: Identifying Seat Backrest Heater Mat, Left Rear Connector (C3546)

Courtesy of FORD MOTOR CO.

Fig 824: Identifying Seat Backrest Heater Mat, Right Rear Connector (C3647)

Courtesy of FORD MOTOR CO.

Fig 825: Identifying Parking Brake Actuator Motor Connector (C3551)

Courtesy of FORD MOTOR CO.

Fig 826: Identifying Rear Footwell Ambient Led Connector (C3552) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 827: Identifying Rear Footwell Ambient Led Connector (C3552) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 828: Identifying Media Bin Ambient Led Connector (C3553)

Courtesy of FORD MOTOR CO.

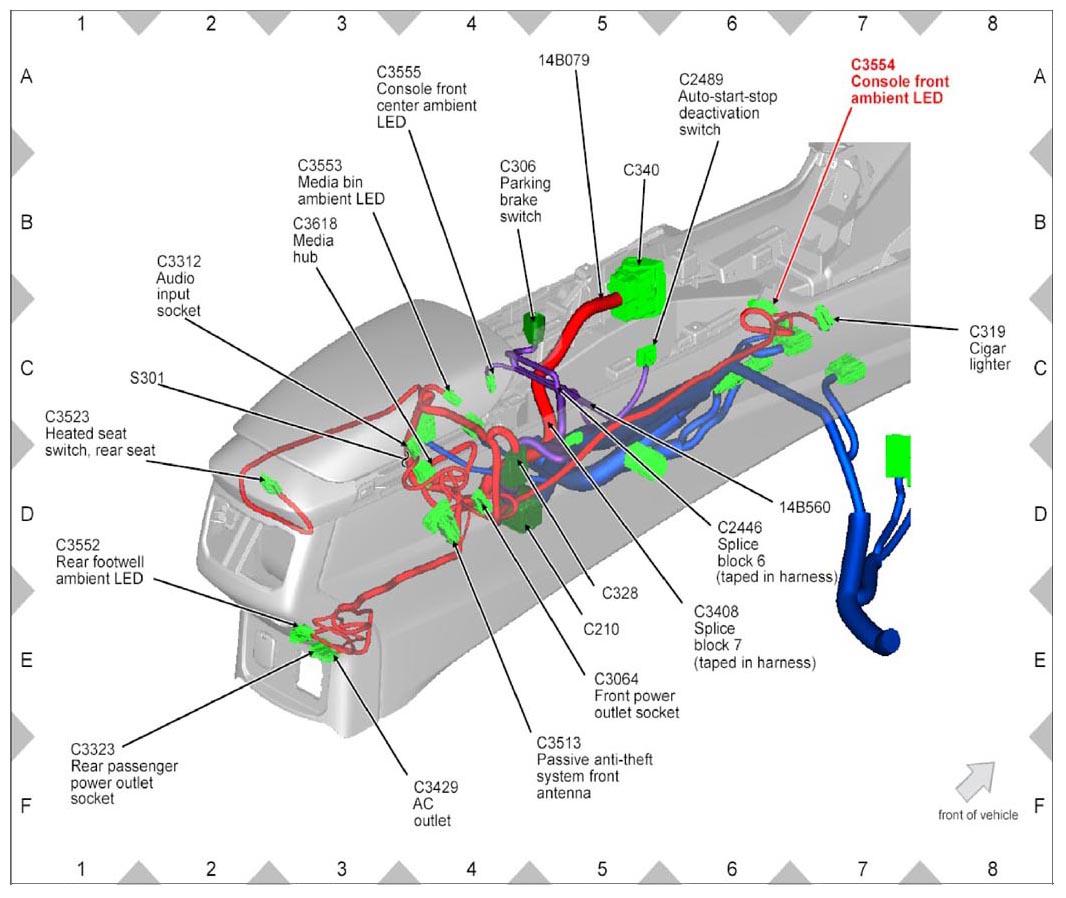

Fig 829: Identifying Console Front Ambient Led Connector (C3554) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 830: Identifying Console Front Ambient Led Connector (C3554) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 831: Identifying Console Front Center Ambient Led Connector (C3555)

Courtesy of FORD MOTOR CO.

Fig 832: Identifying Media Hub Connector (C3618) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 833: Identifying Media Hub Connector (C3618) (MKZ)

Courtesy of FORD MOTOR CO.

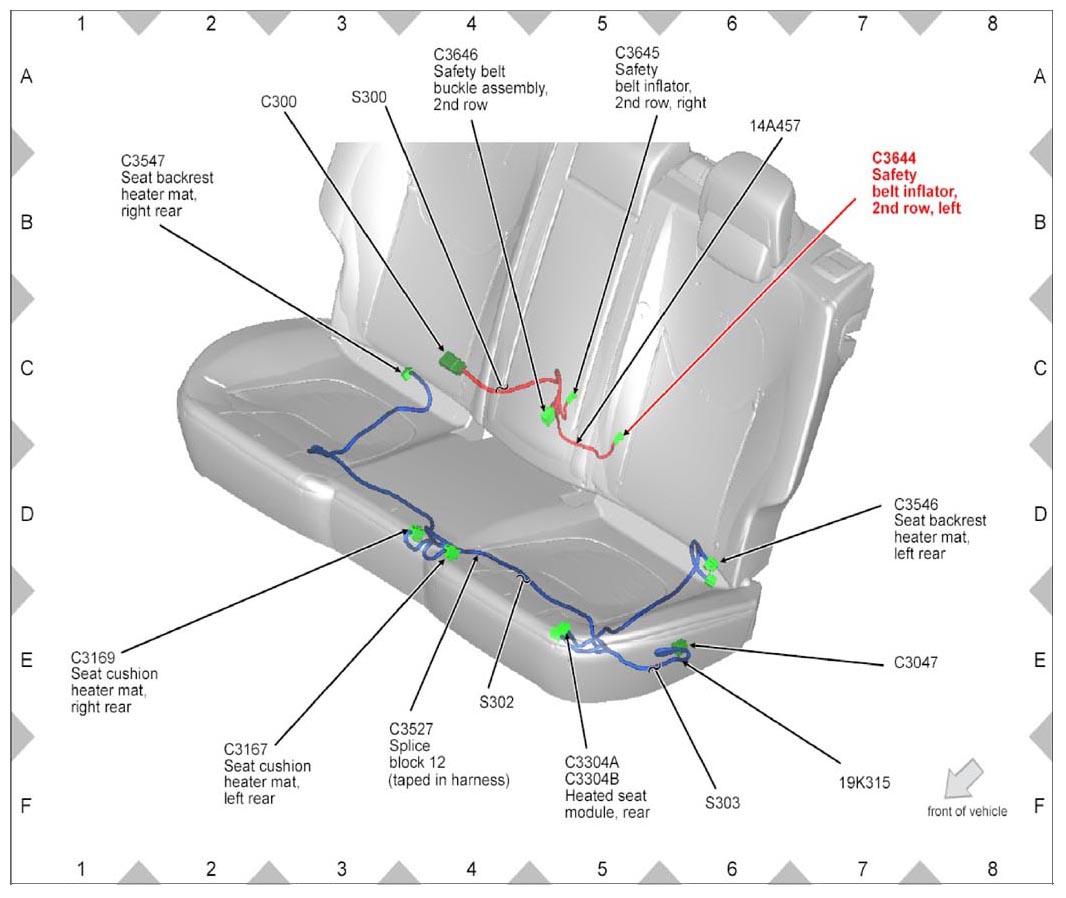

Fig 834: Identifying Safety Belt Inflator, 2nd Row, Left Connector (C3644)

Courtesy of FORD MOTOR CO.

Fig 835: Identifying Safety Belt Inflator, 2nd Row, Right Connector (C3645)

Courtesy of FORD MOTOR CO.

Fig 836: Identifying Safety Belt Buckle Assembly, 2nd Row Connector (C3646)

Courtesy of FORD MOTOR CO.

Fig 837: Identifying Height Sensor, Left Rear Connector (C3653)

Courtesy of FORD MOTOR CO.

Fig 838: Identifying Height Sensor, Right Rear Connector (C3654) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 839: Identifying Height Sensor, Right Rear Connector (C3654) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 840: Identifying Rear Shock Absorber LH Connector (C3655)

Courtesy of FORD MOTOR CO.

Fig 841: Identifying Rear Shock Absorber RH Connector (C3656)

Courtesy of FORD MOTOR CO.

Fig 842: Identifying Rear Shock Absorber RH Connector (C3656)

Courtesy of FORD MOTOR CO.

Fig 843: Identifying Console Front Center Ambient Led Connector (C3668)

Courtesy of FORD MOTOR CO.

Fig 844: Identifying Safety Belt Buckle, Passenger Connector (C3738)

Courtesy of FORD MOTOR CO.

Fig 845: Identifying Rear Outer Parking Aid Sensor LH Connector (C4009) (Fusion)

Courtesy of FORD MOTOR CO.

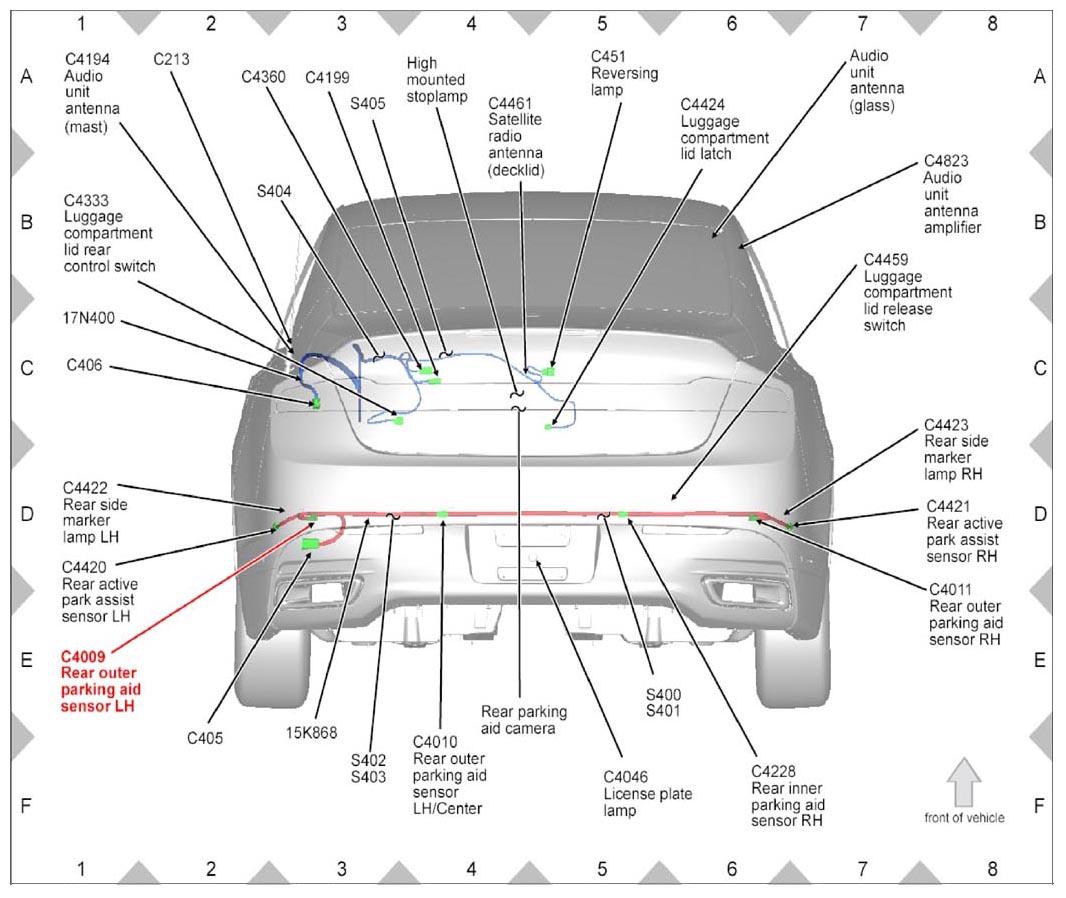

Fig 846: Identifying Rear Outer Parking Aid Sensor LH Connector (C4009) (MKZ)

Courtesy of FORD MOTOR CO.

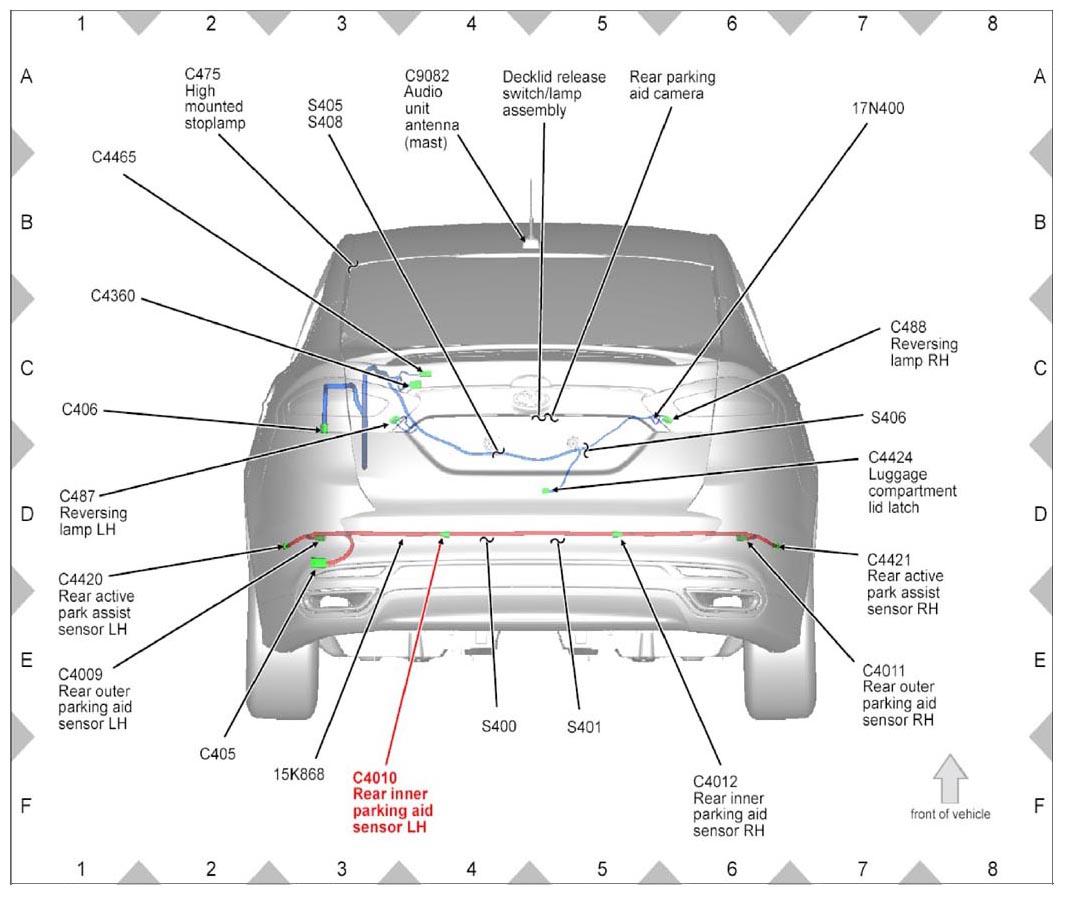

Fig 847: Identifying Rear Inner Parking Aid Sensor LH Connector (C4010) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 848: Identifying Rear Outer Parking Aid Sensor LH/Center Connector (C4010) (MKZ)

Courtesy of FORD MOTOR CO.

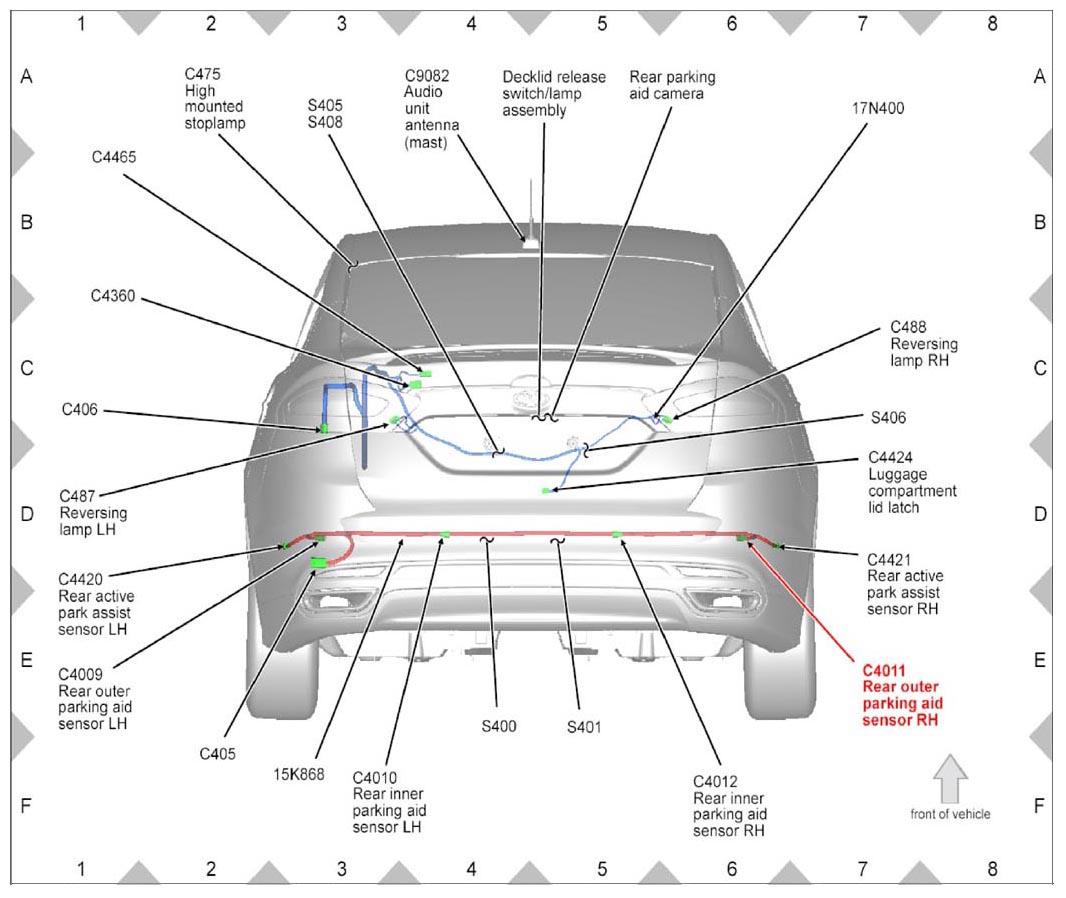

Fig 849: Identifying Rear Outer Parking Aid Sensor RH Connector (C4011) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 850: Identifying Rear Outer Parking Aid Sensor RH Connector (C4011) (MKZ)

Courtesy of FORD MOTOR CO.

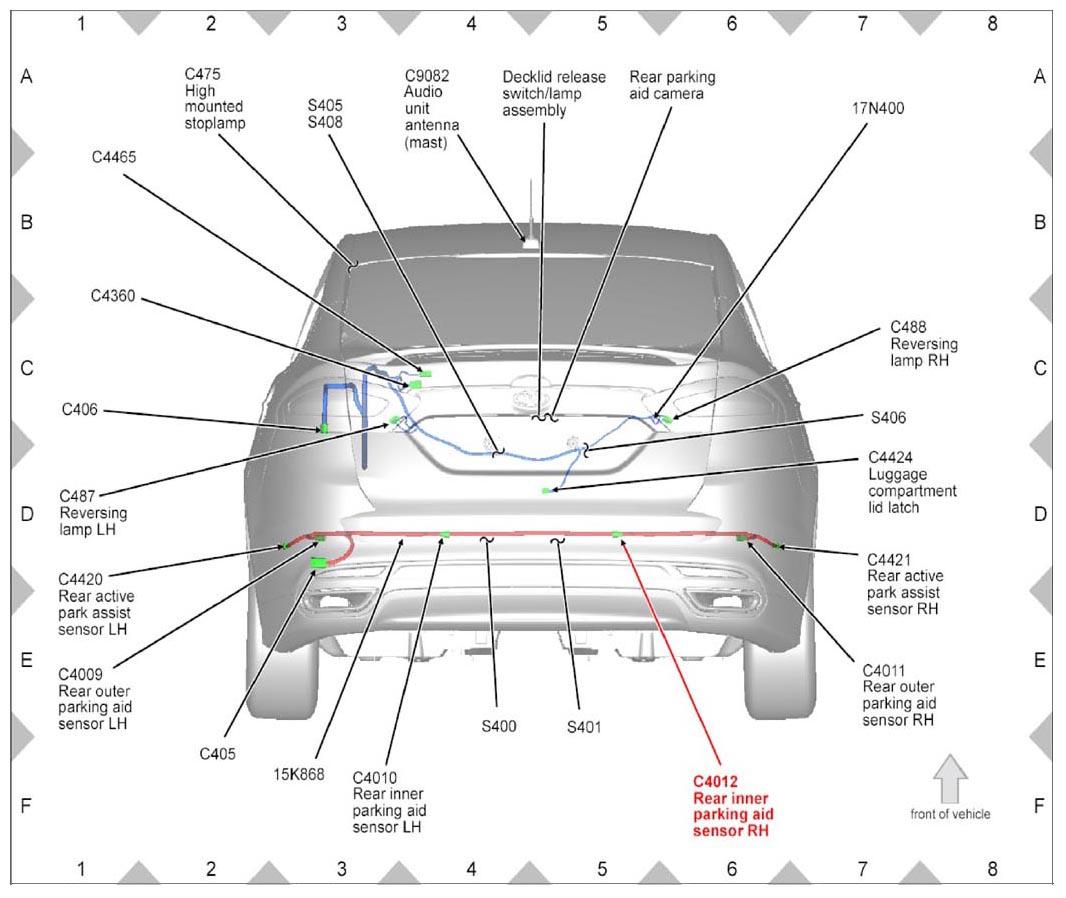

Fig 851: Identifying Rear Inner Parking Aid Sensor RH Connector (C4012)

Courtesy of FORD MOTOR CO.

Fig 852: Identifying License Plate Lamp Connector (C4046)

Courtesy of FORD MOTOR CO.

Fig 853: Identifying Subwoofer, Left Connector (C4068)

Courtesy of FORD MOTOR CO.

Fig 854: Identifying Subwoofer, Right Connector (C4069)

Courtesy of FORD MOTOR CO.

Fig 855: Identifying Connector (C4174A)

Courtesy of FORD MOTOR CO.

Fig 856: Identifying Rear Gate Trunk Module Connector (C4174B)

Courtesy of FORD MOTOR CO.

Fig 857: Identifying Power Decklid Chime Connector (C4186)

Courtesy of FORD MOTOR CO.

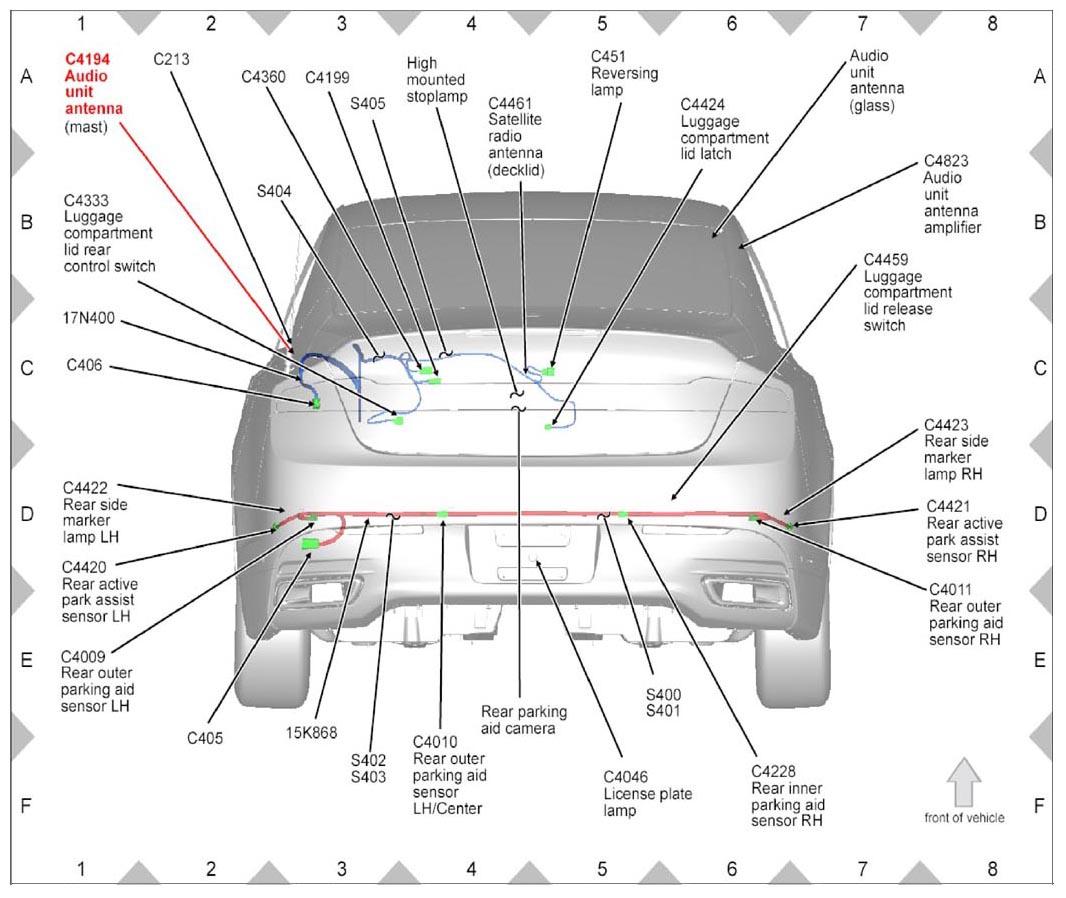

Fig 858: Identifying Audio Unit Antenna Connector (C4194)

Courtesy of FORD MOTOR CO.

Fig 859: Identifying High Mounted Stoplamp Connector (C4199)

Courtesy of FORD MOTOR CO.

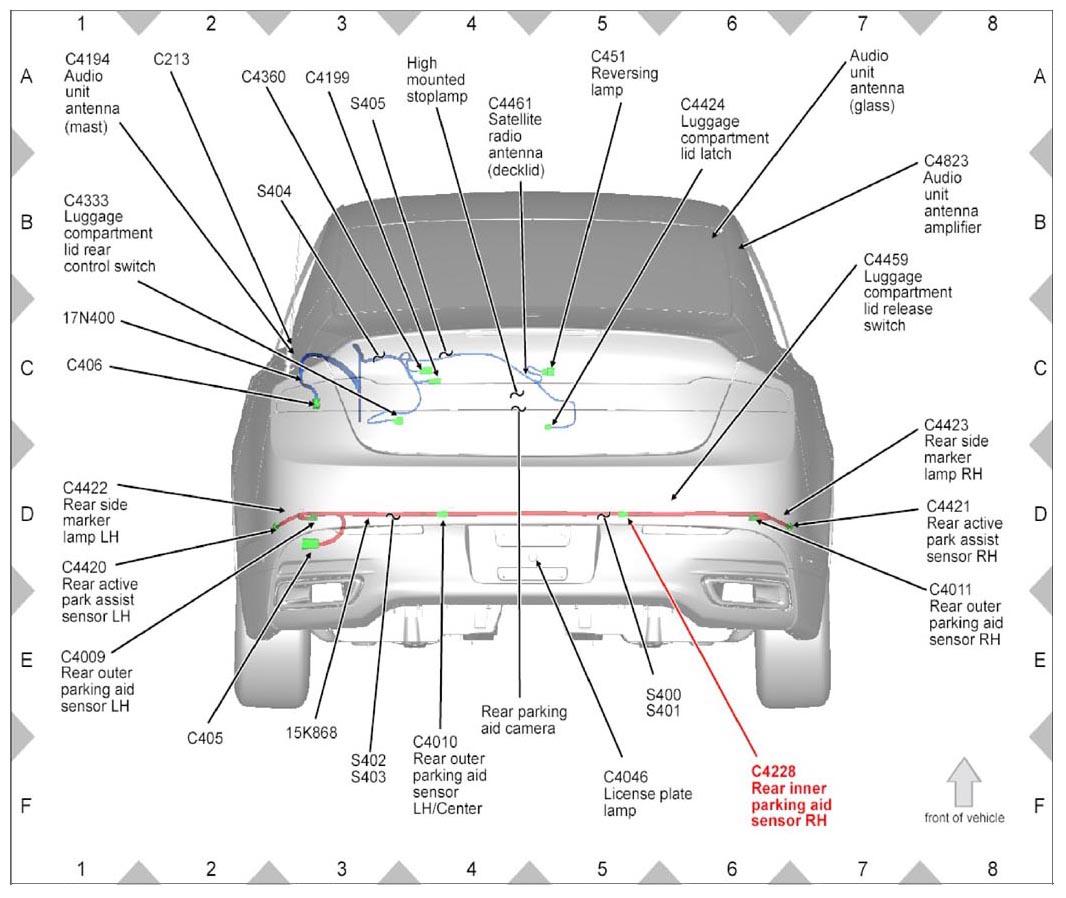

Fig 860: Identifying Rear Inner Parking Aid Sensor RH Connector (C4228)

Courtesy of FORD MOTOR CO.

Fig 861: Identifying Audio Digital Signal Processing Module Connector (C4326A, C4326B And C4326C)

Courtesy of FORD MOTOR CO.

Fig 862: Identifying Audio Digital Signal Processing Module Connector (C4326A, C4326B And C4326C)

Courtesy of FORD MOTOR CO.

Fig 863: Identifying Audio Digital Signal Processing Module Connector (C4326A, C4326B And C4326C)

Courtesy of FORD MOTOR CO.

Fig 864: Identifying Power Luggage Compartment Lid Motor Connector (C4332)

Courtesy of FORD MOTOR CO.

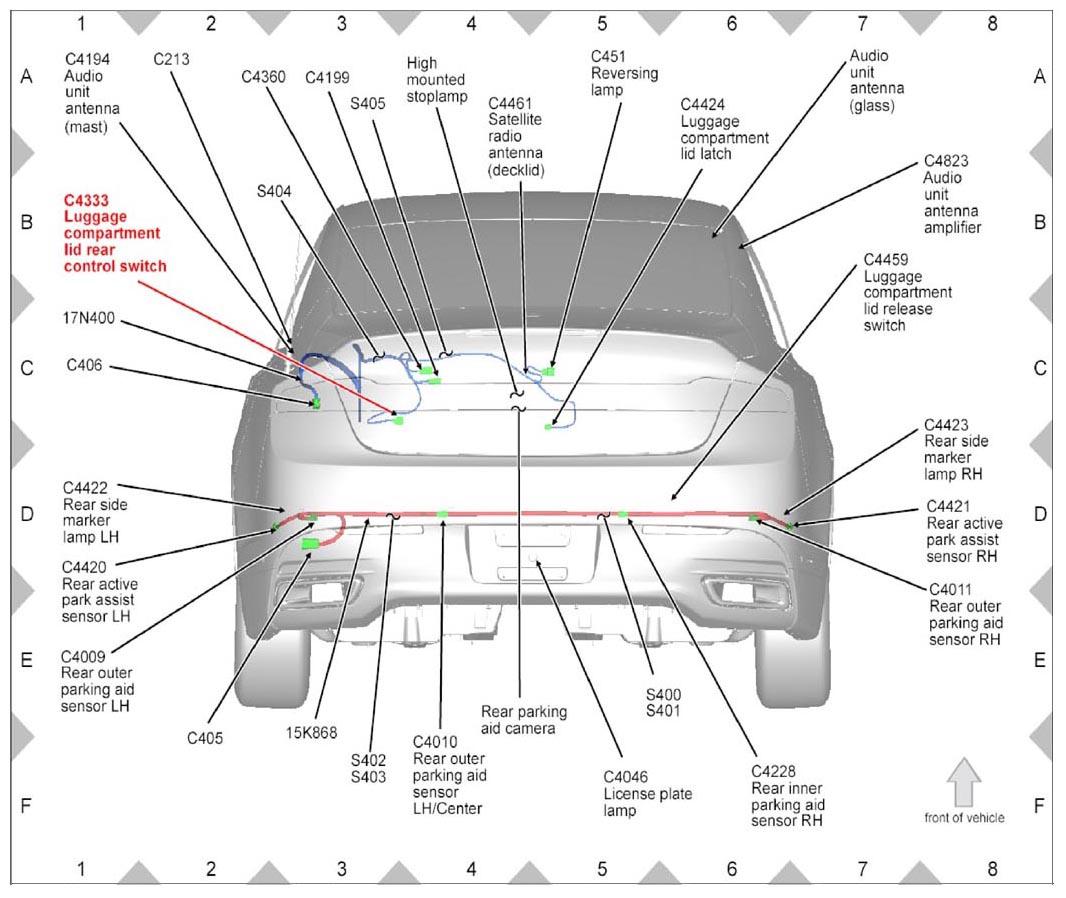

Fig 865: Identifying Luggage Compartment Lid Rear Control Switch Connector (C4333)

Courtesy of FORD MOTOR CO.

Fig 866: Identifying Luggage Compartment Lid Power Striker Motor Connector (C4339)

Courtesy of FORD MOTOR CO.

Fig 867: Identifying Active Torque Control Coupling Solenoid Connector (C4347) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 868: Identifying Active Torque Control Coupling Solenoid Connector (C4347) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 869: Identifying Connector (C4360) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 870: Identifying Connector (C4360) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 871: Identifying Side Obstacle Detection Control Module-Left Connector (C4369) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 872: Identifying Side Obstacle Detection Control Module-Left Connector (C4369) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 873: Identifying Side Obstacle Detection Control Module-Right Connector (C4370) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 874: Identifying Side Obstacle Detection Control Module-Right Connector (C4370) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 875: Identifying Splice Block 32 Connector (C4371)

Courtesy of FORD MOTOR CO.

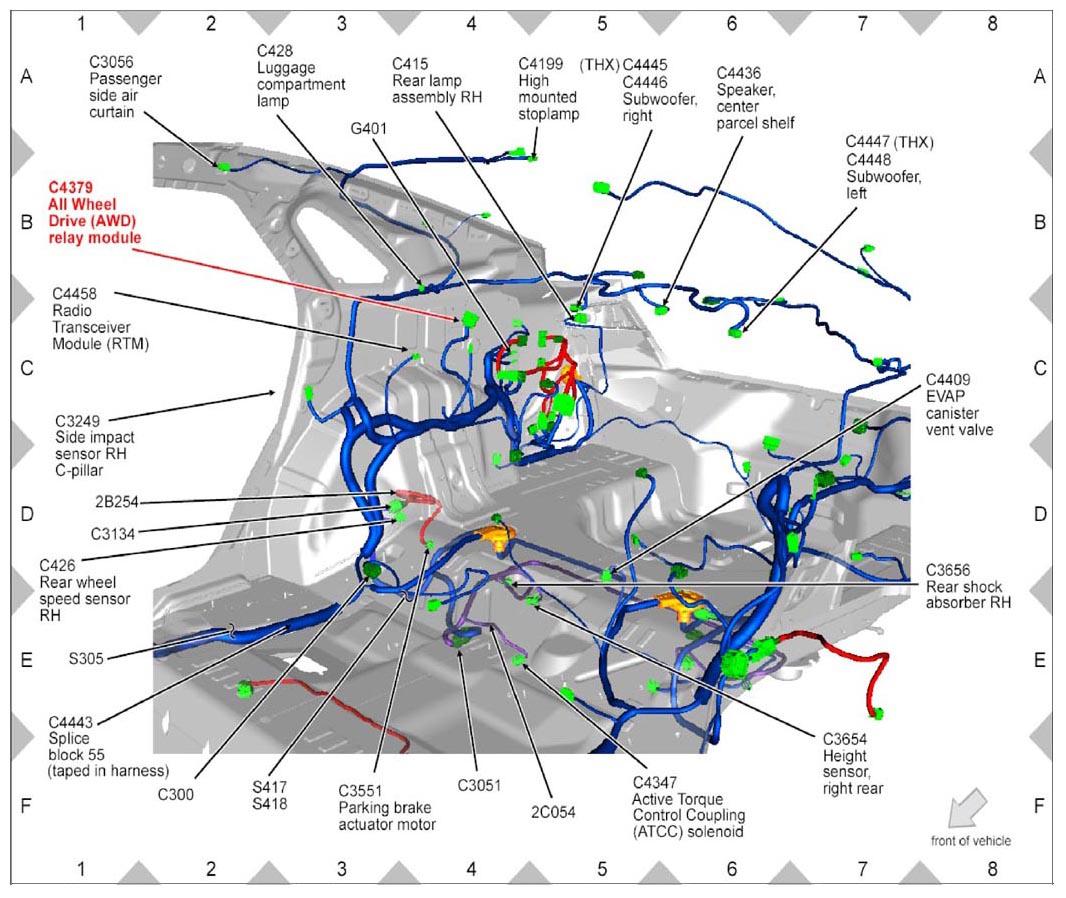

Fig 876: Identifying All Wheel Drive Relay Module Connector (C4379) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 877: Identifying All Wheel Drive Relay Module Connector (C4379) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 878: Identifying Splice Block 39 Connector (C4390)

Courtesy of FORD MOTOR CO.

Fig 879: Identifying Splice Block 41 Connector (C4395)

Courtesy of FORD MOTOR CO.

Fig 880: Identifying Vehicle Dynamics Module Connector (C4396C And C4396D)

Courtesy of FORD MOTOR CO.

Fig 881: Identifying Vehicle Dynamics Module Connector (C4396C And C4396D)

Courtesy of FORD MOTOR CO.

Fig 882: Identifying EVAP Canister Vent Valve Connector (C4409) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 883: Identifying EVAP Canister Vent Valve Connector (C4409) (MKZ)

Courtesy of FORD MOTOR CO.

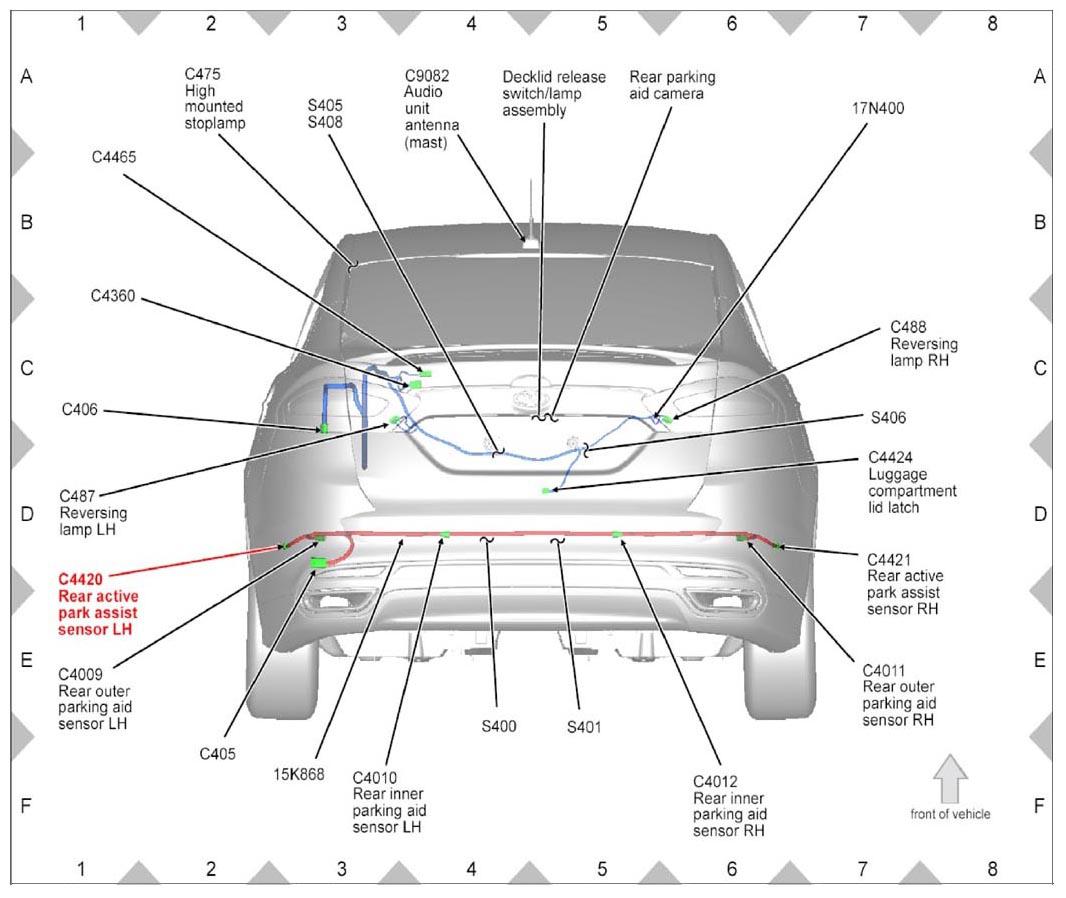

Fig 884: Identifying Rear Active Park Assist Sensor LH Connector (C4420) (Fusion)

Courtesy of FORD MOTOR CO.

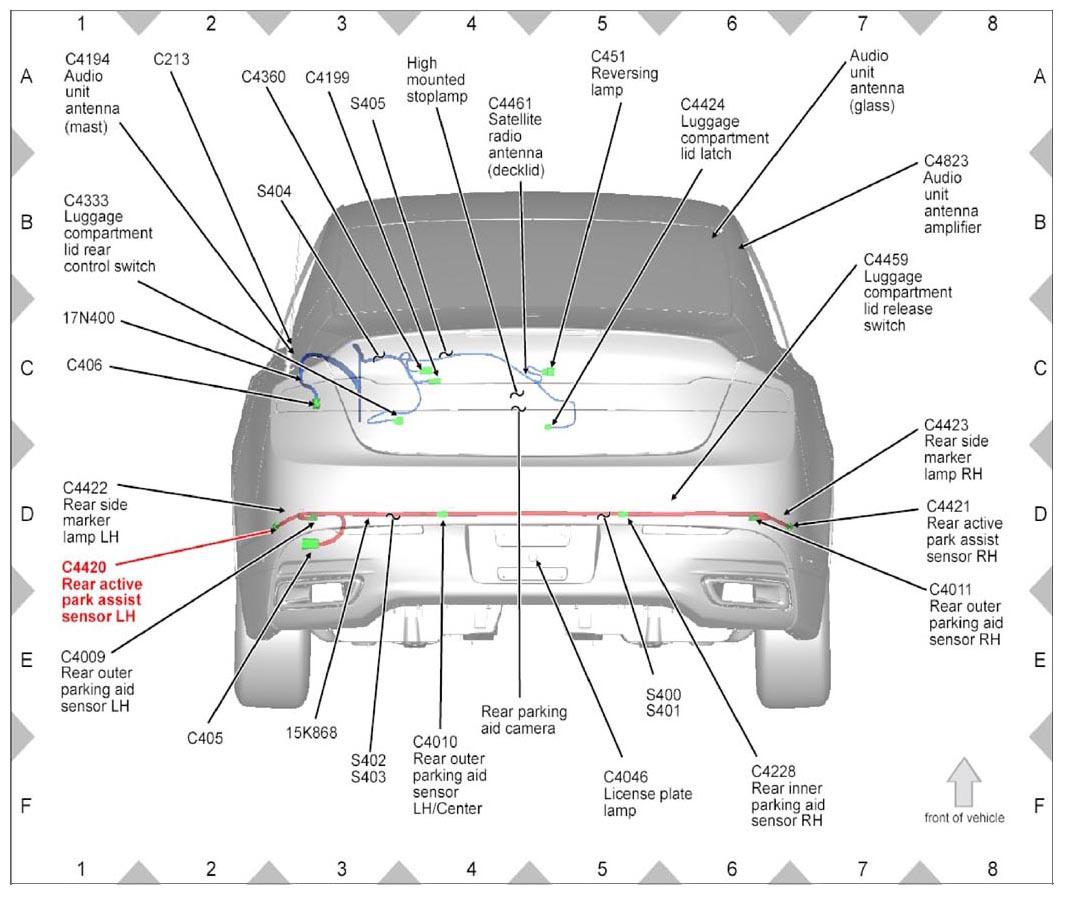

Fig 885: Identifying Rear Active Park Assist Sensor LH Connector (C4420) (MKZ)

Courtesy of FORD MOTOR CO.

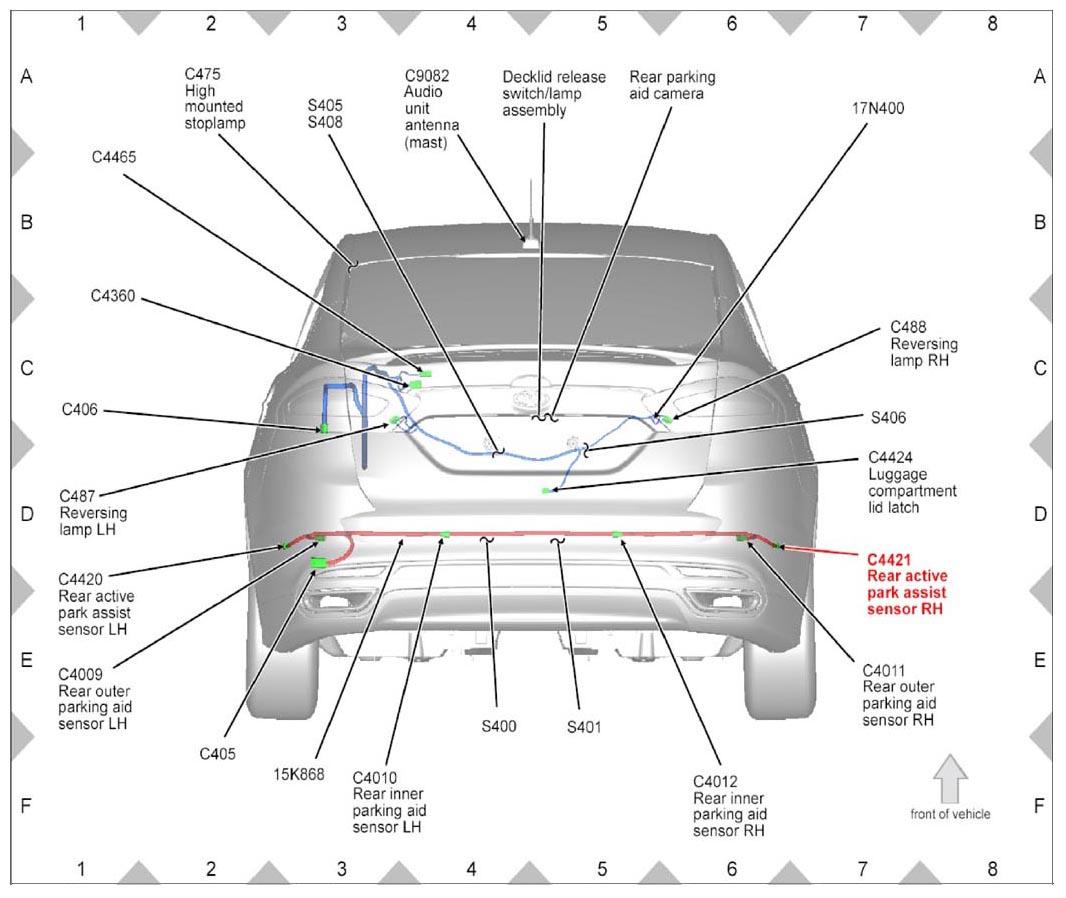

Fig 886: Identifying Rear Active Park Assist Sensor RH Connector (C4421) (Fusion)

Courtesy of FORD MOTOR CO.

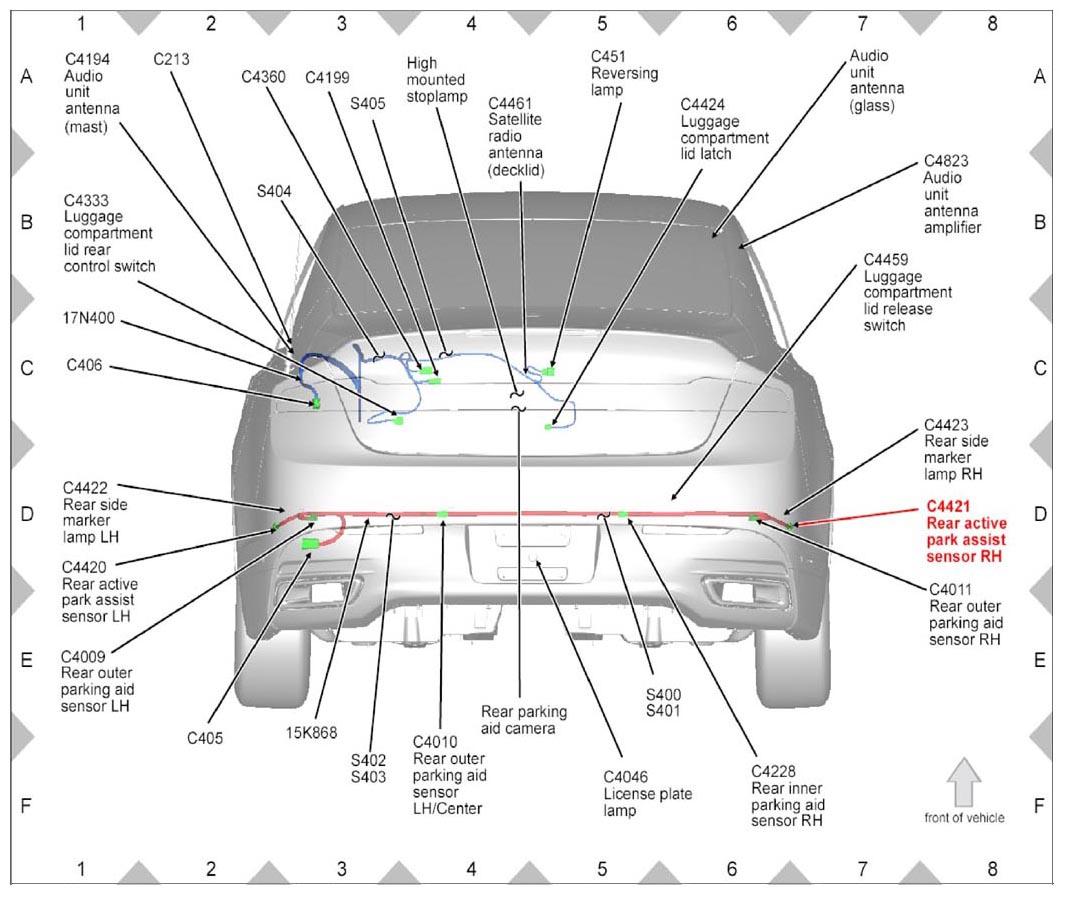

Fig 887: Identifying Rear Active Park Assist Sensor RH Connector (C4421) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 888: Identifying Rear Side Marker Lamp LH Connector (C4422)

Courtesy of FORD MOTOR CO.

Fig 889: Identifying Rear Side Marker Lamp RH Connector (C4423)

Courtesy of FORD MOTOR CO.

Fig 890: Identifying Luggage Compartment Lid Latch Connector (C4424) (Fusion)

Courtesy of FORD MOTOR CO.

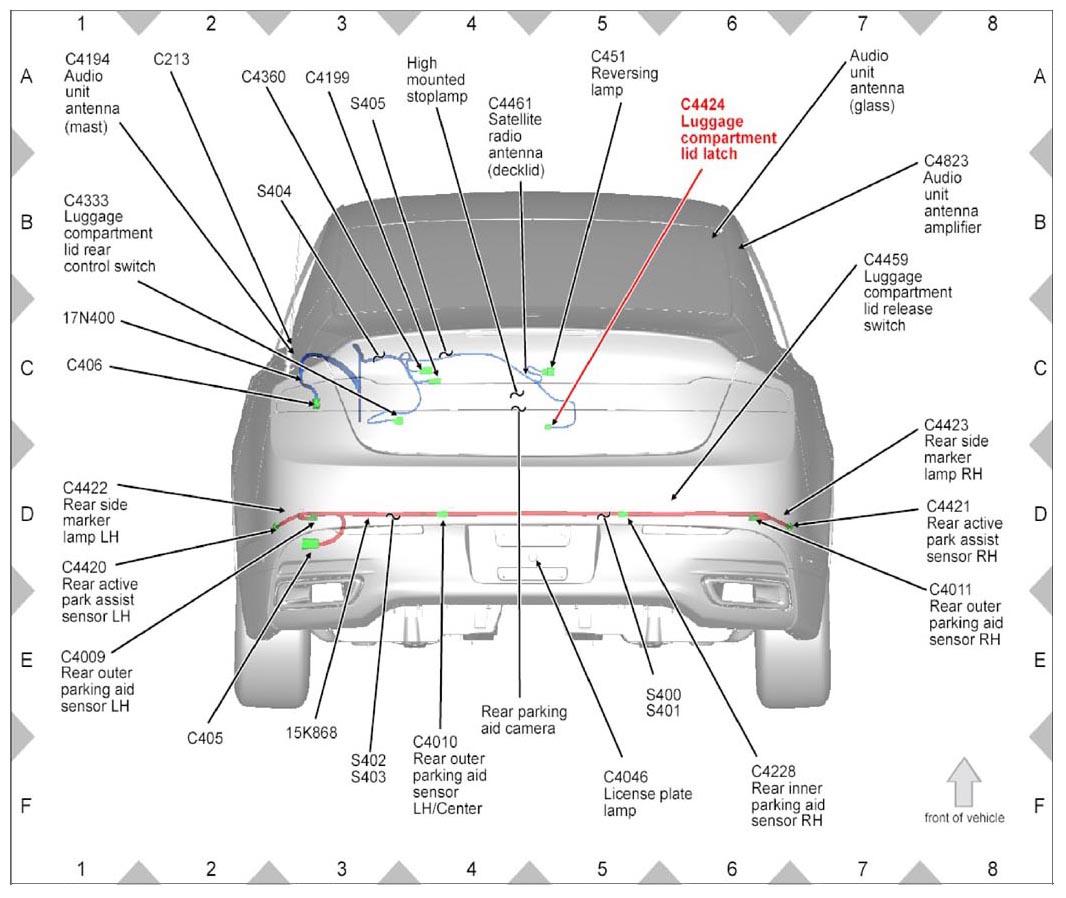

Fig 891: Identifying Luggage Compartment Lid Latch Connector (C4424) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 892: Identifying Speaker, Center Parcel Shelf Connector (C4436) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 893: Identifying Speaker, Center Parcel Shelf Connector (C4436) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 894: Identifying Splice Block 42 Connector (C4437)

Courtesy of FORD MOTOR CO.

Fig 895: Identifying Splice Block 43 Connector (C4438)

Courtesy of FORD MOTOR CO.

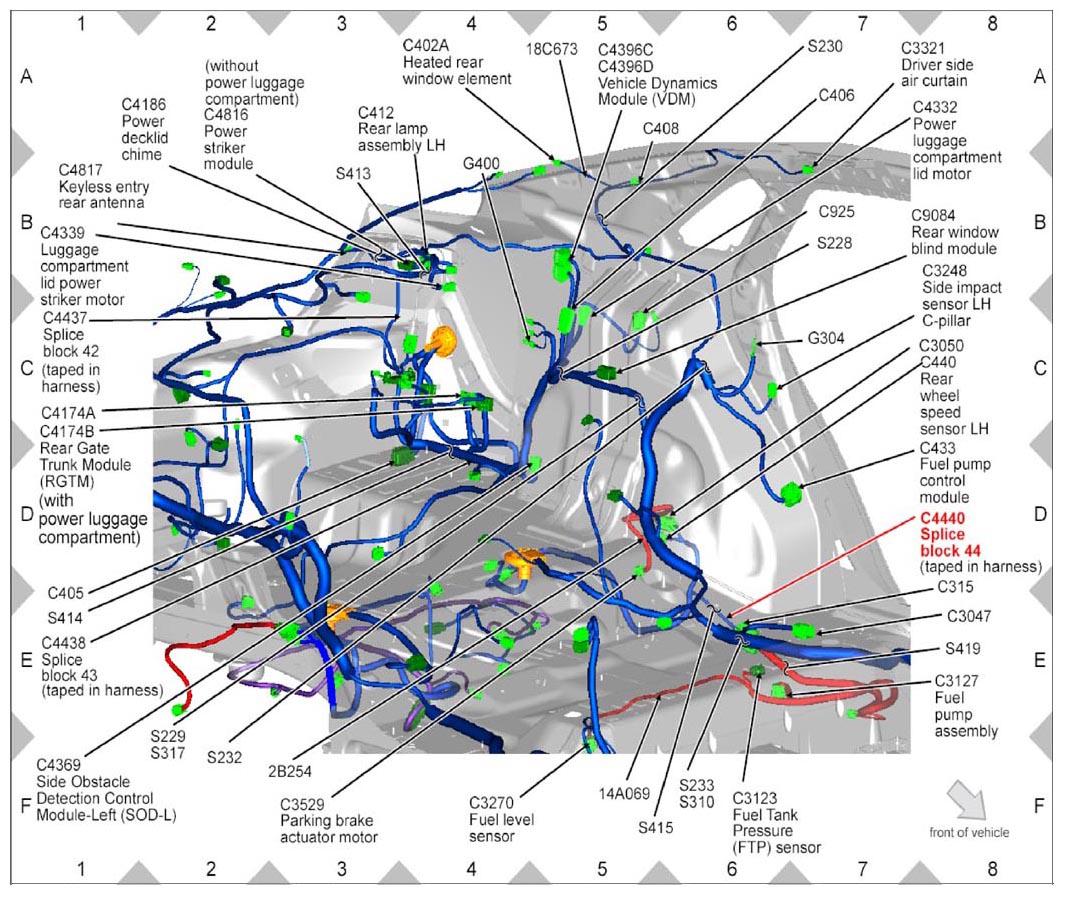

Fig 896: Identifying Splice Block 44 Connector (C4440)

Courtesy of FORD MOTOR CO.

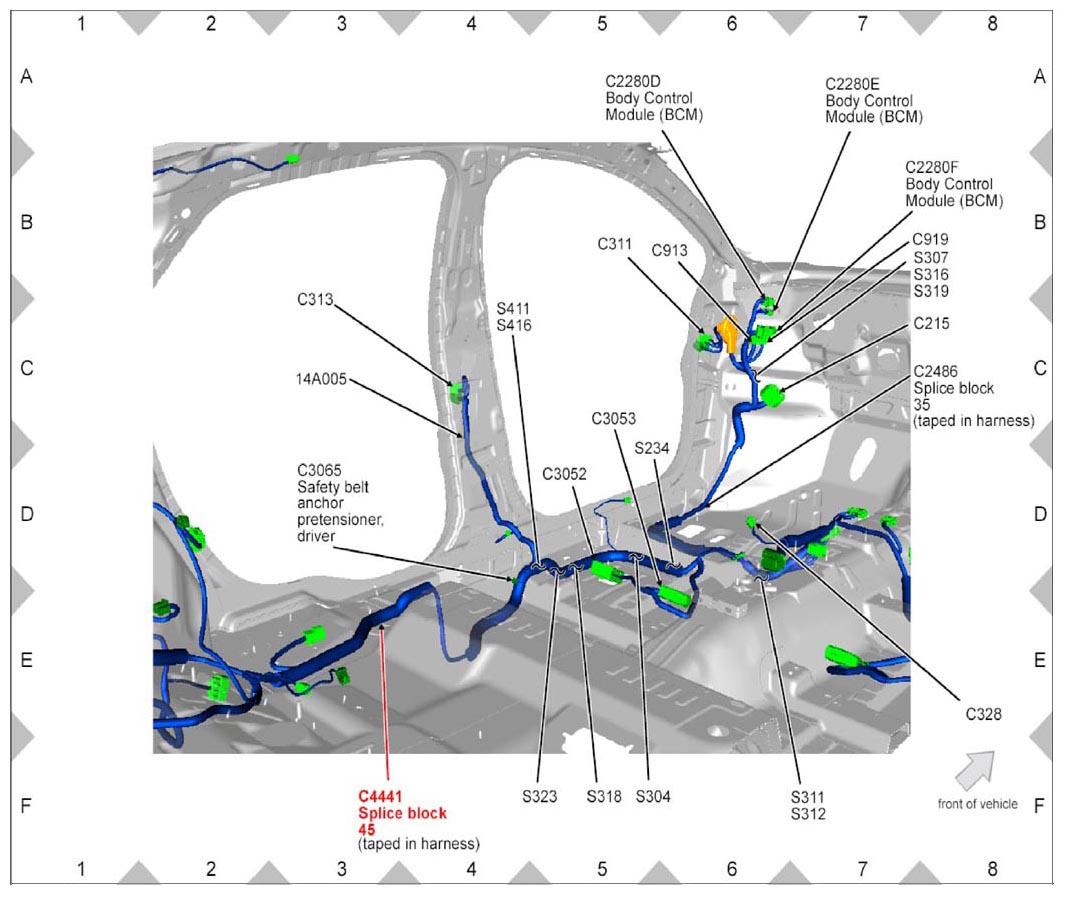

Fig 897: Identifying Splice Block 45 Connector (C4441)

Courtesy of FORD MOTOR CO.

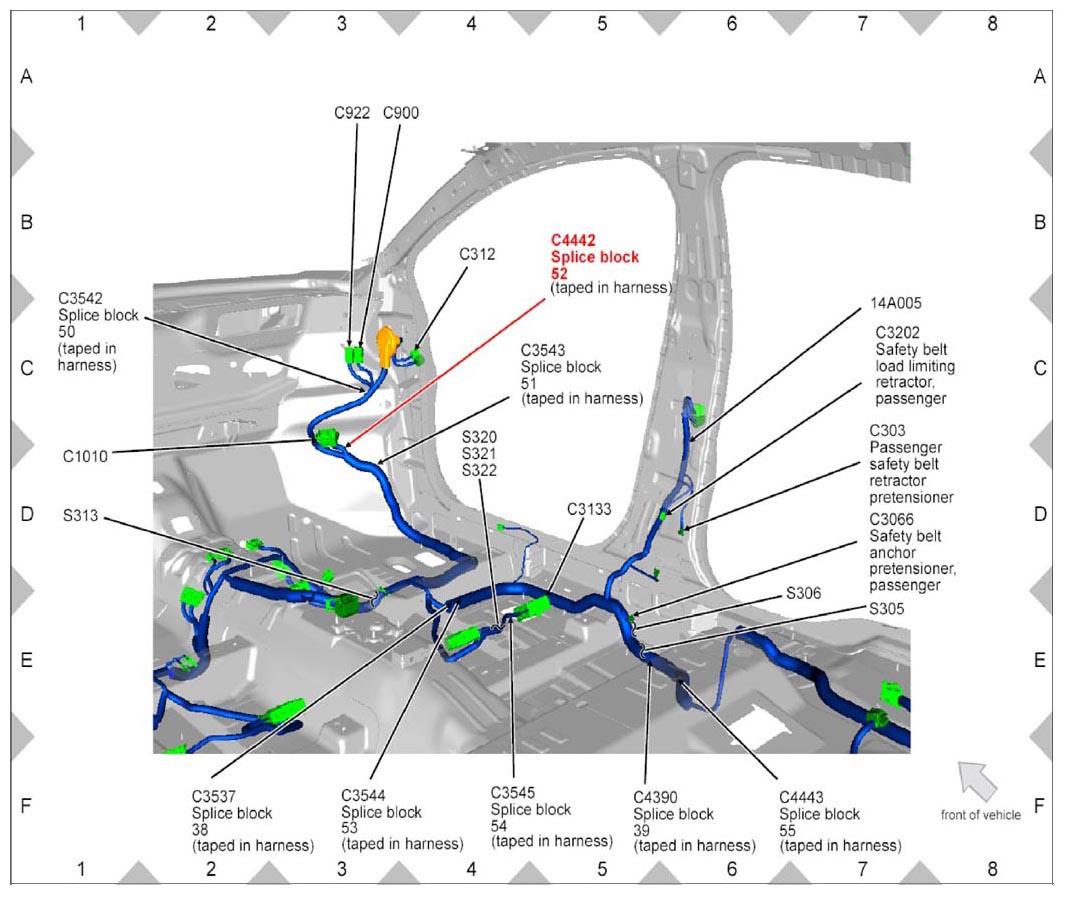

Fig 898: Identifying Splice Block 52 Connector (C4442)

Courtesy of FORD MOTOR CO.

Fig 899: Identifying Splice Block 55 Connector (C4443) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 900: Identifying Splice Block 55 Connector (C4443) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 901: Identifying Connector (C4445)

Courtesy of FORD MOTOR CO.

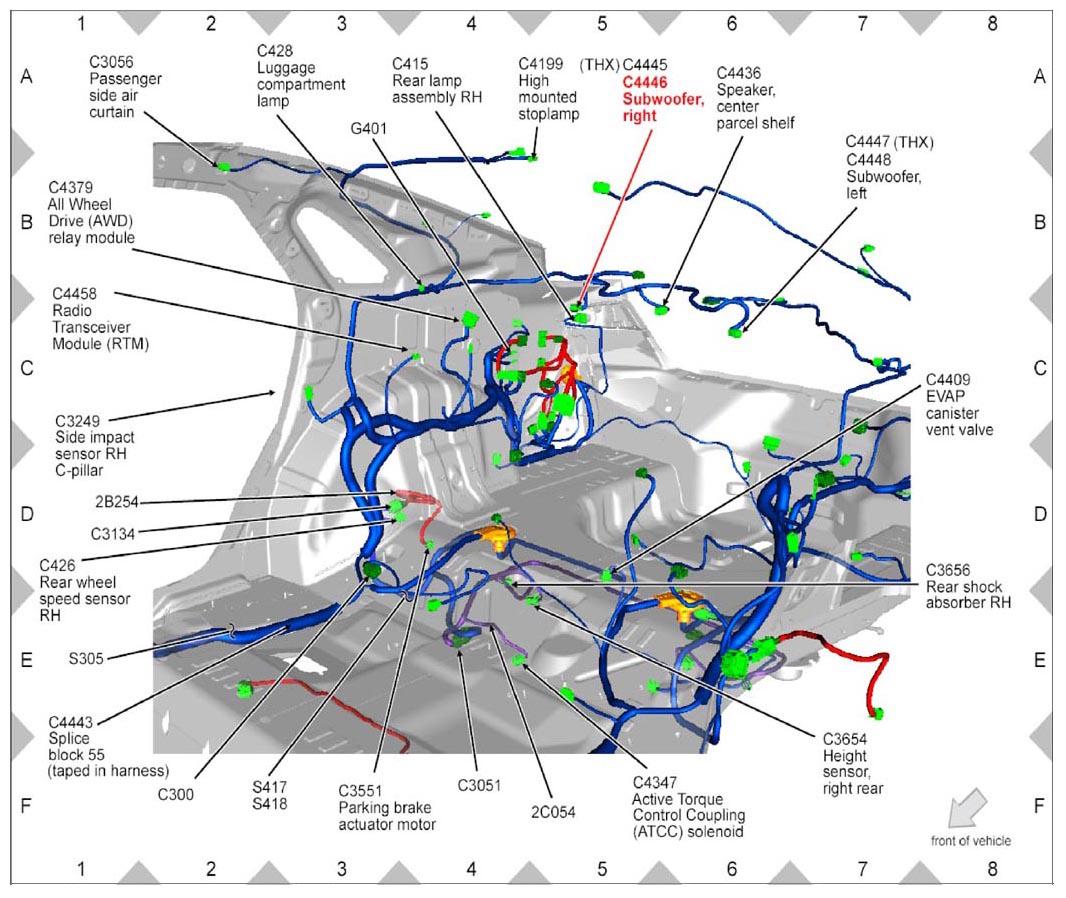

Fig 902: Identifying Subwoofer, Right Connector (C4446)

Courtesy of FORD MOTOR CO.

Fig 903: Identifying Connector (C4447)

Courtesy of FORD MOTOR CO.

Fig 904: Identifying Subwoofer, Left Connector (C4448)

Courtesy of FORD MOTOR CO.

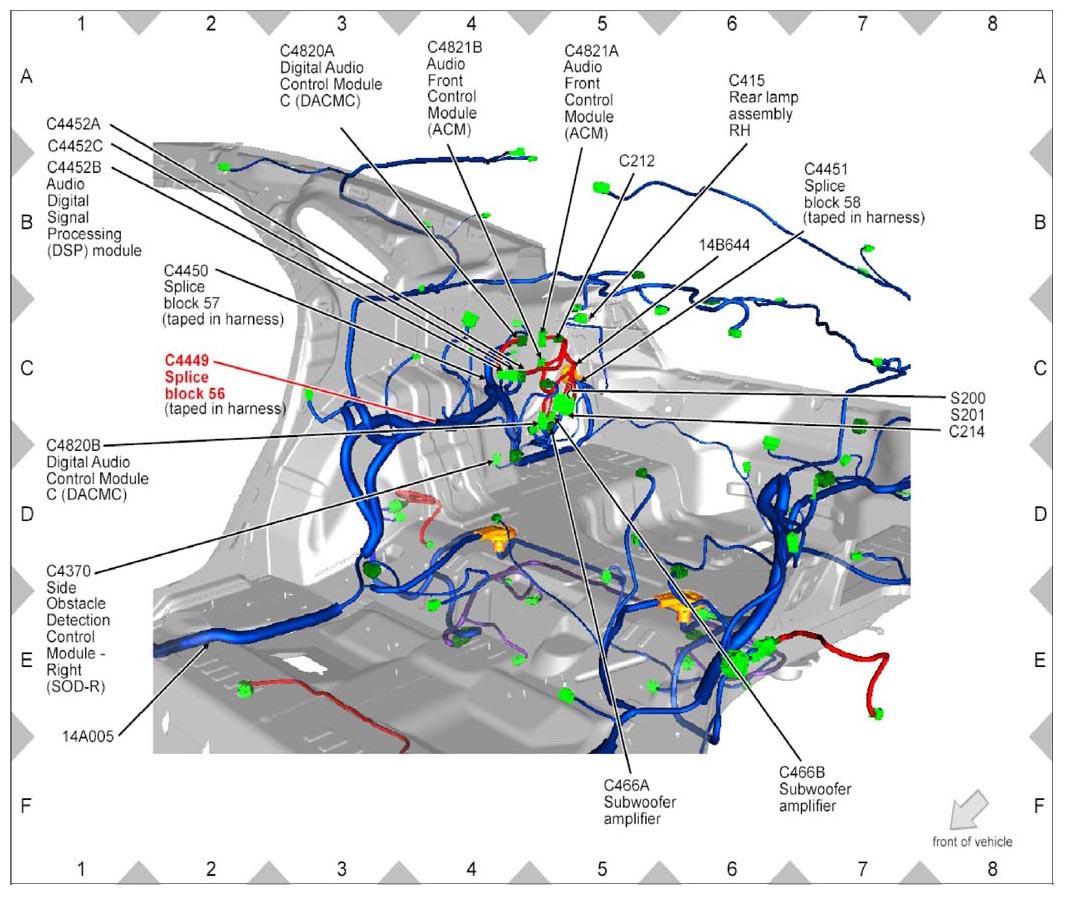

Fig 905: Identifying Splice Block 56 Connector (C4449)

Courtesy of FORD MOTOR CO.

Fig 906: Identifying Splice Block 57 Connector (C4450)

Courtesy of FORD MOTOR CO.

Fig 907: Identifying Splice Block 58 Connector (C4451)

Courtesy of FORD MOTOR CO.

Fig 908: Identifying Connector (C4452A)

Courtesy of FORD MOTOR CO.

Fig 909: Identifying Audio Digital Signal Processing Module Connector (C4452B)

Courtesy of FORD MOTOR CO.

Fig 910: Identifying Connector (C4452C)

Courtesy of FORD MOTOR CO.

Fig 911: Identifying Radio Transceiver Module Connector (C4458)

Courtesy of FORD MOTOR CO.

Fig 912: Identifying Luggage Compartment Lid Release Switch Connector (C4459)

Courtesy of FORD MOTOR CO.

Fig 913: Identifying Satellite Radio Antenna Connector (C4461)

Courtesy of FORD MOTOR CO.

Fig 914: Identifying EVAP Vapor Block Valve Connector (C4463)

Courtesy of FORD MOTOR CO.

Fig 915: Identifying Connector (C4465)

Courtesy of FORD MOTOR CO.

Fig 916: Identifying Power Striker Module Connector (C4816)

Courtesy of FORD MOTOR CO.

Fig 917: Identifying Keyless Entry Rear Antenna Connector (C4817)

Courtesy of FORD MOTOR CO.

Fig 918: Identifying Keyless Entry Rear Antenna Connector (C4817)

Courtesy of FORD MOTOR CO.

Fig 919: Identifying Digital Audio Control Module C Connector (C4820A)

Courtesy of FORD MOTOR CO.

Fig 920: Identifying Digital Audio Control Module C Connector (C4820B)

Courtesy of FORD MOTOR CO.

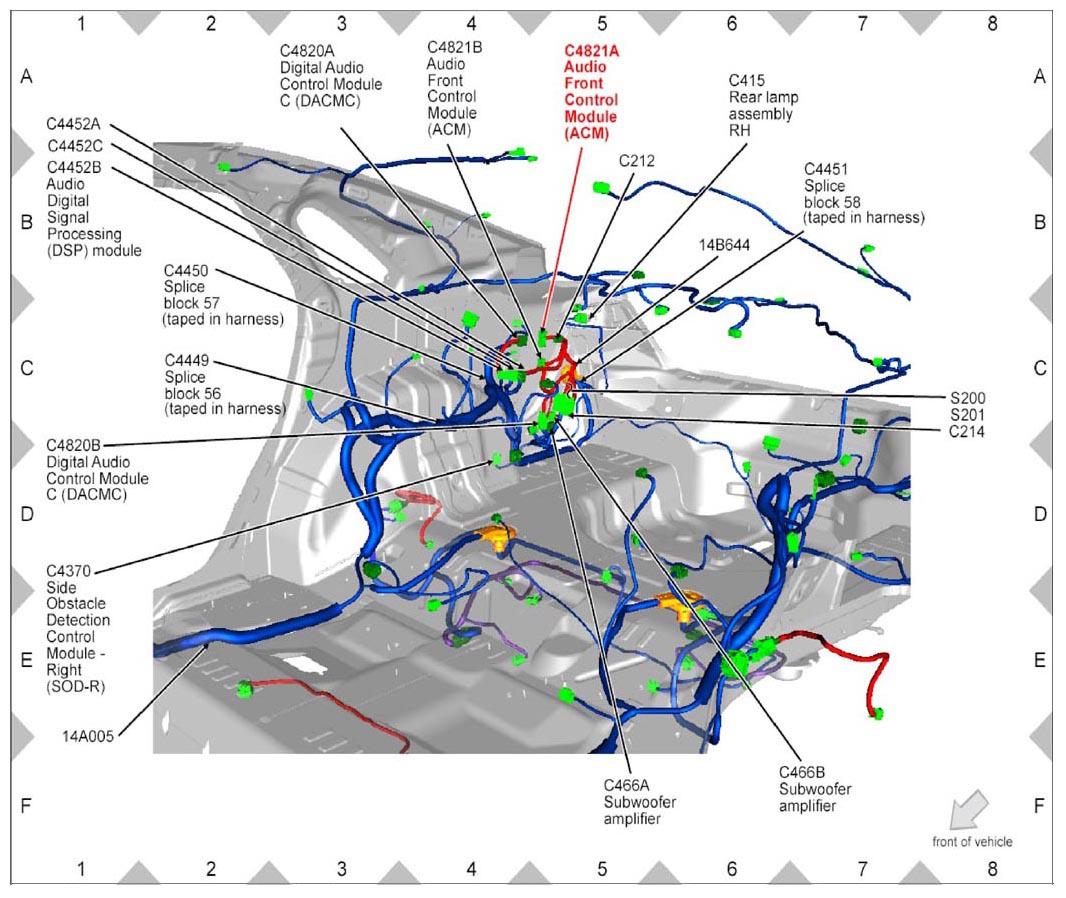

Fig 921: Identifying Audio Front Control Module Connector (C4821A)

Courtesy of FORD MOTOR CO.

Fig 922: Identifying Audio Front Control Module Connector (C4821B)

Courtesy of FORD MOTOR CO.

Fig 923: Identifying Audio Unit Antenna Amplifier Connector (C4823)

Courtesy of FORD MOTOR CO.

Fig 924: Identifying Auto-Dimming Interior Mirror Connector (C9012)

Courtesy of FORD MOTOR CO.

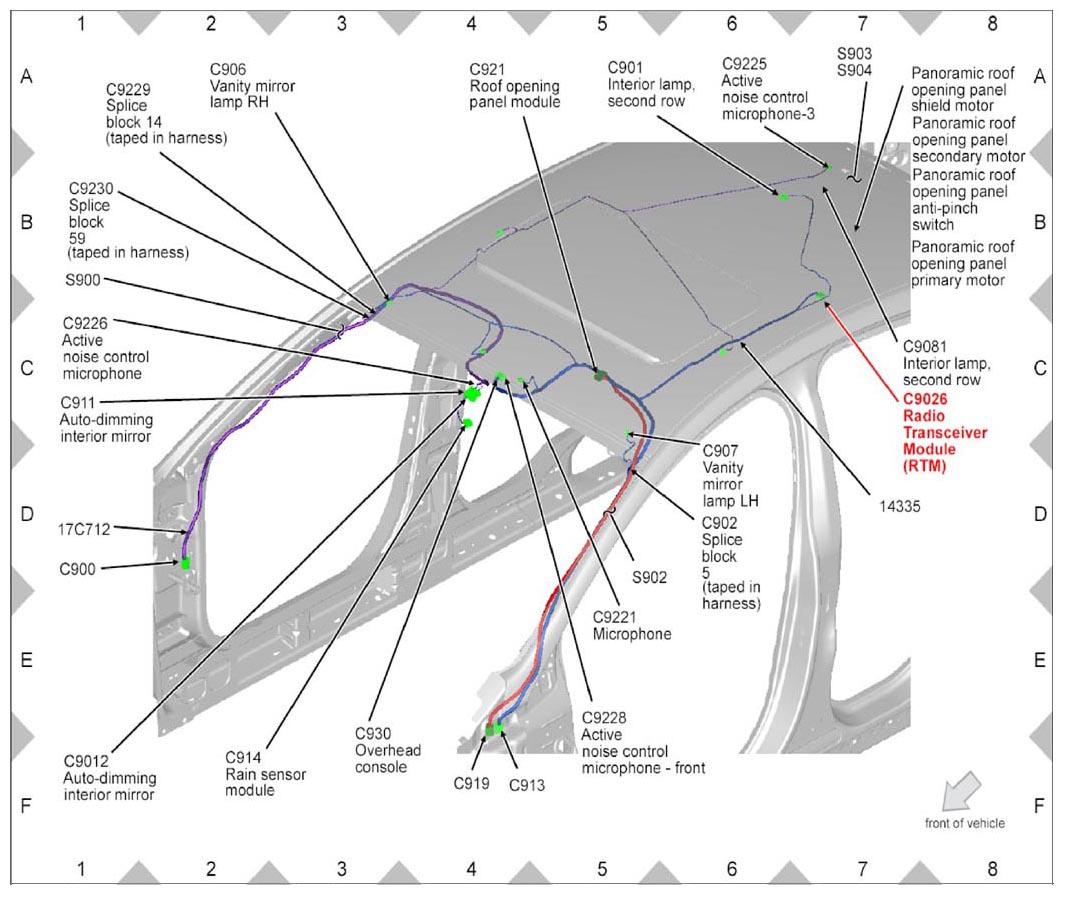

Fig 925: Identifying Radio Transceiver Module Connector (C9026)

Courtesy of FORD MOTOR CO.

Fig 926: Identifying Interior Lamp, Second Row Connector (C9081)

Courtesy of FORD MOTOR CO.

Fig 927: Identifying Audio Unit Antenna Connector (C9082)

Courtesy of FORD MOTOR CO.

Fig 928: Identifying Rear Window Blind Module Connector (C9084)

Courtesy of FORD MOTOR CO.

Fig 929: Identifying Microphone Connector (C9221)

Courtesy of FORD MOTOR CO.

Fig 930: Identifying Active Noise Control Microphone-3 Connector (C9225)

Courtesy of FORD MOTOR CO.

Fig 931: Identifying Active Noise Control Microphone Connector (C9226)

Courtesy of FORD MOTOR CO.

Fig 932: Identifying Active Noise Control Microphone - Front Connector (C9228)

Courtesy of FORD MOTOR CO.

Fig 933: Identifying Splice Block 14 Connector (C9229)

Courtesy of FORD MOTOR CO.

Fig 934: Identifying Splice Block 59 Connector (C9230)

Courtesy of FORD MOTOR CO.
