Parking Brake Actuator Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: JACKING AND LIFTING - OVERVIEW .
  2. G08637422
  3. NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

    Torque:  71 lb.in (8 Nm)

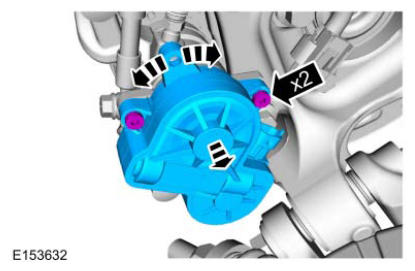

    G08633898

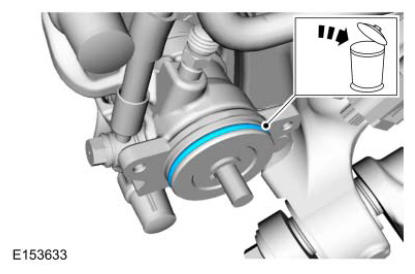

  4. G08633899

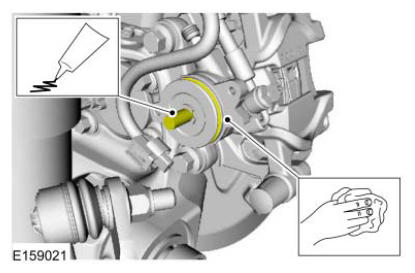

  5. G08633900
