Instrument Panel Upper Section: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
-
NOTE: The instrument panel must be removed from the vehicle prior to removing the instrument panel upper section.

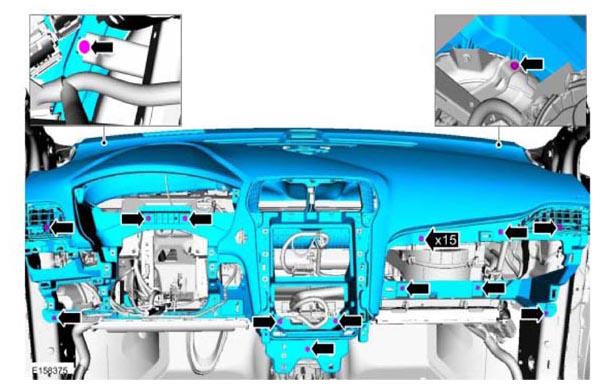

Remove the instrument panel.
Refer to: INSTRUMENT PANEL .

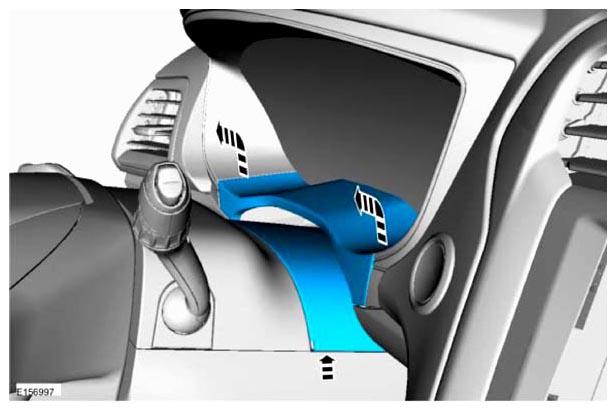

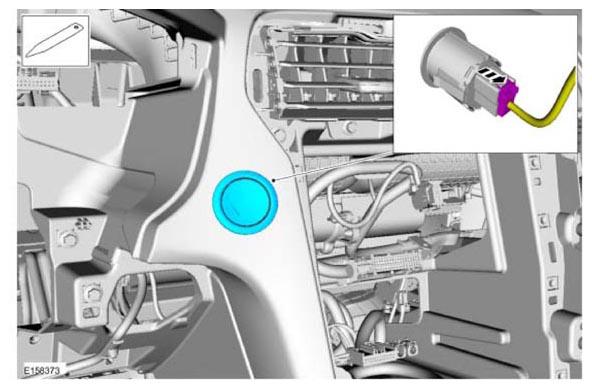

- Refer to: STEERING COLUMN .

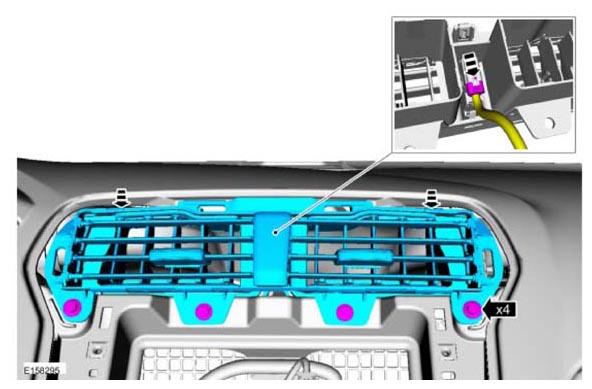

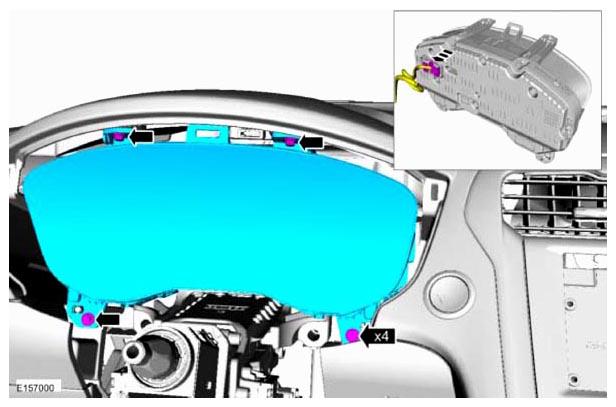

- Torque:
22 lb.in (2.5 Nm)
- Torque:
22 lb.in (2.5 Nm)

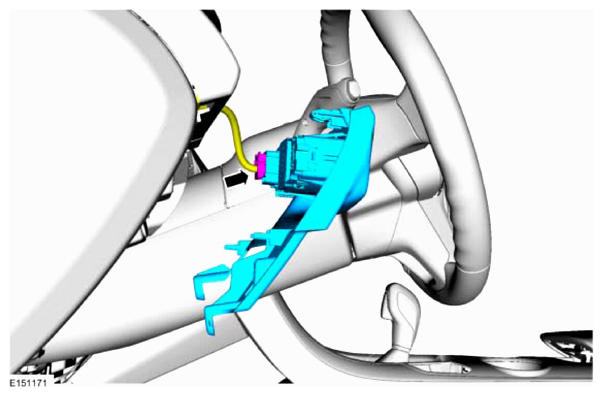

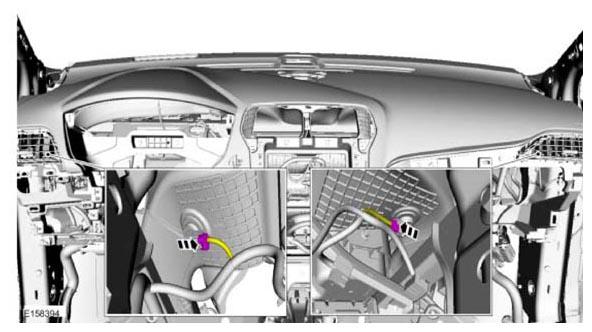

- Torque:
27 lb.in (3 Nm)
- Remove the FCDIM
or the FDIM
.
Vehicles With: SYNC/AM/FM/CD Refer to: FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM) .
Vehicles With: SYNC/Touchscreen Display/AM/FM/CD Refer to: FRONT DISPLAY INTERFACE MODULE (FDIM) .
Vehicles With: Sony Audio System/SYNC/AM/FM/CD Refer to: FRONT DISPLAY INTERFACE MODULE (FDIM) .
- If equipped.
- Remove the ACM
.
Vehicles With: SYNC/AM/FM/CD Refer to: AUDIO FRONT CONTROL MODULE (ACM) .
Vehicles With: SYNC/Touchscreen Display/AM/FM/CD Refer to: AUDIO FRONT CONTROL MODULE (ACM) .
Vehicles With: Sony Audio System/SYNC/AM/FM/CD Refer to: AUDIO FRONT CONTROL MODULE (ACM) .

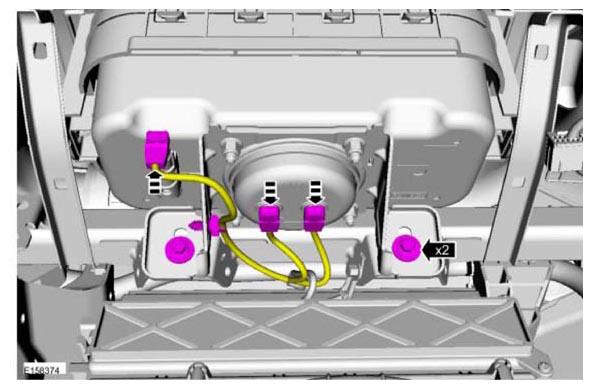

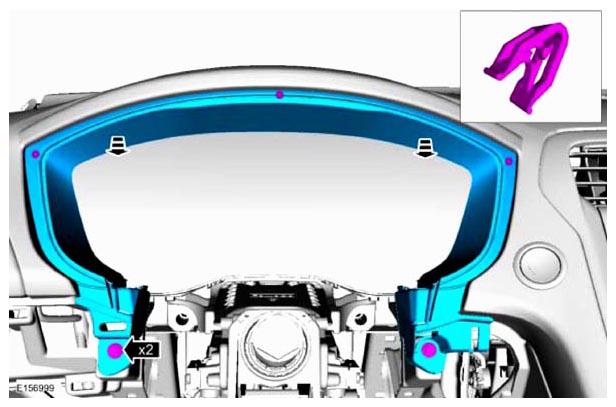

- Torque:
22 lb.in (2.5 Nm)
- Torque:
22 lb.in (2.5 Nm)
- Torque:
93 lb.in (10.5 Nm)

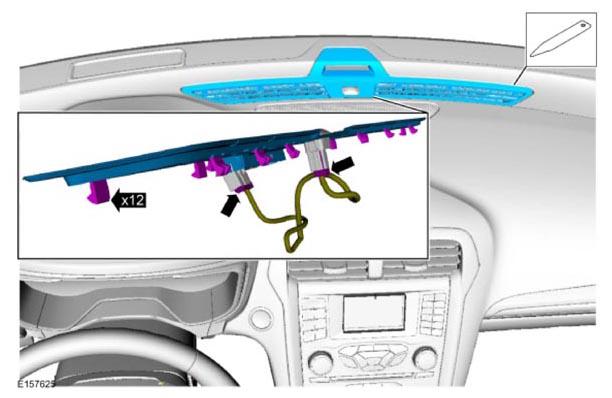

- If equipped.
Vehicles With: Sony Audio System/SYNC/AM/FM/CD Refer to: INSTRUMENT PANEL CENTER SPEAKER .

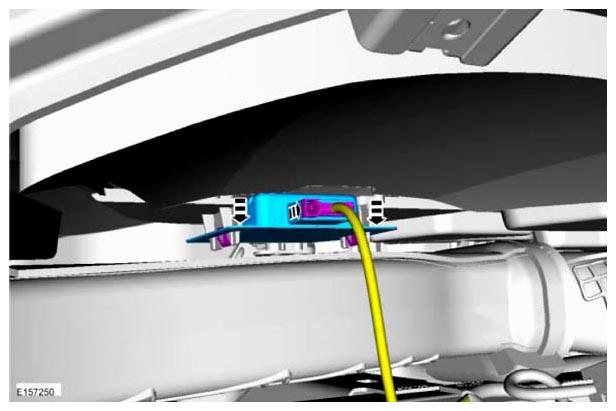

- Refer to: HEAD UP DISPLAY (HUD) MODULE .

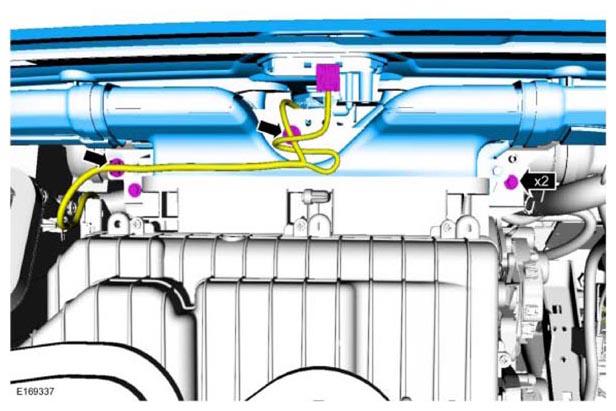

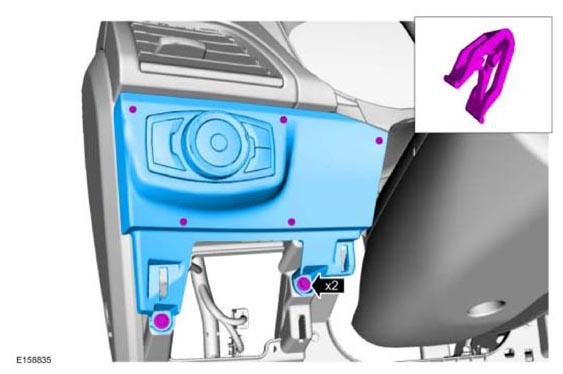

- Torque:
22 lb.in (2.5 Nm)
