Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment

WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

1.

Refer to: Health and Safety Precautions .

2.

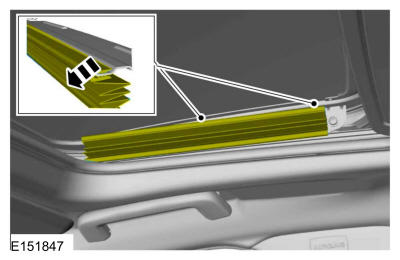

On both sides. Detach the top portion of the roof opening panel blind and fold it down to get access to the roof opening panel glass retainers.

GFD69830

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Roof opening panel blind removed for clarity.

On both sides. Loosen the retainers for adjustment.

GFD69831

Courtesy of FORD MOTOR COMPANY

4.

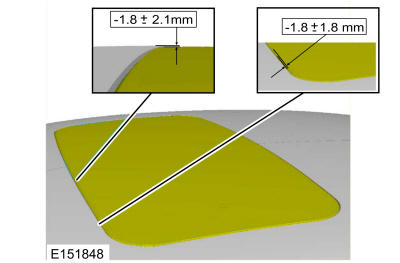

Measure and if necessary, adjust the front sliding glass panel to roof and roof height at the front of the glass as shown.
- Center line -1.8 +/- 2.1mm
- Outboard line -1.8 +/- 1.8mm

GFD69832

Courtesy of FORD MOTOR COMPANY

5.

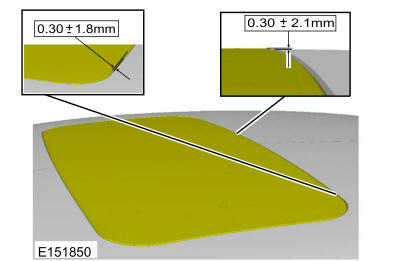

Measure and if necessary, adjust the front sliding glass panel to roof and roof height at the rear of the glass as shown.
- Outboard line 0.30 +/- 1.8mm
- Center line 0.30 +/- 2.1mm

GFD69833

Courtesy of FORD MOTOR COMPANY

6.

On Both sides. Tighten the retainers.
Torque: 53 lb.in (6 Nm)

GFD69831

Courtesy of FORD MOTOR COMPANY

7.

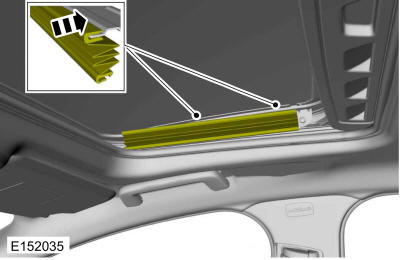

On Both sides. Attach the top portion of the roof opening panel blind to the drip link.

GFD69834

Courtesy of FORD MOTOR COMPANY

8.

Initialize the power roof opening panel. Refer to: Power Roof Opening Panel Initialization .
