WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

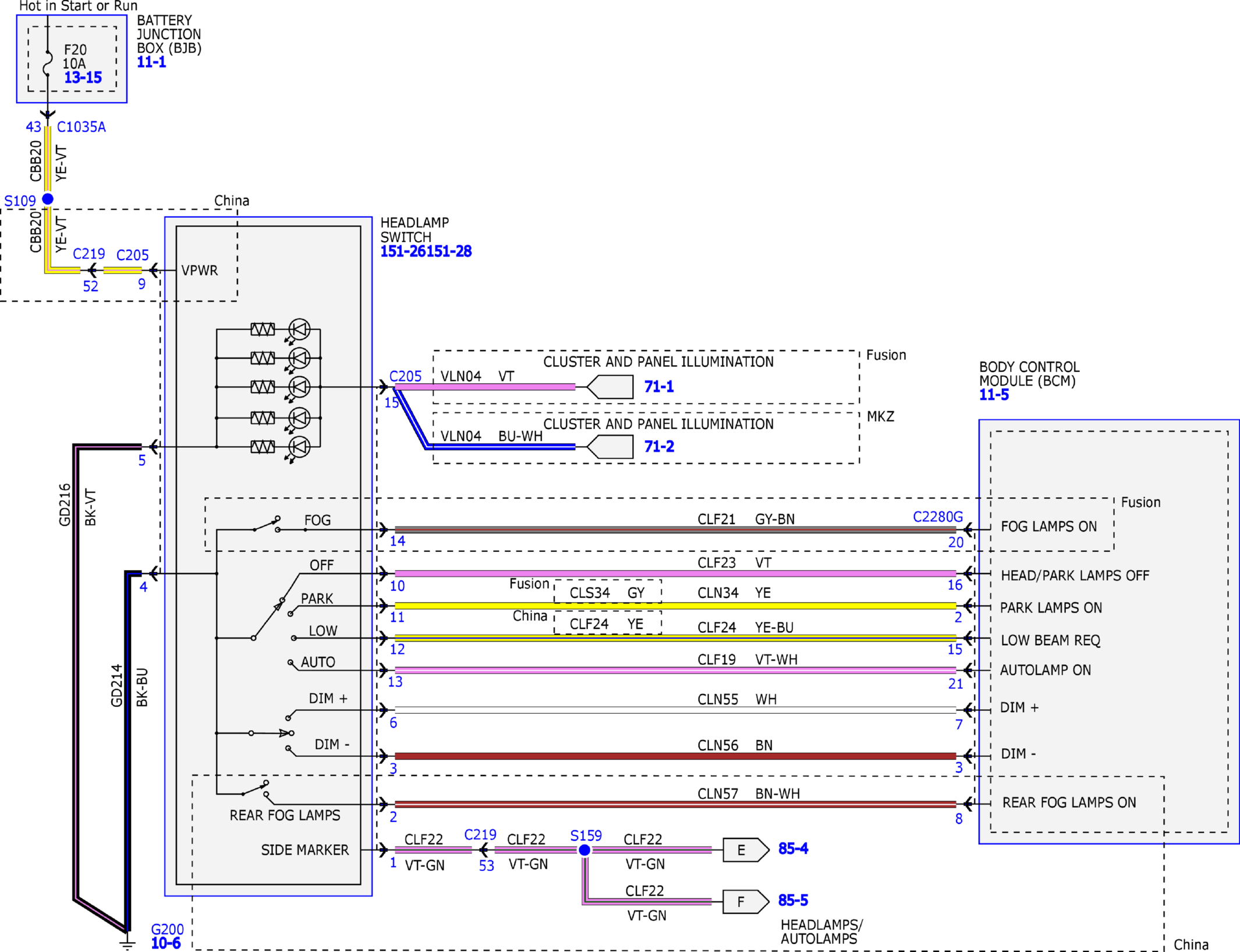

Fig 1: Headlamps/Autolamps Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY

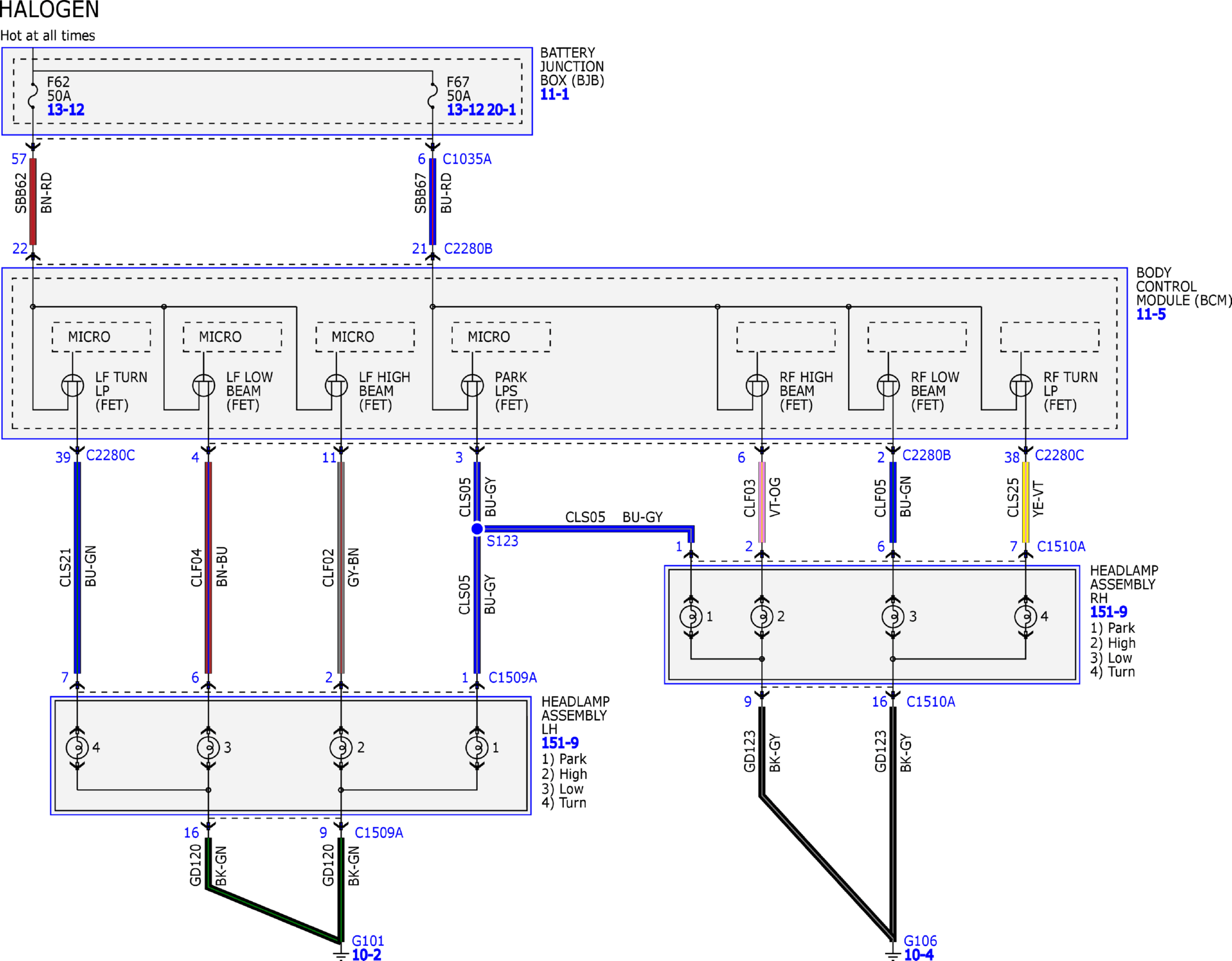

Fig 2: Headlamps/Autolamps Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY

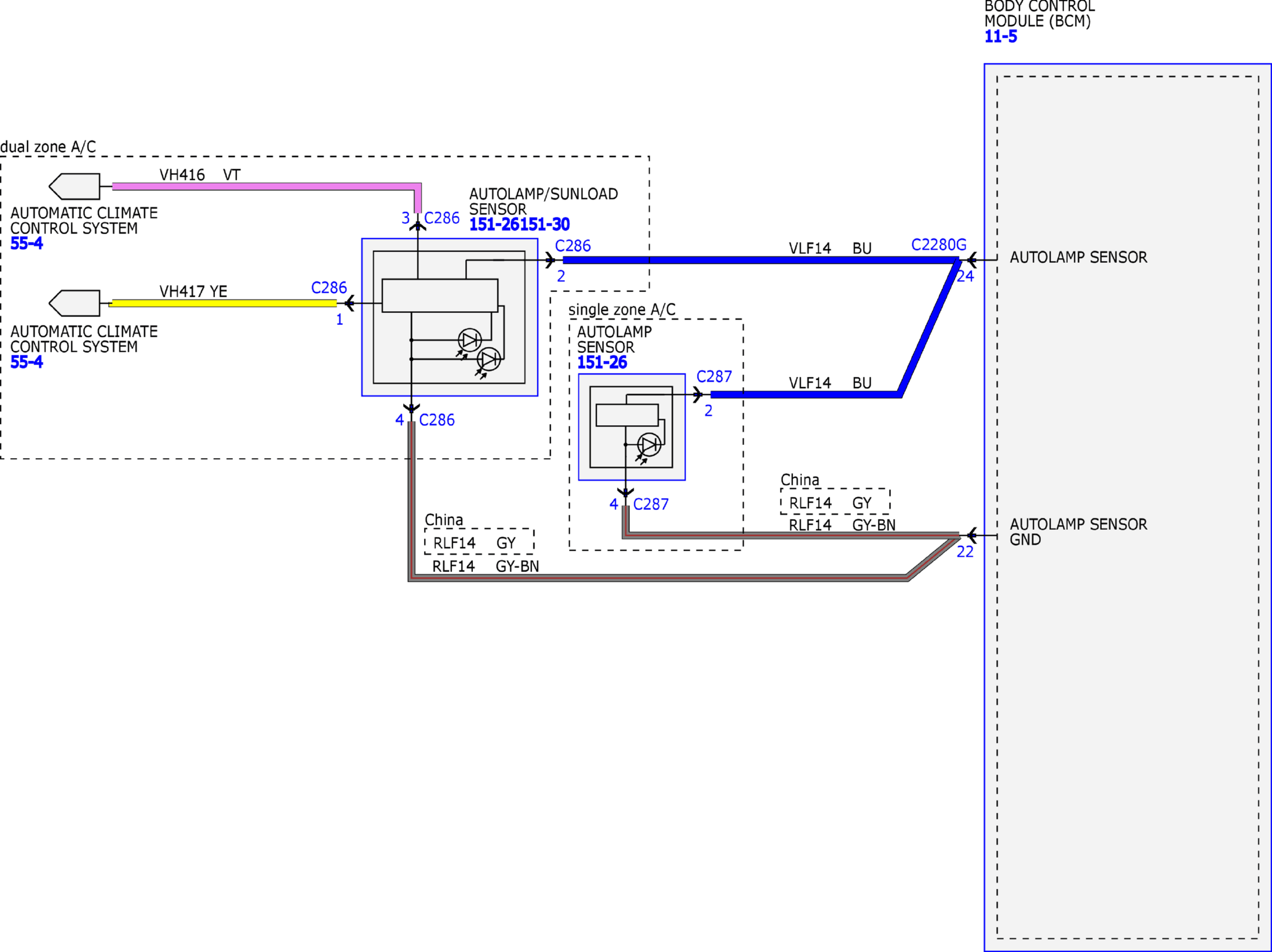

Fig 3: Headlamps/Autolamps Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY

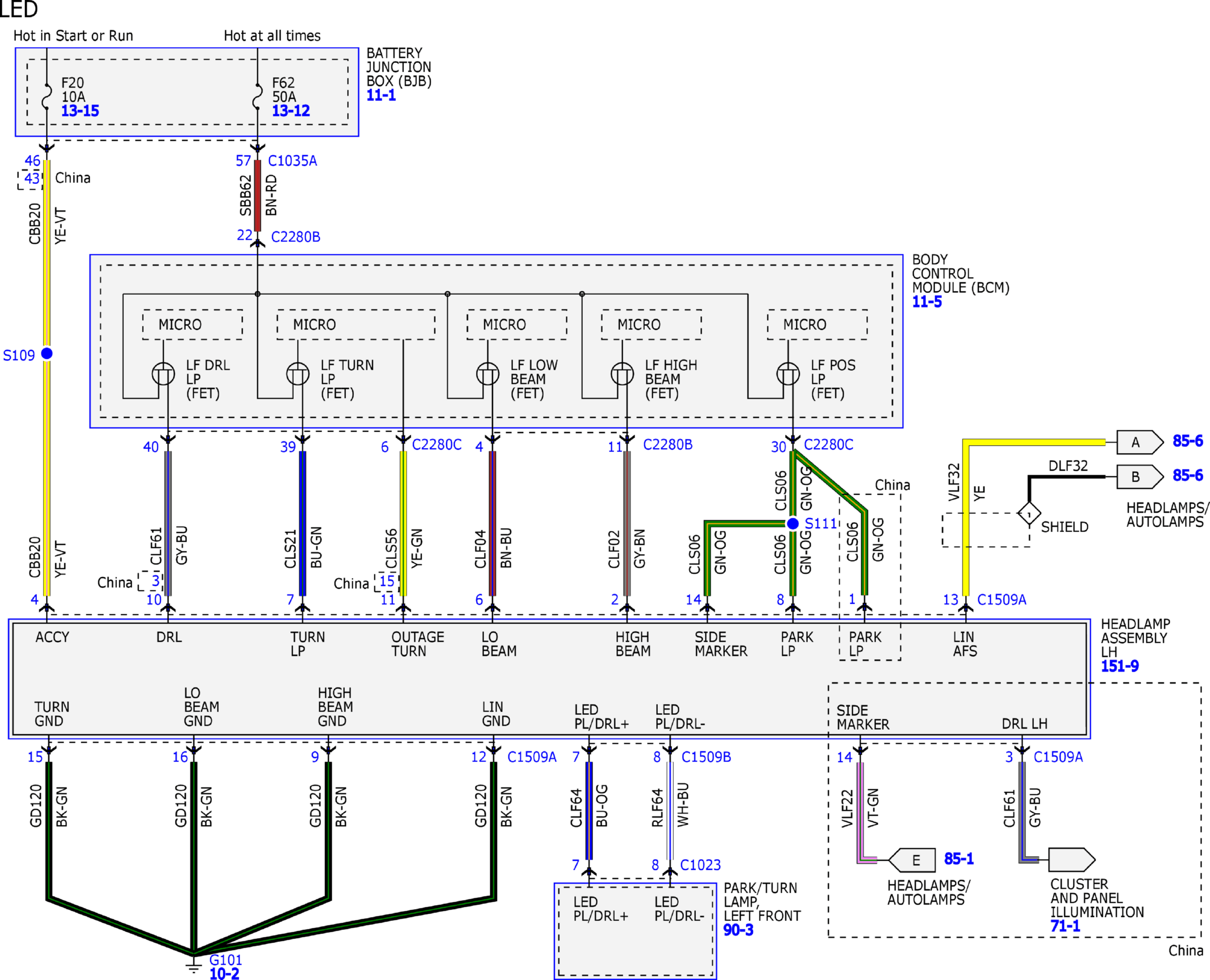

Fig 4: Headlamps/Autolamps Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY

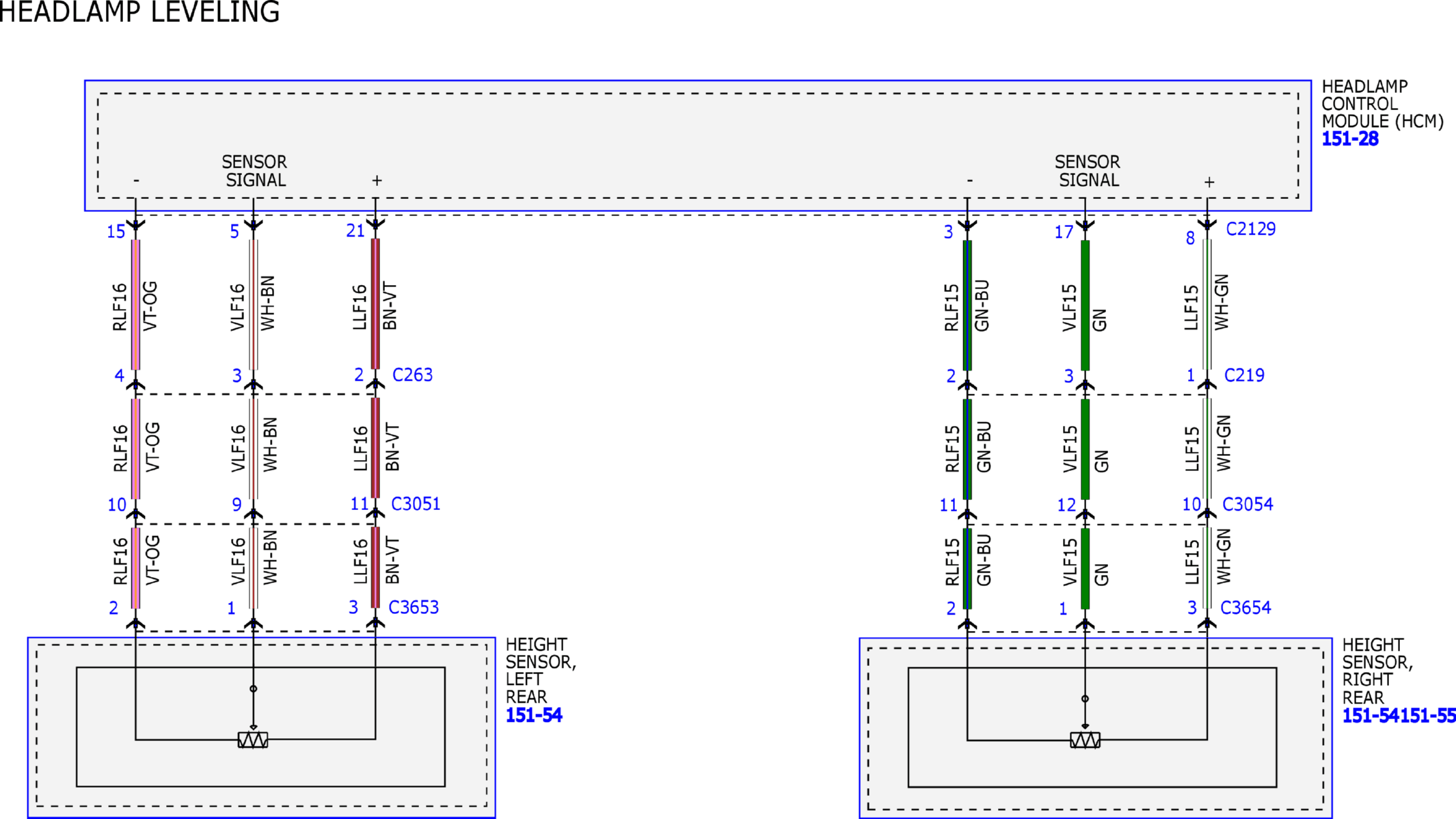

Fig 5: Headlamps/Autolamps Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY

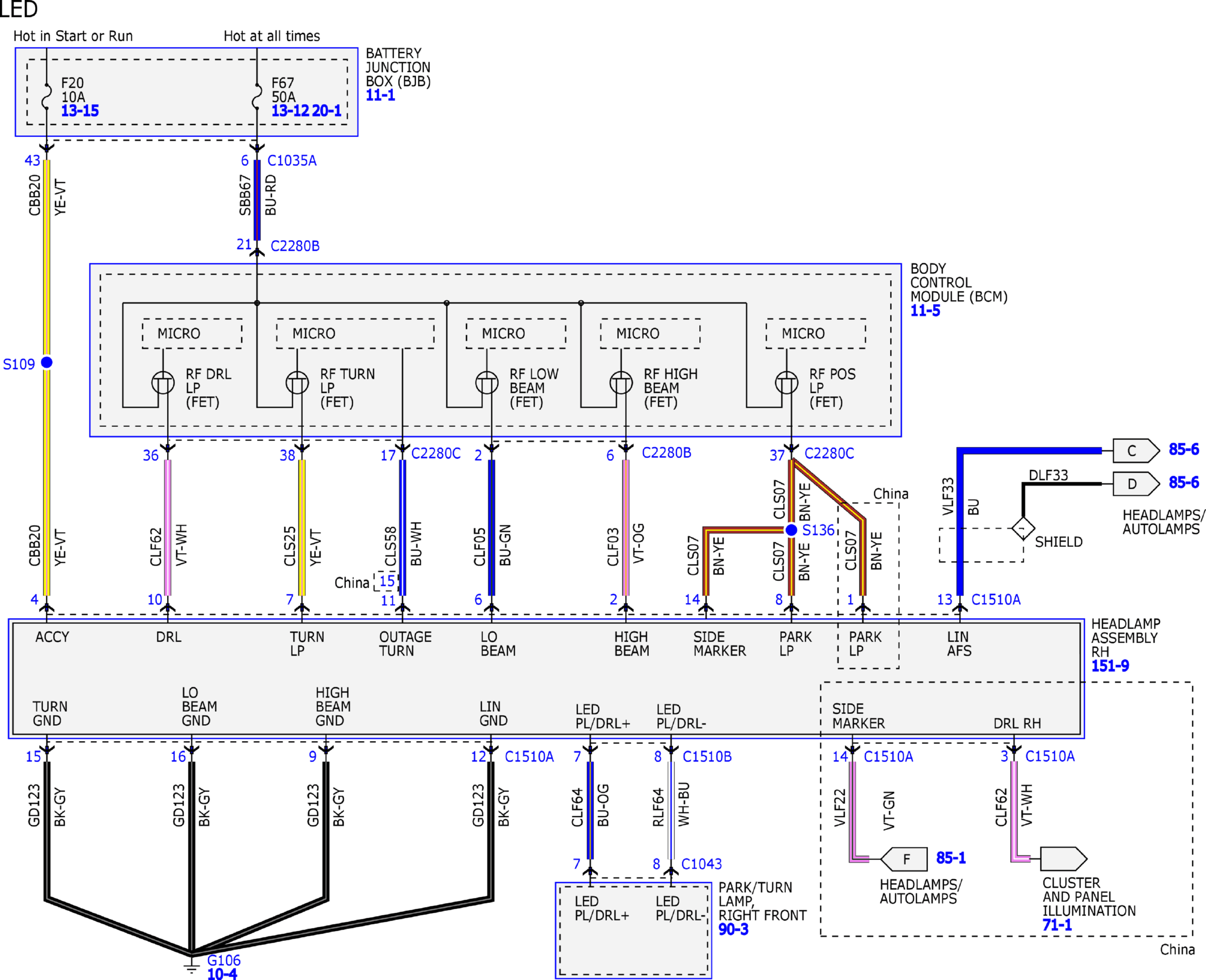

Fig 6: Headlamps/Autolamps Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY

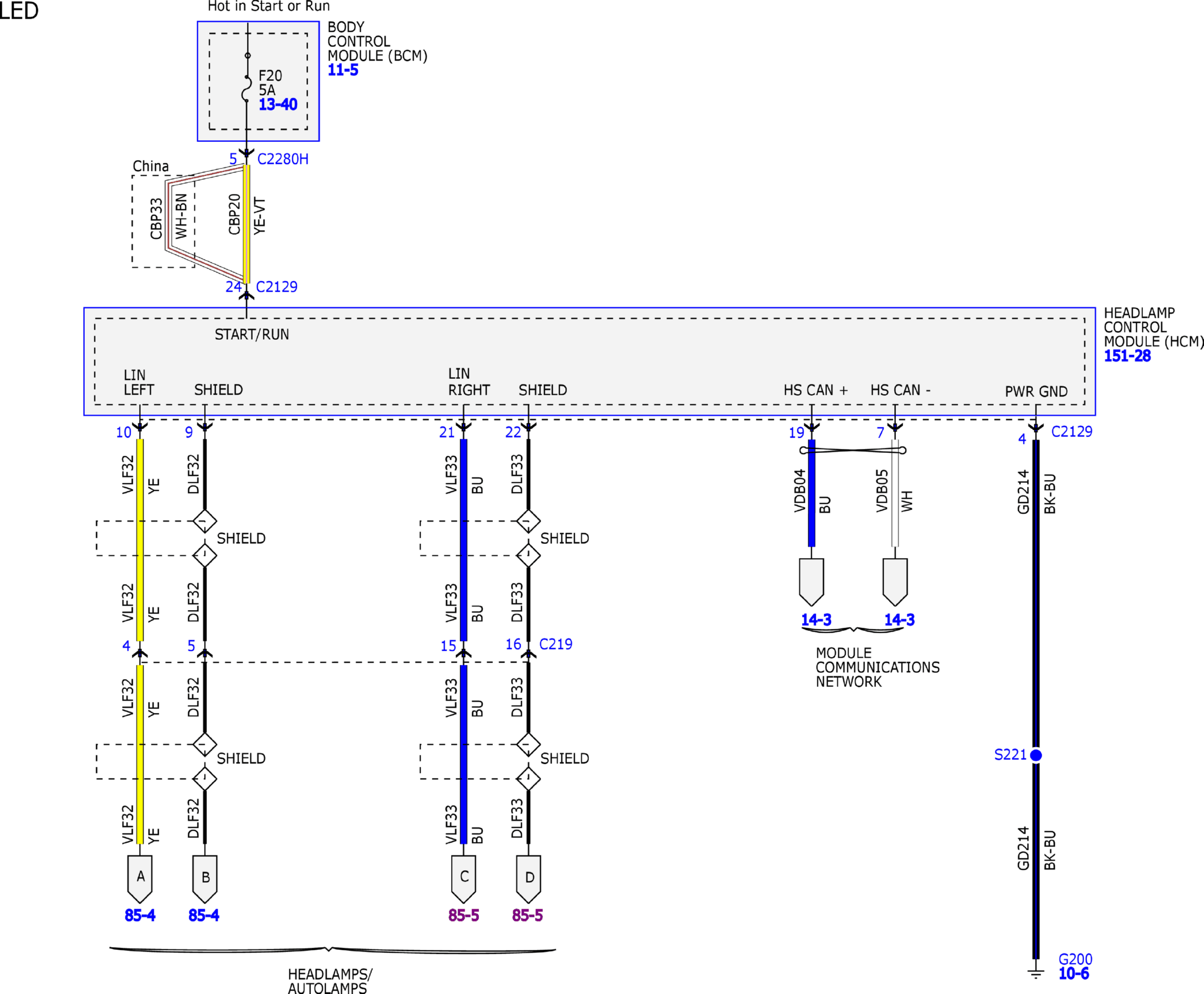

Fig 7: Headlamps/Autolamps Wiring Diagram (7 of 7)
