Electronic Engine Controls - 1.5L

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

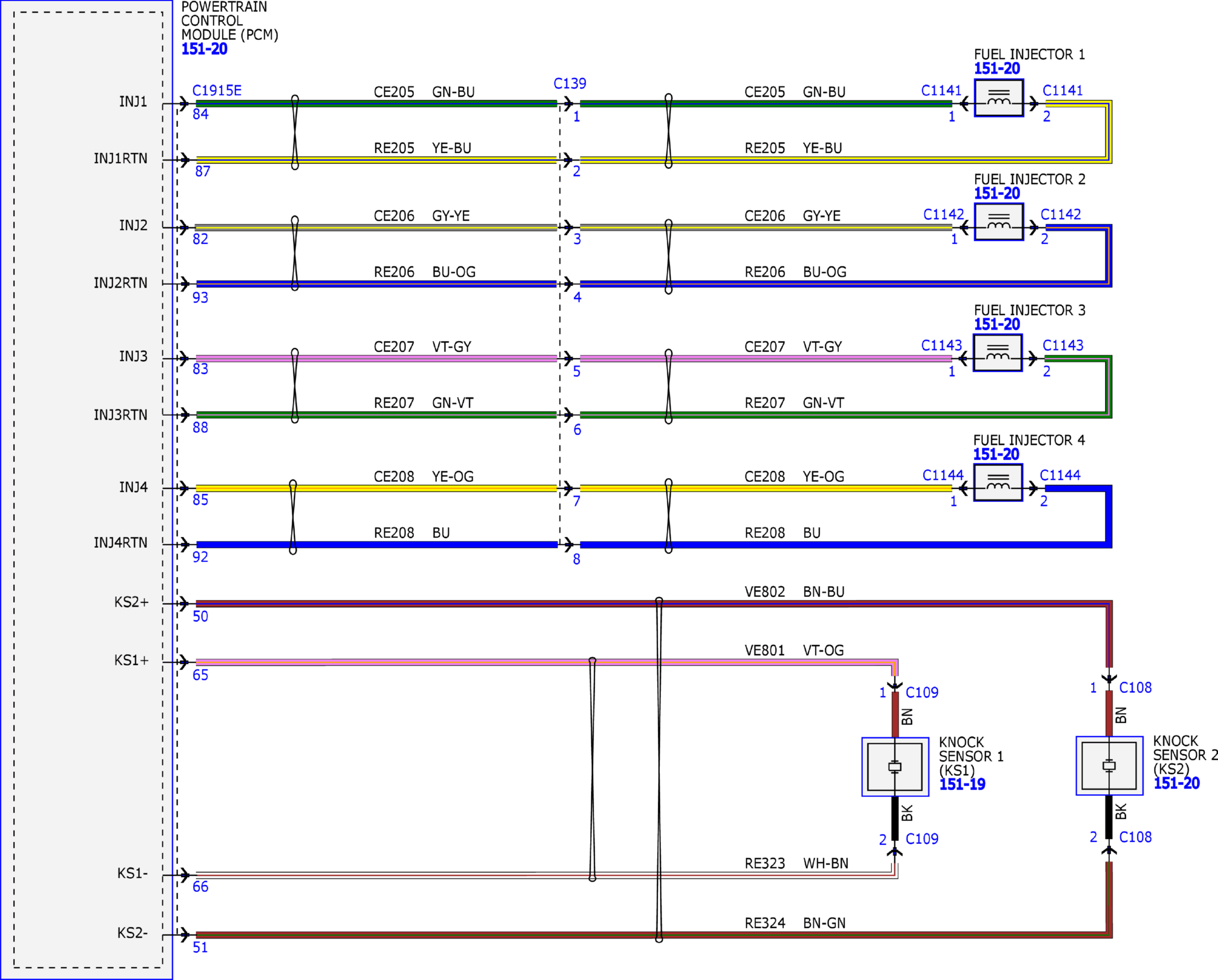

Fig 1: Electronic Engine Controls - 1.5L Wiring Diagram (1 of 12)

Courtesy of FORD MOTOR COMPANY

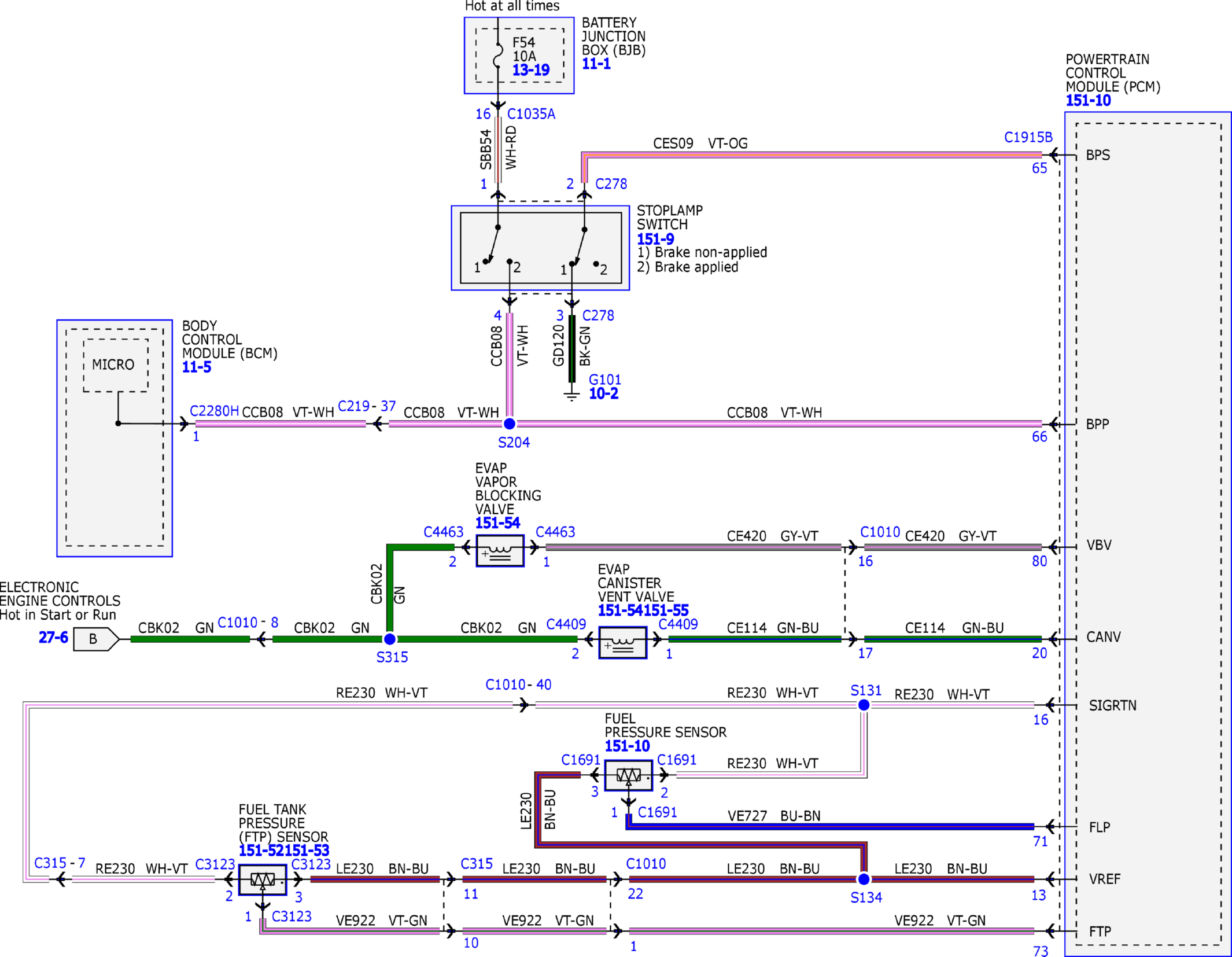

Fig 2: Electronic Engine Controls - 1.5L Wiring Diagram (2 of 12)

Courtesy of FORD MOTOR COMPANY

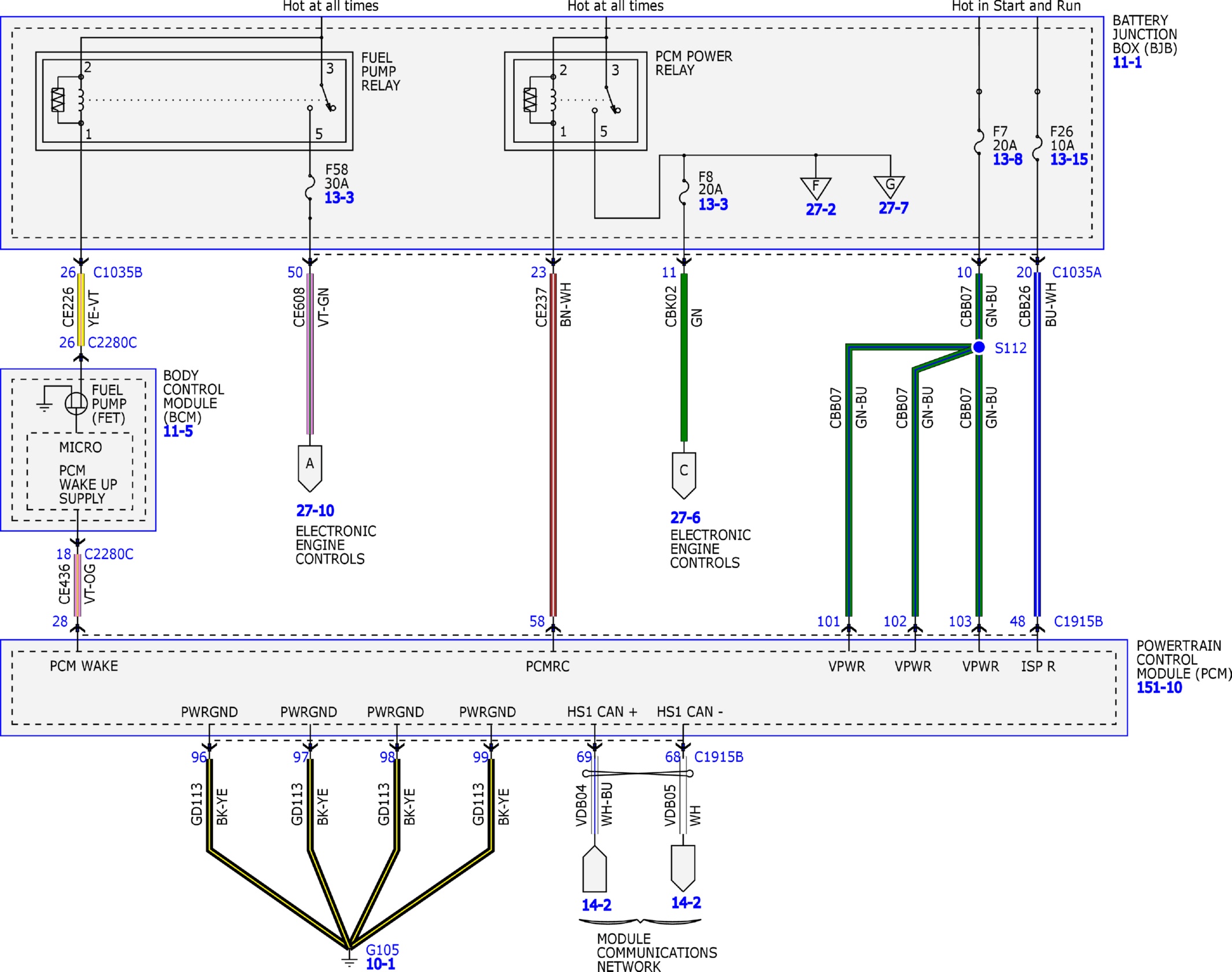

Fig 3: Electronic Engine Controls - 1.5L Wiring Diagram (3 of 12)

Courtesy of FORD MOTOR COMPANY

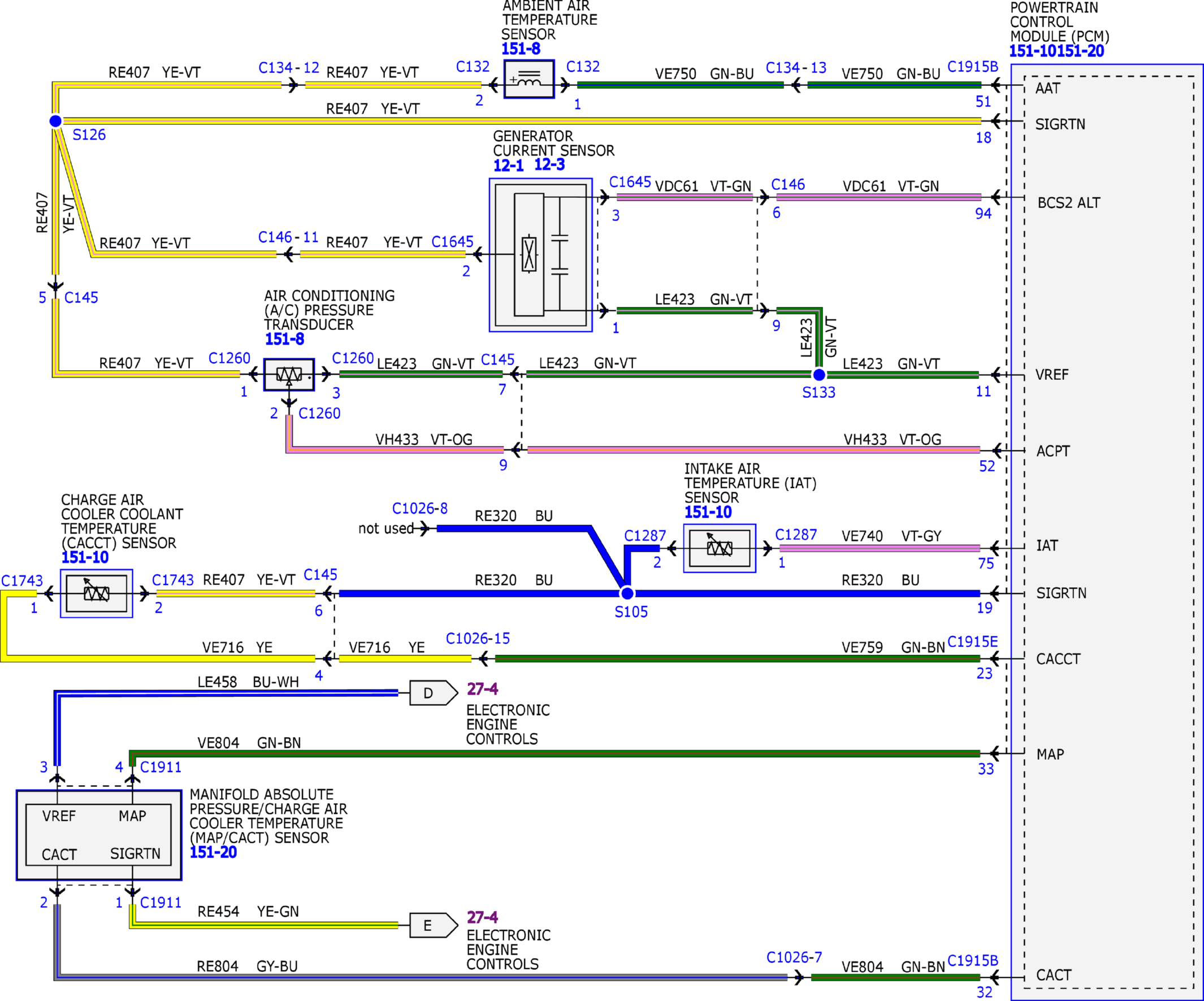

Fig 4: Electronic Engine Controls - 1.5L Wiring Diagram (4 of 12)

Courtesy of FORD MOTOR COMPANY

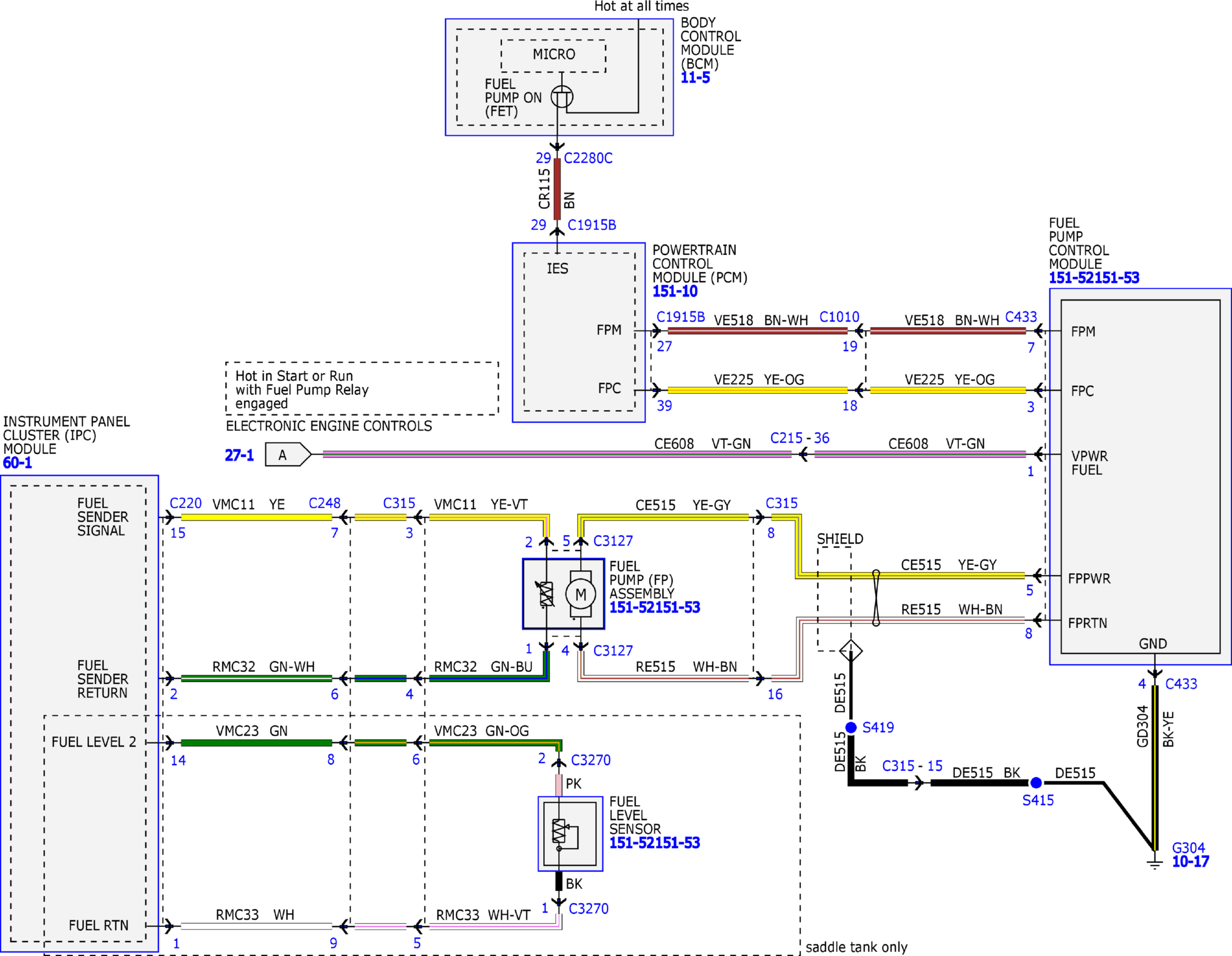

Fig 5: Electronic Engine Controls - 1.5L Wiring Diagram (5 of 12)

Courtesy of FORD MOTOR COMPANY

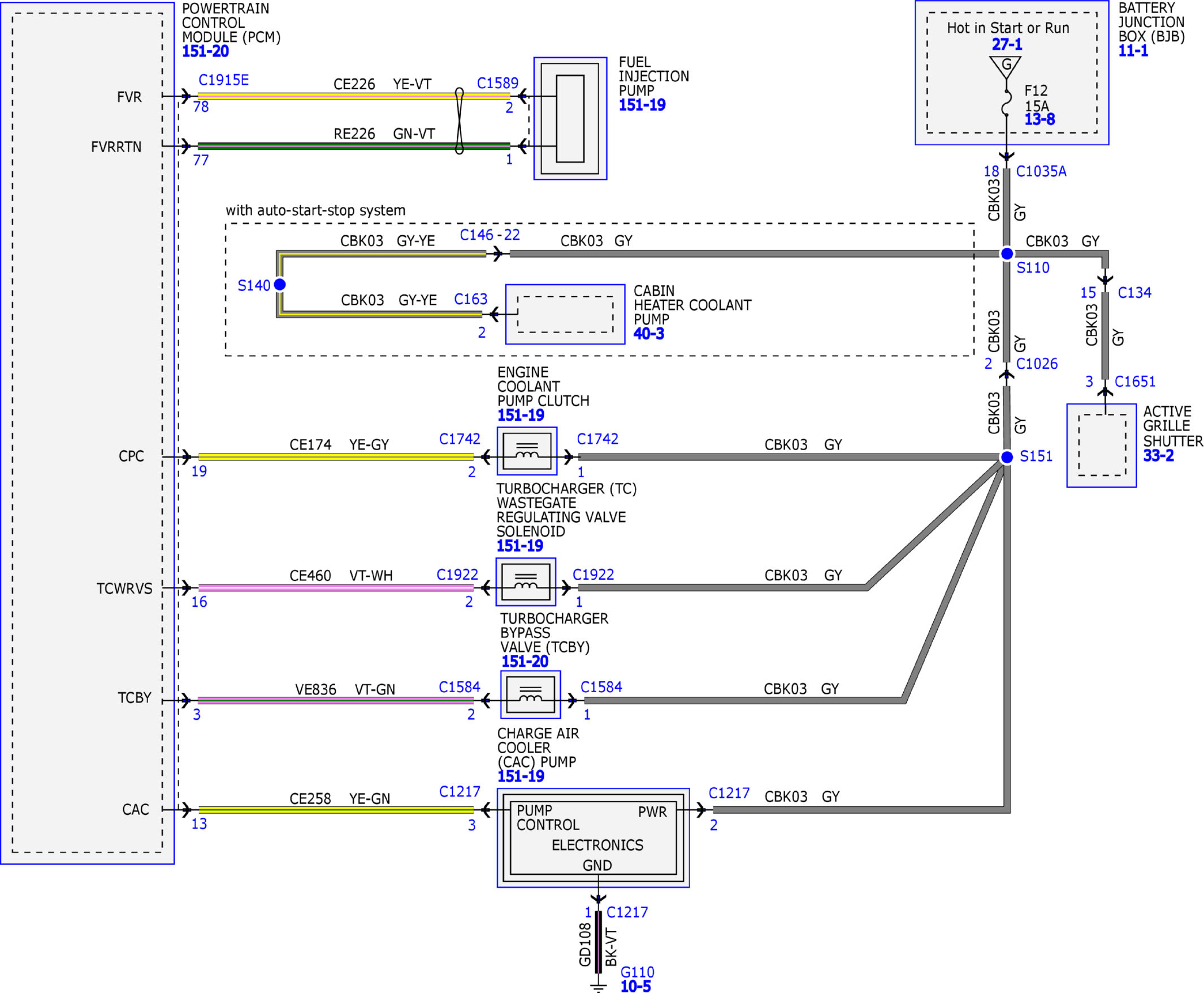

Fig 6: Electronic Engine Controls - 1.5L Wiring Diagram (6 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 7: Electronic Engine Controls - 1.5L Wiring Diagram (7 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 8: Electronic Engine Controls - 1.5L Wiring Diagram (8 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 1.5L Wiring Diagram (9 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 1.5L Wiring Diagram (10 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 1.5L Wiring Diagram (11 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 1.5L Wiring Diagram (12 of 12)

Courtesy of FORD MOTOR COMPANY
