WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Adjustable Steering Column Wiring Diagram (1 of 6)
Courtesy of FORD MOTOR COMPANY

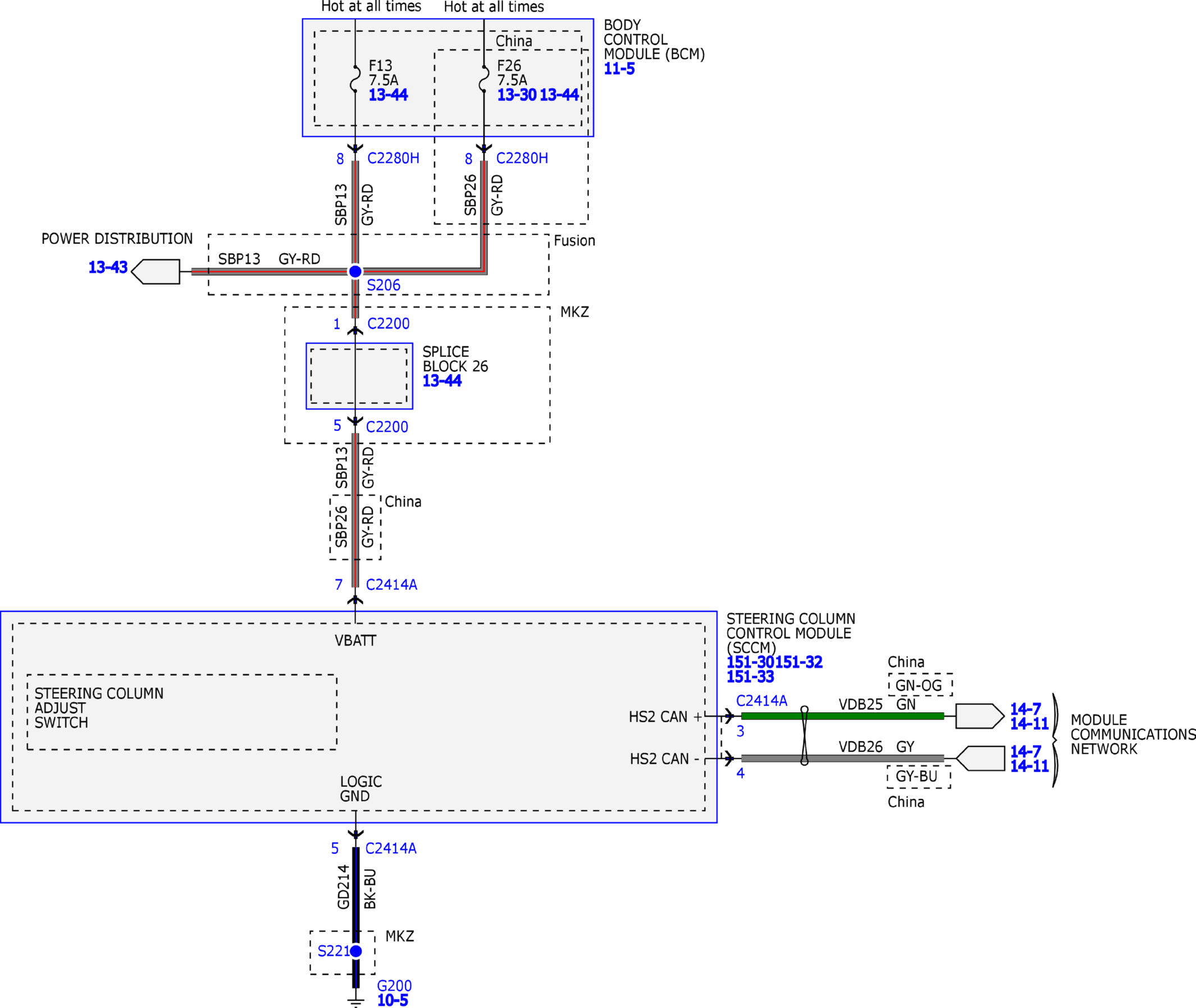

Fig 2: Adjustable Steering Column Wiring Diagram (2 of 6)
Courtesy of FORD MOTOR COMPANY
Fig 3: Adjustable Steering Column Wiring Diagram (3 of 6)
Courtesy of FORD MOTOR COMPANY
Fig 4: Adjustable Steering Column Wiring Diagram (4 of 6)
Courtesy of FORD MOTOR COMPANY
Fig 5: Adjustable Steering Column Wiring Diagram (5 of 6)
Courtesy of FORD MOTOR COMPANY
Fig 6: Adjustable Steering Column Wiring Diagram (6 of 6)
