Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

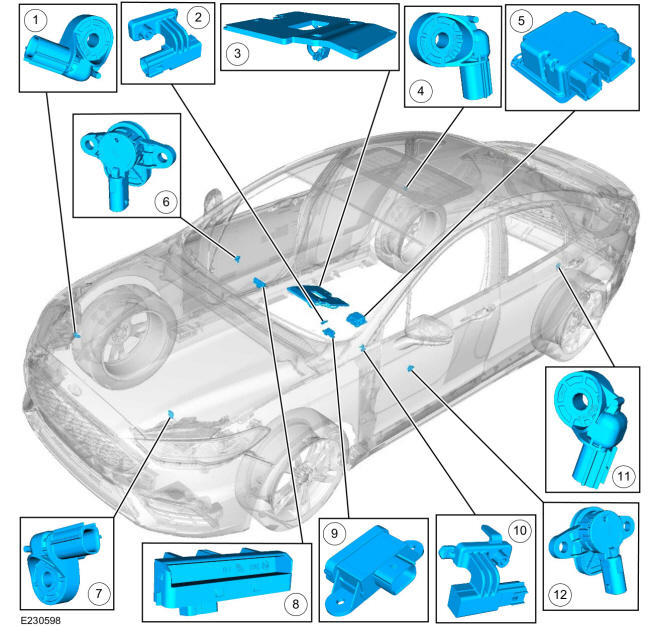

| Item | Description |
|---|---|
| 1 | RH front impact severity sensor |
| 2 | RH seat position sensor |
| 3 | OCS sensor |
| 4 | RH C-pillar side impact sensor |
| 5 | RCM |
| 6 | Passenger front door side impact sensor |
| 7 | LH front impact severity sensor |
| 8 | PAD indicator |
| 9 | BECMB |
| 10 | LH seat position sensor |
| 11 | LH C-pillar side impact sensor |
| 12 | Driver front door side impact sensor |

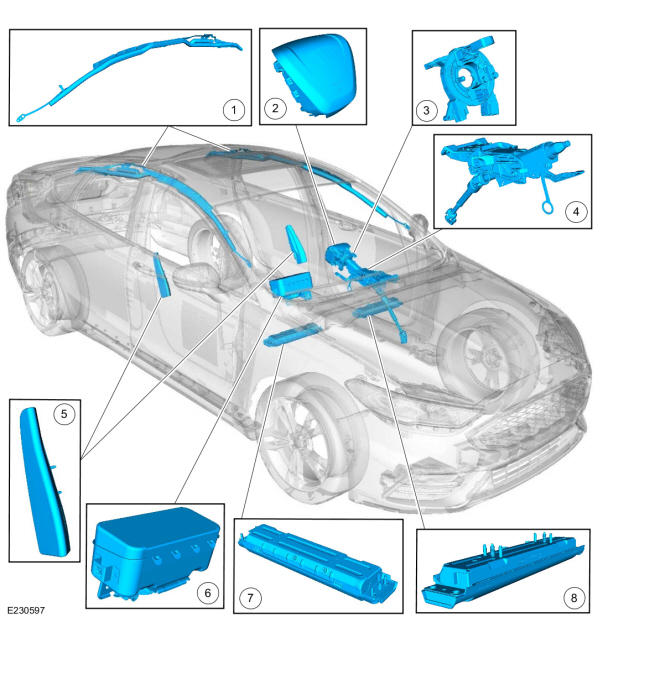

| Item | Description |
|---|---|
| 1 | Side air curtain |
| 2 | Driver airbag |
| 3 | Clockspring |
| 4 | Collapsible steering column |
| 5 | Side airbag |
| 6 | Passenger airbag |
| 7 | Passenger knee airbag |
| 8 | Driver knee airbag |

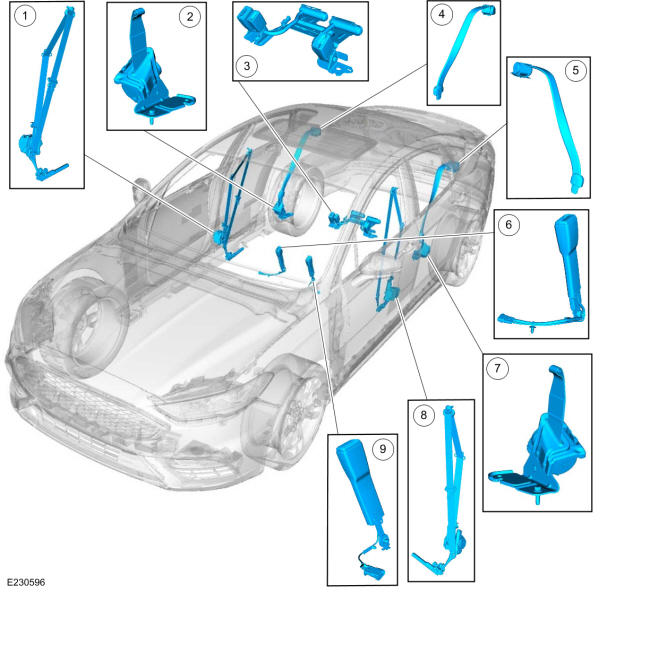

| Item | Description |
|---|---|
| 1 | Front passenger seatbelt retractor (includes retractor pretensioner, adaptive load limiter and anchor pretensioner) |
| 2 | RH rear outer seatbelt lower retractor (if equipped with inflatable seatbelts) |
| 3 | Rear seatbelt buckle assembly (if equipped with inflatable seatbelts) (includes rear seatbelt buckles, rear seatbelt buckle sensors and seatbelt inflators) |
| 4 | RH rear outer seatbelt upper retractor (if equipped with inflatable seatbelts) |
| 5 | LH rear outer seatbelt upper retractor (if equipped with inflatable seatbelts) |
| 6 | Front passenger seatbelt buckle (includes buckle sensor and Belt Tension Sensor (BTS)) |
| 7 | LH rear outer seatbelt lower retractor (if equipped with inflatable seatbelts) |
| 8 | Driver seatbelt retractor (includes retractor pretensioner and anchor pretensioner) |
| 9 | Driver seatbelt buckle (includes buckle sensor) |
