Connector End View (C9040) - SUNSHADE MODULE
WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C9040
Description
SUNSHADE MODULE
Color
LT GY
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD348 (BK-YE) | 18 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 2 | CPR86 (GY) | 26 | SWITCH - SHADE MOON/SUN ROOF OPEN | |
| 3 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 4 | CPR85 (GN) | 26 | SWITCH - SHADE MOON/SUN ROOF CLOSE | |
| 5 | * | * | Not Used | |
| 6 | SBP27 (BU-RD) | 16 | FUSE - 27 OR CIRCUIT BREAKER | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | VDB03 (GY) | 26 | CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) |
| Available Pigtail Kits | |

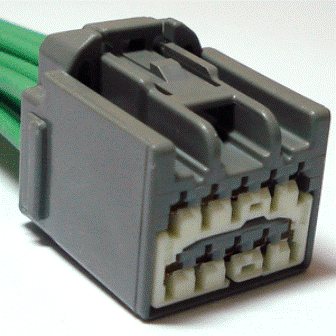

| Pigtail Kit Part Number WPT-1037 |
Service Part Number: 1U2Z-14S411-BLB Gauge: 14 Pin material: Silver Cavities: 10 Vehicle Uses Inverter - DC to AC Module - Anti-theft Module - Heated Seat Module - Power Moonroof Radio - Amplifier Solenoid - Brake Shift Park Interlock Switch - Gear Shift Select/Neutral Safety Switch - Headlamp Switch - Heated Seat Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Overdrive Cancel Switch - Turn Signal Switch - Windshield Wiper / Washer |
