Connector End View (C3668) - CONSOLE FRONT CENTER AMBIENT LED
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3668
Description
CONSOLE FRONT CENTER AMBIENT LED
Color
Harness
14B079
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBX07 (GN) | 26 | POWER - CTRL MOD. AMBIENT LIGHTING | without ambient lighting |
| 1 | CBX07 (RD) | 26 | POWER - CTRL MOD. AMBIENT LIGHTING | with ambient lighting |
| 2 | VDN07 (WH-VT) | 22 | CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] | without ambient lighting |
| 2 | VDN07 (WH) | 26 | CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] | with ambient lighting |
| 3 | GD214 (BK) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | without ambient lighting |
| 3 | GD214 (BK) | 26 | GROUND - INSTRUMENT PANEL STRUCTURE | with ambient lighting |

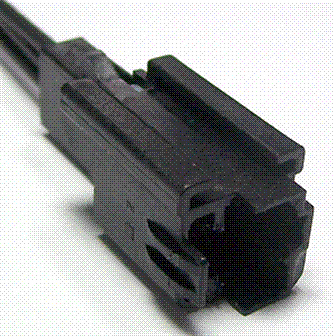

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1103 |
Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Lamp - PRNDL Indicator Module - Radio Power Antenna Switch - Overdrive Cancel |
