Connector: C3551
Description
PARKING BRAKE ACTUATOR MOTOR RT
Color
Harness
2B254
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CCB17 (BU-GN) | 12 | CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-) | |
| 2 | CCB16 (WH-VT) | 12 | CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+) |
| Available Pigtail Kits | |

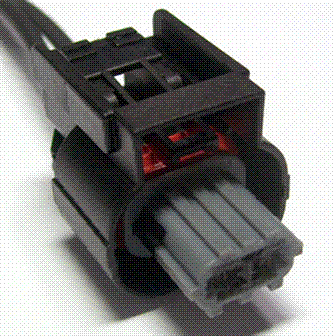

| Pigtail Kit Part Number WPT-1506 |
Service Part Number: AU2Z-14S411-DB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Actuator - Door Lock Fuel Injector Injector - UREA Sensor - Fuel Rail Pressure Solenoid - Engine Variable Timing Solenoid - Fuel Volume Regulator Control Valve - Fuel Metering Valve - Heated PCV Valve - Vapor Management |
| Pigtail Kit Part Number WPT-1065 |
Service Part Number: AU2Z-14S411-DA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Injector - UREA Sensor - Fuel Rail Pressure Valve - Fuel Metering |
