Connector End View (C3429) - AC OUTLET
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3429
Description
AC OUTLET
Color
Harness
14B079
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | HYA01 (OG-GN) | 18 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) | |
| 2 | * | * | Not Used | |
| 3 | RYA03 (BU-BN) | 22 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR - | Fusion |
| 3 | RYA03 (BN-BU) | 18 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR - | MKZ |
| 4 | LYA03 (YE-VT) | 22 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR + | Fusion |
| 4 | LYA03 (YE-VT) | 18 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR + | MKZ |
| 5 | * | * | Not Used | |
| 6 | HYA02 (OG-WH) | 18 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) |

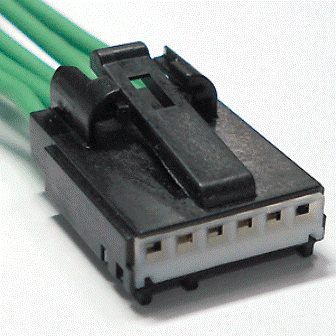

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1006 |
Service Part Number: 7U2Z-14S411-NB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front) |
