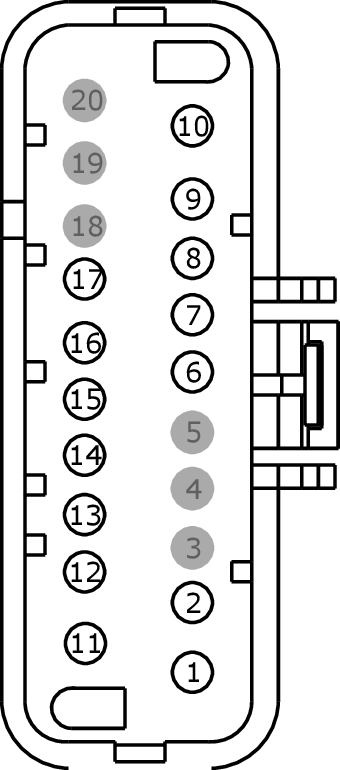

Connector End View (C3387) - SEAT CONTROL SWITCH, DRIVER SIDE FRONT
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3387
Description
SEAT CONTROL SWITCH, DRIVER SIDE FRONT
Color
Harness
14D231
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS64 (BN-VT) | 20 | SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL DEFLATE | MKZ 4-way lumbar |
| 1 | CPS96 (WH-OG) | 20 | SWITCH - SEAT MULTICONTOUR # LESS (LLS) | 10- way power seat with multi contour |
| 2 | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP | MKZ 4-way lumbar |
| 2 | CPS95 (GN-VT) | 20 | SWITCH - SEAT MULTICONTOUR # MORE (LMR) | 10- way power seat with multi contour |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 7 | CPS29 (WH-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD | MKZ |
| 7 | CPS30 (VT-BN) | 20 | SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD | Fusion |
| 8 | CPS65 (WH-GN) | 20 | SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL INFLATE | |
| 9 | CPS29 (WH-BN) | 20 | SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD | Fusion |
| 9 | CPS30 (VT-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD | MKZ |
| 10 | CBX04 (WH-RD) | 16 | POWER - SEAT # MEMORY MODULE HIGH CURRENT | with memory |
| 10 | CBX05 (VT-RD) | 14 | POWER - SEAT # POWER SEAT SWITCH | MKZ |
| 10 | CBX05 (VT-RD) | 16 | POWER - SEAT # POWER SEAT SWITCH | Fusion |
| 11 | GD904 (BK-BU) | 14 | GROUND - DRIVER SEAT # SEAT SWITCH | MKZ |
| 11 | GD906 (BK-GY) | 16 | GROUND - SEAT # MEMORY MODULE HIGH CURRENT | Fusion |
| 12 | CPS27 (BU-BN) | 20 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | Fusion |
| 12 | CPS27 (BU-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | MKZ |
| 13 | CPS26 (YE-BU) | 20 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | Fusion |
| 13 | CPS26 (YE-BU) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | MKZ |
| 14 | CPS28 (GN) | 20 | SWITCH - SEAT ADJUST. DRIVER REARWARD | Fusion |
| 14 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. DRIVER REARWARD | MKZ |
| 15 | CPS23 (GN-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FORWARD | Fusion |
| 15 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FORWARD | MKZ |
| 16 | CPS25 (WH-VT) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | Fusion |
| 16 | CPS25 (WH-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP | MKZ |
| 17 | CPS24 (GY) | 20 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | Fusion |
| 17 | CPS24 (GY) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN | MKZ |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used |
